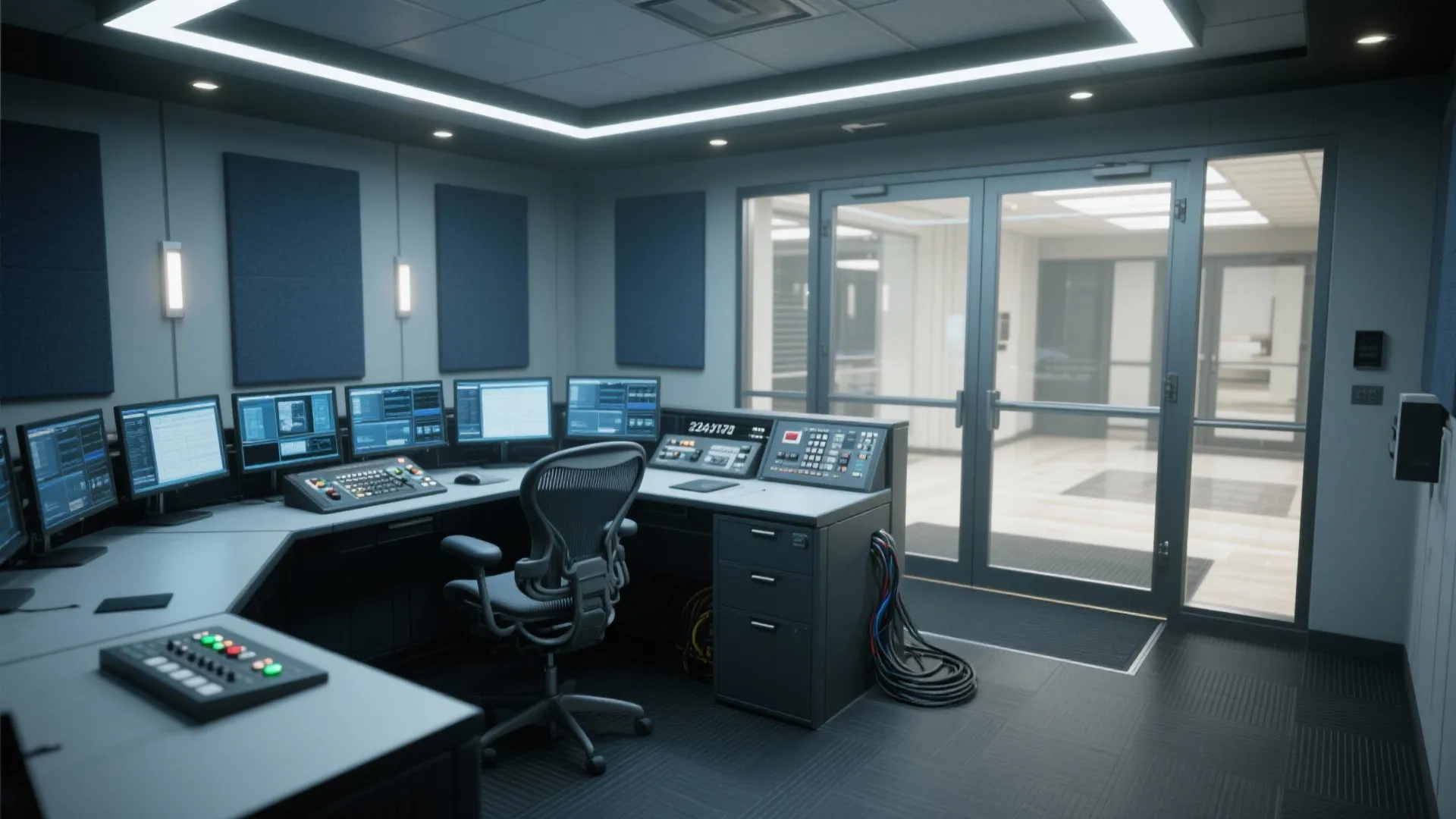

Guard Room Design: Key Tips for Functional Security Spaces: 1 Minute to Smarter Guard Room Setup & Layouts

A well-designed guard room quietly anchors the entire site’s security posture. It guides response time, improves situational awareness, and supports guards through long shifts with reliable ergonomics, clean sightlines, and resilient materials. In my projects, the best outcomes come from balancing human factors with technology—treating the space as an operational cockpit, not just a booth.

Two data points shape my baseline. The WELL v2 lighting guidance recommends maintaining 300–500 lux on work surfaces for typical task work to lower fatigue and improve accuracy, while controlling glare to UGR < 19 for critical visual tasks. Steelcase research links better ergonomic support to fewer musculoskeletal complaints and improved task performance during prolonged seated work—guard posts often run 8–12 hours per shift, so posture and movement aren’t optional. These standards inform every layout, from monitor heights to luminance distribution. For broader workplace behavior and focus patterns, I also reference Gensler’s ongoing research into task modes and spatial cues, which reinforces the value of clear zoning for heads-up monitoring versus heads-down reporting. See: WELL v2 (v2.wellcertified.com) and Steelcase Research (steelcase.com/research).

Core Objectives: Vigilance, Control, and Comfort

I design guard rooms around three outcomes: rapid recognition, decisive action, and sustained attention. That means:

- Uninterrupted sightlines from seated and standing positions across entries, lobbies, and approach vectors.

- Low-lag digital systems and clearly labeled physical controls within easy reach (5th–95th percentile reach ranges).

- Environmental comfort—stable lighting, acoustic control, and thermal consistency—so guards can maintain focus for hours without strain.

Layout Strategy and Zoning

I treat the workstation as a cockpit with three concentric zones: immediate (keyboard, PTT radio, panic, primary monitors), secondary (access control panels, intercom matrix, visitor management), and tertiary (storage, backup radios, charging hubs). The security operator should pivot or roll no more than 90° to reach secondary controls. For teams or high-traffic lobbies, I add a receiving/triage zone—separate from the monitoring line—to avoid blocking sightlines. Use an interior layout planner to simulate angles, reflectances, and monitor cone visibility; a layout simulation tool like this room layout tool helps validate depth, adjacencies, and circulation before build-out.

Sightlines, Monitor Walls, and Viewing Angles

For multi-monitor arrays, keep primary displays within a 15° vertical and 30° horizontal field from the neutral head position to reduce neck strain. I aim for the top of the primary monitor at or slightly below eye level for the average user; secondary feeds stair-step outward. If a video wall is required, center the critical zone at seated eye height ~46–48 inches AFF for typical chairs, with a standing reference band at 60–62 inches for check-ins.

Lighting Design: Bright Enough, Never Harsh

On task surfaces I target 300–500 lux, dimmable, with 4000–5000K CCT for crisp visual discrimination of badges and screens, while avoiding blue-heavy glare at night. Indirect ambient lighting plus localized task lights let guards tune brightness per shift. Keep reflectances matte on work surfaces (LRV 20–40) to minimize veiling reflections on screens. Follow IES standards for luminance ratios between monitors and background to reduce eye strain during continuous CCTV monitoring.

Acoustic Comfort and Speech Privacy

Guard rooms straddle two acoustic conditions: monitoring clarity and visitor interaction. Add sound-absorbing finishes (NRC 0.70+ ceiling tiles, wall panels at key reflection points) and consider a small vestibule or partial-height baffle at the service window to prevent lobby noise from washing over radios. If dispatch or sensitive calls occur in-room, a STC 45+ partition to the lobby and door perimeter seals maintain intelligibility. Floor finishes: high-density rubber or low-pile acoustic carpet for footfall control.

Ergonomics: Chairs, Desks, and Reach

Use 24/7-rated chairs with adjustable lumbar, seat depth, and armrests; guards can be in position for 8–12 hours. Height-adjustable consoles (27–47 inches) support sit-stand rotation—small posture changes every 30–45 minutes sustain vigilance and reduce fatigue. Cable management and rounded edges prevent snags with duty belts. Keep emergency controls (duress, lockdown) within the primary reach envelope (~16–18 inches from the front edge) and protected with flip covers to prevent accidental activation.

Access Control and Visitor Handling

The transaction window should allow natural conversation without shouting; install a low-profile pass-through or drawer for IDs and packages. If biometric readers are used, mount heights should accommodate the 5th–95th percentile users, typically 36–44 inches AFF for card readers and 48 inches AFF for facial terminals, with a clear approach zone. Segregate the visitor queuing path from secure back-of-house access to avoid cross-flow conflicts.

Technology Integration and Redundancy

Build for redundancy: dual power circuits, UPS for core racks, dedicated data drops per device, and passive cooling pathways for dense AV. Position the network cabinet outside of public reach but within quick service distance. Label everything, color-code by system, and use front-access consoles so techs don’t need to dismantle the station to swap gear. Provide lockable storage for body cams, radios, and evidence kits with charging cubbies.

Materiality and Durability

Materials need to survive constant contact. I specify compact laminate or powder-coated metal for console surfaces, impact-resistant corner guards, and cleanable, non-porous wall finishes near the transaction zone. Choose easy-clean textures with low pattern noise around screens to reduce visual clutter. For sustainability, prioritize low-VOC finishes and durable products with long service intervals to reduce lifecycle impacts.

Color Psychology and Visual Rhythm

Cool-neutral palettes (soft grays, muted blues) support vigilance and perceived brightness without glare. Warm accents belong in visitor-facing zones to keep interactions calm and respectful. Keep the background field behind monitors neutral and darker than the display but lighter than black to moderate contrast—this helps with visual balance and reduces fatigue, a point supported by environmental psychology and color perception research frequently discussed in color psychology literature such as Verywell Mind.

Thermal and Air Quality Considerations

Constant equipment loads make microclimate control essential. Provide dedicated supply and return near the console, with diffusers that avoid drafts on the neck and hands. Ensure fresh air meets or exceeds local codes; in high-tech stations, I add a discreet temperature sensor near the equipment bank and a separate one at the operator position to tune setpoints realistically.

Small-Footprint Guard Rooms

For compact booths, prioritize line-of-sight first: lower solid portions of glazing to 30–34 inches AFF and keep mullions thin near critical views. Use corner glazing to widen the field. In these scenarios, a room design visualization tool helps model seated vs. standing eye heights, glare paths, and queue lines ahead of time; try an interior layout planner such as this layout simulation tool to test options quickly.

Security Posture and Behavior Patterns

Design should reinforce the behavior you need: a clear observer’s axis that naturally orients to entries; a secondary zone for report writing away from foot traffic; and quick pivot points to doors, radios, and intercom. Keep wall-mounted SOPs and incident checklists at eye level, laminated, and front-lit—no backscatter on screens.

Commissioning and Handover

Before turnover, verify lux levels at the work surface, check monitor glare at day and night conditions, measure ambient noise, and run a timed drill for access control and duress systems. Calibrate chair and desk presets for each shift lead. Good commissioning prevents micro-frictions from becoming daily frustrations.

FAQ

What is the ideal lighting level for a guard room?

Target 300–500 lux on work surfaces with dimming. Keep glare low and maintain comfortable luminance ratios around monitors, aligning with WELL v2 guidance and IES practices for visual tasks.

How many monitors are too many?

The limit is ergonomic: primary feeds should sit within 30° horizontal, 15° vertical of neutral head position. Beyond that, shift noncritical feeds to secondary positions or a video wall at proper height.

What chair specs work for 24/7 posts?

Use 24/7-rated chairs with adjustable lumbar, seat depth, arms, and breathable upholstery. Pair with a height-adjustable console to enable sit-stand rotation every 30–45 minutes.

How do I handle visitor transactions without compromising security?

Provide a glazed transaction window with a pass-through drawer, maintain an STC 45+ partition to the lobby if speech privacy is needed, and separate visitor queueing from secure staff ingress.

What acoustic measures reduce fatigue?

Install NRC 0.70+ ceiling tiles, targeted wall panels at reflection points, and soft flooring. Baffle the service window or add a short vestibule to limit lobby noise.

What are best practices for emergency controls?

Place duress and lockdown controls within primary reach (~16–18 inches from the desk edge), shield with flip covers, and label distinctly. Train and drill during commissioning.

Which colors support alertness?

Cool-neutral bases with muted blues or grays maintain vigilance without glare. Use warmer tones at the visitor interface to keep interactions calm. Keep backgrounds behind monitors neutral and matte.

How should equipment racks be integrated?

Keep racks lockable, serviceable from the front, on dedicated circuits with UPS, and thermally managed. Locate within fast reach yet out of public view, with labeled and color-coded cabling.

How do I plan for small guard booths?

Maximize glazing at eye height, minimize mullion disruption, and validate sightlines and circulation using an interior layout planner or a room layout tool before construction.

What commissioning checks matter most?

Verify measured lux levels, glare at day/night, acoustic performance, thermal balance at operator and equipment zones, data/power redundancy, and run timed drills for access control and duress.
