Guest House Floor Plans Small: Smart Solutions for Tiny Spaces: 1 Minute to the Perfect Compact Guest House Layout

A compact guest house can feel generous when spatial ratios, light, and circulation are tuned with care. I focus on layouts that compress service zones, expand social areas, and keep lines of sight open. In small footprints, I typically target a primary space (living/sleeping) of 55–70% of the plan, with a service core (bath, storage, kitchenette) of 20–30%, and transition/entry of 10–15%. This ratio avoids the claustrophobic pinch that happens when utilities sprawl. Steelcase research links spatial clarity and choice to perceived control, which in turn boosts comfort; their studies on environmental control and wellbeing highlight that even small environments benefit from purposeful zoning and adjustable features (source: steelcase.com/research). WELL v2 further recommends at least 300 lux ambient lighting in regularly occupied spaces and 2700–3000K warm-white for relaxation, data I use to shape lighting layers in small guest suites (source: wellcertified.com).

I measure acoustic comfort early. Steelcase notes that noise distraction consistently ranks among the top workplace complaints, and the same applies to small dwellings; modest NRC 0.70+ ceiling tiles or a wool felt wall panel behind the bed can damp late-night sound spill. On the visual side, color psychology from Verywell Mind indicates soft blues and greens lower heart rate and support calm—useful for small sleep niches where overstimulation happens quickly (source: verywellmind.com/color-psychology). When planning layouts, I often pre-visualize furniture scale and circulation widths with a room layout tool to test clearances and sightlines before committing.

Compact Layout Principles

Small guest houses thrive on a simple circulation loop and dual-purpose zones. I keep primary walkways at 30–36 inches; 36 inches becomes essential in accessible paths. The bed orientation sets the reading of the room—placing the headboard against the longest continuous wall reduces visual fragmentation. A sliding door to the bath saves 8–10 inches vs. a swing and eliminates door conflict with the bed. Storage should be vertical and peripheral: a 14–16 inch deep wardrobe along the entry wall keeps the center open. I design kitchenettes as 6–8 foot linear runs with an under-counter fridge and a single-bowl sink; work surfaces of 24 inches deep are adequate when paired with a movable nesting table that doubles as a desk.

Three Proven Micro-Plan Typologies

1. Studio Suite (200–320 sq ft)

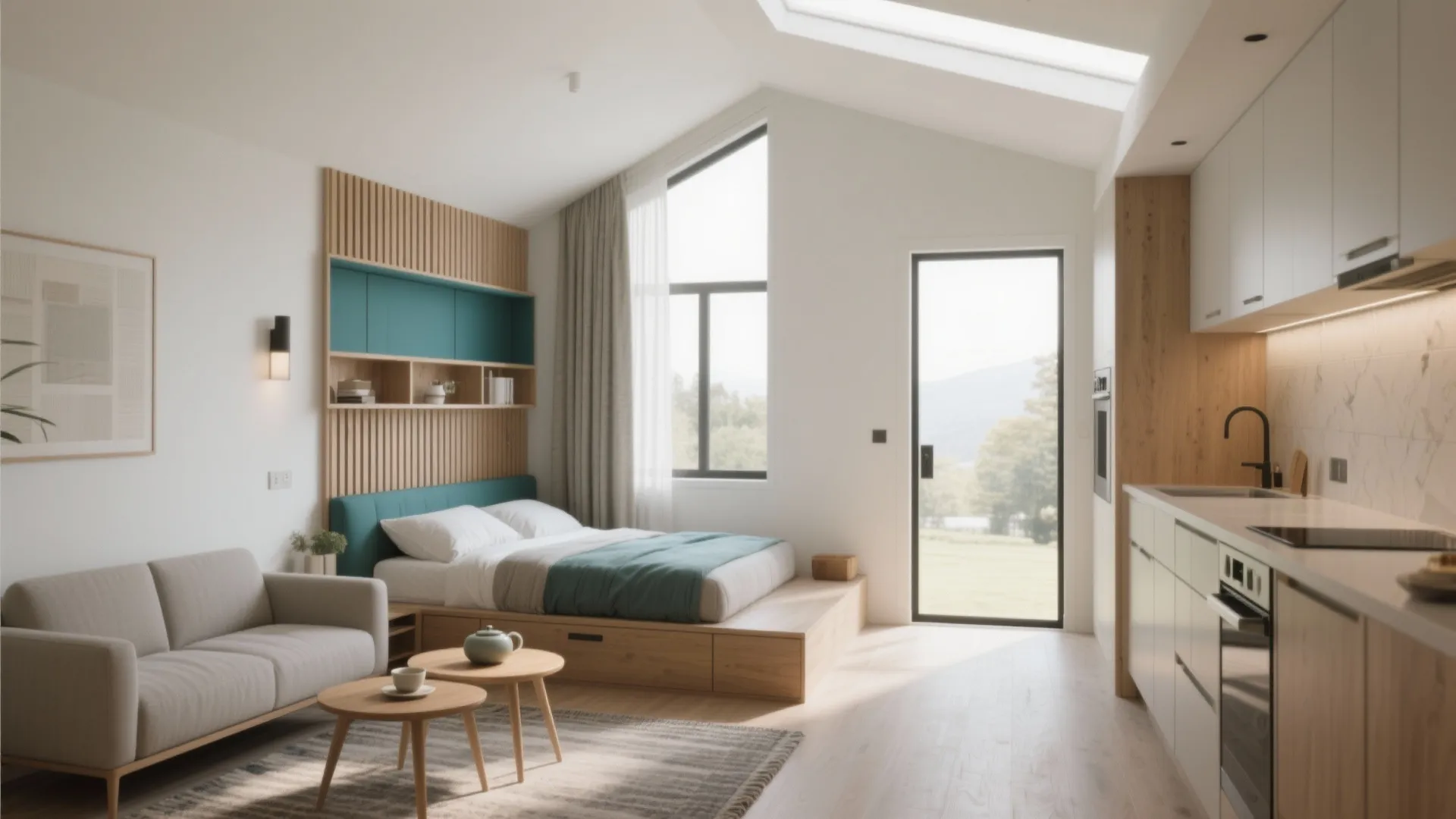

One contiguous space with a compact bath. I float a queen-size bed (60x80 inches) behind a half-height storage partition, creating privacy without blocking light. A loveseat and nesting tables sit opposite the bed. The bath runs 5x7 feet with a pocket door; if the footprint is tight, a 32-inch shower keeps clearances workable. Natural light ideally comes from two orientations—if only one facade is possible, a glazed transom above the bath borrows light. Use the interior layout planner to test partition heights and glare angles.

2. Micro One-Bed (280–420 sq ft)

Separate sleeping room plus a compact living area. The living room remains open to the kitchenette; a 24-inch counter-height peninsula defines the edge without sealing it. The bedroom fits a full bed and a 20-inch deep dresser. Keep doors aligned to create a sightline from entry to windows, expanding perceived depth. Sliding wardrobes and flush pulls reduce projection into circulation.

3. Flex Loft (240–360 sq ft)

A sleeping loft above storage or bath, reserved for ceiling heights 10 feet or more. Guard the loft edge with open shelving to maintain airiness. A daybed below becomes seating by day and a guest bed if stairs are challenging. I limit loft mattresses to full size and maintain 36-inch stair width; alternating tread stairs can work but should be reserved for agile users. Loft lighting needs indirect layers to avoid glare under the mezzanine.

Light Environment: Layers, Color Temperature, Glare Control

Small rooms magnify glare. I specify layered lighting: dimmable 2700–3000K ambient for evening, 3000–3500K task lighting over counters, and low-glare wall grazers to stretch the space visually. WELL v2’s 300 lux baseline informs ambient targets; I often aim for 150–200 lux in sleep zones at night via dimming. Shield bright sources with diffusers or indirect fixtures. At windows, a dual-shade system—sheer for daytime diffusion, blackout for sleep—manages contrast ratios so your eyes aren’t jumping from bright exterior to dark interior.

Color Psychology and Material Selection

Palette sets tempo. Soft cool hues calm, while warm neutrals add hospitality; Verywell Mind’s findings on blue/green calming effects are dependable in compact sleeping areas. I keep large surfaces light with a matte finish to minimize specular glare. Add tactile warmth via oak, cork, or wool. For wet areas, porcelain tile with a 0.42+ DCOF rating improves slip resistance. Acoustic textiles—wool blends, felt wall tiles—soften the room’s response; aim for NRC 0.30+ with rugs and upholstery in small spaces to avoid the “hard box” feel.

Ergonomics and Human Factors

Micro spaces need forgiving ergonomics. Maintain 17–19 inch seat height, 15–18 inch seat depth for compact sofas, and 28–30 inch work surface heights. Keep frequently used storage between 24–60 inches above floor. Nightstands at 22–26 inches high meet typical mattress heights. In bathrooms, ensure a 30x48 inch clear floor area for maneuvering. I avoid toe-stubbing by recessing baseboards under wardrobes and using soft-close hardware to reduce noise spikes.

Acoustic Comfort in Tiny Footprints

Thin assemblies transmit noise easily, so I plan a layered approach: a resilient underlayment under flooring, a rug with dense felt pad, and soft window treatments. A cork or rubber underlayment of 2–3 mm can reduce impact noise noticeably. If sharing a wall with the main house, add a decoupled stud or resilient channel at that partition; even one wall with higher STC changes the perceived privacy. Place the bed away from plumbing chases when possible.

Storage that Disappears

In small guest houses, storage should read as architecture. I run tall cabinets to the ceiling and integrate a vented upper cubby for luggage. Under-bed drawers are quieter and more accessible than lift-up mattresses. A shallow niche near entry holds keys and devices, with a concealed power strip and cable management. In the bath, a 4-inch deep mirrored cabinet avoids protrusion while adding practical capacity.

Outdoor Interface

An edge deck or small stoop expands the living moment and controls dirt entry. A 4x6 foot landing allows two people to sit comfortably. Provide a coat hook rail and a bench inside the door, creating a micro-mudroom and keeping circulation clear.

Sustainability Moves

Choose durable finishes: quartz with rounded edges in the kitchenette, FSC-certified woodcasework, low-VOC paints. LED fixtures with high efficacy and 90+ CRI support visual comfort and reduce energy demand. Cross-ventilation via operable windows on two sides lowers reliance on mechanical cooling; if not possible, add a quiet ceiling fan to move air without raising decibel levels.

Planning Workflow

I prototype furniture groupings and door swings in a room design visualization tool before refining. Simulations catch conflicts early—especially in micro-baths and kitchenettes where every inch matters.

Tips 1: Fast Wins for Tiny Guest Houses

- Use sliding or pocket doors in baths.

- Keep primary walkways at 30–36 inches.

- Choose nesting tables over a fixed coffee table.

- Layer lighting with dimmable warm ambient and focused task.

- Build storage to the ceiling with integrated luggage cubbies.

- Favor matte finishes to reduce glare.

- Add a rug with a dense pad and soft window coverings for acoustic relief.

FAQ

Q1: What’s a comfortable minimum size for a tiny guest house?

A: 200–320 sq ft can work if you keep service zones compact, preserve 30–36 inch circulation paths, and maintain clear sightlines to windows.

Q2: How much lighting do I need?

A: Aim for about 300 lux ambient in living areas per WELL v2 guidance, with 2700–3000K warm-white for relaxation and brighter task lighting (3000–3500K) over work surfaces.

Q3: What bed size is most space-efficient?

A: A full (54x75 inches) balances comfort and circulation. If you can afford the footprint, a queen (60x80) behind a low partition feels generous without closing the room.

Q4: How do I reduce noise in small footprints?

A: Combine a resilient flooring underlayment, a dense rug pad, soft window treatments, and, if needed, a decoupled wall with resilient channels on the shared partition.

Q5: Which colors help tiny spaces feel calm?

A: Soft blues and greens are consistently associated with relaxation in color psychology research; pair them with warm neutral woods for balance.

Q6: What’s the best kitchenette layout?

A: A 6–8 foot linear run with under-counter appliances and a movable peninsula or nesting table provides prep space without blocking circulation.

Q7: Can I include a loft safely?

A: Yes, with 10+ foot ceilings, a 36-inch stair width, guardrails, and indirect lighting to avoid glare; reserve alternating tread stairs for agile users.

Q8: How do I hide storage?

A: Build full-height cabinets along one wall, integrate under-bed drawers, and use shallow niches with concealed power for devices.

Q9: What door types save space?

A: Pocket and sliding doors prevent swing conflicts in micro-baths and small bedrooms, reclaiming 8–10 inches of clearance.

Q10: How can I boost perceived space without enlarging?

A: Align doors for long sightlines, use low partitions instead of solid walls, dimmable layered lighting, and maintain a light, matte palette to control glare.

Q11: What are essential ergonomic dimensions?

A: 17–19 inch seat height, 15–18 inch seat depth, 28–30 inch work surface height, and storage frequently used between 24–60 inches above floor.

Q12: Is outdoor space worth the square footage?

A: A small stoop or deck extends the living moment, supports airflow, and helps keep interior circulation uncluttered—well worth the footprint.
