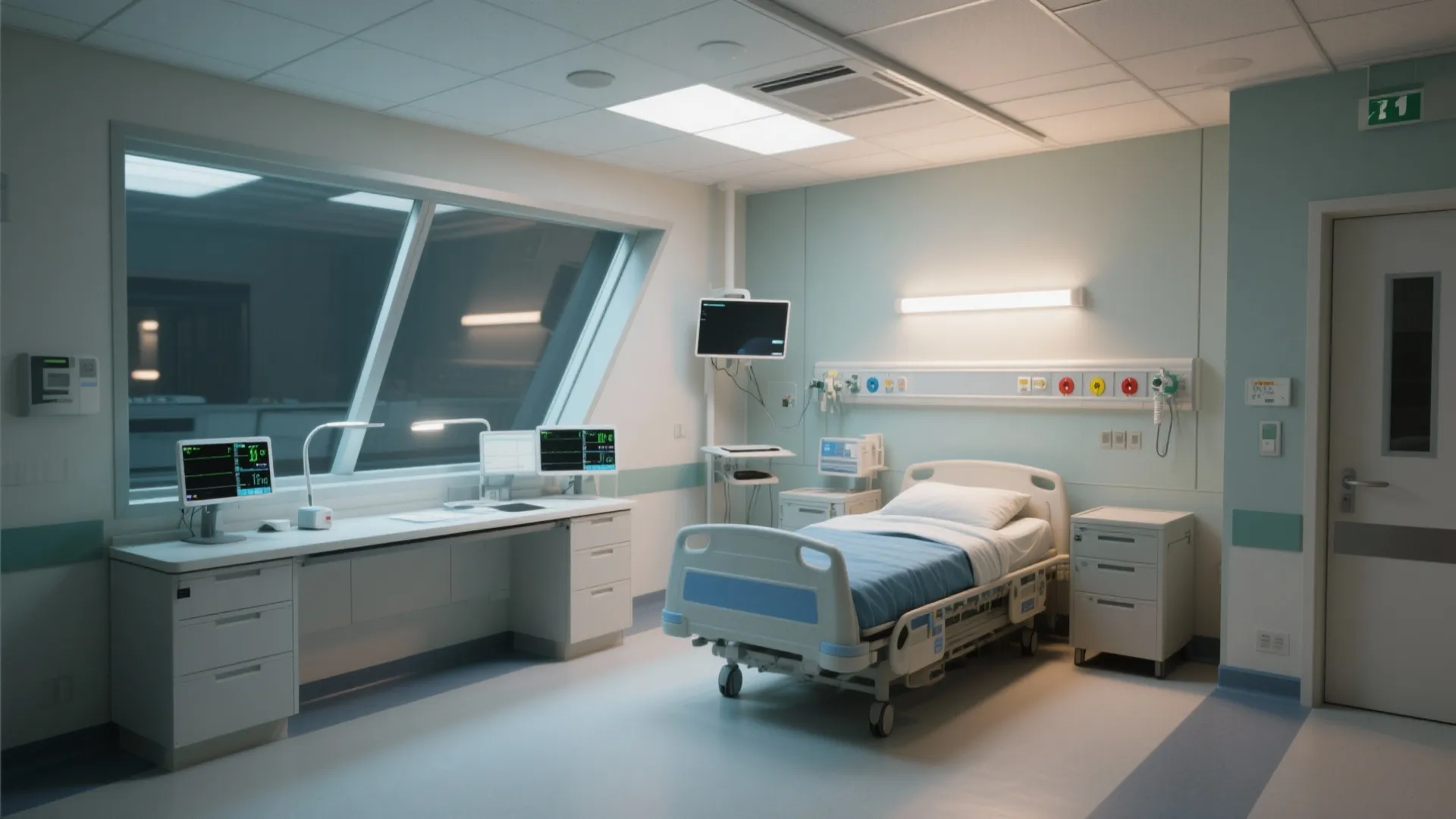

HDu Room in Hospital: Essential Design Guide: Fast-Track Guide to Creating Efficient HDu Hospital Rooms

High Dependency Units (HDUs) sit at the hinge point between general wards and intensive care—close monitoring, rapid intervention, and dignified recovery must coexist in a compact, high-performing space. I design HDUs around three anchors: clinical visibility, effortless workflows, and restorative comfort. The data backs this balance: the WELL v2 Lighting concept highlights that appropriate illumination strategies support circadian health and recovery, with recommendations for melanopic lighting and glare control that shape where and how we light patient areas; and Steelcase research notes that well-designed clinical environments can improve staff effectiveness and reduce stressors that lead to errors, reinforcing the need for evidence-led planning (see WELL v2 and Steelcase Research).

Operational efficiency is equally measurable. Herman Miller’s healthcare research reports that poorly planned clinical adjacencies and storage lead to wasted staff time and increased travel distances—small layout improvements can reclaim minutes per hour, which accumulates across shifts into meaningful capacity and safer care. Lighting quality is quantifiable as well: IES recommends task-appropriate illumination levels to reduce eye strain and error risk; in HDUs I target layered lighting that achieves guideline-compliant illuminance at work surfaces while preserving patient comfort during rest periods.

Core Planning Principles for HDU Design

I begin with a macro-to-micro approach: define care models, align adjacencies, then sculpt room ergonomics. HDUs require direct or near-direct line-of-sight to staff bases, short routes to treatment rooms and clean/dirty utility, and clear access to imaging, isolation, and emergency response.

1. Clinical visibility: Angled glazing, half-height partitions near doors, and decentralized observation points reduce blind spots. Staff should visually confirm vitals and patient status without constant room entry.
2. One-way flow: Separate clean supply routes from dirty returns to curb cross-contamination. Clear zoning shapes predictable movement under pressure.
3. Staff refuge near action: Provide micro touchdown points with charting ability directly outside rooms—seconds matter.

Room Layout, Clearances, and Circulation

Inside the room, I protect a continuous 1.5–1.8 m circulation loop around the bed to allow two caregivers to operate simultaneously without conflict. Bed centers typically sit 1.1–1.3 m off the headwall for equipment swing and line access. Doors open fully without clipping booms or carts; sliding doors with integral vision panels reduce footprint conflict in narrow corridors. For multi-bed HDUs, bed spacing must preserve emergency egress and equipment maneuvering while maintaining sight lines to nurses’ stations.

For planning and quick option testing during schematic design, a layout simulation tool like this room layout tool helps validate equipment clearances, staff circulation, and patient transfer paths before committing to MEP rough-ins.

Headwall and Medical Gas Strategy

The headwall is the clinical backbone. I position oxygen, vacuum, and medical air with ergonomic reach profiles—primary connections within 350–500 mm lateral reach from the caregiver’s standing position, and monitors at 1.3–1.5 m eye level to minimize neck strain. A vertical services column or ceiling-mounted boom can future-proof upgrades. Color-coded and clearly labeled gas outlets support rapid identification under stress. Redundant power (separate circuits and essential power outlets) at the headwall and footwall reduces tripping hazards from extension runs.

Lighting: Observation and Rest in the Same Room

HDU lighting must pivot between clinical acuity and patient recovery. I implement layered lighting: indirect ambient lighting to soften the field, task lighting at the bed and charting points, and low-level night lighting for safe nocturnal checks. Following the spirit of IES recommendations for healthcare tasks, I target approx. 300–500 lux at the bed task zone when procedures occur, dimmable to 50–100 lux for rest, with CCT tuning from 2700–3000K evenings to 4000–5000K during day shifts. Glare control (baffles, lensing, and avoiding direct view of luminaires from the patient supine position) protects comfort. Night modes preserve melatonin cycles aligned with WELL v2 Guidance on circadian-supportive lighting.

Acoustics and Privacy

Noise elevates stress and impairs sleep—a direct threat to recovery and staff focus. I specify high NRC ceiling tiles, acoustic wall finishes behind the bed (cleanable, hospital-grade), soft-close hardware, and rubber threshold transitions. Separate alarm management strategies—visual annunciation paired with localized audio—curb the auditory clutter that fatigues caregivers. Curtains or switchable privacy glazing allow rapid observation without constant entry, balancing dignity and control.

Materials, Infection Control, and Sustainability

Materials must resist pathogens, harsh cleaning agents, and daily impacts. Seamless resilient flooring with coved bases, integral sinks with offset drains, and minimal joints reduce microbial harborage. I select finishes with low VOCs and high durability; handrails and bed bumpers protect walls from equipment strikes. Where feasible, choose materials with Environmental Product Declarations and circularity potential to reduce lifecycle impact, provided they meet infection control requirements. Non-porous, matte finishes help limit glare while surviving rigorous cleaning cycles.

Ergonomics and Human Factors

The HDU is an endurance environment. I design workstation heights to support both sitting and standing charting, ensure monitors and storage are within primary and secondary reach zones, and maintain clear sight lines that reduce head/neck rotation. Patient lifts and transfer space reduce musculoskeletal strain. Color accents aid wayfinding and reduce cognitive load; for example, consistent color-coding for clean vs. dirty zones or equipment types supports rapid decision-making.

Color Psychology and Visual Comfort

Color is intervention, not decoration. Calming hues with low saturation near the patient zone reduce arousal, while slightly higher contrast at equipment interfaces improves legibility. Warmer tones near rest zones paired with cooler, neutral backgrounds at clinical surfaces help clinicians identify spills or contamination. Visual rhythm—repetition of fixtures, rails, and datum lines—calms the field and aids quick scanning.

Technology Integration and Future-Proofing

Plan for more outlets and data drops than current standards require. Wi-Fi density, telemetry, and RTLS (real-time locating systems) enable tracking of equipment and staff, cutting search time and improving response. Ceiling booms, modular headwalls, and accessible cable management simplify upgrades as technology evolves. Bedside interfaces should be intuitive, with minimal glare and clear states visible from the threshold.

Staff Workflow, Storage, and Adjacencies

Staff efficiency depends on proximity. Place clean supply within 6–10 m of most HDU rooms, with decanting stations to reduce room clutter. Dirty holding should be on a separate, direct path to soiled utility. Medication safety benefits from secure, well-lit dispensing near staff bases. Locate respite spaces within 30–60 seconds of the unit core—burnout prevention is part of patient safety.

Safety, Redundancy, and Codes

Design with contingencies: redundant power for critical loads, protected nurse call and code blue systems, negative/positive pressure capacity where isolation is required, and door hardware that allows rapid entry. Egress routes must remain clear even at surge capacity. Incorporate clear, consistent signage and lighting for emergencies.

Room Types and Variations

Single-bed HDUs maximize infection control and privacy; multi-bed bays improve observation density and staff efficiency. Hybrid models use half-height separations with integral glazing to maintain sight lines while tempering noise. Isolation-capable rooms require dedicated anterooms with hands-free sinks and clear donning/doffing sequences.

Commissioning and Post-Occupancy Insights

I always simulate code events, patient transfers, and night-mode workflows before handover. Post-occupancy evaluations often reveal the same wins: right-sized storage cuts corridor clutter, visual alarm strategies reduce noise, and tunable lighting stabilizes rest cycles—each nudging outcomes in the right direction.

Quick Planning Checklist

1. Direct sight lines to patient and monitor from corridor or staff base
2. 1.5–1.8 m clear circulation around bed, no door or boom conflicts
3. Layered lighting: 300–500 lux task, dimmable to 50–100 lux rest
4. Acoustic control with high NRC ceilings and soft-close hardware
5. Seamless, cleanable materials; coved bases; offset-drain sinks
6. Redundant power, labeled gas outlets, planned tech expansion
7. Clean/dirty segregation with intuitive wayfinding and color cues
8. Staff respite near core; micro touchdown points outside rooms

FAQ

What is the primary design goal of an HDU room?

Balance continuous observation with patient dignity and efficient care. That means clear sight lines, smooth circulation, and tunable lighting that supports both clinical tasks and recovery.

How much clearance is ideal around the HDU bed?

I aim for 1.5–1.8 m of unobstructed circulation around the bed to allow two caregivers, equipment maneuvering, and emergency access without conflict.

What lighting levels work best for HDUs?

Layered lighting with roughly 300–500 lux for clinical tasks, dimming to 50–100 lux for rest. Use tunable CCT (2700–3000K at night, 4000–5000K by day) and strong glare control.

How do you reduce noise in HDUs?

High NRC ceilings, acoustic wall finishes, soft-close fittings, rubber thresholds, and alarm strategies that rely more on visual cues and localized audio minimize ambient noise.

Which materials are safest for infection control?

Seamless resilient flooring with coved bases, non-porous wall finishes, integral sinks with offset drains, and durable, low-VOC coatings that withstand hospital-grade cleaning.

How should medical gases and power be arranged?

Place primary gas outlets within easy lateral reach, label clearly, and provide redundant essential power on separate circuits at head and foot. Consider modular headwalls or booms for flexibility.

How can I test different HDU layouts quickly?

Use an interior layout planner to simulate bed positions, equipment swing, and transfers early in design. A practical option is this room design visualization tool for rapid iteration.

What’s the best approach to staff workflow and storage?

Keep clean supplies within 6–10 m of rooms, dirty returns on a separate path, micro touchdown points outside rooms, and secure med dispensing near the staff base to reduce steps and errors.

Do color choices affect recovery?

Yes. Low-saturation, calming hues near patient zones reduce arousal; higher contrast at clinical interfaces improves legibility. Consistent color-coding also supports wayfinding and safe behavior.

How do you future-proof HDU rooms?

Overprovision power/data, plan for booms or modular headwalls, specify accessible cable management, and ensure ceiling/structure can handle future equipment loads.

Should HDUs be single or multi-bed?

Single rooms excel at infection control and privacy. Multi-bed bays improve observation and staff efficiency. Hybrid solutions with glazing can balance both.

What commissioning steps are critical?

Simulate emergency codes, patient transfers, alarm scenarios, and night-mode checks; verify clean/dirty flows, lighting levels, and equipment clearances before opening.
