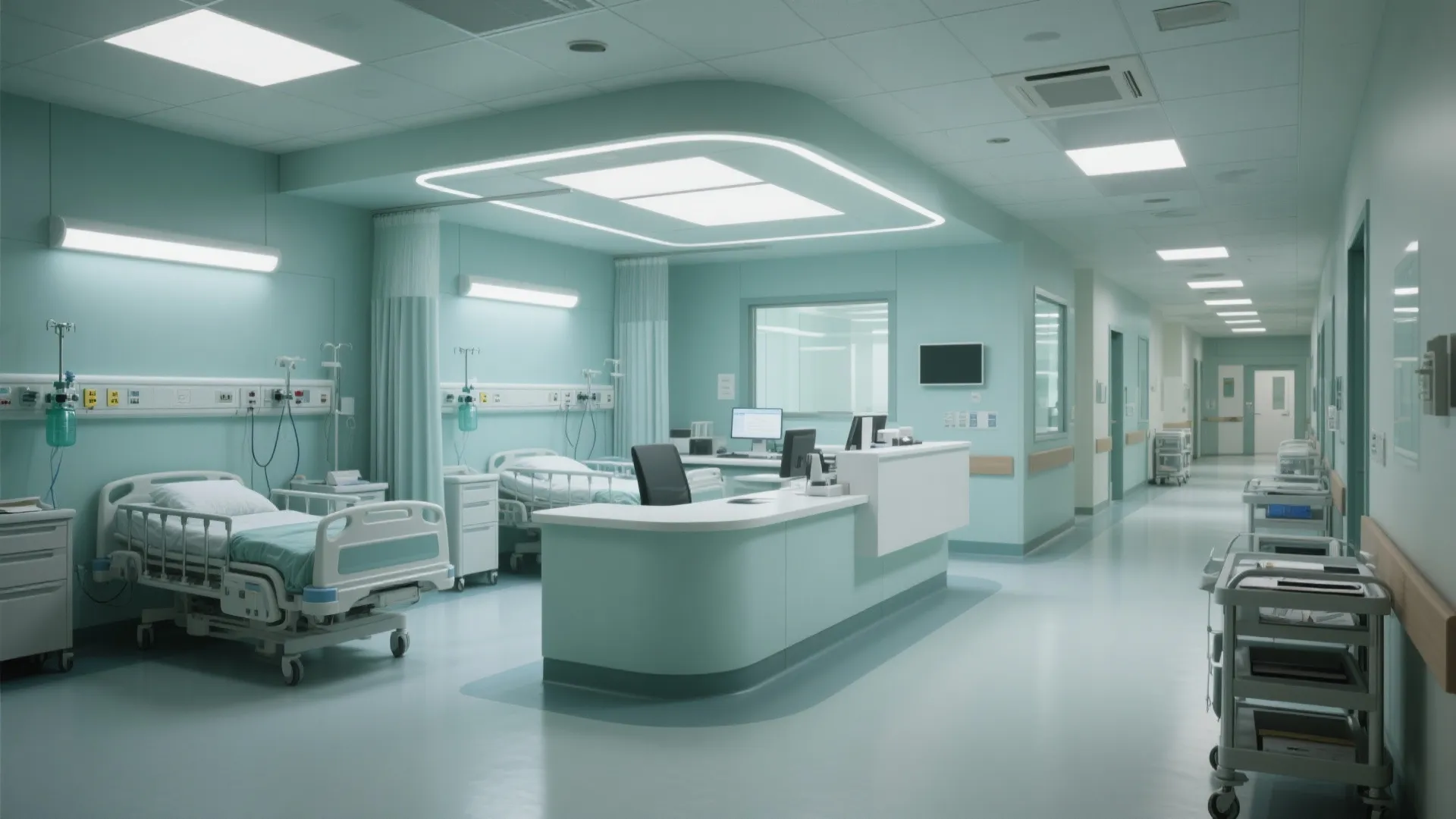

HDu Room in Hospital: Space Optimization Guide: Fast-Track Guide to Efficient HDU Room Design in 1 Minute

Designing a High Dependency Unit (HDU) is a precision exercise that balances clinical workflow, safety, and patient well-being. I approach every HDU as a living system: circulation must be frictionless, sightlines constant, and equipment accessible within seconds. Data back this rigor—Gensler’s workplace research links optimized layouts and reduced friction points to measurable performance gains, while WELL v2 highlights the impact of lighting, acoustics, and thermal comfort on cognitive function and recovery. Steelcase research also notes that environments facilitating quick task transitions can enhance staff efficiency and reduce perceived workload, a critical factor in HDU performance.

Lighting decisions in HDUs are never cosmetic. The Illuminating Engineering Society recommends 300–500 lux for clinical tasks, with higher levels for procedures, and glare control to preserve acuity. WELL v2 further ties circadian-supportive lighting (targeting equivalent melanopic lux during daytime and warm, low-glare light at night) to better sleep and alertness—vital for patients and clinicians who operate in 24/7 cycles. Ergonomics matter just as much: Herman Miller’s research shows that adjustable work surfaces and reach zones aligned to the 5th–95th percentile reduce musculoskeletal strain and errors during extended shifts.

Color and material choices shape behavior and stress. Verywell Mind’s color psychology resources reflect a consistent pattern: soft greens and blues can reduce anxiety and support calmness, while high-saturation reds heighten alertness but risk undue stress in recovery zones. In my projects, muted, low-chroma palettes with high Light Reflectance Values (LRV 60–80) support even light distribution and lower eye fatigue. Finishes must be antimicrobial, seamless where possible, and acoustically absorptive, especially above and behind headwalls, to dampen alarm noise and conversation spillover that elevate patient stress.

Core Planning Principles for HDU Layout

An HDU must allow rapid intervention within a tightly choreographed footprint. I design with three nested rings: patient core, staff ring, and service perimeter. The patient core concentrates bed, headwall, and critical equipment within 1.0–1.5 m reach zones. The staff ring holds mobile carts, documentation nodes, and hand hygiene stations within a 3–5 m radius. The service perimeter captures storage, medication prep, clean/dirty rooms, and utilities that can be accessed without crossing patient paths. When testing room adjacencies or bed counts, I simulate multiple arrangements using a room layout tool to validate flows, clearances, and sightlines before committing to construction.

Patient Bay: Dimensions, Clearances, and Ergonomics

For a single HDU bed bay, I target a minimum 3.6 m width and 4.5–5.0 m length, ensuring 1.2–1.5 m clear on both sides for two-person procedures and equipment docking. Bed-foot clearance of 1.8 m supports code carts and mobile imaging. Vertical planning matters: headwall rails at 1.0–1.4 m AFF (above finished floor), medical gas with color-coding and tactile differentiation, power/data separated to reduce heat and EM interference, and integrated lighting for task, exam, and night modes. I keep all high-frequency supplies within 450–1200 mm AFF to match ergonomic reach and reduce bending.

Headwall and Equipment Zoning

A disciplined headwall reduces chaos. I standardize outlet sequences left-to-right: oxygen, air, vacuum; then power; then data. Alarm light indicators sit within the nurse’s natural line of sight from corridor glazing. Cable management channels run vertically to keep the floor clear. Critical redundancy (N+1) is non-negotiable: extra oxygen and power points, and a secondary data drop for monitoring failures. Where ceiling booms are feasible, they free side clearances, improving maneuverability and hygiene.

Visibility, Sightlines, and Supervision

Direct visual control saves minutes in escalation. I angle bed centers 5–10 degrees toward corridor glazing when possible, pair with low-sill internal windows, and use switchable privacy glass for rapid visual checks. Centralized staff stations can see 4–6 bays; satellite touchdown points between rooms cut nurse travel. For double-loaded corridors, stagger rooms to avoid the “tunnel” effect and maintain awareness. Acoustic glass at corridor windows preserves quiet while enabling observation.

Workflow and Infection Control

Every path should be a loop, not a dead end. Clean, soiled, and waste streams must never cross. I place hand hygiene at every threshold and between zones, with visual cues aligned to travel paths. Transfer doors should allow stretcher turns (2.3–2.5 m turning diameter). Donning/doffing alcoves flank isolation bays; negative-pressure rooms sit at ends of clusters to isolate airflows. Built-in casework with seamless, solid-surface tops reduces joints where pathogens hide. Floor transitions are heat-welded; corners use sanitary coves.

Lighting Strategy: Precision with Calm

I layer lighting for function and comfort: 300–500 lux general ambient, 1000+ lux exam/task lighting with high CRI (90+) and glare control, and amber night lighting under 30 lux to protect circadian rhythms. Indirect uplighting balances luminance ratios, cutting veiling reflections on monitors. Dimmable scenes let staff switch from procedure to rest modes instantly. Correlated color temperature shifts from 3500–4000K day to 2700–3000K night in patient zones; stations remain cooler (4000K) to support alertness. Motion-sensed wayfinding lights guide safe staff movement at night without waking patients.

Acoustics: Quiet as a Clinical Intervention

Alarms, pumps, and corridor chatter steal rest. I target composite noise reduction with NRC 0.70+ ceiling panels, wall panels at bedhead and opposite wall, and acoustic glazing to corridors. Mechanical systems need low-frequency attenuation and vibration isolation near patient heads. Zoning nurse call and alarm escalation paths reduces broadcast noise; visual alerts absorb non-urgent load. Sound masking in staff areas helps confidentiality without intruding into patient bays.

Color, Materials, and Cleanability

High-LRV walls and matte finishes prevent glare and make light work harder. Palette: calm greens/blues (low chroma) with warm neutrals in family areas; saturated color only as wayfinding accents, never on large surfaces near patients. Floors: resilient sheet with high slip resistance and welded seams. Walls: high-performance coatings or antimicrobial PVC-free wall protection. Casework: thermofoil or HPL with sealed edges. Upholstery: healthcare-grade coated fabrics with bleach-cleanable specs. Keep textures visually soft but easy to disinfect.

Furniture, Fixtures, and Equipment (FF&E)

Documentation points need sit-stand adjustability, monitor arms, and task lighting. Provide wire-free charging shelves near headwalls for clinicians’ devices. Patient recliners require lockable casters and swing-away arms for transfer. Family zones (where policy allows) get compact, wipeable seating, personal storage, and dimmable reading lights. Choose booms, pumps, and monitors with standardized mounts to swap quickly between bays.

Spatial Ratios and Cluster Planning

For clusters of 4–8 HDU bays, I space support rooms in a 1:4 ratio: one clean supply, one soiled utility, and one medication room for each four beds, placed within a 15–20 m travel radius. Staff work cores sit central with direct lines to all rooms; cross-corridor doors compartmentalize for fire and infection control. If imaging adjacency is needed, stack vertically to shorten vertical transport times and keep elevators sized for beds and equipment.

Technology and Data

Plan for overcapacity. I specify dual data drops at each bed, ceiling Wi-Fi coverage with redundancy, and cable trays sized for 30% future growth. Digital whiteboards synchronize patient data without audible alerts. Locate servers and IT closets outside patient zones with dedicated cooling. Use real-time location systems (RTLS) to track equipment and reduce hunting behaviors that steal staff time.

Safety, Codes, and Resilience

Emergency power must cover all critical outlets at the headwall and nurse stations. Provide clear egress with photoluminescent markers. Choose non-shedding, fire-rated acoustic panels. If the hospital is in a risk zone, detail seismic restraint for booms, lights, and tall storage. Redundancy for medical gases and vacuum is essential. Where floods are possible, raise critical electrical systems and consider flood-resilient finishes at lower levels.

Human Factors and Behavioral Patterns

Staff seek micro-rest and quick collaboration. I carve small alcoves with perch stools, hydration points, and views to daylight to reduce burnout. Family presence, if policy permits, is managed with partial-height screens and dedicated outlets, balancing privacy and visibility. Patient control over reading lights, privacy blinds, and temperature increases comfort and perceived dignity—both linked to better recovery experiences.

Phasing, Mock-ups, and Simulation

I always mock up a full bay at 1:1 scale before procurement. Walking clinicians through tasks reveals overlooked collisions: IV pole routes, bed swivel arcs, and where the charting light glares off a monitor. Iterating the plan in an interior layout planner helps test staff routes, supply locations, and code clearance, de-risking late-stage changes. Pair this with time-and-motion studies during soft openings to tune locations of carts, PPE, and alarms.

Maintenance and Lifecycle Strategy

Standardize components across bays for easy replacement. Specify finishes with clear cleaning protocols and approved disinfectants. Choose LED fixtures with long L70 lifespans and field-replaceable drivers. Track FF&E performance and failure points; feed those insights back into the next retrofit cycle.

Checklist for HDU Space Optimization

- Minimum bay clearances: 1.2–1.5 m each side, 1.8 m at foot

- Headwall: standardized sequence, N+1 outlets, cable management

- Lighting: 300–500 lux ambient, 1000+ lux exam, 2700–3000K night mode

- Acoustics: NRC 0.70+ at ceiling, acoustic glazing to corridor

- Infection control: seamless surfaces, welded floors, separated flows

- Ergonomics: 5th–95th percentile reach zones for high-frequency tasks

- Supervision: direct sightlines, switchable privacy glass, zoned alarms

- Support ratios: 1 clean + 1 soiled + 1 meds per 4 beds within 15–20 m

FAQ

How much space should each HDU bed bay have?

I target approximately 3.6 m by 4.5–5.0 m per bay, with 1.2–1.5 m clear on both long sides and at least 1.8 m at the foot to allow team procedures and equipment turns.

What lighting levels work best for HDUs?

General ambient at 300–500 lux with low glare, exam/task lighting at 1000+ lux and CRI 90+, and night lighting under 30 lux in warm tones to protect sleep and circadian rhythms, aligning with IES guidance and WELL v2 principles.

How do I control noise without compromising observation?

Combine acoustic ceilings (NRC 0.70+), wall panels near bedheads, acoustic glazing to corridors, and alarm zoning that prioritizes visual alerts over loud broadcast tones.

What is the ideal headwall configuration?

Standardize left-to-right: oxygen, air, vacuum; then power; then data. Include N+1 redundancy, vertical cable channels, and visible alarm indicators aligned to corridor sightlines.

How should clean and soiled flows be separated?

Plan unidirectional loops: clean supply routes never cross soiled or waste paths. Place hand hygiene at thresholds, and position soiled utilities on the return leg away from clean storage and medication rooms.

Which colors and materials support patient recovery?

Low-chroma greens and blues with high LRV surfaces for soft brightness, matte finishes to reduce glare, resilient sheet flooring with welded seams, and antimicrobial, bleach-cleanable wall and upholstery finishes.

What ergonomic standards should guide staff work points?

Use sit-stand stations with adjustable monitor arms and lay out high-frequency supplies within 450–1200 mm AFF, matching the 5th–95th percentile reach range supported by ergonomics research.

How can technology reduce staff travel and delays?

Provide dual data drops at beds, strong ceiling Wi-Fi, RTLS for equipment tracking, and digital whiteboards synced to records to minimize searching and non-clinical detours.

How many support rooms per bed cluster are needed?

For every four beds, allocate one clean supply, one soiled utility, and one medication room within a 15–20 m travel radius for quick access and proper separation.

What strategies improve supervision in single rooms?

Angle beds toward internal glazing, use switchable privacy glass, place touchdown points outside rooms with direct sightlines, and consider acoustic glass to maintain quiet.

How do I plan for future growth in an HDU?

Size pathways and cable trays for 30% headroom, include spare power/data at headwalls, and select modular booms and mounts to scale monitoring equipment.

What flooring is best for HDUs?

Seamless resilient sheet with welded joints, high slip resistance, and integral coved bases for hygiene and easy cleaning.
