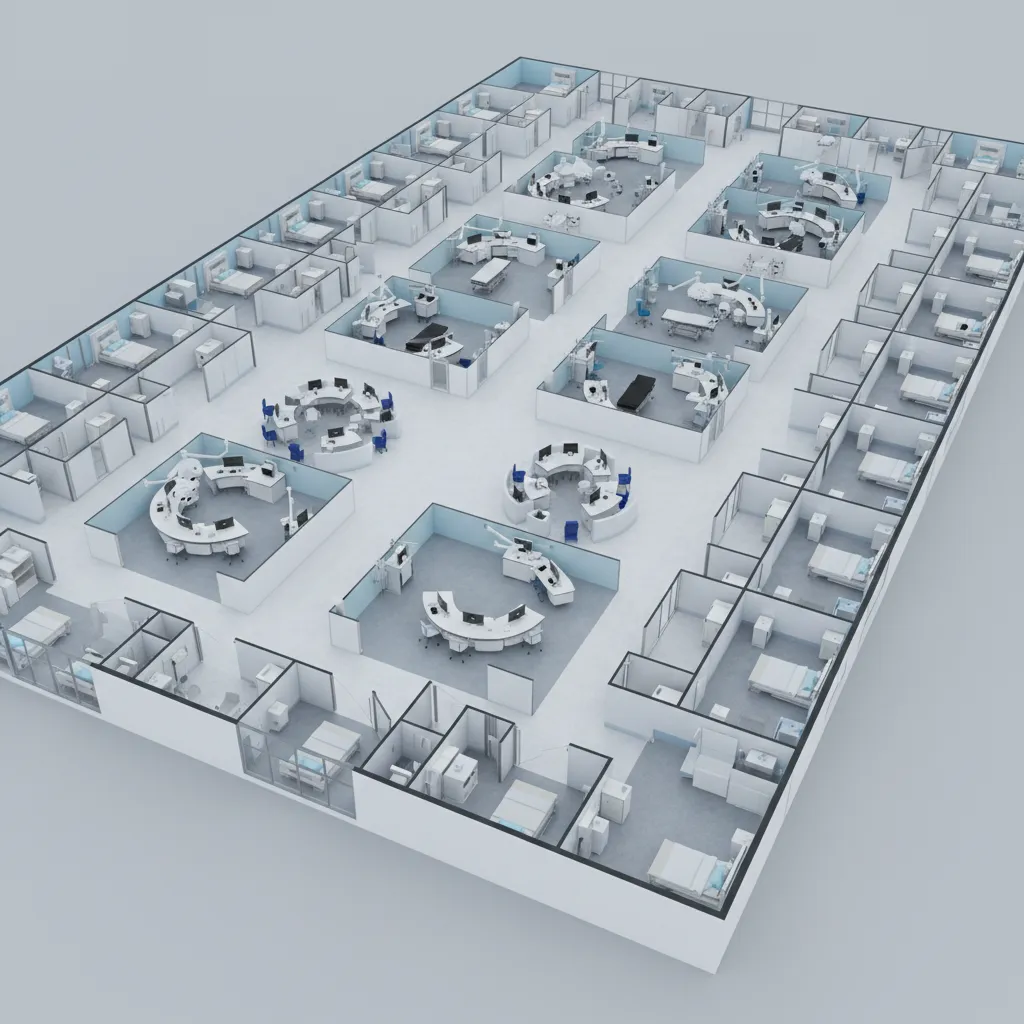

Healthcare Facility Modeling Standards for 3D Hospital Floor Plans: Understand the spatial rules, safety requirements, and planning logic behind accurate hospital 3D models.

Direct Answer

Healthcare facility modeling standards define how hospital spaces must be sized, connected, and equipped to meet medical, safety, and operational requirements. When creating 3D hospital floor plans, designers must follow spatial planning rules for patient rooms, corridors, operating suites, accessibility, and medical equipment clearances.

Accurate modeling ensures hospital layouts support clinical workflows, emergency movement, infection control, and regulatory compliance.

Quick Takeaways

1. Hospital 3D models must reflect real clinical workflows, not just architectural geometry.
2. Corridor width, patient room size, and equipment clearance are critical modeling constraints.
3. Healthcare spaces require stricter safety and accessibility standards than most building types.
4. Accurate zoning of sterile, semi‑sterile, and public areas prevents operational conflicts.
5. Well-structured 3D models support planning, simulation, and facility management.

Introduction

Healthcare architecture is one of the most demanding areas of spatial design. When creating a hospital floor plan, you are not simply arranging rooms — you are modeling an environment that must support life‑critical operations.

After working on multiple healthcare design visualizations over the past decade, I've noticed that many early hospital 3D models fail for the same reason: they look architecturally correct but ignore healthcare facility modeling standards. A corridor that looks fine in a residential building might completely fail when stretchers, crash carts, and staff movement are considered.

If you're building a digital hospital layout, it helps to review real spatial structures first. One helpful reference is this example of how a professional 3D hospital layout can be structured for realistic spatial planning, which demonstrates how circulation, zones, and departments connect.

In this guide I'll walk through the key standards used in healthcare facility 3D modeling, including patient room sizing, corridor requirements, equipment clearances, accessibility, and simulation readiness.

save pin

Why Standards Matter in Hospital 3D Modeling

Key Insight: Hospital models must represent operational workflows, not just architectural space.

Unlike residential or office design, hospitals operate under tightly coordinated clinical processes. Surgeons, nurses, equipment, and patients move continuously between departments. If a model ignores these flows, the design quickly becomes unrealistic.

Healthcare facility modeling standards typically reference guidance from organizations such as:

1. FGI Guidelines for Design and Construction of Hospitals
2. Facility Guidelines Institute (FGI)
3. American Institute of Architects healthcare recommendations
4. Local building codes and health authority regulations

One hidden mistake I often see in early hospital models is treating departments as isolated rooms rather than operational zones.

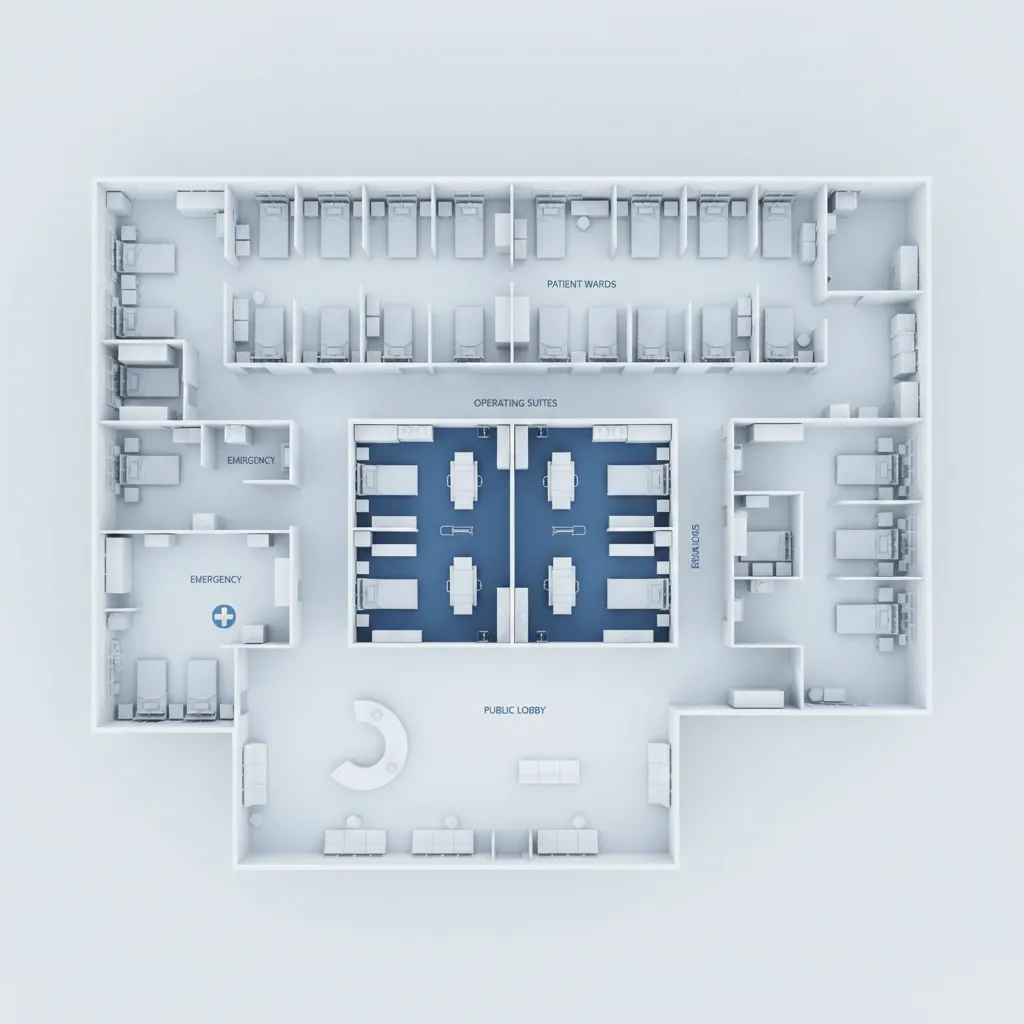

Hospitals usually function through interconnected zones:

1. Public areas (lobbies, waiting rooms)
2. Clinical treatment zones
3. Sterile surgical zones
4. Diagnostic departments
5. Staff and logistics corridors

Modeling these zones correctly in 3D allows planners to evaluate travel distances, emergency access, and patient flow.

Key Spatial Requirements in Healthcare Facility Design

Key Insight: Hospital room sizes are determined by clinical function and equipment clearance, not aesthetic proportions.

Healthcare facility 3D modeling guidelines emphasize minimum spatial requirements to ensure equipment and staff can safely operate.

Typical reference dimensions include:

1. Single patient room: roughly 120–150 sq ft minimum patient area
2. Operating room: typically 400–650 sq ft depending on equipment
3. ICU room: larger footprint for monitoring equipment
4. Nurse station visibility across multiple patient rooms

Another overlooked factor is equipment clearance.

For example:

1. Hospital beds require circulation space on three sides
2. Imaging equipment rooms need radiation shielding zones
3. Operating rooms must support multiple equipment booms

When modeling healthcare architecture, I often build clearance envelopes around equipment first. That ensures the room size grows from operational needs rather than arbitrary walls.

save pin

Modeling Patient Rooms, Operating Rooms, and Corridors

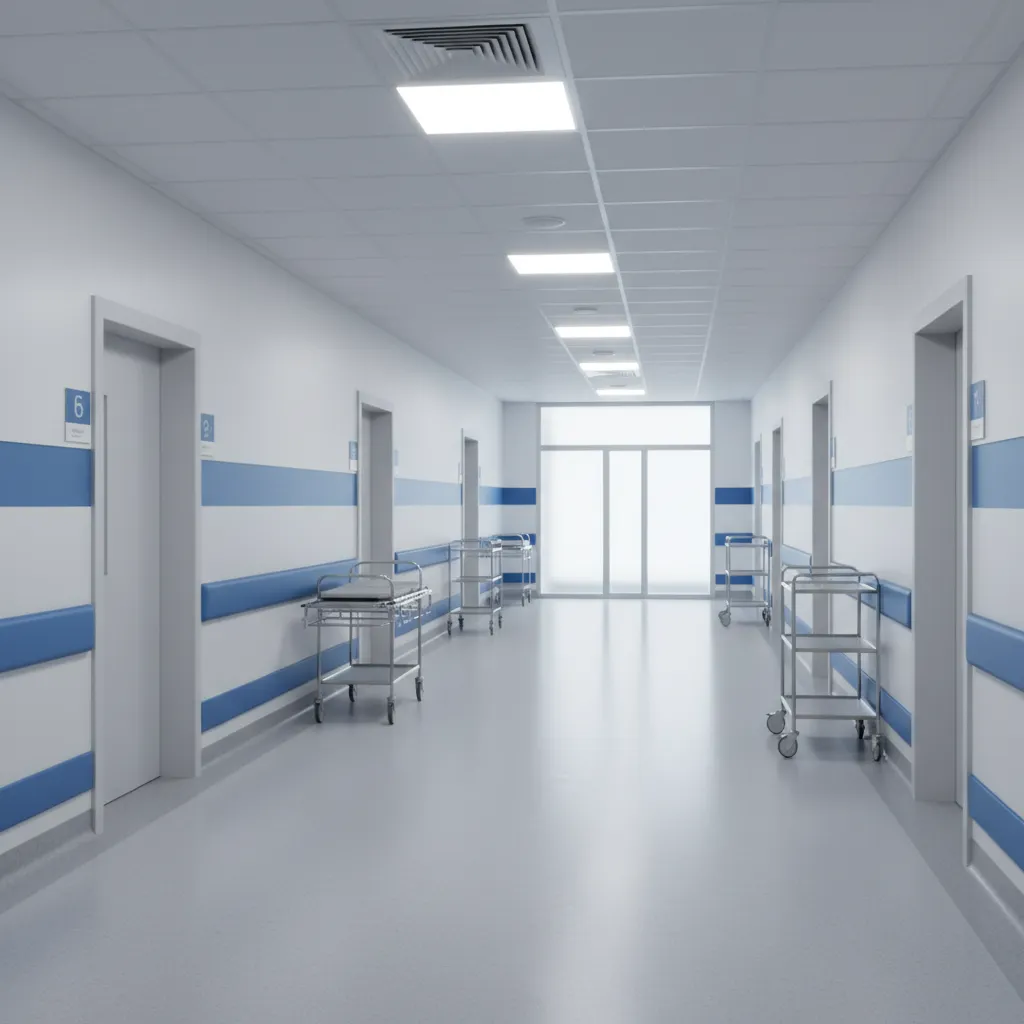

Key Insight: Corridors are one of the most critical and frequently mis-modeled elements in hospital layouts.

Hospital corridor dimensions directly affect emergency mobility and logistics.

Typical healthcare architecture standards recommend:

1. Main hospital corridors: 8 feet minimum
2. Primary transport corridors: 10–12 feet
3. Surgical suite corridors: wider for sterile movement

From experience, stretcher turning radius is one of the most practical modeling tests.

Important spatial checks include:

1. Can a bed turn at corridor intersections?
2. Is there space for crash carts beside a patient?
3. Are door swings blocking emergency movement?

Designers often prototype these layouts using digital planning tools similar to this example of a structured hospital floor layout planning workflowbefore finalizing 3D models.

save pin

Accessibility and Safety Requirements in Hospital Layouts

Key Insight: Healthcare accessibility standards go far beyond basic ADA compliance.

Hospitals must accommodate patients with mobility limitations, medical equipment transport, and emergency evacuation scenarios simultaneously.

Common accessibility requirements include:

1. Wider door clearances for hospital beds
2. Barrier‑free bathroom layouts
3. Accessible nurse call systems
4. Clear transfer zones beside beds

Safety planning also affects spatial modeling.

For example:

1. Fire compartment zones
2. Separated evacuation routes
3. Controlled access between sterile areas

According to the Facility Guidelines Institute, proper circulation planning is one of the most significant factors affecting patient safety and operational efficiency.

Integrating Medical Equipment Space in 3D Models

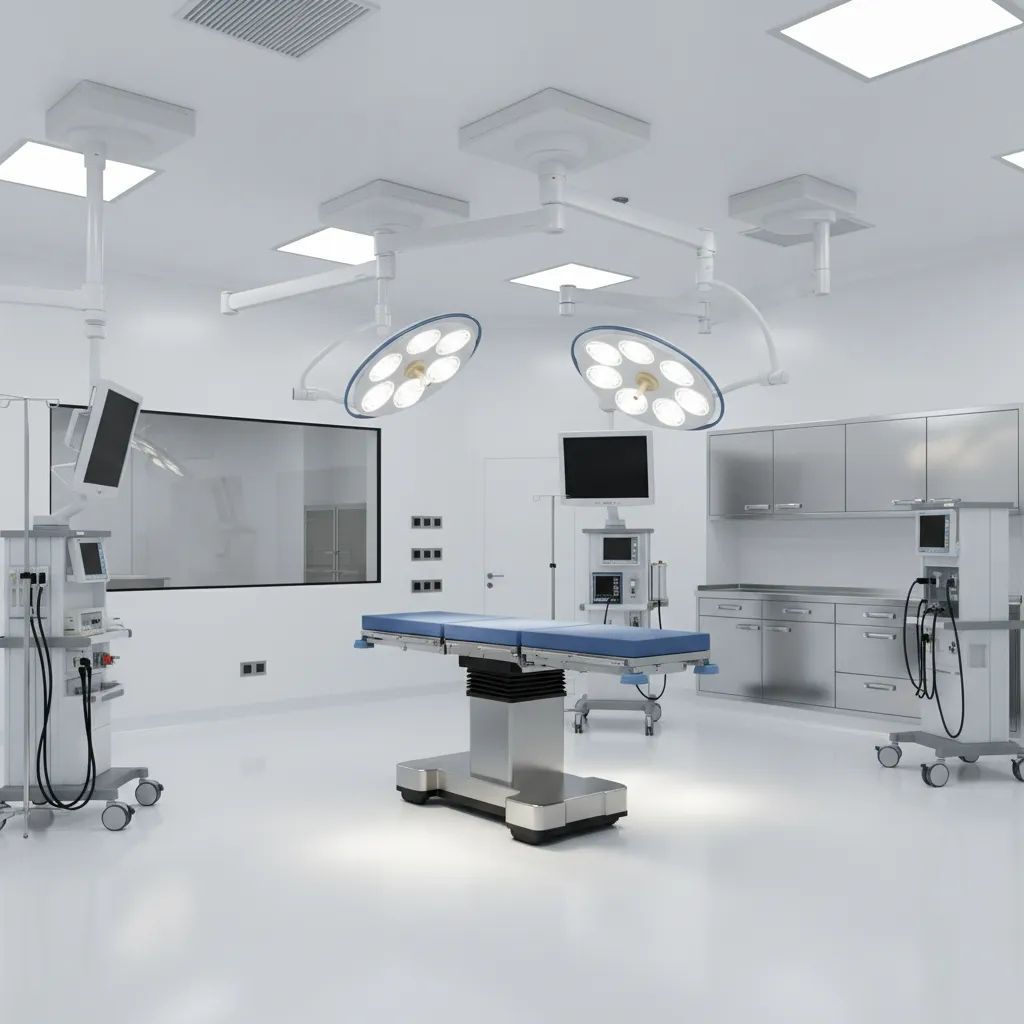

Key Insight: Medical equipment footprints often determine the final room geometry.

Many hospital design issues emerge when equipment is added after architectural modeling is complete.

In practice, experienced healthcare designers model major equipment early:

1. MRI machines
2. Surgical equipment booms
3. Hospital beds
4. Mobile diagnostic carts

Each device requires clearance zones for:

1. Maintenance access
2. Staff movement
3. Patient transfer
4. Power and ceiling connections

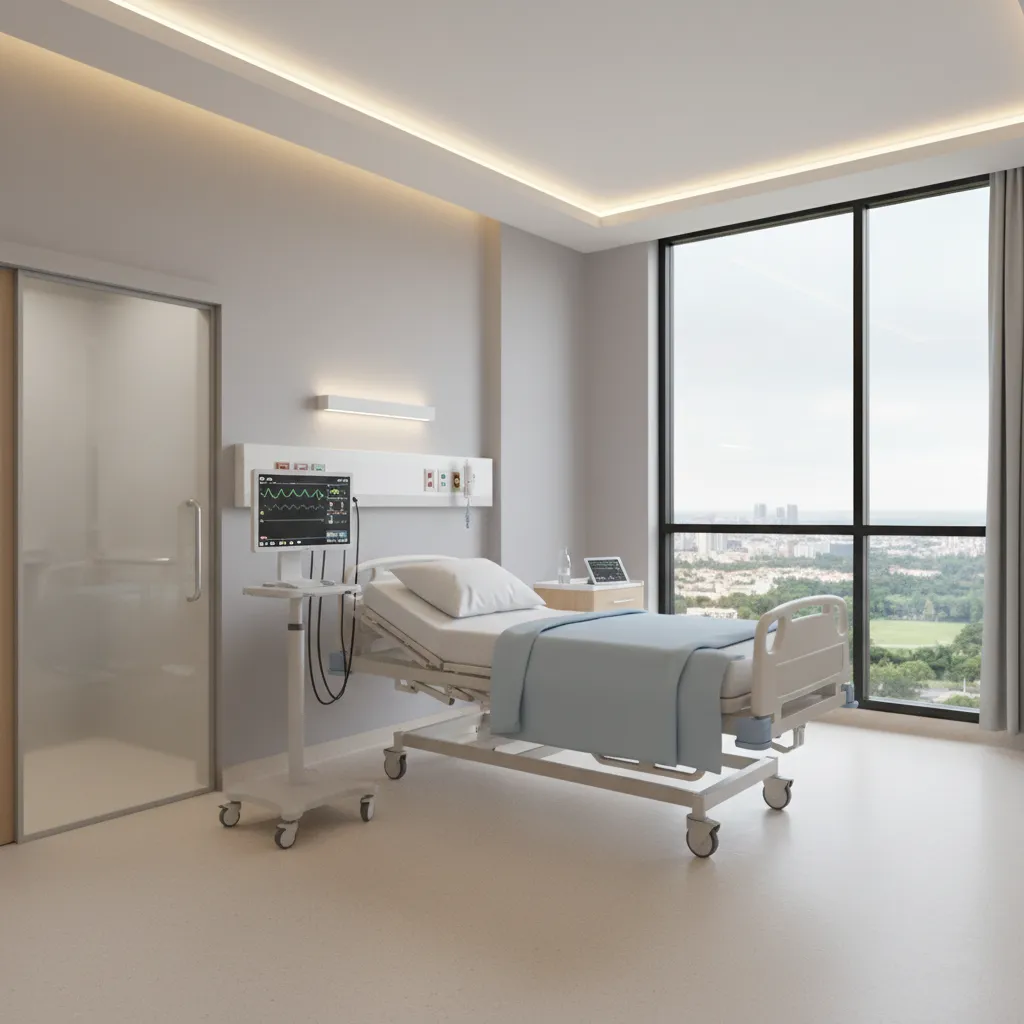

When visualizing the final environment, high‑quality architectural visualization is useful. A good example is shown in how detailed interior renderings help evaluate hospital room layouts and equipment placement.

save pin

Answer Box

Accurate hospital 3D models follow strict spatial rules for circulation, equipment clearance, safety zones, and clinical workflows. Ignoring these healthcare facility modeling standards often leads to unrealistic designs that fail operational planning.

Successful hospital modeling starts with workflow logic and equipment placement before final architectural detailing.

Preparing Hospital Models for Planning and Simulation

Key Insight: Modern hospital models are used for simulation, not just visualization.

Healthcare systems increasingly rely on digital models to test operations before construction.

Advanced hospital modeling workflows may include:

1. Patient flow simulation
2. Emergency evacuation modeling
3. Staff circulation analysis
4. Equipment logistics planning

In several recent healthcare projects I've reviewed, simulation revealed surprising issues — such as emergency bottlenecks near imaging departments or excessive nurse walking distances.

These insights only appear when spatial models reflect real operational constraints.

Final Summary

1. Hospital modeling must prioritize clinical workflows and equipment clearance.
2. Corridor width and circulation planning directly affect hospital operations.
3. Patient rooms and operating suites follow strict spatial standards.
4. Accessibility and safety regulations shape hospital layout decisions.
5. Simulation-ready 3D models provide the most long-term planning value.

FAQ

What are healthcare facility 3D modeling guidelines?

They are architectural standards defining room sizes, circulation, safety zones, and equipment clearances used when designing hospitals and medical facilities.

What corridor width is required in hospitals?

Most hospital corridor standards recommend at least 8 feet, with primary transport corridors often requiring 10–12 feet.

Why are hospital floor plan design requirements stricter than other buildings?

Hospitals must accommodate medical equipment, emergency transport, infection control protocols, and continuous staff movement.

How large should a hospital patient room be?

Many healthcare facility modeling standards suggest around 120–150 square feet of patient area plus circulation space.

What standards guide hospital architecture modeling?

Common references include the FGI Guidelines, healthcare building codes, and local health authority regulations.

Do hospital 3D models include medical equipment?

Yes. Accurate healthcare facility 3D modeling typically includes major equipment footprints and clearance zones.

Why are 3D hospital models used in planning?

They allow planners to test circulation, emergency scenarios, and department connections before construction.

What is the biggest mistake in hospital floor plan modeling?

Designing rooms without considering equipment clearance, patient transport routes, and real clinical workflows.
