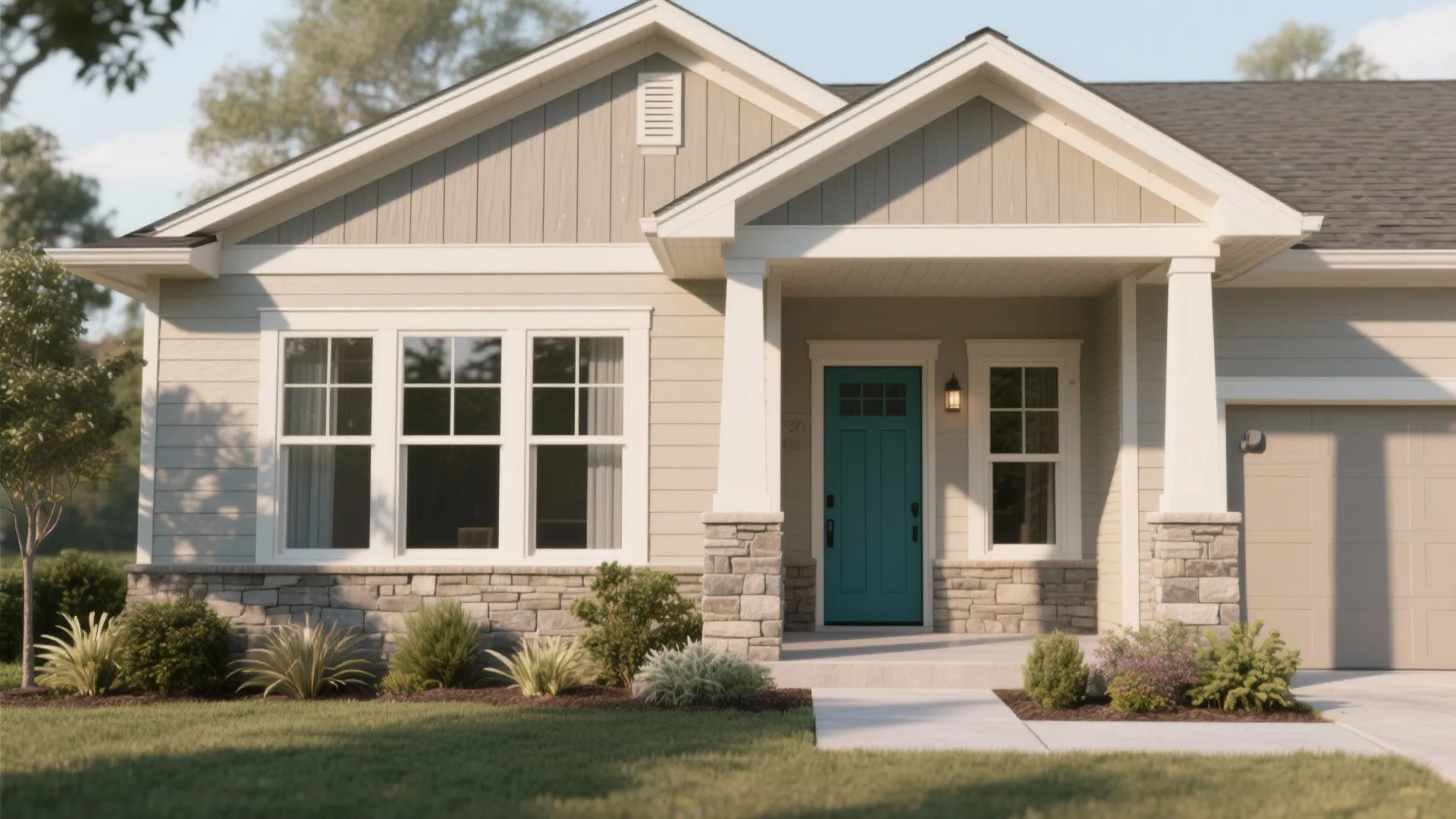

home front elevation design free software: Explore the best free software for designing your home's front elevation

I’ve spent years helping homeowners turn plain facades into memorable street fronts, and the best outcomes start with the right tools and a clear design lens. A strong front elevation pairs proportion, material, light, and color psychology—then stress-tests the look across sun angles and viewpoints. According to Steelcase research, visual variety and quality cues can influence perceived comfort and satisfaction, which translates at the home scale into better curb appeal and owner pride. From a wellness standpoint, WELL v2 also underscores daylight access and glare control, reminding us that exterior shading and glazing choices affect both the facade and life inside.

Where software truly helps is speed and iteration. Gensler’s research consistently links rapid prototyping to better design decisions; in practice, I iterate 3–5 facade options before finalizing a direction. For lighting targets that inform overhang depth and fixture choice, I reference IES recommendations (e.g., safe pedestrian-way illuminance and glare control) so the night elevation looks composed, not washed out. If you plan to refine layout relationships—porch depth, stair alignment, window rhythm—an interior layout planner with facade visualization can be useful; try a room layout tool to mock adjacent interior zones that influence the front elevation massing: room layout tool.

Top Free Tools for Home Front Elevation Design

Here’s how I combine approachable, no-cost software to get professional-grade results without buying into heavy BIM suites:

1) Browser-Based 2D/3D Planners

Great for quick massing, roof pitch trials, porch proportions, and window placements. Aim for accurate wall heights and roof slopes (4:12, 6:12, etc.) to keep perspectives believable. Export orthographic front views to evaluate symmetry and shadow lines. Use these for early optioneering and to gather family feedback.

2) Free Modeling Platforms

Entry-level 3D modelers let you push and pull volumes, add reveals, and test trim profiles. Keep your model clean with named groups (main volume, garage bump-out, porch, gables). This discipline pays off when you swap materials to compare fiber-cement lap against stucco or board-and-batten.

3) Light and Shadow Explorers

Even a basic sun study will expose overhang depth issues and awkward shadow breaks on the facade. I set solar studies for solstice and equinox at morning/afternoon to ensure the elevation avoids harsh glare on glazing and maintains legible shadow relief on cladding textures.

4) Color and Material Mockups

Use palette tools to simulate LRV (Light Reflectance Value) balance between body, trim, and accent. Color psychology research shows blues/greens read calm and trustworthy, while warm reds/browns feel welcoming; a restrained triad—body, trim, front door—usually beats multicolor patchworks.

Design Principles I Don’t Compromise

I treat the front elevation like a composition with rhythm, hierarchy, and a focal point. A few non-negotiables guide every project:

1. Proportion and Rhythm: Window groupings should relate—mullion spacing and head heights align across the facade. Keep a consistent sill datum where feasible.
2. Entry Hierarchy: The front door deserves emphasis—deeper porch, contrasting door color, or a crafted canopy. A 6–8 ft porch depth typically feels generous without overpowering the massing.
3. Material Transitions: Change materials at inside corners or with a defined trim/band. Avoid paper-thin veneer looks at outside corners.
4. Light as Architecture: At night, layer a soft 2700–3000K warmth at entry and address markers, and keep glare below eye level. Reference IES practices for pathway brightness to balance safety and visual comfort.
5. Climate Logic: In hot climates, design shading over upper glazing; in snowy regions, watch for ice-shedding over the entry and favor durable, low-maintenance claddings.

Step-by-Step Workflow Using Free Software

Step 1: Measure and Baseline

Capture front width, floor-to-floor heights, roof pitch, and key openings. Photograph the house square-on at eye level for accurate tracing.

Step 2: Mass and Align

Block out volumes—main body, garage, porch. Align window heads across the facade; misaligned heads are the most common amateur tell. If your interior plan shifts, coordinate with an interior layout planner via a layout simulation tool: layout simulation tool.

Step 3: Material Studies

Trial 2–3 cladding families: lap + stone base, smooth stucco + wood accents, or vertical boards + metal roof. Keep the palette to two primary materials and one accent to maintain balance.

Step 4: Daylight and Nightlight

Run sun studies for different seasons. Add sconces, downlights at the porch, and one accent uplight for a tree or gable if appropriate. Verify beam spread so you graze texture without hotspots.

Step 5: Color and Contrast

Balance LRV: a mid-tone body (35–55 LRV), lighter trim (+15–25 LRV), and a saturated door accent can give clarity without glare. Check the palette under overcast and sunset renders.

Step 6: Final Elevation Sheet

Export a clean front elevation with dimensions: overall width, ridge height, porch depth, window sizes, door size, and material callouts. This helps builders and HOA reviews go faster.

Lighting and Human Factors

Glare-free entries feel welcoming and safe. WELL v2 emphasizes visual comfort—aim for warm CCT (2700–3000K) at residential entries, shielded sources, and good vertical illumination for faces. For the approach path, I reference IES guidance on uniformity and glare control so fixtures don’t create harsh scallops on the facade. Acoustically, solid entry doors and insulated sidelight units help damp street noise, elevating perceived quality from the curb and indoors.

Material Selection and Sustainability

Choose durable cladding suited to your climate. In coastal zones, corrosion-resistant fasteners and fiber-cement or high-grade stucco pay off. Sustainably, favor long-life materials with low maintenance cycles; well-detailed rain screens keep facades dry and stable. If you add timber accents, specify species and finishes that weather gracefully rather than fighting patina.

Color Psychology for Curb Appeal

Neutrals establish calm massing; color should punctuate at the entry. Verywell Mind’s color psychology notes blue’s association with trust and serenity, which can translate to door or shutter accents. Earthy reds and muted terracottas add warmth without shouting. Always cross-check colors against the roof tone and hardscape to avoid clashing undertones.

Common Mistakes to Avoid

1. Over-fragmented Facade: Too many materials or colors make small homes look busy.
2. Floating Trim: Trim without logical terminations cheapens the look; resolve edges at corners or banding.
3. Misaligned Openings: Keep window heads and sills consistent unless composition demands a clear hierarchy.
4. Nighttime Hotspots: Bare bulbs at eye level cause glare; choose shielded fixtures and aim beams thoughtfully.
5. Ignoring Roof Lines: Gable returns and eave depth shape the silhouette; test alternate soffit depths for better shadows.

Quick Starter Kit (Free and Simple)

1. Planning/Layouts: Use a browser planner to block masses and position windows; refine with an interior design visualization tool when interior constraints impact the facade: interior design visualization tool.
2. 3D Modeling: Build the front massing, gables, and porch. Save scenes for morning/noon/evening.
3. Materials/Colors: Apply realistic textures; compare two palettes only per session to keep decisions crisp.
4. Lighting: Add warm, shielded sconces and test at dusk scenes for balanced glow.
5. Documentation: Export an annotated elevation with key dimensions and notes for review.

FAQ

1) What’s the best free workflow for a quick elevation concept?

Start with a browser-based planner to set wall lengths and roof slopes, jump to a free 3D modeler for volumes, then overlay two material/color palettes. Finish with a front orthographic export and a dusk render to validate lighting.

2) How do I choose porch depth and column spacing?

Porch depth of 6–8 ft typically feels comfortable and proportional on most single-family homes. Space columns to frame the entry door in a 1:1.2 to 1:1.5 width-to-height ratio for visual balance.

3) Which color temperatures work best for the entry?

Use 2700–3000K for residential warmth and face-friendly vertical light. Keep sources shielded to reduce glare and follow good IES practices for pathway illumination.

4) How many materials are too many for a front elevation?

Two primary materials plus one accent is a safe cap. More can fragment a small facade and dilute the focal point at the entry.

5) How do I prevent misaligned windows when the interior layout dictates positions?

Create a shared head height datum and adjust sill heights or interior framing where possible. Use an interior layout planner to coordinate room needs with facade alignment.

6) What’s a quick test for roof and gable proportions?

Mock two roof pitches (e.g., 6:12 vs 8:12) and compare the ridge height and gable triangle to wall height. The gable should feel anchored; shallow pitches can read flat, steep ones can overpower.

7) Any guidance on nighttime accent lighting?

Limit to one or two accents—an uplight for a feature tree or a soft wash on the entry wall. Avoid narrow beams that create harsh scallops; choose wide floods with lower output.

8) How do I keep a budget facade looking premium?

Prioritize crisp details: align casings, use proper corner trims, and end material changes at inside corners. Choose a restrained palette and invest in a high-quality front door and hardware.

9) What role does color psychology play in curb appeal?

Calm neutrals for the body reduce visual noise; a confident door color (muted blue or deep green) signals welcome and stability without overwhelming the composition.

10) How can I ensure HOA approval goes smoothly?

Provide a precise front elevation sheet: dimensions, materials, colors with manufacturer data, and a dusk lighting view. Clear documentation speeds reviews and reduces revision cycles.
