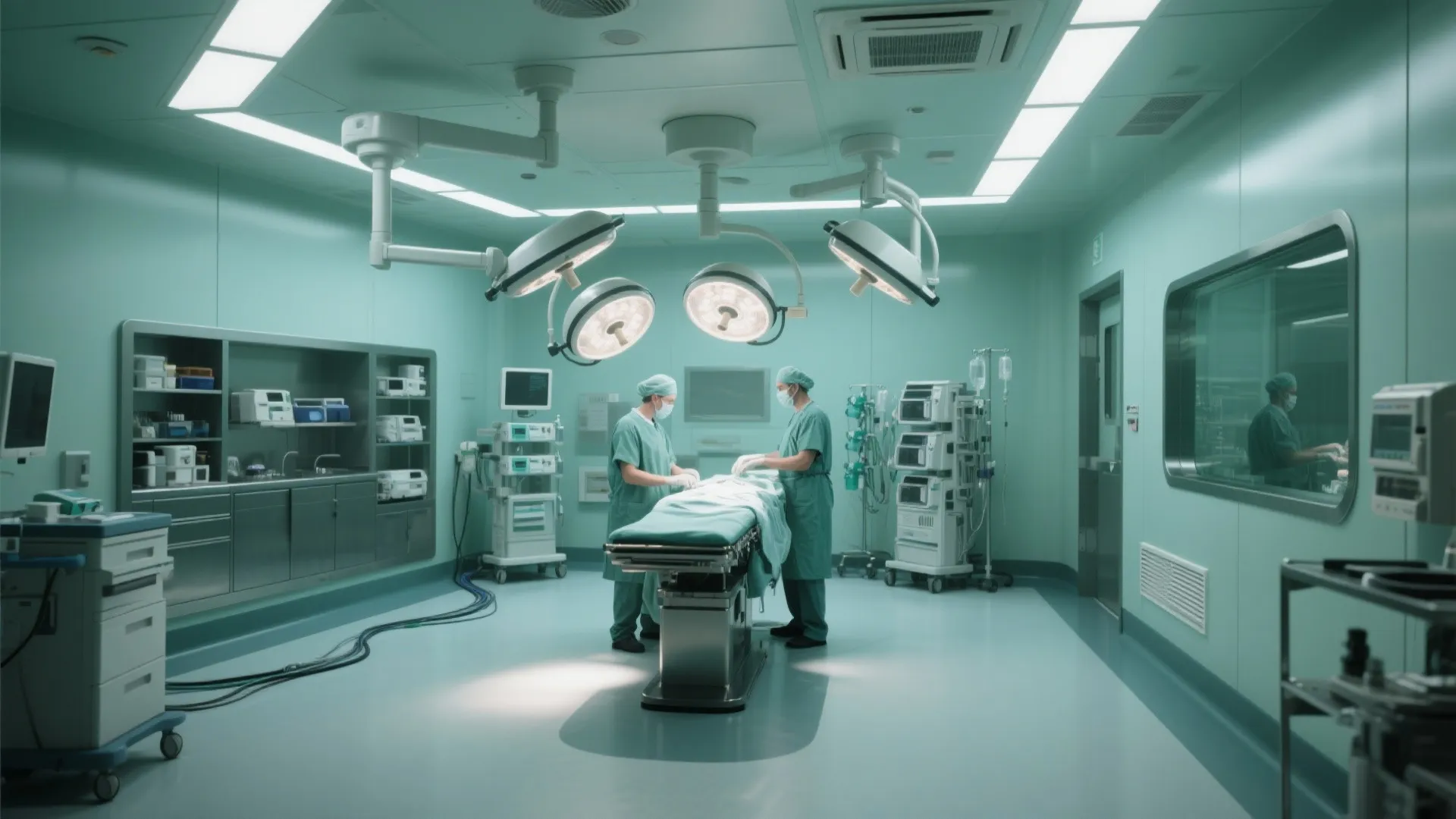

Hospital OT Room Design: Best Practices for Efficiency and Safety: Fast-Track Guide to Optimizing Your Operating Theater Setup

Operating theatres demand a rare balance: hyper-clean, high-tech, and human-centered. In my experience planning acute-care facilities, the best OT rooms deliver a frictionless workflow while safeguarding sterile protocols and staff wellbeing. That starts with evidence. Gensler’s research notes that poor layout and congestion are among the top drivers of inefficiency in clinical environments, directly impacting care delivery speed. Steelcase’s workplace findings similarly show that well-organized, purpose-built spaces can reduce cognitive load and error likelihood through clear wayfinding and organized tool access.

Ergonomics and health standards provide crucial guardrails. WELL v2 highlights glare control, circadian lighting support, and acoustic comfort as drivers of clinical performance and recovery. Within surgical suites, task lighting should follow IES recommendations for illuminance and glare control to avoid eye strain and maintain visual acuity during long procedures. These aren’t “nice-to-haves”—they directly influence speed, accuracy, and safety over multi-hour cases. For complex OT layouts, I often test clearances and adjacencies with an interior layout planner to validate equipment reach and circulation paths using a room layout tool: room layout tool.

Plan Clean Flows: Zoning, Sterility, and Adjacencies

An OT rests on clean movement logic. I separate three zones: sterile core (OT and sterile storage), semi-restricted (scrub, sterile processing access, anesthesia workroom), and unrestricted (pre-op, waiting, staff support). Patient, instrument, and waste flows must never cross. Place sterile processing access and clean supply near the sterile core to shorten turnaround. Align induction/anaesthesia bay and scrub sinks so staff can prep without backtracking. Keep a minimum of two doors to the OT—one for clean entry, one to a sub-sterile or equipment corridor. Where space allows, add a dedicated equipment alcove to avoid parking devices in the egress path.

Right-Size the Room: Clearances, Reach, and Flexibility

General surgery OTs typically perform well in the 550–650 sq ft range; hybrid and image-guided rooms often require 700–1,000+ sq ft due to fixed imaging gantries and ceiling booms. I maintain 5–6 ft clear working corridors around the operating table to accommodate anesthesia, scrub nurse, and mobile towers. Ceiling booms for lights, gases, and monitors should be specified with 360° rotation and lockable arms so teams can reconfigure for different procedures. Before committing, I prototype positions of the operating table, C-arm, microscope, and carts with a layout simulation tool to verify swing paths and no-conflict zones.

Lighting That Works: Illumination, Color, and Glare Control

OT lighting needs two layers: high-intensity, focused surgical luminaires (typically 40,000–160,000 lux at the field) and ambient/general lighting (300–500 lux) to reduce contrast and eye fatigue. I specify high CRI (≥90) with R9 enhancement for accurate blood and tissue rendering. Color temperature at 4,000–4,500K balances contrast without harsh blue cast; provide tunable white for microsurgery and endovascular work. Follow IES glare control guidance—shielded luminaires, matte finishes, and low-reflectance ceilings/walls prevent veiling reflections. Dim-to-warm control in recovery and induction helps support circadian cues per WELL v2 guidance.

Acoustics and Human Factors

Noise degrades concentration and communication. Target background NR 25–30 in OTs, with acoustic absorption in ceilings (cleanable, sealed-edge tiles with high NRC) and vibration isolation for imaging equipment. Steelcase research shows reduced noise and cognitive load correlate with fewer task errors; in practice, small gains—rubberized casters, soft-close cabinetry, and door seals—add up to a calmer room. Provide clear sightlines between surgeon, scrub tech, and anesthesiologist; keep primary monitors within a 15–25° vertical viewing angle to reduce neck strain. Operable booms should place screens at arm’s reach (~20–28 inches), aligning with ergonomics guidance to minimize musculoskeletal fatigue over long cases.

Infection Prevention by Design

Design sterilizes behavior. Hands-free doors, elbows/knee-operated scrub fixtures, and foot controls reduce touch points. Use seamless, heat-welded flooring with radiused cove base and integral thresholds to eliminate dirt traps. Wall protection should be monolithic or sealed-panel systems; avoid textile wallcoverings. Route gases and power via ceiling booms to keep floors clear for cleaning. Provide negative pressure in anterooms when isolation protocols are required and maintain positive pressure in the OT relative to corridors. Glass observation panels let educators observe without entering, preserving sterile integrity.

Equipment Strategy and Storage Discipline

Clutter is the enemy of safety. Assign a dedicated equipment bay with power/data, oxygen, and suction for frequently used carts. Standardize cart heights and labeling across service lines; include shadow boards and closed casework for rarely used instruments to keep dust down. Integrate a clean-core pass-through for instrument sets with visual management—status lights or simple boards—so staff don’t enter the sterile core unnecessarily. For hybrid rooms, coordinate ceiling grids early to avoid conflicts between lights, imaging rails, laminar diffusers, and booms.

Air, Thermal Comfort, and Energy Balance

Laminar flow diffusers centered over the operating table with peripheral returns support clean airflow. Maintain temperature setpoints around 18–22°C with staff-controlled micro-adjustments; surgeons often prefer cooler rooms under heavy PPE, while patients need thermal protection via warming blankets. Balance energy with variable-air-volume strategies and occupancy-based setbacks when the room is turned over, ensuring re-sterilization parameters are met before the next case. Seal penetrations meticulously; leakage undermines pressure regimes and cleanliness.

Color, Contrast, and Visual Psychology

Color choices support focus. Desaturated greens/teals reduce afterimage from red-dominant surgical fields and lower visual fatigue—well documented in color perception literature. Limit high-chroma accents to zones away from the table; use contrast at handles and edges for quick identification under stress. Matte finishes around monitors prevent specular reflection. In staff areas, warmer neutrals can reduce perceived stress and support decompression between cases.

Wayfinding, Safety, and Digital Integration

Every pathway should be legible. Use high-contrast, succinct labeling at eye level; back-of-house routes for waste and soiled materials should never intersect with sterile circulation. Integrate digital signage outside rooms for case status and equipment needs to preempt corridor congestion. Inside, plan for telepresence and recording: ceiling mic arrays, dedicated AV racks, and cable management that keeps floors clear. UPS-backed outlets for critical devices and clearly segregated critical/non-critical circuits are non-negotiable.

Workflow Simulation and Commissioning

I run table-top and in-room mock-ups with surgeons, scrub nurses, anesthesia, and sterile processing to validate reach, sightlines, and turn-over sequences. This is where latent conflicts reveal themselves—like an IV pole that collides with a boom arm during intubation. Using an interior layout planner helps iterate quickly before construction: interior layout planner. Post-build, commission airflows, lighting levels, acoustic performance, and AV integration, then schedule a 30–60 day post-occupancy review to capture adjustments.

Future-Proofing: Modularity and Growth

Technology cycles faster than buildings. Choose modular booms, universal rails, and standardized headwall backboxes for easy swaps. Provide spare conduits and extra data drops. Keep at least one flexible bay adjacent to the OT block that can be converted to imaging support or isolation as service lines change. Durable, repairable materials—seamless floors, solid-core doors, field-repairable panels—extend life and reduce lifecycle cost.

FAQ

What is the ideal size for a general surgery OT?

Most general OTs perform well at 550–650 sq ft, allowing 5–6 ft clearances around the table. Hybrid and image-guided rooms often need 700–1,000+ sq ft.

How bright should surgical lights be?

Field illuminance typically ranges 40,000–160,000 lux with CRI ≥90 and strong R9 for accurate tissue rendering. Pair with ambient 300–500 lux to reduce eye fatigue per IES guidance.

How can layout reduce turnover time?

Direct adjacency to sterile processing, clear equipment bays, and separated clean/soiled paths prevent backtracking. Mock-ups with staff often identify 5–10 minute savings per case by removing bottlenecks.

What acoustic targets should we use?

Aim for NR 25–30 in OTs with high-NRC cleanable ceilings, door seals, and vibration isolation for imaging. Reduced noise improves communication and lowers cognitive load.

Which materials best support infection control?

Seamless, heat-welded flooring with coved bases; monolithic or sealed wall systems; solid-surface or compact laminate worktops; hands-free fixtures; and ceiling-mounted services to keep floors clear.

How do you prevent glare on monitors?

Specify matte finishes on nearby surfaces, position luminaires to avoid specular angles, use shielded optics, and provide independent dimming for ambient lights.

What about color selection for OTs?

Muted greens and teals help counter red afterimages and reduce eye strain. Keep high-chroma colors away from the surgical field; use contrast judiciously for quick handle and edge recognition.

How do we integrate future technology without rebuilding?

Choose modular booms, universal rails, standardized backboxes, spare conduits, and additional data ports. Maintain a flexible bay adjacent to the OT block for future modalities.

Do we need tunable white lighting?

It is highly beneficial. Tunable white supports different procedures and reduces fatigue. Align controls with WELL v2 concepts for visual comfort and circadian support.

Where should scrub sinks be located?

Immediately outside the semi-restricted entry to the OT with direct sightlines and without crossing soiled paths. Provide touchless controls and elbow/knee operation as backup.

How can digital tools help during planning?

Layout simulation reveals swing conflicts and reach issues before construction, shortening design cycles and preventing costly changes. Try an interior layout planner to test equipment positions quickly: room design visualization tool.
