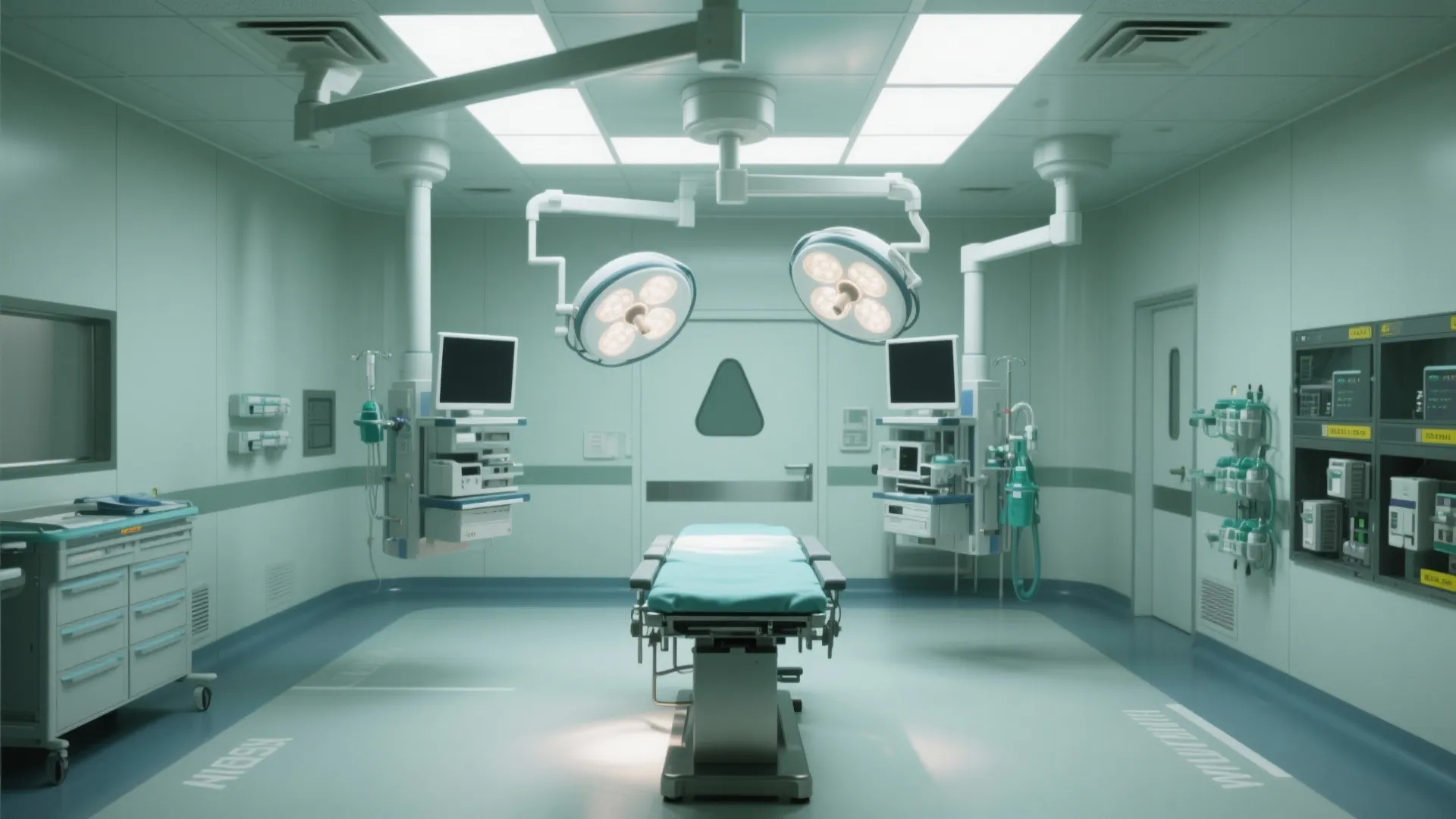

Hospital OT Room Design: Essential Guide for Efficient Spaces: 1 Minute to Smarter Hospital OT Room Planning and Safety

I’ve designed and upgraded operating theatres across small community hospitals and large tertiary centers, and the most successful rooms always balance sterile workflow, staff ergonomics, lighting precision, acoustic control, and technology integration. The WELL Building Standard highlights that task illumination should support visual acuity and reduce eye strain, and IES surgical lighting guidance typically targets 160,000–200,000 lux at the surgical field to ensure tissue differentiation without glare for the surgical team; those figures shape the heart of the ceiling grid and luminaire selection. Steelcase research notes that poor environmental control increases cognitive load and fatigue—conditions that degrade team performance under pressure—so I anchor OT planning on environmental consistency and intuitive organization.

Gensler workplace research has consistently shown that well-organized spatial flows reduce error rates and improve process speed; in OTs, I translate that into clean/dirty separation, straight-line instrument logistics, and protected anesthesia routes. Herman Miller’s ergonomics findings demonstrate that adjustable working heights reduce musculoskeletal strain; in OTs that means surgical tables with fine height/tilt control and movable instrument trolleys arranged within the primary reach envelope (typically 500–700 mm). These data points guide the choreography of staff movement, reduce micro-delays, and help the OT function as a calm, high-precision environment.

Foundational Zoning: Sterile, Semi-Sterile, and Support

I start every OT with a clear three-tier zoning strategy: sterile core (operating room and scrub area), semi-sterile (prep, anesthesia workroom, sterile storage), and support (clean utility, soiled utility, equipment staging, and circulation). The sterile core stays protected from cross-traffic; semi-sterile handles instruments and team prep; support absorbs noise, waste movement, and restocking. Where layout planning is in flux, I simulate flows and cart routes with a room layout tool to test turn radii, bed clearance, and door swing conflicts before committing to construction.

Room Dimensions, Clearances, and Spatial Ratios

For general surgery, I target a clear OT footprint of about 6.5–7.5 m by 6–6.5 m, with minimum 1.2 m unobstructed clearance on all sides of the surgical table. Larger specialties—orthopedics, cardiac, hybrid vascular—benefit from 7.5–9 m lengths to accommodate booms, imaging gantries, and larger teams. The spatial ratio I use is roughly 40–45% allocated to the primary surgical zone (table + circulation), 35–40% to equipment and supply, and 15–25% to anesthesia and monitoring. Doorways should provide 1.5 m clear width for bed and equipment ingress, and ceiling height ideally reaches 3.2–3.6 m to host laminar diffusers, lights, and booms without visual clutter.

Lighting: Precision Without Glare

Task lighting at the surgical field needs 160,000–200,000 lux with adjustable CCT (typically 3,500–4,500K) and high CRI (≥95) for color fidelity of tissue. Ambient lighting should sit around 300–500 lux, dimmable, with glare control via prismatic optics or indirect architectural luminaires to preserve the surgical team’s visual comfort during long procedures. I implement dual-mode lighting: high-output focus lights for incision and a softer peripheral wash to moderate contrast. For anesthesia induction and minimally invasive work, cool-neutral CCT sharpens visual contrast; for pediatric and recovery orientations, warmer-neutral tones help reduce stress per established color psychology findings.

Airflow, HVAC, and Infection Control

Laminar flow diffusers above the surgical zone, HEPA filtration, positive pressure relative to corridors, and well-planned return air locations minimize turbulence that could carry particulates back into the field. I keep lighting heads and booms aerodynamically clean and away from primary laminar flow cones, avoiding eddies. Temperature typically sits 20–23°C (with flexibility down to 18°C for some specialties), and humidity 40–60% to balance comfort and infection control. Clear separation of clean and soiled utilities with direct routes out of the OT prevents conflict with sterile traffic.

Ergonomics: Heights, Reach, and Fatigue Mitigation

I design around the team’s reach zones: frequent-use instruments within 500–700 mm, occasional-use 700–900 mm, rarely used beyond 900 mm but within safe access. Adjustable tables (±250 mm), height-variable mayo stands, and mobile monitors reduce static postures. Footrests and anti-fatigue flooring at anesthesia stations are essential during long cases. Lines of sight should keep critical monitors within a 15–30° downward gaze from neutral head position to reduce neck strain, echoing core ergonomics principles.

Ceiling Booms, Monitors, and Equipment Strategy

With multi-disciplinary teams, ceiling-mounted booms organize power, gas, and data while freeing floor space. I place surgical lights and booms with a triangular logic around the table: primary light over the field, secondary boom for power/gas at the surgeon’s non-dominant side, and a dedicated anesthesia boom behind the head-of-bed. Monitors should be modular with quick-swivel arms for laparoscopic and imaging needs, avoiding cable drape across walking paths. Before finalizing, I run layout trials using an interior layout planner like a layout simulation tool to confirm collision-free rotation arcs.

Acoustic Comfort and Team Communication

Operating rooms accumulate mechanical noise from HVAC, suction, imaging, and alarms. I target noise control via acoustic ceiling tiles (healthcare-grade, cleanable) around the perimeter and soft-surface wall panels in support zones, while keeping sterile surfaces compliant. Clear audio pathways matter; position intercoms and nurse call devices away from high-noise vents and suction sources. Lower ambient noise improves focus and reduces miscommunication.

Materials: Cleanability and Sustainability

Seamless, coved flooring (vinyl or resin-based) with heat-welded seams minimizes dirt traps. Walls use high-scrub, antimicrobial coatings; doors and casework need impact-resistant finishes. I favor materials with low VOCs to support staff health. In supply areas, modular stainless or powder-coated shelving resists corrosion and cleans easily. Sustainability gains come from high-efficiency LED luminaires, demand-controlled ventilation when the OT is idle, and standardized, repairable components for long life cycles.

Color Psychology and Visual Balance

Neutral palettes with desaturated greens/blues reduce visual fatigue and help the eye recover from the intense red spectrum of tissue. Accent colors are sparingly applied to wayfinding and equipment zones to support quick recognition without overstimulation. Balanced contrast around monitors prevents eye strain; I keep walls matte to avoid reflections and employ soft gradients of light to prevent harsh edges.

Storage, Prep, and Instrument Logistics

Instrument flow benefits from a clear path from sterile storage to the OT, with pass-through cabinets when feasible. I prefer separate prep countertops for implants and disposables to avoid cross-mixing. Mobile case carts staged in semi-sterile zones reduce clutter inside the OT. Barcode or RFID integration near the entrance ensures quick inventory checks without blocking the door.

Digital Integration and Future-Proofing

Plan for redundant data drops, PoE for cameras, and shielded cable pathways to imaging. Leave ceiling grid allowances for future modalities (e.g., new imaging heads, AI-assisted visualization tools) and extra structural support for heavier booms. Software interoperability should be tested at mock-up stage; mount test displays to confirm viewing angles and brightness under surgical lights.

Emergency Protocols and Human Factors

Crash cart placement must remain visible yet clear of primary circulation, typically near the entrance but away from swing arcs. Egress routes should offer direct access for additional staff and rapid patient exit if needed. I mark the floor subtly for equipment parking zones—visual cues help reduce clutter. Large-font, high-contrast labeling on gas and power panels reduces mistakes during time-critical moments.

Commissioning, Mock-Ups, and Training

Before turnover, I insist on full-scale mock-ups with the surgical team to test table position, boom rotation, cable management, and light targeting. Commissioning includes light meter readings at the field, airflow smoke tests, and ergonomic checks (reach, height, sightline). Capture lessons learned; they often drive small but powerful changes—like relocating a monitor 150 mm to the left—that pay off for years.

FAQ

What illuminance is appropriate for surgical lighting?

Field lighting is typically 160,000–200,000 lux with high CRI (≥95) and adjustable CCT (around 3,500–4,500K) for tissue differentiation and reduced eye strain.

How should the OT be zoned to support sterile workflow?

Use a three-tier model: sterile core (OT and scrub), semi-sterile (prep, sterile storage, anesthesia workroom), and support (clean/soiled utility, equipment staging, circulation) with separated clean and dirty flows.

What clearances are recommended around the surgical table?

A minimum of 1.2 m unobstructed clearance on all sides is a practical baseline, expanded for orthopedics and cardiac cases with larger equipment footprints.

How do I reduce glare while keeping high light levels?

Combine focused surgical luminaires with glare-controlled ambient lighting using prismatic or indirect fixtures; maintain adjustable dimming to balance contrast during different phases of surgery.

What ergonomic features matter most for the team?

Adjustable table height and tilt, movable instrument trolleys within the primary reach zone (500–700 mm), monitor positioning within a comfortable gaze angle (15–30° below neutral), and anti-fatigue support at anesthesia stations.

How should ceiling booms and monitors be arranged?

Create a triangular arrangement: primary surgical light over the field, a power/gas boom at the surgeon’s non-dominant side, and an anesthesia boom behind the head-of-bed, with collision-free arcs verified via planning tools.

What HVAC strategy supports infection control?

Laminar flow diffusers above the field, HEPA filtration, positive room pressure, and carefully placed returns to avoid turbulence around the surgical zone; temperature 20–23°C and humidity 40–60% are common targets.

Which materials work best inside an OT?

Seamless, coved flooring (vinyl or resin), antimicrobial high-scrub wall finishes, impact-resistant doors/casework, low-VOC selections, and cleanable acoustic treatments in support areas.

How can color psychology improve staff focus?

Neutral palettes with desaturated greens/blues reduce visual fatigue; restrained accents aid wayfinding without creating visual noise.

What commissioning tests are essential before opening?

Light meter validation at the surgical field, airflow smoke tests for laminar performance, ergonomic mock-ups with staff, and verification of data, gas, and power labeling and redundancy.
