How to draw office floor plan: A comprehensive guide to creating effective office floor plans

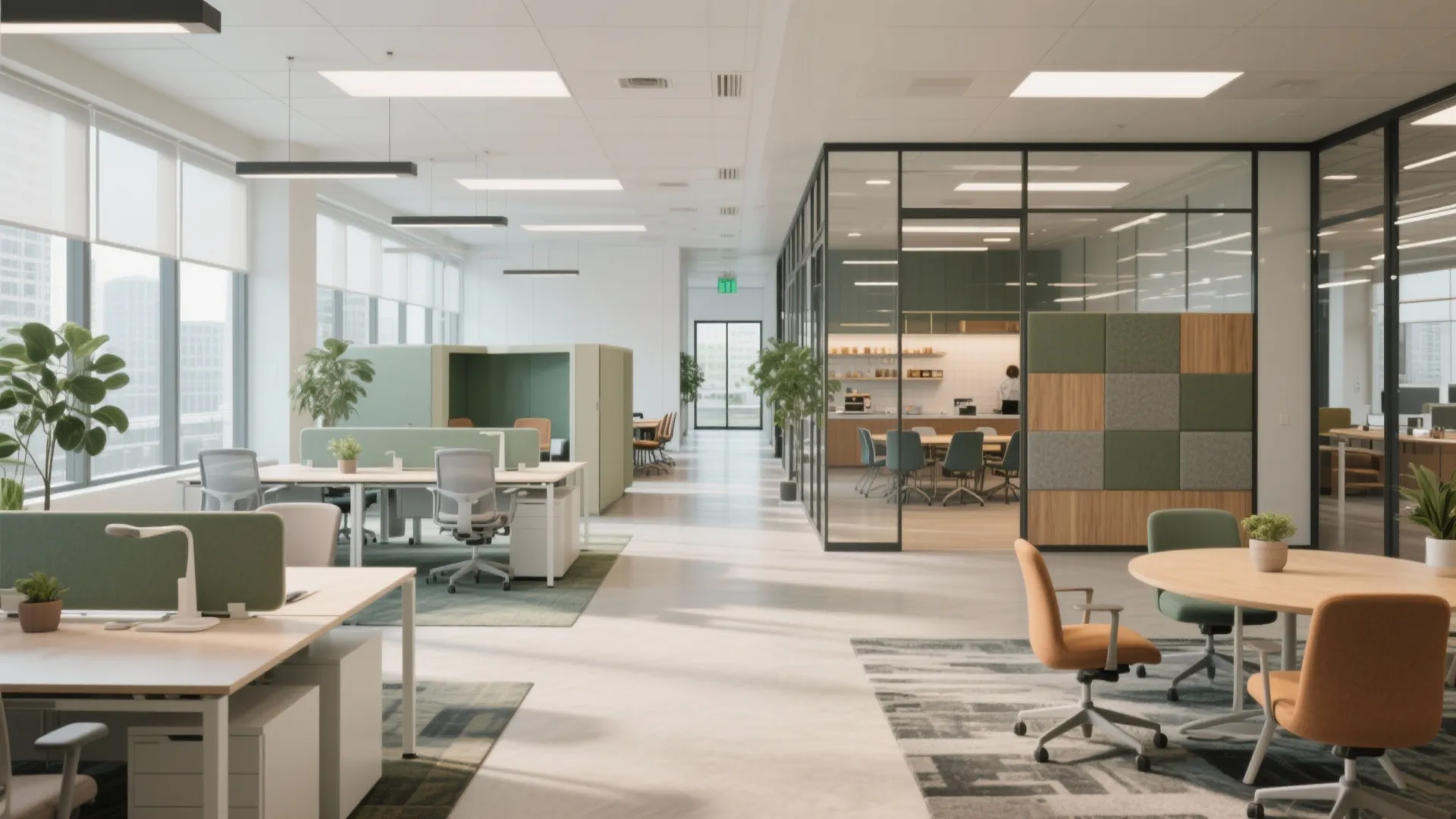

Getting an office floor plan right is more than arranging desks. It’s aligning people, tasks, and space so teams move naturally, think clearly, and stay healthy across a full workday. In my practice, the best plans begin with behavior mapping, daylight strategy, and clear adjacencies—then evolve through fast iterations before any build-out begins.

Two data points always anchor my early decisions. First, according to Gensler’s workplace research, effective offices balance focus, collaboration, learning, and socializing; high-performing teams report access to all four modes in the same environment. Second, WELL v2 emphasizes daylight exposure, acoustic control, and ergonomic posture as foundational health drivers—elements that directly influence layout, lighting, and furniture selection. I keep both findings visible during planning (see Gensler research and WELL v2 for framework alignment) to calibrate each zone’s purpose and comfort.

Lighting targets also shape the drawing. IES recommendations for typical open offices aim around 300–500 lux on the workplane with controlled glare and balanced vertical illumination to support visual comfort, while task-intensive areas may need higher localized lighting. Getting the lux levels right early avoids costly rework and reduces eye strain in the final environment.

Map Behavior, Then Draw Walls

Before sketching, I log how people actually work: heads-down time vs. meetings, impromptu huddles vs. scheduled sessions, client visits, and remote collaboration patterns. I group adjacencies so the most frequent interactions sit within 30–60 seconds’ walking distance, while quiet work zones sit outside main traffic lines. This reduces context switching and noise conflicts.

Define the Core Program

List the spaces you truly need: entry/reception, open work area, focus rooms, small/medium meeting rooms, collaboration lounge, café/pantry, support (print, storage, IT), and wellness elements (mother’s room, phone booths). Assign headcounts and typical occupancy per space. For open areas, a planning ratio of 80–120 sq ft per person is a common starting band in modern offices, adjusted for role mix, circulation, and local codes.

Block and Stack: From Fit Test to Flow

I start with a simple block plan: rectangular zones sized to program needs, placed to test circulation and noise separation. Collaboration and café zones sit near entries to absorb visitors and chatter; focus rooms and libraries live deeper inside with fewer pass-through paths. This is the moment to run a quick digital layout simulation to compare scenarios. If you’re iterating furniture clusters and adjacencies, a room layout tool like Coohom’s room planner helps visualize lines of sight, daylight reach, and meeting spillover as you adjust footprints: room layout tool.

Circulation: The Office’s Bloodstream

Plan main spines at 48–60 inches clear width minimum, widening near shared amenities to prevent bottlenecks. Keep direct, intuitive paths from entry to reception, then to meeting rooms and the café. Secondary paths peel into neighborhoods, with short cul-de-sacs for quiet zones to prevent through-traffic. As a rule, avoid routing primary circulation directly behind desk chairs to reduce distractions and preserve ergonomic clearances.

Light, Views, and Color Psychology

Pull focus work and meeting zones toward window lines where practical, then balance with interior glazed partitions to share daylight deep into the plan. Use neutral, low-saturation hues in focus areas to limit cognitive load, and introduce energizing color accents (muted greens or warm tones) in collaboration and café areas to cue social behavior. Verywell Mind’s color psychology work highlights how blues and greens support calm and concentration, while warmer accents can elevate energy—use this subtly to guide behavior without visual fatigue.

Ergonomics by Design, Not Afterthought

Layout ergonomics starts with geometry, not just furniture specs. Align desk runs to minimize screen glare from windows, keep sightlines gentle (no screens facing bright glazing), and ensure 30–36 inches of edge clearance behind seated positions. For shared touchdown spaces, provide sit-stand surfaces and adjustable stools; pair with monitor arms and task lights in focus rooms to maintain neutral posture. WELL v2 ergonomics credit language reinforces adjustability and posture variety as vital elements—bake that into the plan, not just the procurement list.

Acoustic Strategy That Actually Works

Use zoning before materials: place quiet zones away from café and collaboration. Then layer absorption (felt baffles, acoustic ceiling tiles), diffusion (bookshelves, textured walls), and isolation (solid cores for phone rooms) where needed. Keep reverberation times low in focus rooms and phone booths; aim for soft, non-parallel surfaces in small enclosures to avoid flutter echo. Meeting rooms near open work should have vision glazing with acoustic interlayers or rated partitions to preserve openness without leaking conversation.

Meeting and Focus Rooms: Right-Size the Mix

Most offices overbuild large rooms and underprovide 1–2 person spaces. Track actual meeting sizes for two weeks, then size supply accordingly. I target a ratio where at least 40–50% of rooms are small (1–4 people), with only a few large rooms for all-hands. Equip each with consistent camera placement, lighting, and acoustics for equitable hybrid calls; place them slightly off main aisles to reduce noise bleed.

Materials, Wellness, and Maintenance

Choose materials with a balance of acoustic softness, durability, and cleanability. In circulation and café zones, opt for resilient flooring; in focus areas, modular carpet or acoustic rugs dampen noise. Prioritize low-VOC finishes and tactile, matte surfaces to reduce glare and visual strain. Biophilic touches—real planting near daylight and softer natural tones—calm the visual field without clutter.

Power, Data, and Future Flex

Nothing sinks a plan faster than underpowered furniture clusters. Distribute floor boxes to accommodate 20–30% growth in each neighborhood, drop power from ceiling rails over collaboration tables, and route data to support hot-desking. Keep demountable partitions in mind for team growth; modular furniture with consistent desk widths makes churn painless.

Drawing the Plan: Step-by-Step

1) Gather inputs: headcount, team adjacencies, meeting data, hybrid work patterns. 2) Block-plan zones by function, test noise buffers, and daylight reach. 3) Lay circulation spines and secondary paths with clear widths. 4) Fit-test furniture: desk runs, collaboration clusters, meeting and focus rooms. 5) Place power/data in a grid that supports reconfiguration. 6) Lighting layout: task vs. ambient, avoiding glare lines; align to IES illuminance targets. 7) Material zoning and acoustic layers. 8) Validate with a layout simulation tool and stakeholder walkthroughs; refine.

Common Pitfalls I Avoid

- Oversizing boardrooms and starving small focus rooms. - Running main traffic behind workstations. - Treating lighting as a fixture schedule instead of a visual comfort system. - Ignoring growth capacity in power/data planning. - Failing to give the café a true social heart—people will gather anyway; design for it.

Validated References to Guide Decisions

To keep planning grounded, I cross-check with Gensler’s research on work modes and space performance and the WELL v2 features for light, movement, and acoustics. These frameworks prevent “trend-only” layouts and keep health and productivity measurable.

FAQ

How much space should I allocate per person?

Plan a baseline of 80–120 sq ft per person in modern offices, adjusting for role mix, amenity density, and local code. Hybrid teams often succeed at the lower end if focus rooms and collaboration areas are well provided.

What illuminance levels should I target?

For general open offices, design around 300–500 lux on the desk surface per IES guidance, with task lights boosting local levels for detail work. Balance vertical illumination for facial visibility in hybrid calls.

How do I control screen glare near windows?

Orient monitors perpendicular to glazing, use low-reflectance finishes, add adjustable shading, and provide task lighting to balance contrast. Keep bright view lines out of the immediate monitor background.

What’s the ideal mix of meeting rooms?

Track actual meeting sizes for two weeks and bias toward small rooms. A useful rule: 40–50% small (1–4 people), 30–40% medium (5–8), a few larger rooms as needed. Provide plentiful 1–2 person booths.

How wide should main aisles be?

Plan 48–60 inches clear width for main corridors, widening at nodes and amenity fronts. Keep 30–36 inches behind seating to avoid collisions and distractions.

What acoustic strategies work best in open offices?

Start with zoning to separate quiet and social functions, then add absorption (ceilings, panels), diffusion (shelving, textures), and isolation (solid-core doors, laminated glass) for rooms near open work.

How do I design for hybrid collaboration?

Standardize camera placement and lighting in rooms, ensure reliable acoustics, provide shared digital boards, and position small video rooms close to open neighborhoods so they’re used frequently.

How can I future-proof the plan?

Grid your floor boxes for 20–30% headcount growth, use modular furniture with consistent widths, keep demountable partitions where team sizes shift, and reserve a convertible project room.

Where should the café go?

Near the entry or central spine to attract social energy away from focus zones. Provide soft seating, standing rails, and a mix of textures to absorb sound.

Do color choices really affect productivity?

Yes—cooler, low-saturation hues support focus; warmer accents can energize collaborative zones. Use color to cue behavior without overwhelming the visual field.

What tools help me iterate floor plans quickly?

Use a room design visualization tool to test adjacency, circulation, and furniture fit before committing. For fast scenario testing, try this interior layout planner: room layout tool.

How do I align with health standards?

Cross-check your plan against WELL v2 features for light, movement, acoustics, and ergonomics, and verify illuminance and glare control against IES recommendations.
