How to Fix Column Placement Conflicts in Open Floor Plan Designs: Practical solutions architects use when structural columns disrupt open space layouts

Direct Answer

Column placement conflicts in open floor plan designs are usually solved by adjusting structural grids, relocating columns through transfer beams or girders, or redesigning interior zoning around the column. The best solution depends on structural loads, span limits, and how early the conflict is discovered during design.

In most real projects, the fastest fix is not moving the column but integrating it into functional zones such as kitchen islands, partitions, storage walls, or circulation paths.

Quick Takeaways

1. Most column conflicts happen because structural grids are finalized before interior planning.
2. Relocating columns often requires transfer beams, which add cost and structural depth.
3. Integrating columns into furniture, partitions, or cabinetry is often the simplest fix.
4. Early coordination between architects and engineers prevents most column layout issues.
5. Open floor plans still require hidden structural logic to maintain efficiency.

Introduction

Open floor plan designs look effortless in renderings. In reality, they often collide with structural reality. One of the most common issues I see on projects is column placement problems in open floor plan layouts where a structural column lands exactly where the architect wants a kitchen island, living space, or circulation path.

After working on residential and mixed‑use projects for more than a decade, I can say this: columns rarely move easily. Structural grids are driven by loads, spans, and efficiency. Interior layouts are driven by human use. When those two systems develop independently, conflicts appear.

Many designers first encounter this problem when they start sketching layouts or experimenting with spatial zoning using a visual layout workflow that helps test structural grid compatibility early. Seeing columns in a spatial context quickly reveals whether they support the design or completely disrupt it.

In this guide, I'll walk through the real solutions architects and structural engineers use to resolve column conflicts, when relocation is possible, when it isn't, and how to prevent the issue in the first place.

save pin

Common Column Placement Problems in Open Layouts

Key Insight: Most column conflicts are not structural mistakes—they are coordination gaps between architectural layout and structural grid planning.

In open floor plan buildings, columns tend to land in places that interrupt the visual flow of the space. Kitchens, living rooms, and circulation areas are especially sensitive to this.

Typical column placement problems include:

1. Columns landing in the center of living spaces
2. Columns blocking kitchen islands or dining tables
3. Columns interrupting hallway circulation paths
4. Columns misaligned with walls or cabinetry
5. Columns disrupting window sightlines

In several apartment projects I worked on in Los Angeles, we discovered that even a 12‑inch shift in column position could completely change how a living room functions. The issue isn't just aesthetics—it's furniture placement, movement flow, and visual openness.

Structural engineers often optimize grids for efficiency, which typically means regular spacing like:

1. 20–30 ft for residential buildings
2. 25–35 ft for office structures
3. Longer spans for commercial spaces

But interior planning rarely aligns perfectly with those structural intervals.

Why Structural Grids Conflict With Interior Planning

Key Insight: Structural grids prioritize load transfer efficiency, while interior layouts prioritize usability and spatial experience.

Architects and structural engineers often begin design thinking from completely different directions.

Structural engineers think in terms of:

1. Load paths
2. Span efficiency
3. Beam depth limits
4. Foundation alignment

Architects think in terms of:

1. Circulation flow
2. Furniture placement
3. Visual symmetry
4. Natural light access

This difference creates inevitable friction in open layouts.

A common hidden mistake is designing the structural grid before validating interior zoning. When the architecture team later introduces kitchen islands, partitions, or furniture zones, columns suddenly appear in the wrong places.

Modern planning workflows increasingly combine architectural and structural studies earlier. Many firms now prototype layouts using tools that allow teams to experiment with room zoning before structural decisions are finalized.

save pin

Adjusting Column Locations Without Compromising Loads

Key Insight: Columns can sometimes move, but the structural load path must remain continuous.

Relocating a column is rarely as simple as shifting it on a drawing. Loads from floors above must still transfer safely to the foundation.

Typical relocation strategies include:

1. Offsetting columns slightly within beam span limits
2. Rebalancing loads with secondary beams
3. Using stronger beam sections
4. Adding hidden columns inside walls

Small adjustments—usually under 2 to 3 feet—can sometimes be accommodated without major structural redesign.

However, larger relocations typically require structural transfer systems.

According to guidance from the American Institute of Steel Construction (AISC), introducing transfer systems increases structural complexity and often adds both cost and construction depth.

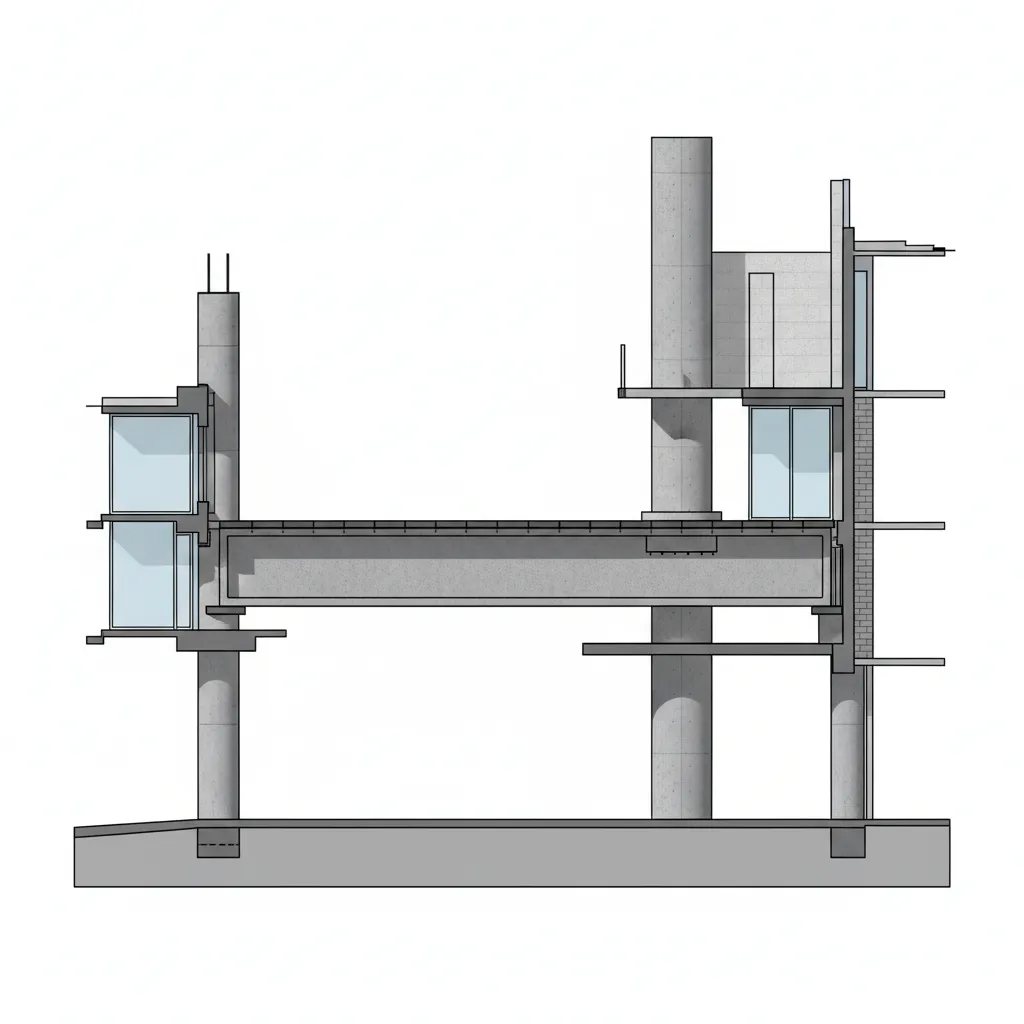

Using Transfer Beams or Girders to Solve Conflicts

Key Insight: Transfer beams allow column relocation, but they increase cost, structural depth, and coordination requirements.

Transfer beams or girders redistribute loads when a column cannot align vertically through multiple floors.

In practical terms, they allow a column above to "jump" to a different position below.

Typical scenarios where transfer beams are used:

1. Retail space below residential units
2. Parking levels below apartments
3. Lobby areas requiring large open spans
4. Architectural layouts requiring column-free spaces

But there are trade-offs.

Transfer beams can be:

1. 3–6 feet deep in large buildings
2. Heavier and more expensive
3. Difficult to integrate with ceiling systems

On several mixed‑use projects I worked on, transfer girders solved layout problems but forced us to redesign mechanical ducts and ceiling heights.

save pin

Coordination Between Architects and Structural Engineers

Key Insight: The most effective solution to column conflicts is early interdisciplinary coordination.

The earlier architects and engineers collaborate, the fewer column conflicts appear later in the project.

Effective coordination usually includes:

1. Preliminary structural grid studies
2. Early layout zoning workshops
3. Shared 3D spatial models
4. Iterative floor plan testing

Instead of treating columns as obstacles, good teams treat them as spatial anchors.

For example, columns can become:

1. Built‑in shelving supports
2. Kitchen island structural cores
3. Partition wall alignment points
4. Lighting or feature elements

Many designers now evaluate structural grids while exploring layout options using a floor planning approach that quickly tests column placement against room functions.

Preventing Column Conflicts in Early Design Stages

Key Insight: The cheapest column fix is preventing the conflict before structural drawings are finalized.

In practice, column conflicts usually appear when design teams move too quickly from concept to structure.

Smart early‑stage workflows include:

1. Define primary interior zones before finalizing grids

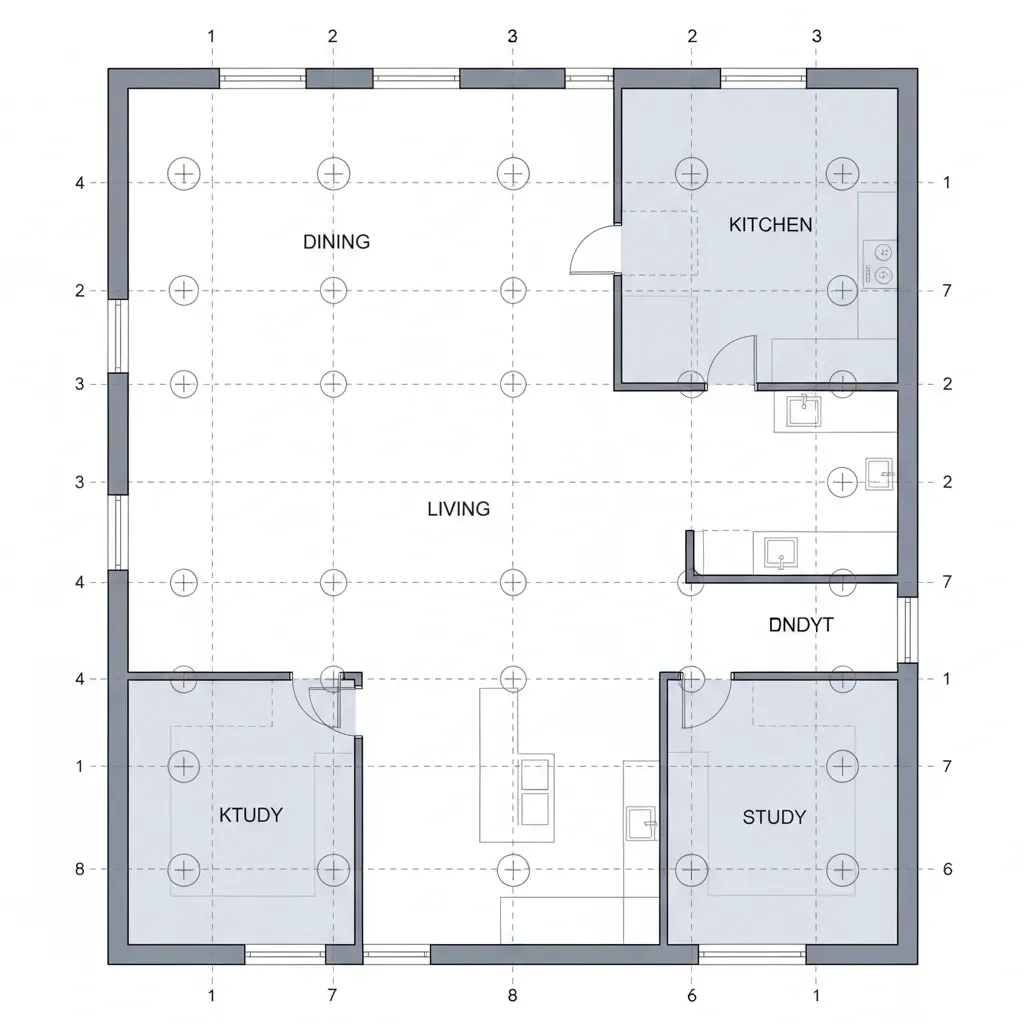

2. Overlay structural grids onto furniture layouts
3. Identify critical open areas like living rooms or lobbies
4. Adjust grid spacing around key functional zones
5. Simulate circulation paths early

One overlooked strategy is intentionally aligning columns with architectural features such as stair cores, kitchen walls, or storage blocks. When columns align with functional elements, they disappear visually.

save pin

Answer Box

The most effective way to fix column placement conflicts in open floor plan designs is early coordination between architecture and structural engineering. When conflicts do occur, designers typically solve them by integrating columns into interior features, adjusting grids slightly, or introducing transfer beams where relocation is unavoidable.

Final Summary

1. Most column conflicts come from late coordination between structure and architecture.
2. Small column shifts are sometimes possible within beam span limits.
3. Transfer beams allow relocation but increase structural cost.
4. Integrating columns into furniture or partitions is often the simplest solution.
5. Early planning prevents most structural layout problems.

FAQ

Why do columns appear in the middle of open floor plans?

Because structural grids are designed for load efficiency before interior layouts are finalized.

Can structural columns be moved after design?

Yes, but relocation often requires transfer beams, additional structural support, or redesign of load paths.

What is a transfer beam for column relocation?

A transfer beam redistributes loads so a column above can sit in a different location than the column below.

What is the easiest fix for column placement problems in open floor plan layouts?

Integrating the column into interior features like cabinetry, partitions, or storage walls.

How much does moving a column increase construction cost?

Costs vary widely, but introducing transfer systems can significantly increase structural complexity.

Do architects or engineers decide column placement?

Both. Structural engineers design the grid, while architects coordinate placement with spatial layouts.

What causes structural column conflict with interior layout?

Misalignment between structural grids and functional zones like kitchens, living spaces, or circulation paths.

Can column spacing be increased to avoid conflicts?

Sometimes, but larger spans require stronger beams or slabs and may increase costs.

References

1. American Institute of Steel Construction (AISC)
2. Structural Engineering Institute – ASCE
3. Architectural Graphic Standards
