How to Measure Floor Plan Using Ruler: How to Measure Any Room Accurately (2026)

A floor plan is only as useful as the measurements behind it. Whether you're planning a furniture layout, preparing a listing, briefing a contractor, or designing a renovation, the process is the same: measure the space accurately, record every dimension, and translate those numbers into a to-scale drawing. In 2026, the drawing part takes minutes — tools like Coohom's free floor plan creator convert your raw measurements into a precise, exportable floor plan in a single browser session. But the measuring still has to be done on-site, by hand, with the right approach. This guide covers every step: tools, technique, doors and windows, irregular rooms, cross-checks, and how to turn your numbers into a finished floor plan without any design background.

What You Need Before You Start

You don't need expensive equipment to get accurate measurements. The core kit:

1. Tape measure (25 ft / 8 m minimum). The standard tool for residential spaces. A locking tape with a wide blade (1 inch) is easier to extend across a room solo without the tape buckling.

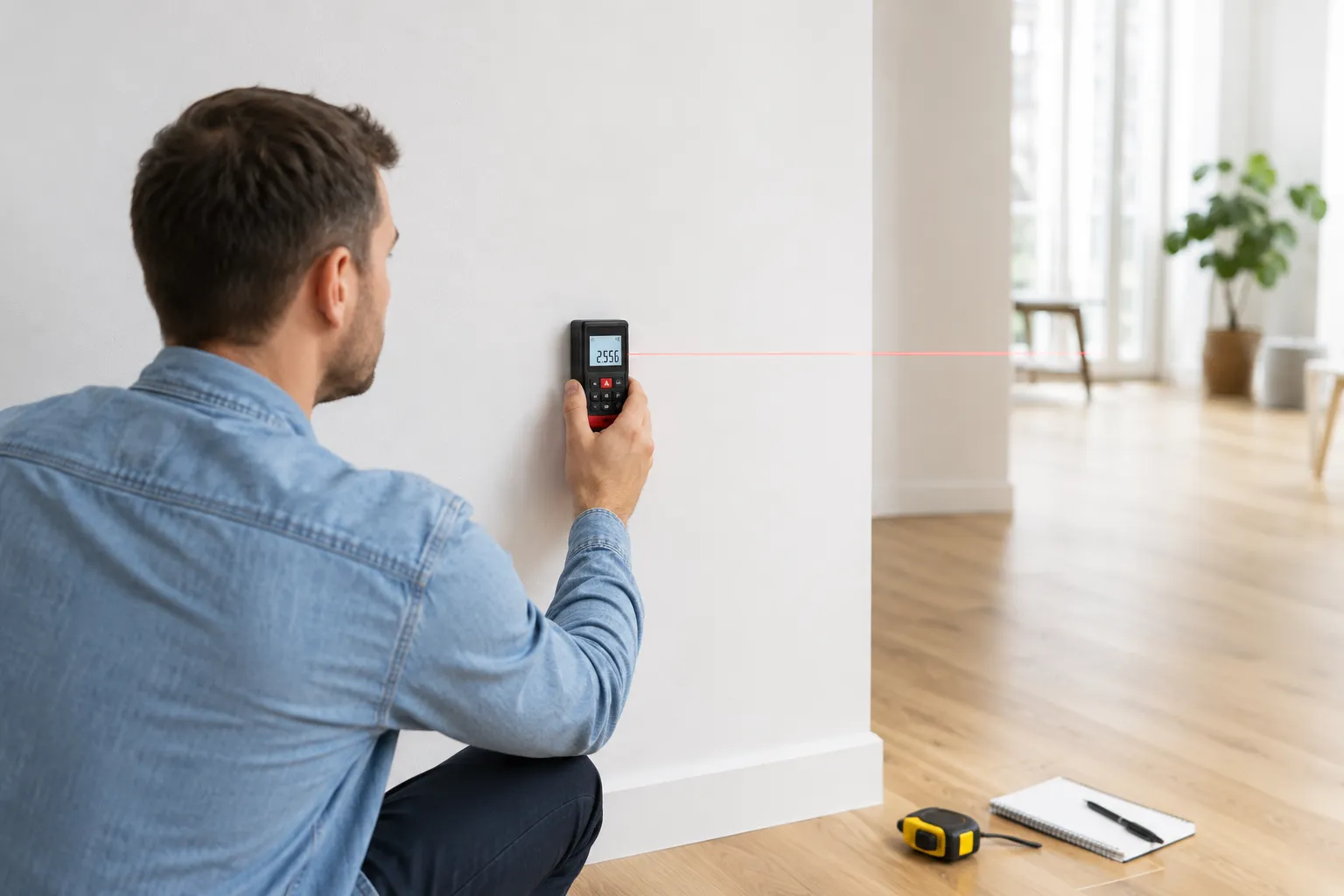

2. Laser distance measure (recommended). Devices like the Bosch GLM 50 cost under $60 and measure a 20-foot room in under a second with ±1/16-inch accuracy. Eliminates the need for a second person on long runs and is now the de facto standard for agents and designers doing regular site visits in 2026.
3. Graph paper or a blank notebook. For sketching a rough bubble diagram as you go. It doesn't need to be to scale — just enough to record which dimensions belong to which wall.
4. Pencil. Measurements get corrected; pencil is forgiving.
5. Phone. Calculator for unit conversions, and camera to photograph each wall after measuring. If a number is illegible later, the photo usually has enough context to reconstruct it.

One person can measure a full apartment in 30–45 minutes with a laser measure. With a tape measure alone, budget an hour for a 3-bedroom home and bring a second person for long runs.

save pin

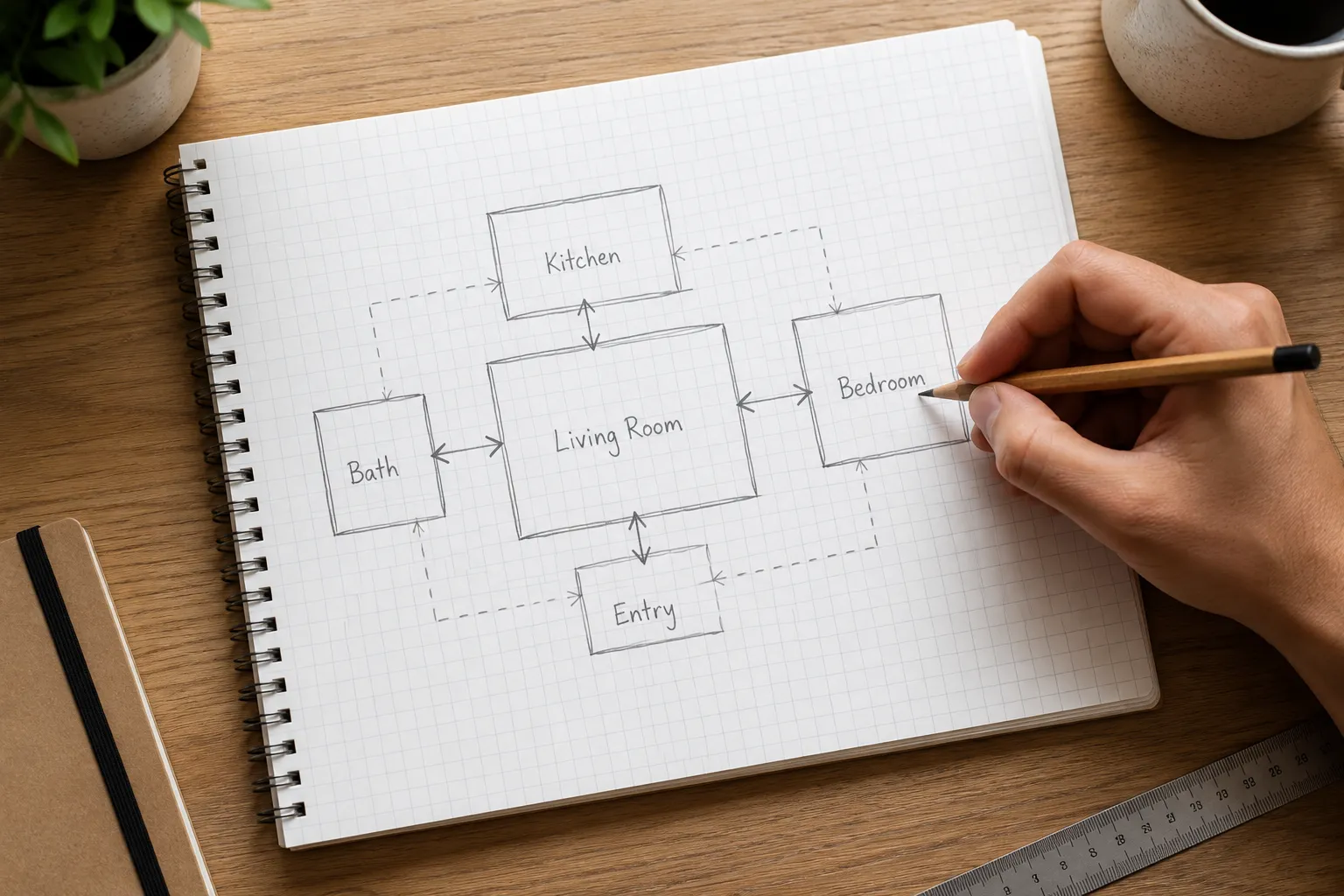

Step 1: Sketch a Bubble Diagram Before You Measure Anything

Walk the entire space first and sketch a rough bubble diagram — boxes representing each room with lines showing where they connect. This takes five minutes and prevents the most common measurement mistake: recording a number without knowing which wall it belongs to.

Label each room (Kitchen, Living, Primary Bedroom, etc.) and mark the approximate locations of doors and windows. You'll fill in the actual numbers as you measure. The diagram doesn't need to be proportional — its only job is to give every measurement a home on paper so nothing gets lost.

For a multi-story property, draw a separate diagram for each floor. Note stairwell openings on both levels and mark which walls are shared between floors.

save pin

Step 2: Measure Every Wall

Work clockwise around each room's perimeter, recording wall lengths in sequence. For each wall:

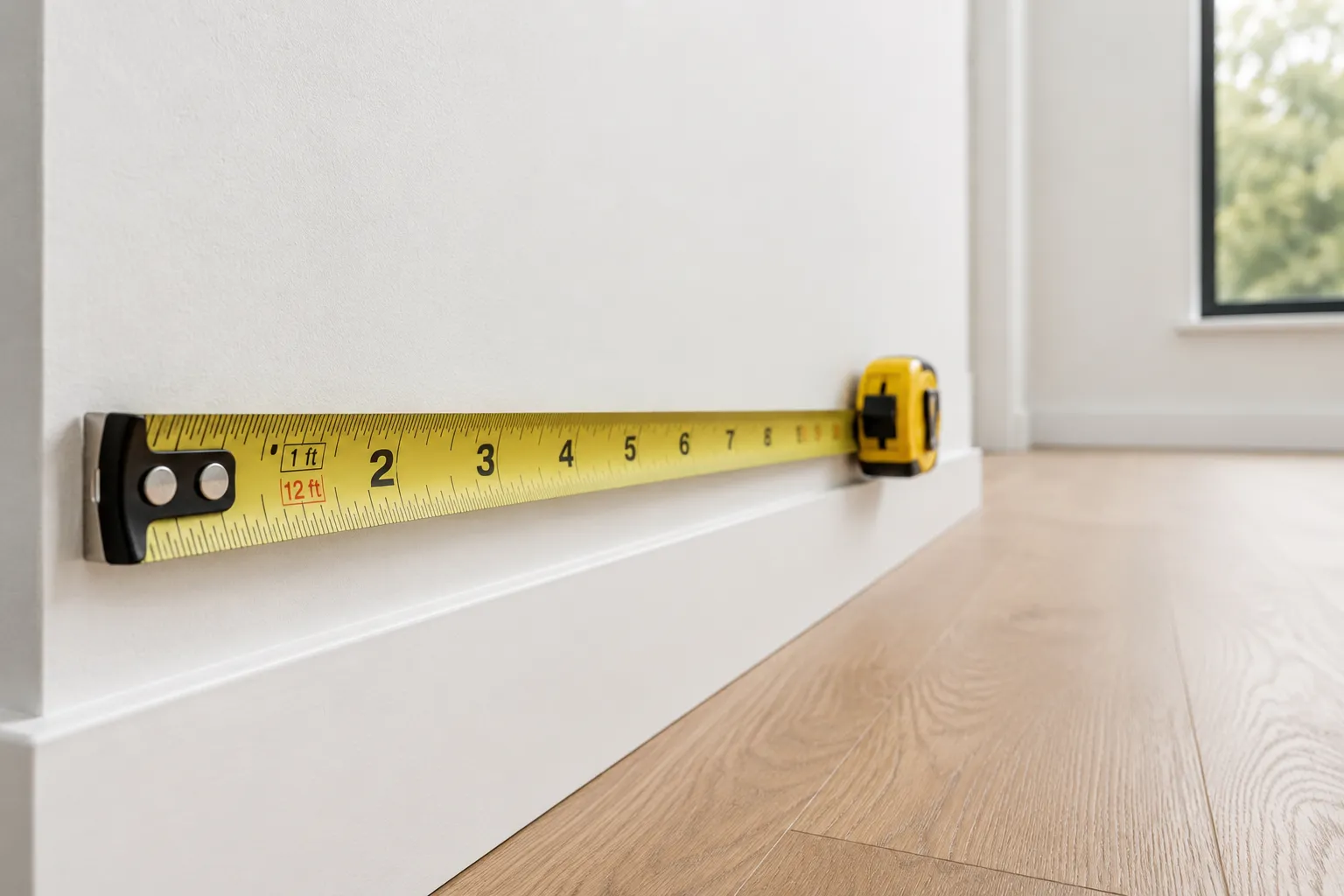

1. Measure wall-to-wall at floor level. Hold the tape at the inside face of one wall and extend to the inside face of the opposite wall. Floor level avoids interference from baseboard heaters, outlets, or furniture.
2. Measure twice. Rooms are rarely perfectly rectangular. Measure both length and width at two points — near one wall and near the opposite wall. If the numbers differ by more than half an inch, the room has an angled wall or a construction irregularity that needs to be captured separately.
3. Stay in one unit system. Choose feet-and-inches or centimeters and stay consistent throughout. Mixing units is the most common source of floor plan errors.
4. Wall thickness. Standard US exterior walls are 5.5–6 inches thick (2×6 framing + drywall). Interior partitions are typically 4.5 inches (2×4 framing + drywall). You don't need to measure this directly — standard values are sufficient for most floor plan tools.

Step 3: Measure Doors and Windows

The most commonly skipped measurements and the most commonly regretted omissions. For each opening:

Doors

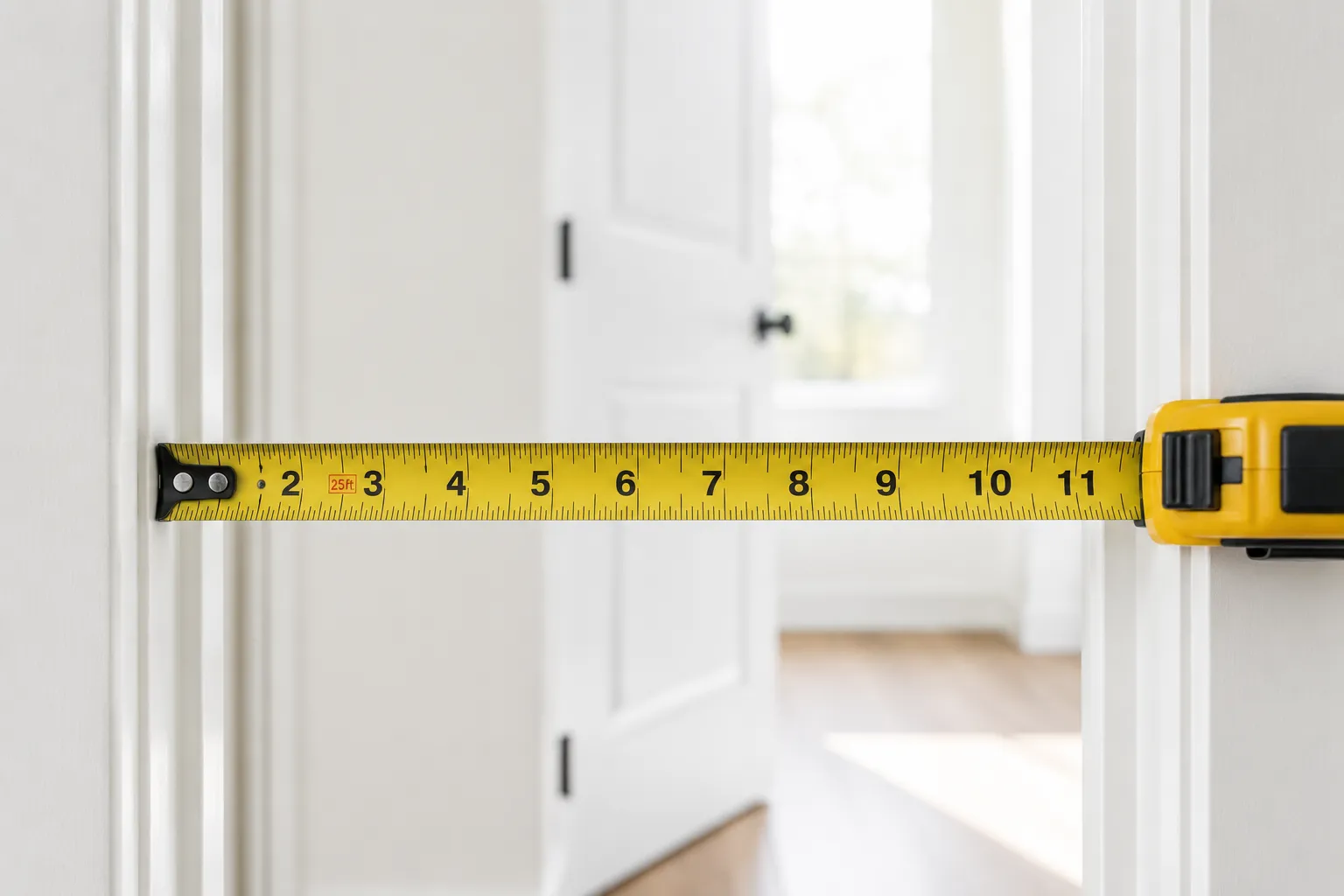

1. Clear opening width — frame to frame, not the door slab. Standard interior doors are 32 inches; exterior doors are typically 36 inches.
2. Position on the wall — distance from the nearest corner to the edge of the door frame. This tells you where the opening starts.
3. Swing direction — note which side the hinges are on and whether the door swings into or out of the room. Draw a small arc on your bubble diagram. A swing that blocks a light switch or conflicts with furniture is invisible on a plan that doesn't show it.
4. Sliding and pocket doors — measure the full opening width and note the track direction. No swing radius, but a wall pocket that can't be used for switches or art.

Windows

1. Clear opening width — frame to frame, same method as doors.
2. Position on the wall — distance from the nearest corner to the window frame edge.
3. Sill height — finished floor to the bottom of the window opening. Standard residential sill height is 36 inches; lower windows start at 18–24 inches. Critical when placing tall furniture — a wardrobe taller than sill height can't go under a window.
4. Window height — sill to top of opening. Needed for 3D renders and elevation drawings.

save pin

Step 4: Measure Fixed Features and Built-Ins

Anything that can't be moved needs to appear on the floor plan. Walk the space again after measuring walls and record:

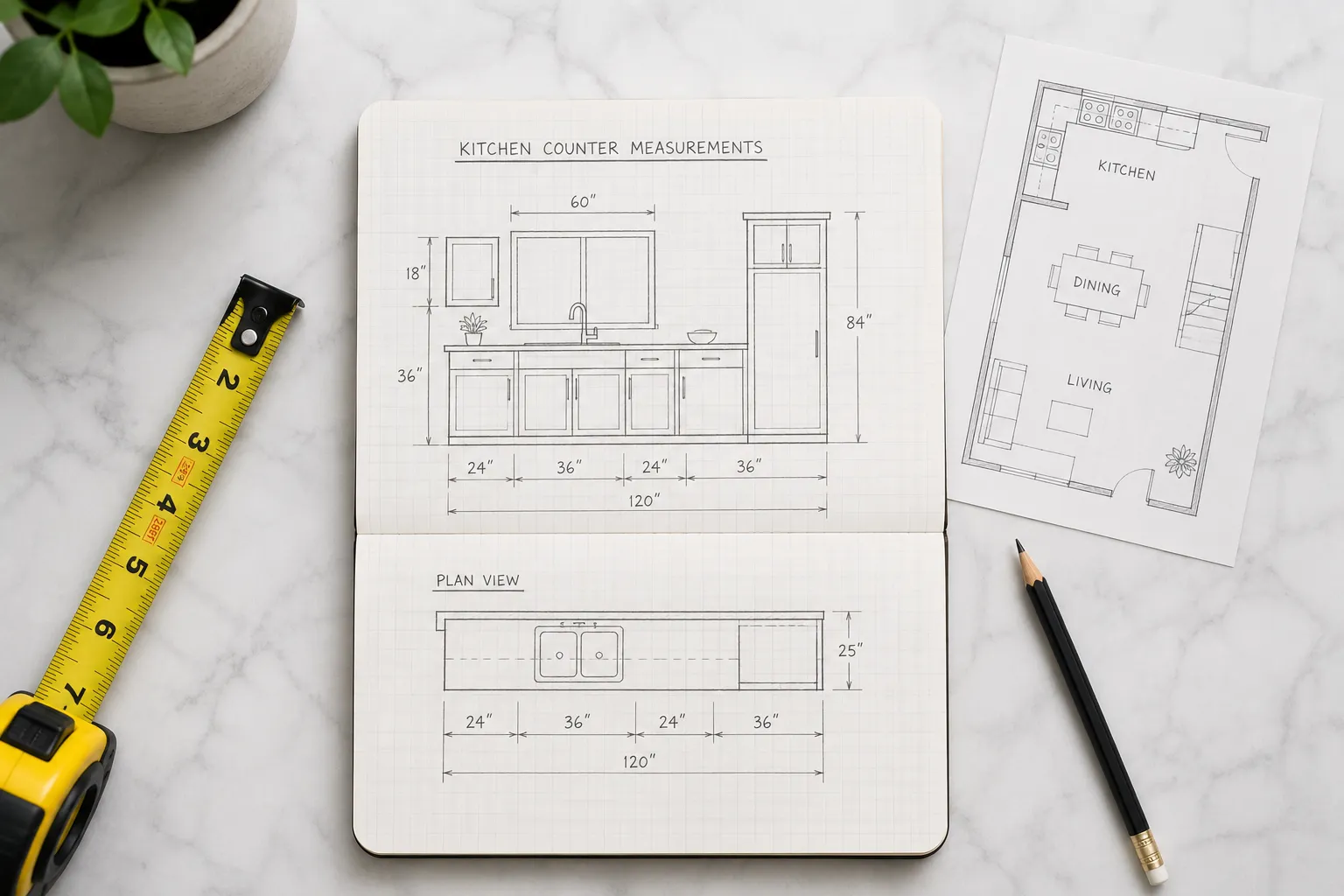

1. Kitchen counters and island. Counter run footprint (base cabinet depth is typically 24 inches), island dimensions, and clearance on each side. Minimum 42-inch aisle on the working side, 36 inches on the non-working side.
2. Bathroom fixtures. Toilet, vanity, shower, tub positions. Record the toilet centerline from the nearest side wall — 15 inches minimum, 18 inches preferred.
3. Fireplaces and hearths. Full footprint including the hearth extension, which typically projects 16–20 inches into the room.
4. Built-in shelving and wardrobes. Depth and width; note whether wall-to-wall or freestanding.
5. Support columns. Diameter or cross-section and distance from each adjacent wall.
6. Radiators and HVAC registers. Position matters — furniture placed over a floor register or directly in front of a radiator creates airflow problems.
7. Staircases. Width of the stair run, total run length (horizontal distance), landing width. Note head clearance if the staircase passes under another floor.

save pin

Step 5: Measure Ceiling Height

Not needed for a flat 2D plan, but essential for a 3D render or elevation drawing. Measure in at least one corner per room — tape measure held vertically, or laser measure pointed straight up from the floor.

Standard US residential ceiling height is 8 feet (2.44 m) for older homes, 9 feet (2.74 m) for newer construction. Vaulted or cathedral ceilings need a measurement at the lowest point (knee wall or eave height) and at the peak. Note any dropped soffits or bulkheads — common above kitchen cabinets and in older bathrooms.

How to Handle Irregular and Non-Rectangular Rooms

Not every room is a rectangle. Common problem cases:

1. L-shaped rooms. Treat the L as two rectangles sharing a corner. Measure the full bounding box, then measure the cut-out corner separately. Subtract the cut-out in your drawing.
2. Angled walls. Measure each wall segment individually. To capture the angle, measure from the angled wall to a reference point on a parallel wall at two locations — the difference reveals the angle. Or use a digital angle finder (under $20) to read the angle directly.
3. Bay windows. Measure the projection depth, the center panel width, and the angle of the side panels. Standard bay angles are 30° or 45° from the main wall.
4. Curved walls. Measure the chord length (straight line end to end) and the arc depth (maximum distance from chord to wall surface at the midpoint).
5. Open-plan spaces. Measure the full open area as one rectangle. Note where zones begin and end using flooring transitions, ceiling changes, or ceiling beam positions as reference points.

Step 6: Cross-Check Before You Leave

Two checks before putting the tape away:

1. Wall segment sum check. For each wall, the sum of all segments — door openings + wall sections between openings + corner sections — should equal the total wall length. If they don't, one segment is wrong.
2. Adjacent room check. Rooms sharing a wall should have matching dimensions along that wall (accounting for wall thickness). If your living room is 18 feet wide and the adjacent dining room is 14 feet, the difference needs to be explained by a return, a closet, or a structural feature. An unexplained gap means a measurement is off.

Photograph each room's four walls before leaving. If a number seems wrong when you're drawing, the photo usually provides enough context to correct it remotely.

How to Turn Your Measurements into a Floor Plan

With a complete measurement set, the fastest way to produce an accurate, shareable floor plan is Coohom's floor plan creator. Enter exact dimensions into the wall tool — no estimating, no manual scaling — and Coohom draws each wall precisely to scale. Doors and windows snap to exact wall positions based on the offset measurements you recorded on-site.

The workflow maps directly onto this guide's measurement steps:

1. Perimeter walls → wall tool with exact length inputs
2. Interior walls → added the same way, snapping to existing wall junctions
3. Doors → dragged onto walls, positioned by corner offset measurement
4. Windows → same placement method; sill height entered in properties panel
5. Fixed features → placed from the furniture and fixture library at actual dimensions

When the 2D layout is complete, one click opens a 3D preview at the ceiling height you recorded. Apply finishes, add furniture, and generate a photorealistic render. Export a dimensioned PDF for contractors or a shareable 3D link for client presentations — all from the same session.

Frequently Asked Questions

How accurate do measurements need to be for a floor plan?

For furniture layout and interior design, accuracy to the nearest half-inch (1 cm) is sufficient. For renovation work where contractors will use the plan, aim for quarter-inch accuracy. For permitted structural work, you'll need certified architectural drawings — a hand-measured floor plan is a reference document, not a construction document.

Can I measure a floor plan from photos or existing drawings?

From existing drawings — yes. Import a scanned blueprint or PDF as a reference image in Coohom, set the scale using one known dimension, and trace your walls over it. From photos alone — no. Perspective distortion makes accurate measurement from standard photos impossible without specialized photogrammetry software.

What's the difference between a floor plan and a site plan?

A floor plan shows the interior layout of a building — rooms, walls, doors, windows, fixtures — from a top-down view. A site plan shows the building's relationship to the lot: property lines, setbacks, driveways, landscaping. This guide covers floor plans only.

Do I need to measure ceiling height for every room?

Not for a 2D floor plan — ceiling height doesn't appear in a flat top-down view. For 3D visualization or elevation drawings, yes. Record at least one measurement per room and note any variations such as dropped soffits or vaulted sections.

How do I measure a room solo without a second person?

Use a laser distance measure — no anchor point needed, works across any distance in under a second. With a tape measure, hook the end tab over a door frame or use masking tape stuck to the wall as an anchor. Extendable measuring rods also work well in tighter spaces.

What scale should I use to draw a floor plan by hand?

The standard for residential floor plans is 1/4 inch = 1 foot (1:48). On graph paper with 1/4-inch squares, each square equals one foot. For larger homes, 1/8 inch = 1 foot fits more on a page. If you're drawing digitally, no scale choice is needed — the tool handles it from your exact measurements.
