How to Optimize a Bird’s-Eye View Floor Plan for Better Clarity: Simple design decisions that make top down house layouts easier to read and understand instantly

Direct Answer

To optimize a bird’s-eye view floor plan for clarity, focus on strong visual hierarchy, readable labels, consistent wall thickness, and limited color usage. Clear room boundaries, simplified furniture placement, and strong contrast between circulation paths and rooms help viewers understand the layout within seconds.

Quick Takeaways

1. Readable floor plans rely on hierarchy before decoration.
2. Consistent wall thickness and door symbols improve comprehension instantly.
3. Color should guide navigation, not decorate the layout.
4. Too much furniture detail often reduces clarity in bird’s‑eye floor plans.
5. Online floor plan viewers require stronger contrast than print drawings.

Introduction

After working on residential design presentations for more than a decade, I’ve learned something surprising: most bird’s‑eye view floor plans fail not because the layout is wrong, but because the drawing is hard to read.

A clean layout can become confusing the moment labels overlap, walls look too thin, or furniture blocks the circulation path. When clients or buyers look at a floor plan, they usually give it five seconds. If they cannot immediately understand how the house flows, they move on.

This is why optimizing a bird’s‑eye floor plan isn’t just a graphic design exercise. It directly affects how clearly a space communicates its function. I’ve seen well‑presented plans increase engagement dramatically in real estate listings and design portfolios.

If you’re building your layout digitally, experimenting with a step‑by‑step visual floor plan layout creator used by many designerscan help you quickly test readability and spacing before publishing.

In this guide, I’ll walk through the exact techniques I use to improve floor plan readability, avoid common mistakes, and make bird’s‑eye layouts easier for anyone to understand.

save pin

Why Floor Plan Clarity Matters in Bird’s‑Eye Views

Key Insight: A clear bird’s‑eye floor plan communicates spatial relationships instantly, while a cluttered one forces viewers to decode the layout.

In architectural presentations, clarity is not about artistic style; it’s about communication speed. When a viewer looks at a floor plan, they subconsciously ask three questions:

1. Where are the main rooms?
2. How do I move through the space?
3. What is the size relationship between areas?

If the plan answers these visually, it works.

The American Institute of Architects frequently emphasizes visual hierarchy in architectural drawings because it allows viewers to interpret information quickly without reading every label.

In practice, I focus on three layers:

1. Structure layer – walls, openings, and room boundaries
2. Navigation layer – doors, hallways, circulation paths
3. Context layer – furniture, labels, and decorative elements

Most unclear floor plans mix these layers together visually.

Optimizing Room Labels and Layout Structure

Key Insight: Room labels should guide the eye, not compete with the architecture.

One of the most common mistakes I see in bird’s‑eye floor plans is oversized or poorly positioned text. Labels should help viewers understand the layout without interrupting the geometry of the plan.

Best practices I use in professional presentations:

1. Center room names within the space.
2. Keep labels horizontal whenever possible.
3. Use consistent font size for rooms of similar importance.
4. Place dimensions along outer walls rather than inside rooms.

Another overlooked technique is aligning labels with the grid of the architecture. When text follows the same orientation as walls, the plan becomes much easier to scan.

For people learning layout organization, exploring how a visual room arrangement planner helps map furniture and circulationcan reveal how spacing affects readability.

save pin

Improving Visibility of Walls, Doors, and Pathways

Key Insight: Structural elements must be visually stronger than furniture or decoration.

In many amateur floor plans, walls and furniture share the same line weight. That creates visual confusion.

Instead, architects rely on line hierarchy:

1. Walls – thick lines
2. Doors and windows – medium lines
3. Furniture – thin lines

This hierarchy tells the brain instantly what is structural and what is optional.

Circulation paths are another detail many creators overlook. Hallways and walking areas should remain visually open rather than filled with decorative objects.

A simple rule I use in residential floor plans:

1. Main pathways should stay at least visually unobstructed.
2. Furniture should never touch door swing arcs.
3. Entry routes should remain visually clear.

save pin

Using Color and Contrast Effectively

Key Insight: In floor plans, color works best when it highlights function rather than decoration.

Many bird’s‑eye layouts use too many colors, which weakens readability. In my experience, the most effective floor plans use just three color categories:

1. Neutral background for structure
2. Soft color blocks for room zones
3. Darker accents for furniture and labels

This approach allows viewers to immediately distinguish between public and private areas of a home.

Common color strategies:

1. Warm tones for living spaces
2. Cool tones for bathrooms and utility rooms
3. Neutral tones for circulation areas

High‑contrast walls and soft interior fills tend to perform best for online viewing because screens compress subtle color differences.

Answer Box

The clearest bird’s‑eye floor plans prioritize hierarchy: strong structural lines, readable labels, limited color palettes, and minimal visual clutter. When structure, circulation, and furniture are visually separated, viewers understand the layout almost instantly.

Balancing Detail and Simplicity in Floor Plans

Key Insight: Adding more detail rarely improves clarity in a bird’s‑eye layout.

When designers first create floor plans, they often try to include everything: decor, plants, lighting fixtures, and detailed furniture models.

But clarity improves when detail is reduced.

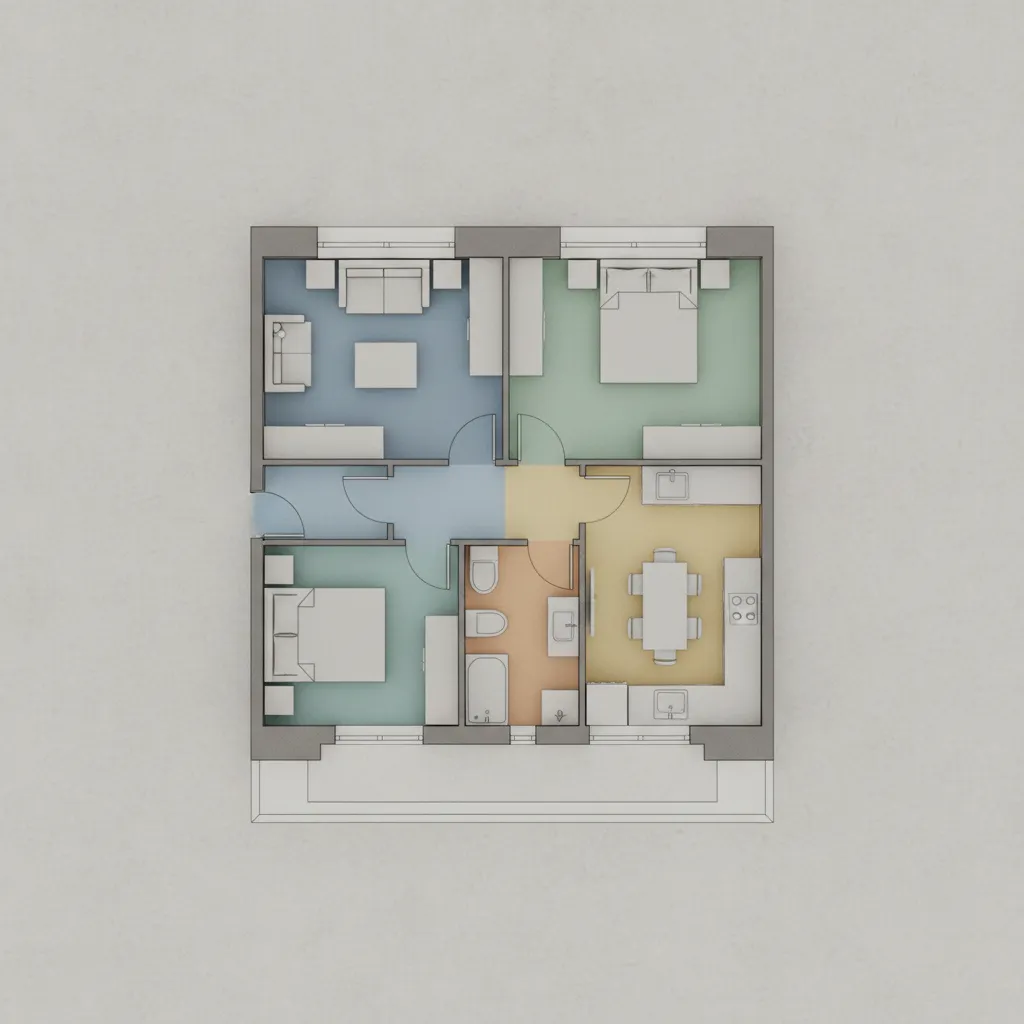

In presentation floor plans, I typically limit furniture to:

1. Major seating elements
2. Tables and beds
3. Kitchen appliances
4. Bathroom fixtures

Small decor objects rarely help viewers understand the layout. Instead, they compete with important spatial information.

Professional architectural visualizations usually simplify furniture shapes for this reason.

save pin

Best Practices for Presenting Floor Plans Online

Key Insight: Digital floor plans require stronger contrast and simpler visuals than printed architectural drawings.

Online viewers typically see floor plans on small screens, which changes how designs should be presented.

Effective online presentation techniques include:

1. Larger text labels
2. Stronger wall contrast
3. Minimal decorative textures
4. Balanced whitespace around the layout

When presenting a bird’s‑eye layout alongside visualizations, pairing it with a realistic interior visualization that shows the finished space helps audiences connect the technical plan with the final environment.

Real estate platforms and design portfolios increasingly rely on this combination because it helps viewers move from abstract layout to spatial understanding.

Final Summary

1. Clear hierarchy makes bird’s‑eye floor plans instantly readable.
2. Labels must support the layout, not compete with it.
3. Walls and doors should visually dominate furniture.
4. Limiting color and detail improves comprehension.
5. Online floor plans require stronger contrast than print drawings.

FAQ

How can I improve floor plan readability quickly?

Increase wall thickness, simplify furniture, center room labels, and reduce the number of colors used in the layout.

What makes a bird's‑eye floor plan easy to understand?

Clear walls, readable labels, visible circulation paths, and consistent scale make a bird's‑eye floor plan easier for viewers to interpret.

How much furniture should be included in a floor plan?

Only essential pieces such as beds, sofas, tables, and appliances should be included. Decorative objects usually reduce clarity.

What colors work best for architectural floor plans?

Neutral walls, soft room color zones, and darker text or furniture outlines create strong visual contrast without clutter.

Why do some house floor plans look confusing?

Common causes include inconsistent line weights, overlapping labels, excessive furniture detail, and too many colors.

Should floor plans include measurements?

Yes. However, dimensions should be placed along exterior walls or edges so they do not clutter interior spaces.

What is the ideal scale for bird's‑eye floor plan visuals?

For digital presentation, layouts should be readable at small sizes, which means thicker walls, larger text, and simplified details.

How do architects optimize bird's eye floor plan design for presentations?

Architects prioritize visual hierarchy, simplify furniture, use consistent wall weights, and highlight circulation paths.
