How to Optimize Dining Hall Wash Basin Layout for High Traffic: Practical layout strategies to reduce queues, improve hygiene, and keep large dining halls moving smoothly

Direct Answer

An optimized dining hall wash basin layout spreads multiple handwashing points along natural circulation paths, provides enough sinks for peak meal traffic, and minimizes queue overlap with food service lines. In most high‑traffic dining halls, planners should prioritize linear or island sink zones near entrances and tray return areas to keep movement continuous and prevent bottlenecks.

Quick Takeaways

1. High‑traffic dining halls typically need one wash basin for every 35–50 seats.
2. Placing sinks along entry paths prevents congestion near food counters.
3. Linear trough sinks often move crowds faster than individual basins.
4. Queue space and circulation width matter as much as sink count.
5. Touchless fixtures reduce dwell time and improve hygiene compliance.

Introduction

In large institutional cafeterias, the dining hall wash basin layout quietly determines whether the entire space flows smoothly or turns into a crowded choke point before every meal.

After working on university dining centers and corporate cafeterias over the past decade, I’ve seen a consistent pattern: architects often focus heavily on kitchen throughput but underestimate handwashing traffic. Yet in many facilities—especially schools—hundreds of people arrive within a 10‑minute window. If the sink area isn’t planned correctly, queues spill into the dining room and even block serving lines.

The good news is that basin layout problems are almost always solvable with better planning and circulation modeling. When we redesign traffic flow for large cafeterias, we typically begin by mapping real movement patterns using tools similar to those used when designers visualize realistic cafeteria circulation layouts before construction. That simple step often reveals congestion points that drawings alone don’t show.

In this guide, I’ll walk through how experienced planners approach high‑traffic wash areas: estimating basin capacity, organizing handwashing flow, managing queues, and integrating technology that speeds up turnover.

save pin

Why Wash Basin Layout Matters in Busy Dining Halls

Key Insight: Poorly placed sinks cause more operational disruption than having too few sinks.

In several university dining halls I’ve evaluated, the actual number of basins technically met building guidelines—but they were clustered in the wrong location. Instead of distributing traffic, they concentrated it.

Common operational issues caused by poor layout include:

1. Handwashing lines blocking tray pickup counters
2. Students bypassing sinks entirely when queues are long
3. Cross‑traffic between diners entering and exiting
4. Wet floors spreading into circulation corridors

Foodservice design consultants such as the Foodservice Consultants Society International emphasize that circulation design—not fixture count—is usually the biggest driver of cafeteria efficiency.

In practice, successful layouts typically place handwashing stations in transitional zones:

1. Before entering the serving area
2. Along the wall near dining entrances
3. Near tray return corridors after meals

This positioning aligns hygiene behavior with natural movement patterns.

Estimating Basin Capacity Based on Seating Volume

Key Insight: Basin capacity should be calculated using peak arrival waves, not total seating.

A dining hall with 400 seats does not receive 400 diners evenly across an hour. Most facilities see sharp surges—often 50–70% of users arriving within 15 minutes.

Based on planning guidelines used in school and university projects, designers often start with this rule of thumb:

1. 1 basin per 35–50 seats for institutional dining halls
2. 1 basin per 60 seats for corporate cafeterias with staggered arrivals
3. Additional capacity if handwashing is mandatory before entry

Example capacity planning:

1. 300‑seat school dining hall → 6–8 basins minimum
2. 600‑seat university dining center → 12–16 basins
3. 150‑seat corporate cafeteria → 3–4 basins

Another factor many teams overlook is dwell time. If each user takes 15 seconds, a single basin can process roughly 240 users per hour. But if faucets are manual or slow to activate, throughput drops significantly.

When testing layouts, my team often simulates flow using digital floor modeling tools similar to those used when planners experiment with large cafeteria traffic patterns in 3D layouts. Seeing queue behavior in a spatial model often prevents costly redesigns later.

save pin

Designing Efficient Handwashing Flow Before Meals

Key Insight: The fastest handwashing layouts align sinks with the direction of dining hall entry traffic.

One of the most effective configurations is the "pass‑through" sink zone, where diners naturally encounter basins on their way to food counters.

Three layout patterns work particularly well:

1. Entry Wall Layout – basins line the wall just inside the dining entrance.
2. Central Island Layout – double‑sided sinks allow washing from both directions.
3. Corridor Layout – sinks placed along a narrow pre‑dining corridor.

The pass‑through approach has two advantages:

1. Higher compliance because diners encounter sinks naturally
2. No need for separate queue zones

In contrast, isolated sink corners tend to fail because diners skip them during busy meal periods.

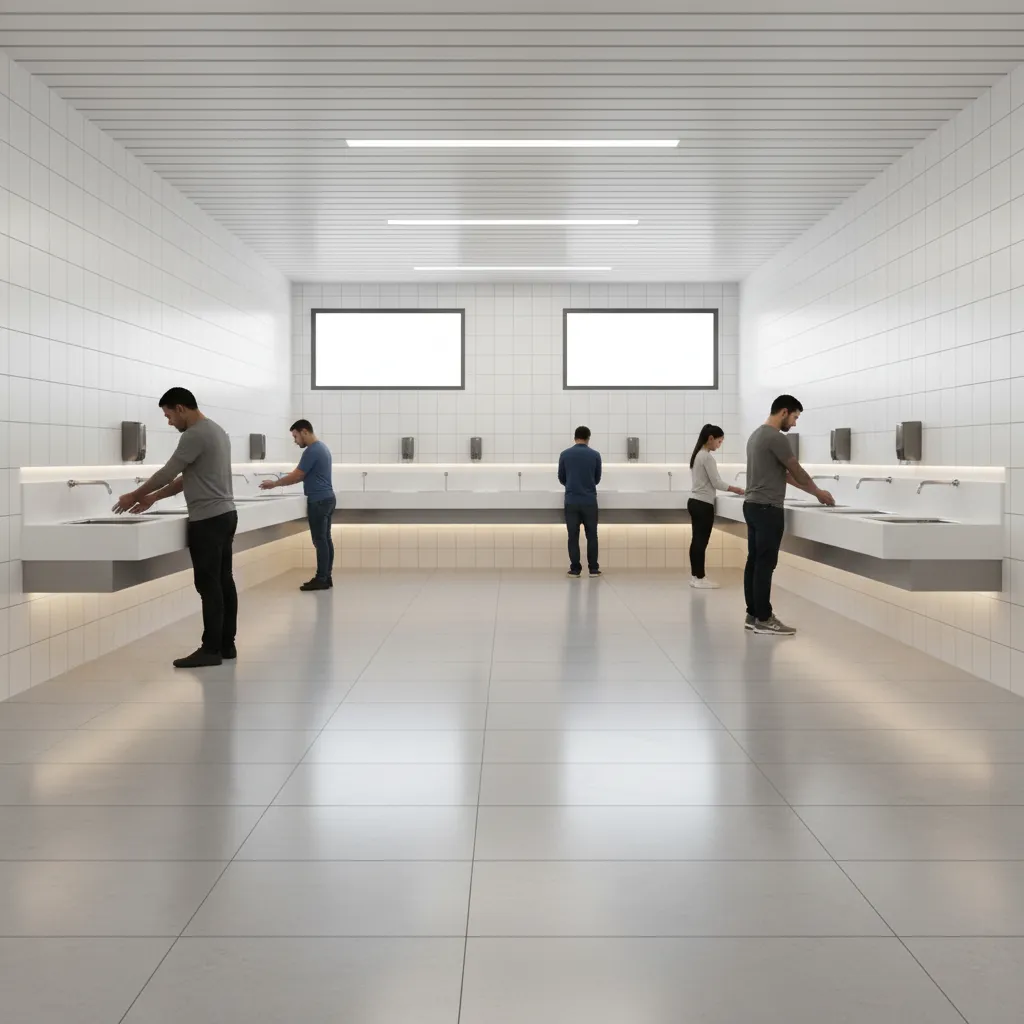

Spacing, Queue Management, and Accessibility

Key Insight: Circulation clearance is often the hidden factor that determines whether a basin area works.

Even well‑sized sink installations fail if there isn’t enough room for people waiting behind them.

Key spacing guidelines used in many institutional projects include:

1. Minimum 5–6 ft clearance in front of sink runs
2. At least 3 ft between opposing sink rows
3. Dedicated queue space separate from main corridors
4. At least one ADA accessible basin per group

Accessibility design is especially important in schools and universities where facilities must comply with ADA requirements. Accessible sinks should be placed at the ends of sink runs so wheelchair users are not blocked by waiting lines.

Floor finishes also matter. Slip‑resistant tiles or textured surfaces significantly reduce accidents in busy wash zones.

save pin

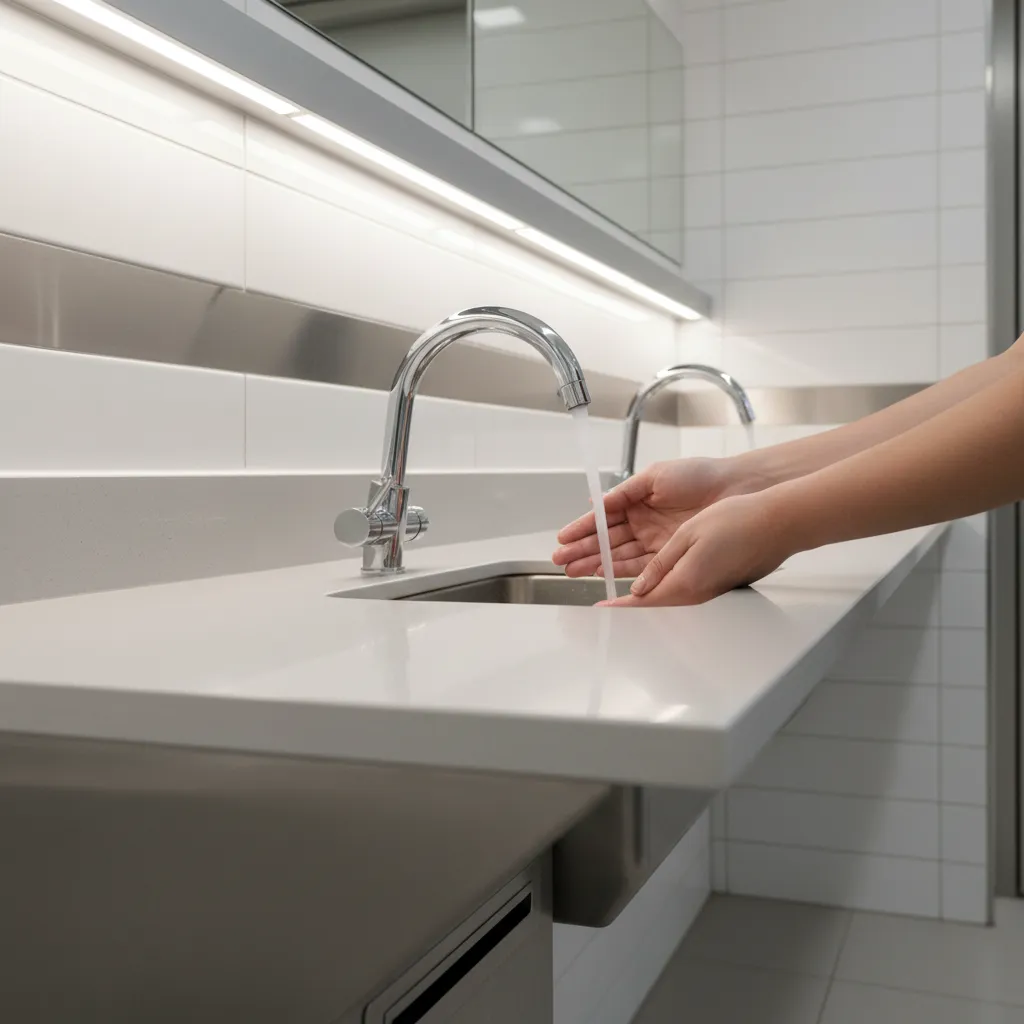

Integrating Touchless Technology for Faster Turnover

Key Insight: Sensor faucets and soap systems reduce average handwashing time and improve compliance.

In recent cafeteria renovations, touchless fixtures have become the default choice for high‑traffic wash stations.

Advantages include:

1. Faster activation than manual faucets
2. Reduced cross‑contamination
3. Lower maintenance from broken handles
4. Better user compliance during peak periods

Facilities using sensor faucets often report smoother traffic because users don’t spend time adjusting water temperature or flow.

However, a hidden mistake I frequently see is poor sensor placement. If sensors are mounted too deep inside the basin, users wave their hands repeatedly to trigger water flow, which actually increases dwell time.

The most efficient systems activate immediately as hands enter the basin area.

Answer Box

The most efficient dining hall wash basin layout distributes sinks along natural entry routes, provides one basin for roughly every 35–50 seats, and allocates generous queue space. Combining linear or island sink designs with touchless fixtures dramatically reduces congestion during peak meal periods.

Layout Examples for Schools, Universities, and Corporate Cafeterias

Key Insight: Different dining environments require different basin placement strategies.

Based on multiple dining facility projects, these layout patterns consistently perform well:

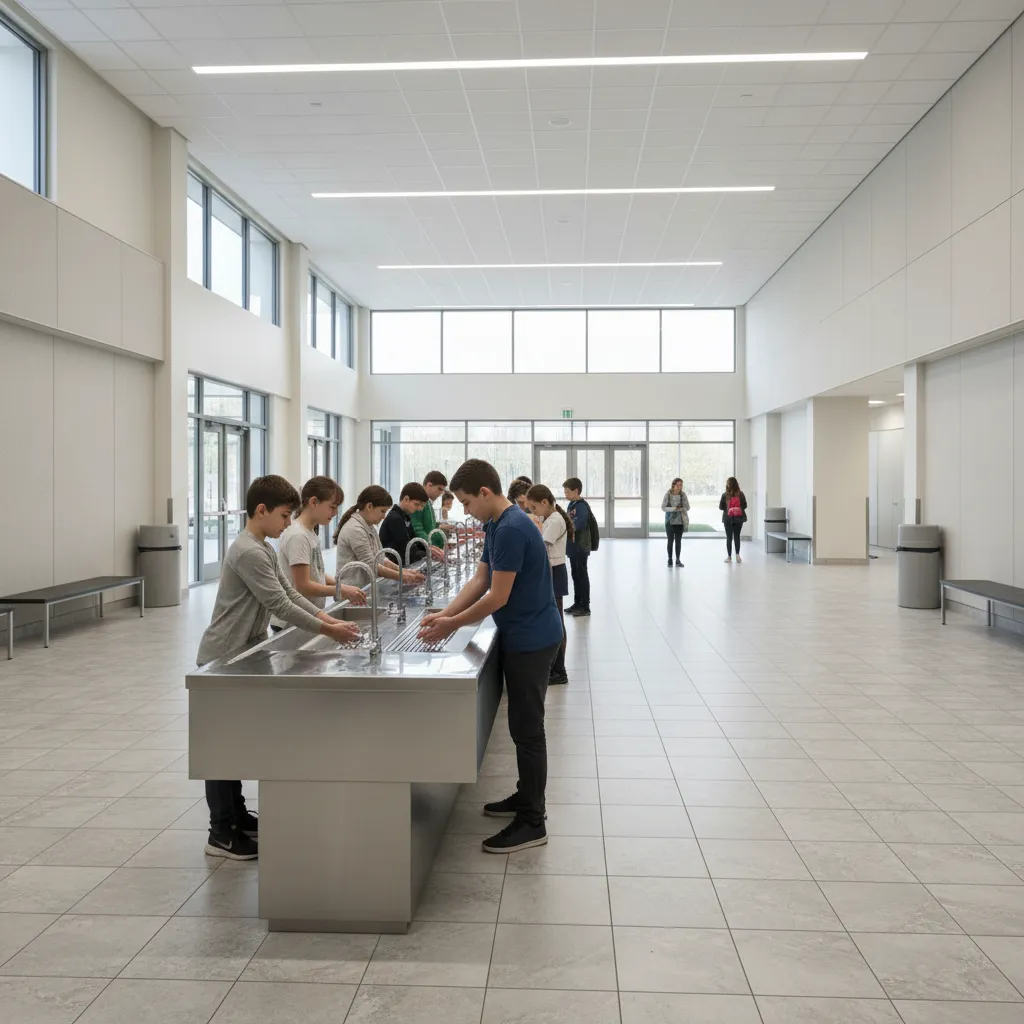

School Dining Hall

1. Long trough sink along entry wall
2. 10–12 users washing simultaneously
3. Short dwell time for large student waves

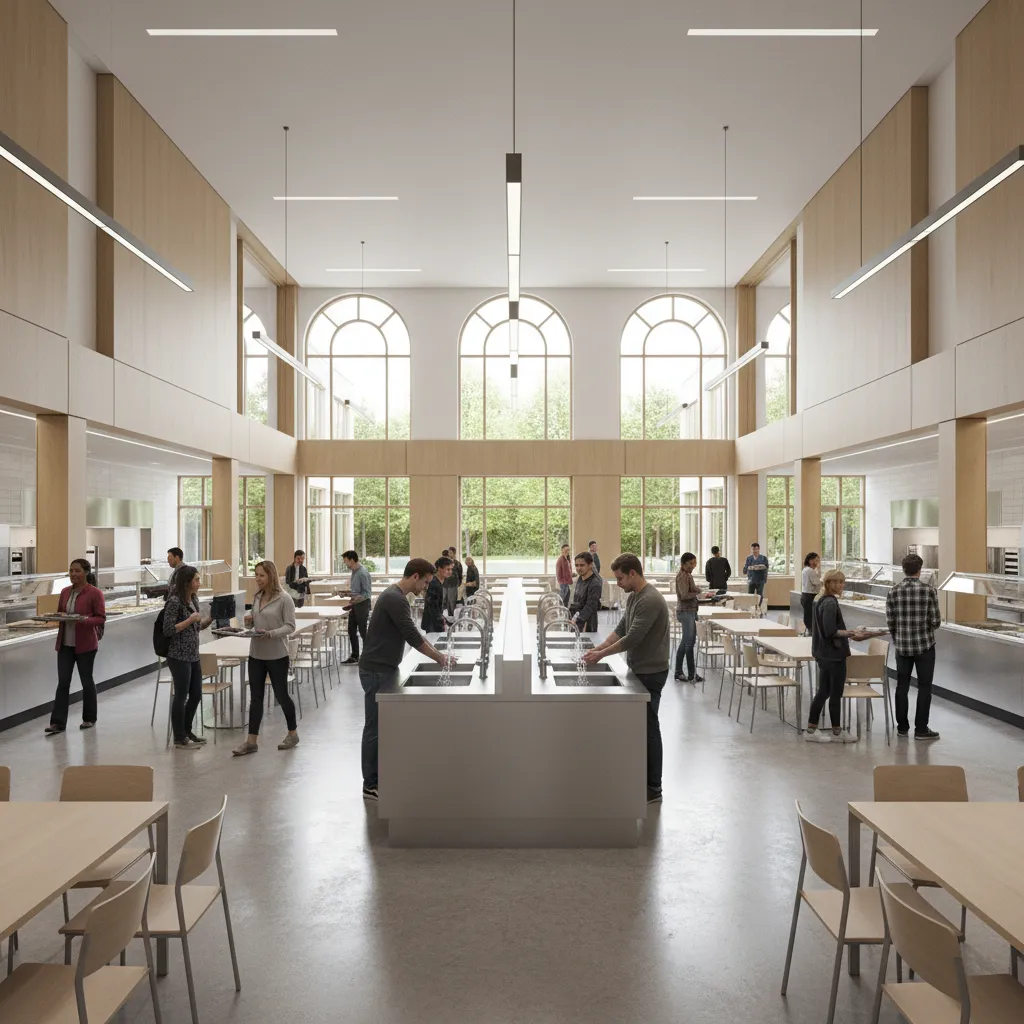

University Dining Center

1. Central island wash station
2. Double‑sided access
3. Supports multiple entry points

Corporate Cafeteria

1. Smaller distributed sink clusters
2. Placed near restrooms or beverage areas
3. Supports staggered employee schedules

During early design phases, many teams prototype these configurations digitally before committing to plumbing layouts. If you’re exploring layout options, it helps to test different cafeteria floor plan configurations before finalizing plumbing zones. Small adjustments to circulation paths often eliminate congestion entirely.

save pin

Final Summary

1. Plan basin capacity using peak arrival waves.
2. Place sinks along natural entry circulation paths.
3. Allow generous queue space in front of wash areas.
4. Touchless fixtures improve speed and hygiene.
5. Digital layout testing helps prevent traffic bottlenecks.

FAQ

How many sinks should a dining hall have?

Most dining halls use one basin for every 35–50 seats. Facilities with strict hygiene rules may require additional capacity.

Where should sinks be placed in a cafeteria?

The most effective dining hall wash basin layout places sinks along entry routes or transitional zones before diners reach food counters.

Are trough sinks better for school cafeterias?

Yes. Trough sinks allow many students to wash simultaneously, reducing queues during short lunch periods.

How much space should be in front of cafeteria sinks?

Designers typically allow 5–6 feet of clearance to accommodate both users and waiting lines.

Do touchless faucets improve cafeteria efficiency?

Yes. Sensor faucets reduce contact, activate quickly, and help maintain faster handwashing turnover.

What causes congestion at dining hall sinks?

Poor placement, insufficient queue space, and clustering sinks in one corner are common causes.

What is the best dining hall wash basin layout?

Layouts that align sinks with natural circulation—such as entry wall or island sink zones—typically perform best.

Should sinks be near tray return areas?

Yes. Secondary wash areas near tray return zones help distribute traffic and reduce entry congestion.
