How to Optimize Land Use in Mobile Home Park Layout Design: Practical layout strategies that increase lot count while protecting livability, compliance, and long term park value

Direct Answer

To optimize land use in mobile home park layout design, developers must balance lot density, road efficiency, infrastructure placement, and usable open space. The most effective layouts minimize wasted circulation space, standardize lot dimensions, and adapt the design to irregular land shapes rather than forcing rigid grids.

Well‑planned parks typically increase usable lots by 10–25% compared with poorly organized layouts while still meeting zoning setbacks, fire access, and livability standards.

Quick Takeaways

1. Roads often consume 18–25% of park land, making circulation design the biggest efficiency factor.
2. Consistent lot widths simplify utility runs and increase total lot count.
3. Loop roads usually produce better density than traditional grid streets.
4. Small shared green spaces are more efficient than large central parks.
5. Irregular parcels require flexible lot angles and curved streets.

Introduction

When developers ask me about mobile home park layout design, the conversation almost always starts with the same goal: increase the number of rentable lots without turning the community into a cramped trailer grid.

After working on manufactured housing communities across California, Texas, and Arizona, I can tell you the difference between a profitable park and a mediocre one often comes down to layout efficiency. Two sites with the same acreage can vary by 20 or more home sites depending on how the land is organized.

But maximizing density isn't just about squeezing homes closer together. Zoning setbacks, emergency vehicle access, stormwater management, and resident comfort all shape the final layout.

If you're still deciding on the structural concept of the park, reviewing different mobile home park street layout planning approaches used by professional designerscan clarify how loop roads, cul‑de‑sacs, and hybrid layouts impact lot yield.

In this guide I'll walk through the real planning principles we use to increase lot counts while maintaining livable, code‑compliant communities.

save pin

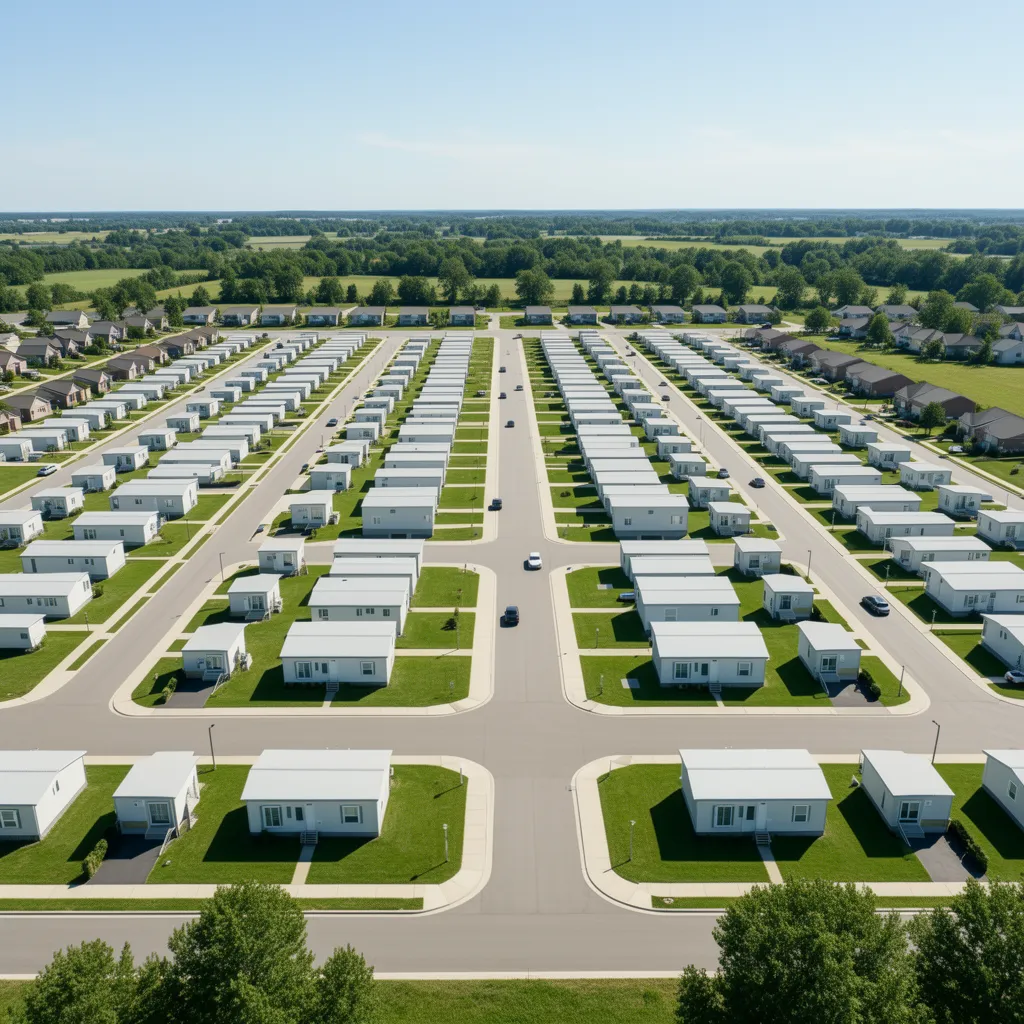

Understanding Land Utilization in Mobile Home Parks

Key Insight: In most mobile home parks, only about 60–70% of land becomes rentable lots; the rest is consumed by roads, infrastructure, and open space.

Developers often underestimate how much land disappears into circulation and utilities. Roads, parking areas, drainage easements, and community facilities can quickly eat up usable acreage.

Based on several planning projects I've worked on, the typical land allocation looks like this:

1. 60–70% residential lots
2. 18–25% roads and access lanes
3. 5–10% green or community space
4. 3–7% infrastructure and utilities

The biggest optimization opportunity is almost always road design. Reducing unnecessary intersections and oversized streets can immediately reclaim significant land area.

The Urban Land Institute has repeatedly emphasized that circulation systems are the primary determinant of density efficiency in low‑rise residential developments.

Balancing Density and Livability

Key Insight: Parks that push density too aggressively often lose long‑term value due to turnover, parking problems, and poor outdoor space.

There's a misconception that the most profitable park is simply the one with the most lots. In reality, overly tight layouts create operational headaches that cost money over time.

Common livability issues I see in overly dense parks:

1. Insufficient guest parking
2. Poor fire truck maneuvering space
3. Homes facing directly into other homes
4. Little privacy between units
5. Limited outdoor storage areas

A better approach is "targeted density":

1. Standard lots in the center
2. Slightly larger lots at edges
3. Corner lots used for parking or amenities

This keeps the community comfortable while still maximizing overall yield.

save pin

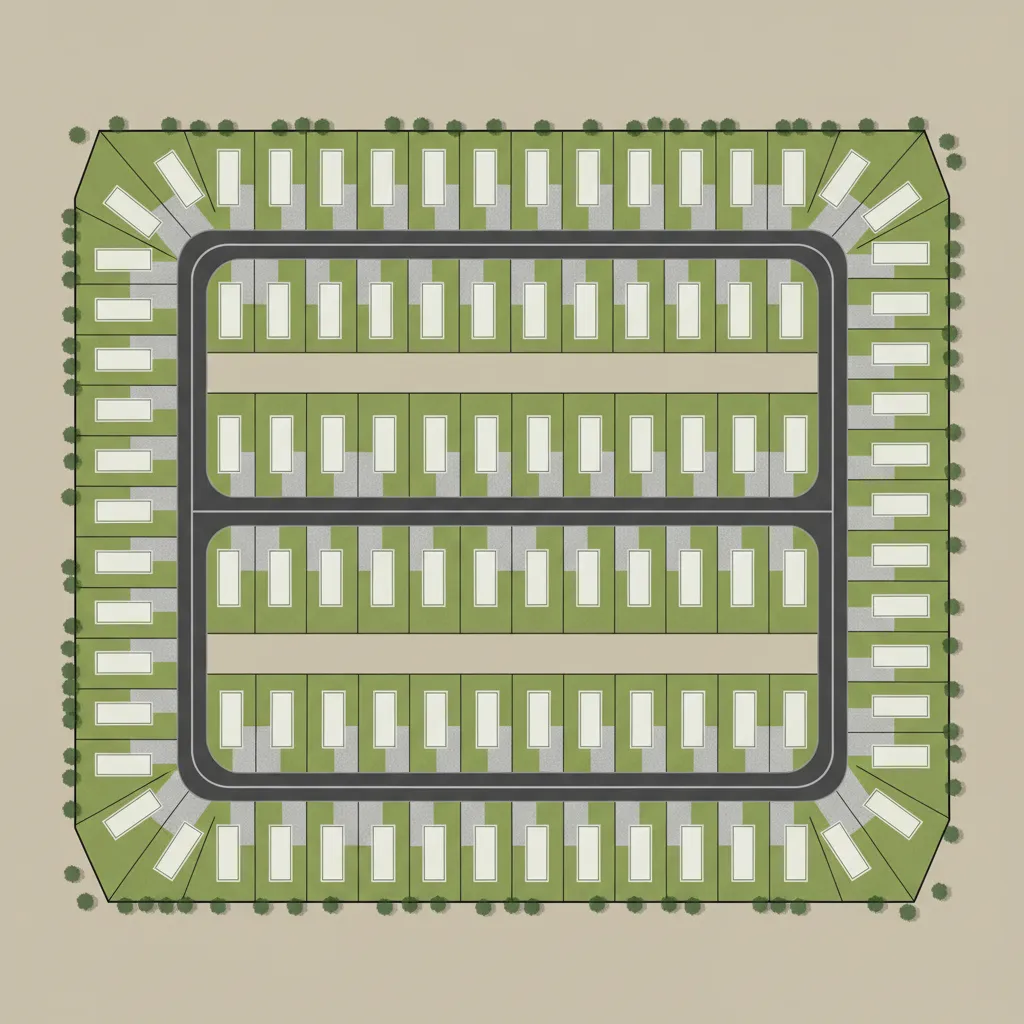

Optimizing Lot Sizes and Spacing

Key Insight: Standardizing lot dimensions dramatically improves infrastructure efficiency and increases buildable lots.

One of the most overlooked mistakes in park planning is inconsistent lot sizing. Every time lot widths vary significantly, utility lines must zigzag and infrastructure costs increase.

A common efficient lot configuration used by many developers is:

1. Lot width: 40–50 feet
2. Lot depth: 90–110 feet
3. Side setbacks: 5–10 feet
4. Rear setback: 10–15 feet

This configuration allows:

1. Clear utility corridors
2. Consistent driveway placement
3. Predictable home orientation

When testing layout variations, I often use tools similar to those used in interactive 3D site layout simulations for residential developmentsto quickly compare density scenarios.

save pin

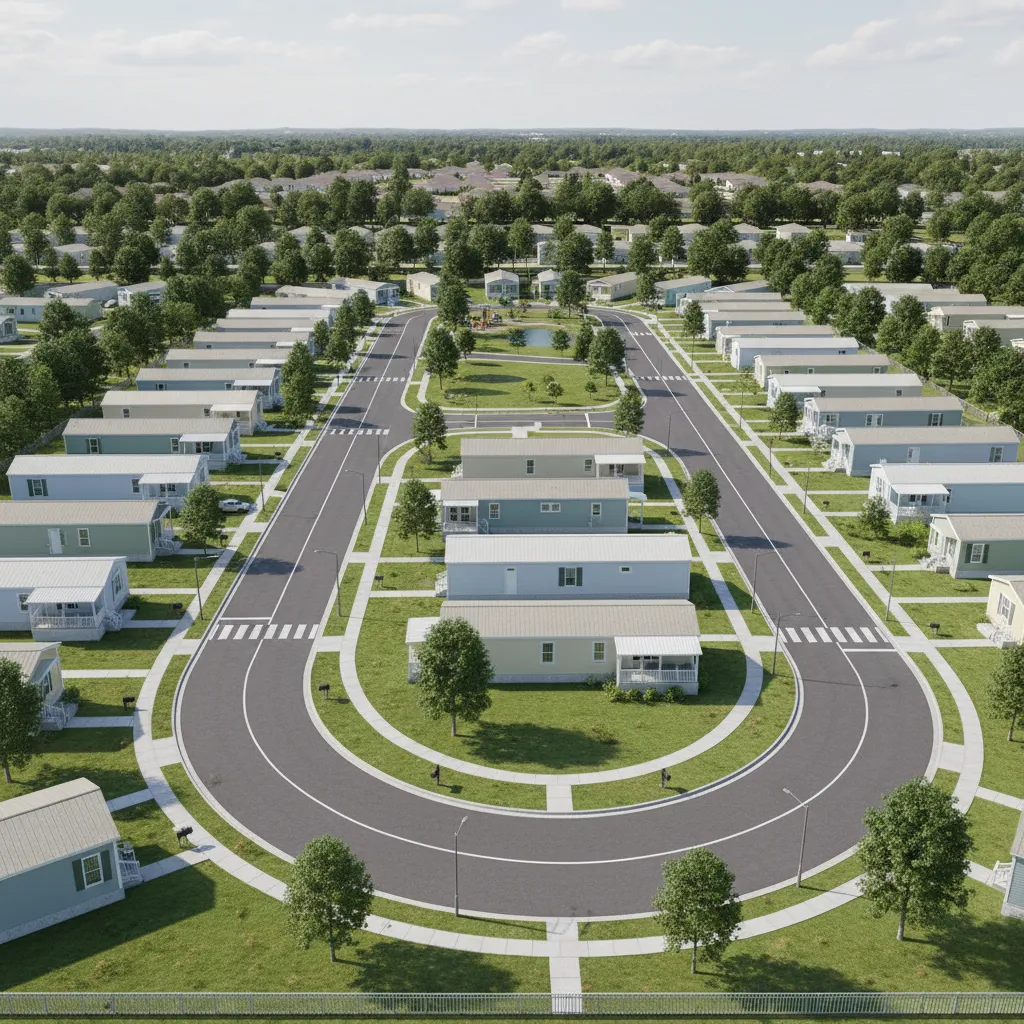

Efficient Road and Infrastructure Placement

Key Insight: Switching from a rigid grid to loop‑based circulation can increase lot yield by reducing unnecessary road length.

In mobile home park planning, road design often determines whether you gain or lose dozens of lots.

Three common road systems behave very differently:

1. Grid layout – easy to design but wastes land on intersections.
2. Loop layout – efficient circulation with fewer intersections.
3. Cul‑de‑sac clusters – excellent for irregular land but slightly lower density.

In many projects I recommend hybrid systems:

1. Main loop road around the park
2. Short cul‑de‑sac branches
3. Limited through intersections

This reduces asphalt coverage while maintaining fire department access requirements.

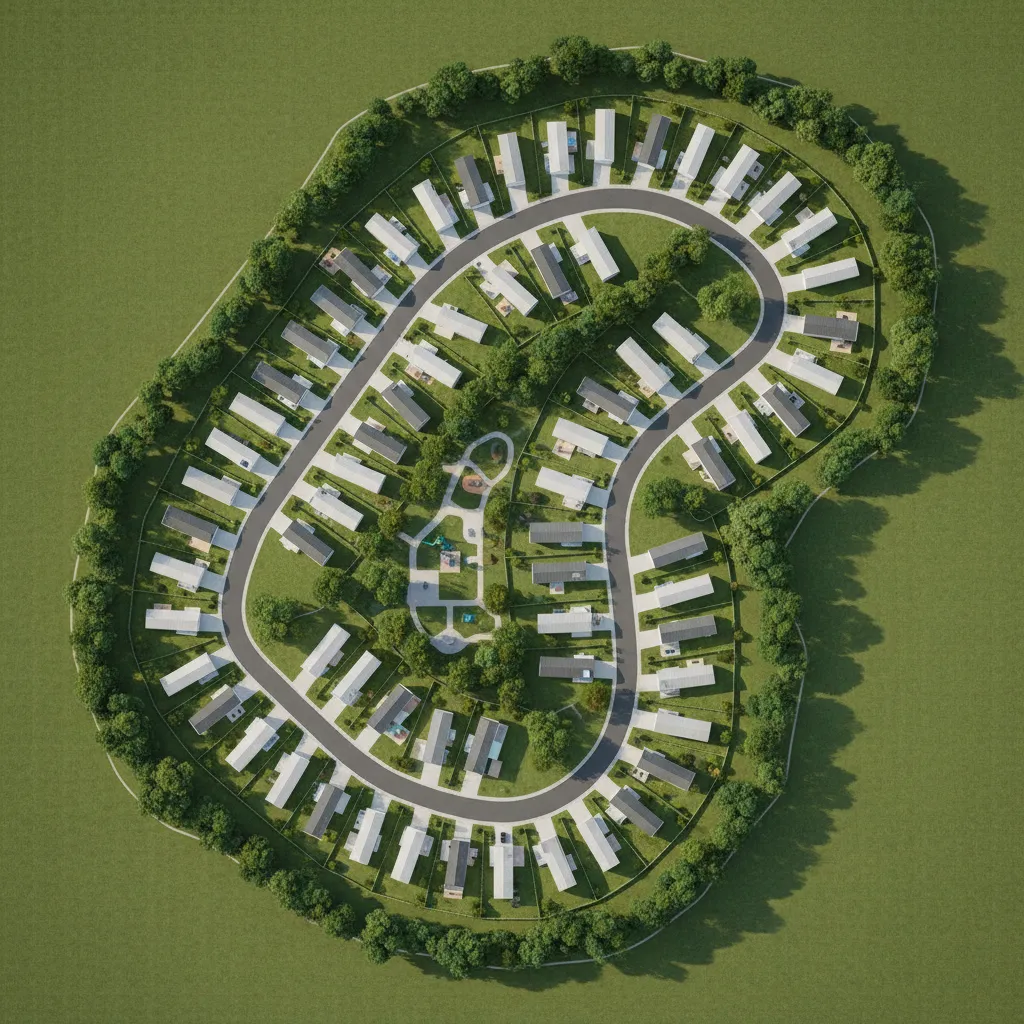

Using Irregular Land Parcels Effectively

Key Insight: Curved streets and angled lots convert awkward land edges into usable home sites.

Many mobile home park sites are not perfect rectangles. Creeks, slopes, and zoning buffers create irregular boundaries.

The mistake many planners make is forcing straight grids onto irregular land. That usually produces large unusable leftover spaces.

Better solutions include:

1. Angled corner lots
2. Curved streets following site contours
3. Small cul‑de‑sac pods
4. Utility easements integrated with green buffers

Landscape architects often call these "adaptive layouts," and they typically recover 5–10% additional usable land.

save pin

Integrating Green Spaces Without Wasting Land

Key Insight: Several small green pockets often serve residents better than a single oversized park area.

Many zoning codes require shared open space. The instinct is to place one large central park, but that approach can waste valuable development land.

A more efficient strategy is distributed green space:

1. Small playground nodes
2. Dog relief areas
3. Linear green buffers along roads
4. Stormwater areas designed as landscaped parks

This approach maintains compliance while improving accessibility for residents.

If you're planning residential layouts digitally, experimenting with tools that quickly generate and adjust site layout concepts can reveal unused land pockets that traditional drafting often misses.

Layout Optimization Tools and Planning Methods

Key Insight: Digital layout modeling allows planners to test dozens of density scenarios before construction begins.

Modern park planning rarely happens on paper anymore. Developers increasingly simulate layouts before submitting zoning approvals.

Typical optimization workflow:

1. Import site boundary and zoning setbacks
2. Test multiple road configurations
3. Adjust lot widths and depths
4. Simulate parking and vehicle turning radii
5. Evaluate utility corridor efficiency

By iterating layouts digitally, planners can quickly identify designs that maximize lots while still meeting municipal regulations.

Answer Box

The most effective way to optimize mobile home park land use is reducing road waste, standardizing lot dimensions, and adapting layouts to the site's natural shape. Smart circulation design alone can increase total home sites by more than 20%.

Final Summary

1. Road design determines the majority of land efficiency in mobile home parks.
2. Standardized lot dimensions simplify utilities and increase density.
3. Loop circulation systems often outperform traditional grids.
4. Adaptive layouts recover land in irregular parcels.
5. Distributed green spaces preserve both density and livability.

FAQ

What is the ideal lot size for a mobile home park?

Most parks use lots between 4,000 and 5,500 square feet depending on zoning regulations and home size.

How can developers increase lots in a mobile home park layout?

Developers can increase lots by reducing road length, standardizing lot widths, and using loop street systems instead of rigid grid layouts.

What percentage of land should roads occupy in a trailer park?

Efficient parks usually keep roads between 18% and 25% of total land area.

Can curved streets improve mobile home park density?

Yes. Curved streets adapt better to irregular land boundaries and often recover small unusable spaces.

What spacing is required between mobile homes?

Most municipalities require 10–20 feet between homes for fire safety and access.

Is a grid layout good for mobile home parks?

Grid layouts are easy to design but often waste land through intersections and excess street length.

How do planners optimize mobile home park land use?

They analyze lot dimensions, road systems, infrastructure corridors, and open space distribution to maximize usable residential lots.

What is the biggest mistake in mobile home park density planning?

Overbuilding without considering parking, infrastructure, and livability requirements.

References

1. Urban Land Institute – Residential Site Planning Guidelines
2. American Planning Association – Manufactured Housing Community Design
3. HUD Manufactured Home Installation Standards
