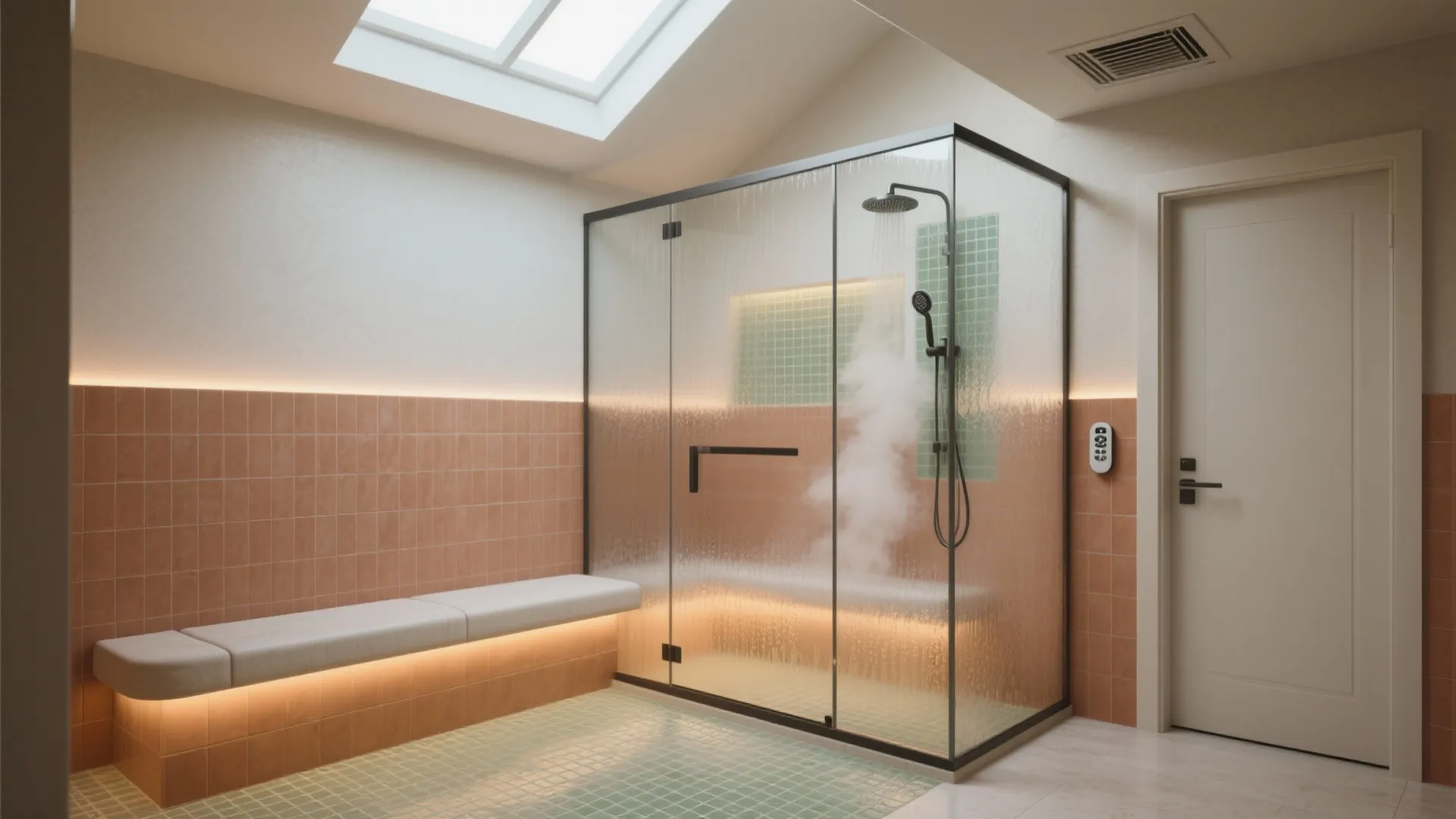

How to Turn Your Shower into a Steam Room DIY: Fast-Track Guide to a Luxe At-Home Steam Retreat in Minutes

I’ve converted several conventional showers into dependable steam experiences for clients who wanted spa-level relaxation without tearing the bathroom apart. A successful DIY conversion hinges on airtight enclosure, moisture management, and a properly sized steam generator. Comfort details—lighting, seating, and controls—turn the space from “hot and wet” into genuinely restorative.

Steam impacts interior comfort differently than a standard hot shower. WELL v2 suggests maintaining relative humidity levels below 60% in occupied areas to curb mold growth, so your steam zone must be well-contained and exhausted post-session. Meanwhile, typical task lighting in bathrooms is designed per IES recommendations around 500 lux near the mirror; in the steam enclosure, aim lower, dimmable levels (~150–250 lux) to keep glare down and visibility safe while vapor is dense. These two benchmarks shape both enclosure and lighting choices.

Ergonomics influence how long you’ll actually enjoy the steam. Research from Herman Miller on seated postures shows neutral hip and knee angles around 90–100 degrees reduce strain, which translates well to steam benches: a seat 17–19 inches (43–48 cm) high with a slight back support keeps the posture relaxed for 10–20 minutes. Keeping surfaces warm to the touch but not scalding is essential; steam generator controls with precise temperature limits and timed cycles reduce risk.

Plan the Enclosure First

Containment is everything. A steam-ready shower needs full-height walls, a steam-rated door with a tight seal, and a sealed ceiling (flat or slightly sloped, about 1–2 inches per foot to prevent drips). If your current stall is open at the top or uses a flapping curtain, you’ll need to add a framed or frameless glass panel system with gasketed door hardware. All wall penetrations (fixtures, niches, electrical) must be meticulously sealed. For layout testing—especially in tight bathrooms—use a room layout tool to visualize glass panel dimensions and door swing before ordering.

room layout tool

Choose a Proper Steam Generator

Sizing depends on cubic footage and surface materials. Tile, stone, and glass increase demand compared to acrylic or fiberglass. Calculate the enclosure volume (length × width × height) and add multipliers if using dense materials. Pick a generator with automatic flush, descaling cycle, over-temperature protection, and a remote control pad. Mount the unit in a ventilated, accessible adjacent room (closet or vanity base), never inside the steam enclosure. Keep the steam head 6–12 inches above the floor and away from seating to avoid direct exposure.

Seal and Waterproof

Steam is relentless. Specify a continuous vapor barrier behind wall finishes—look for membranes rated for continuous-use steam rooms. All seams, corners, niches, and ceiling transitions need banding and compatible sealants. Grout alone isn’t a vapor barrier; use epoxy grout or high-performance grout with a penetrating sealer. Door gaskets and sweeps should be steam-rated. Expect a longer cure time for membranes and setting materials; rushing this step is the fastest way to invite mold and delamination.

Ventilation and Post‑Steam Purge

To keep humidity in check per WELL v2 comfort guidance (keep RH generally under 60% in occupied areas), plan a purge routine. After steaming, open the door and run an exhaust fan that ducted to the exterior for 20–30 minutes. A fan with a humidistat or a wall timer makes this predictable and prevents lingering damp air. Avoid placing the fan inside the steam enclosure; it belongs just outside in the bathroom zone.

Lighting That Works in Steam

Steam exaggerates glare and diffuses light. Pick damp- or wet-rated, IP-rated recessed fixtures or caged surface lights with diffusers. Use warm-white lamps at 2700–3000K to keep the space calming; anything cooler can feel clinical through vapor. Dimmer controls help you target ~150–250 lux inside the enclosure, aligning with softer spa environments while still keeping footing safe. Keep driver units and junction boxes outside the steam zone when possible.

Ergonomic Seating and Surfaces

I design benches 17–19 inches high, 14–16 inches deep, with rounded front edges for comfort and easy cleaning. Add a slight backrest or leaner. Thermal mass matters: stone feels luxurious but needs more generator capacity and gets very hot; porcelain tile with a foam-core bench keeps weight down and heats more evenly. Non-slip surfaces (≥0.42 DCOF wet) reduce fall risk when condensation builds.

Controls, Safety, and User Experience

Install controls at chest height near the door, not next to the steam head. A digital unit with set temperature, session length, and auto-flush is worth the premium. Include a ceiling-mounted temperature sensor if your generator supports it. Set default sessions to 10–15 minutes with cool-down time. Provide a cool water hand shower for quick rinses and temperature moderation. Keep a wooden or resin ladle out of direct steam streams if you like splash rituals; avoid metal that heats quickly.

Materials and Detailing

Go for low-VOC sealants and adhesives to minimize off-gassing under heat. Epoxy grout resists staining and moisture ingress. For walls, large-format porcelain tiles reduce grout lines, while slip-resistant mosaic floors provide traction. If you want the look of wood, choose porcelain “wood” tiles suitable for wet zones. Stainless fixtures (316 grade) handle constant moisture better than standard brass in steam applications.

Acoustic and Psychological Comfort

Steam sessions are restorative when the space sounds and feels calm. Soft finishes outside the enclosure—bath mats, curtains, textured paint—absorb noise and keep the room peaceful. Warm color palettes (muted terracottas, taupes, and soft greens) are known to reduce stress; the relationship between color and mood is well captured by research on color psychology from Verywell Mind. Consider small, indirect RGB accents if you like chromotherapy, but keep primary task lighting warm and consistent.

Step‑by‑Step DIY Checklist

- Measure volume and select a generator sized for material load.

- Add/upgrade vapor barrier and waterproofing throughout walls and ceiling.

- Install steam-rated glass door and sealed ceiling with slight slope.

- Run dedicated electrical per the generator’s spec (qualified electrician recommended).

- Plumb cold water supply with isolation valve; plan a drain if your unit has auto‑flush.

- Place the steam head low and away from the bench; mount the controller outside direct spray.

- Install wet‑rated, dimmable lighting; keep drivers out of the steam enclosure.

- Build an ergonomic bench with non-slip surfaces.

- Test for leaks and seal all penetrations; cure materials fully.

- Establish a post‑steam purge routine with an exterior-vented fan on a timer.

Common Pitfalls I Avoid

- Undersized generators when using stone or extensive glass.

- Skipping vapor barrier behind tile, assuming grout alone is enough.

- Flat ceilings without slope, causing drips on shoulders.

- Placing the steam head near seating or controls.

- Inadequate door seals that leak heat and humidity.

- Harsh, cool lighting that blooms in vapor and causes glare.

- No purge routine, leading to persistent damp and mold risk.

Maintenance Rhythm

Drain and flush the generator per manufacturer guidelines, especially in hard-water regions. Clean glass with squeegee after each session, and wipe gaskets to prevent mildew. Inspect grout lines quarterly and refresh sealers annually. Replace door sweeps when they lose elasticity. Keep a hygrometer in the bathroom to validate humidity falls back under ~60% after purge.

FAQ

How big should my steam generator be?

Size to the enclosure’s cubic feet, then adjust for materials. Dense surfaces like stone and glass increase demand; manufacturers provide multipliers—choose the next size up if you’re on the cusp.

Do I need a special door?

Yes. Use a steam-rated glass door with continuous gaskets and a tight sweep. Standard shower doors often leak vapor and won’t maintain temperature well.

Is ventilation inside the steam enclosure required?

No fan inside the steam zone. Place an exterior-vented fan just outside and run a 20–30 minute purge after sessions to help keep RH near recommended comfort levels (under ~60%).

What lighting works best in steam?

Wet-rated, dimmable fixtures with warm 2700–3000K lamps. Keep drivers and junctions outside the enclosure and aim for softer levels (~150–250 lux).

How high should the bench be?

17–19 inches seat height with 14–16 inches depth supports relaxed posture and reduces strain over typical 10–20 minute sessions.

Can I convert an open, walk-in shower?

Yes, but you must add a sealed ceiling and steam-rated door/panels. Without full containment, the generator will struggle and humidity will flood the bathroom.

Will tile and grout be enough to stop vapor?

No. Install a continuous vapor barrier membrane behind finishes. Use epoxy grout or high-performance grout plus a sealer for long-term durability.

Where should the steam head go?

6–12 inches above the floor, away from seating and controls, so you avoid direct steam exposure and minimize condensation drips.

How do I handle hard water scale?

Choose a generator with auto-flush or descaling cycle. Periodically descale per the manual, and consider an inline filter to reduce mineral buildup.

Is chromotherapy useful?

Soft, indirect colored lighting can enhance mood, but keep primary lighting warm and consistent. If you add RGB, limit intensity to avoid glare in vapor.

What about safety for kids or older adults?

Use conservative temperature limits, short timed sessions, and non-slip flooring. Provide a hand shower for quick cooling and avoid direct steam on skin.

Can I use wood inside the steam shower?

Use heat- and moisture-resistant species or composites sparingly. Most users prefer porcelain or stone with low-VOC sealants for durability and hygiene.
