How to Use AutoCAD to Create 3D Models for Interior Design: A practical step by step workflow interior designers use to turn 2D AutoCAD drawings into clean 3D models

Direct Answer

To create 3D models in AutoCAD, start by converting a 2D floor plan into closed polylines, then use tools like EXTRUDE, PRESSPULL, and REVOLVE to generate 3D geometry. After that, assign materials, adjust the visual style, and refine details using Boolean operations. This workflow is commonly used by interior designers to quickly turn technical drawings into presentation-ready spatial models.

Quick Takeaways

1. Start with a clean 2D floor plan using closed polylines.
2. Use EXTRUDE and PRESSPULL to convert walls and objects into 3D forms.
3. Switch to a 3D workspace early to control view and navigation.
4. Boolean tools help combine or subtract geometry for accurate modeling.
5. Materials and visual styles improve readability for client presentations.

Introduction

Many designers learn AutoCAD as a drafting tool, but far fewer realize how powerful it becomes once you start building AutoCAD 3D models directly from your floor plans. In my studio work, especially on residential projects, I often move from 2D layouts to quick 3D massing models inside AutoCAD before exporting to rendering software.

The challenge most beginners face is not the commands themselves. It is understanding the correct workflow. Without the right sequence, AutoCAD 3D modeling quickly becomes messy, slow, and frustrating.

After more than a decade working with interior layouts and spatial studies, I have found a reliable method that turns a basic plan into a usable 3D model in less than an hour. The following process is the same approach many designers use before moving models into tools like SketchUp, 3ds Max, or rendering engines.

save pin

Why Start With a Clean 2D Drawing Before Building a 3D Model?

Key Insight: The quality of your 3D model depends almost entirely on how clean your 2D base drawing is.

One mistake I constantly see from beginners is jumping straight into 3D commands without fixing their 2D plan. If lines are not connected, AutoCAD cannot extrude them properly. Instead of solid walls, you get broken surfaces.

Before any 3D work, I always run a quick checklist:

1. Convert wall outlines into closed polylines
2. Remove duplicate or overlapping lines
3. Confirm wall thickness is consistent
4. Separate layers for walls, furniture, and openings

AutoCAD's OVERKILL and PEDIT commands are extremely helpful here. In professional workflows, a clean 2D drawing can reduce modeling time by more than half.

Architecture studios often treat the 2D drawing as the "construction blueprint" for the 3D model. If the blueprint is messy, the model will be messy too.

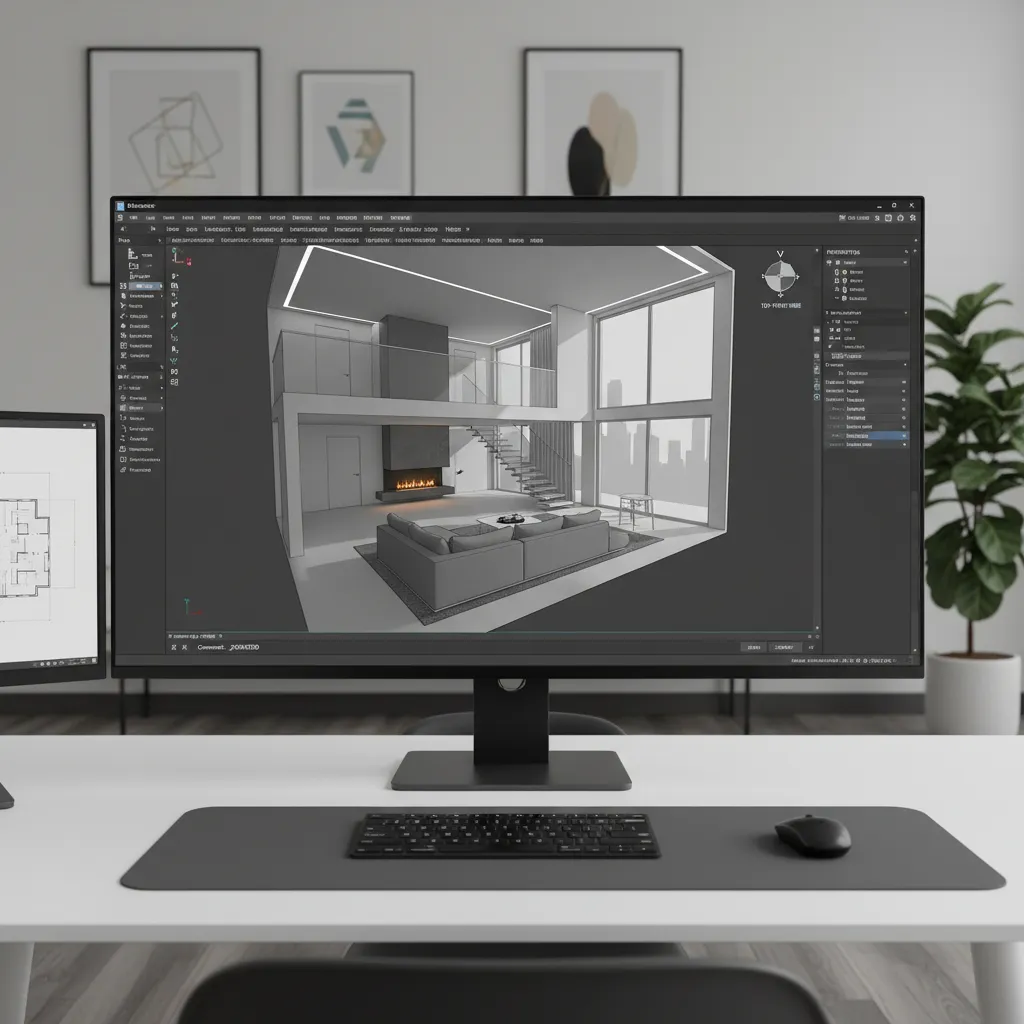

How Do You Switch AutoCAD Into a 3D Modeling Workspace?

Key Insight: Activating the 3D workspace early dramatically improves navigation, visualization, and modeling accuracy.

AutoCAD includes a dedicated 3D Modeling workspace that unlocks essential tools. Many beginners never switch to it, which makes the interface unnecessarily difficult.

To activate it:

1. Open the Workspace Switching menu in the bottom-right corner.
2. Select "3D Modeling".
3. Enable the ViewCube and Navigation Bar.
4. Switch the visual style to "Shaded" or "Conceptual".

These changes allow you to orbit, pan, and inspect geometry quickly.

From my experience, once designers begin navigating the model using orbit tools instead of flat plan views, spatial mistakes become much easier to catch.

save pin

What Are the Core AutoCAD Commands Used for 3D Modeling?

Key Insight: Most AutoCAD 3D models rely on only four core commands, even in professional projects.

AutoCAD contains hundreds of commands, but in practice a small set handles the majority of modeling tasks.

The most useful commands include:

1. EXTRUDE – turns 2D shapes into 3D solids
2. PRESSPULL – quickly pushes surfaces into volumes
3. REVOLVE – creates round objects such as columns or lamps
4. SWEEP – builds shapes along a path

For example, when modeling a residential apartment:

1. Walls are created with EXTRUDE
2. Door openings use SUBTRACT
3. Columns often use REVOLVE
4. Handrails can be built with SWEEP

Autodesk training materials consistently emphasize these commands because they provide predictable, clean geometry.

save pin

How Do You Turn Floor Plans Into 3D Walls and Rooms?

Key Insight: The fastest workflow is extruding wall polylines to the desired ceiling height.

This is the step where the model finally becomes architectural space.

A typical workflow looks like this:

1. Select the wall polyline.
2. Run the EXTRUDE command.
3. Enter a height value, commonly 2700–3000 mm for residential interiors.
4. Create door and window voids using SUBTRACT.

One overlooked detail is separating structural walls from interior partitions. This allows you to adjust heights or materials independently later.

In many of my projects, I also extrude floor slabs and ceilings separately. This keeps the model flexible when clients request layout revisions.

save pin

Common Mistakes Beginners Make When Creating AutoCAD 3D Models

Key Insight: Most AutoCAD 3D problems come from modeling shortcuts that seem faster but actually create unusable geometry.

Over the years reviewing junior designers' files, I repeatedly see the same problems.

Here are the biggest ones:

1. Using individual lines instead of closed polylines
2. Modeling furniture before completing the architectural shell
3. Ignoring layer organization
4. Working entirely in perspective view without checking orthographic views

The hidden cost of these mistakes appears later when exporting models to rendering tools. Broken geometry often leads to lighting errors, missing surfaces, or extremely heavy files.

Professional teams prioritize clean structure over speed during the early modeling stage.

When Should You Export AutoCAD 3D Models to Other Software?

Key Insight: AutoCAD is ideal for structural modeling, but complex visualization usually happens in other tools.

In professional interior design pipelines, AutoCAD is rarely the final rendering environment.

Instead, designers typically export models to software such as:

1. SketchUp for fast conceptual studies
2. 3ds Max for high-end visualization
3. Blender for advanced rendering workflows
4. Twinmotion or Lumion for real-time walkthroughs

AutoCAD's role is precision modeling. Rendering software handles lighting, materials, and atmosphere.

This separation of responsibilities keeps projects both accurate and visually compelling.

Answer Box

The most reliable way to create AutoCAD 3D models is to start with a clean 2D floor plan, convert shapes into solids using EXTRUDE or PRESSPULL, and organize geometry with layers and Boolean tools. This structured workflow prevents broken geometry and keeps models efficient for rendering or further design development.

Final Summary

1. Clean 2D drawings are essential for successful AutoCAD 3D modeling.
2. The 3D Modeling workspace improves navigation and accuracy.
3. EXTRUDE and PRESSPULL handle most architectural geometry.
4. Model walls and structure before furniture.
5. Export AutoCAD models to rendering tools for final visualization.

FAQ

Can AutoCAD create full 3D models?

Yes. AutoCAD supports solid, surface, and mesh modeling, allowing designers to build complete architectural and interior 3D models.

Is AutoCAD good for beginners learning 3D modeling?

It can be, but the interface is technical. Many beginners learn 3D concepts faster in SketchUp before returning to AutoCAD for precision modeling.

What command creates walls in AutoCAD 3D models?

The most common method is using the EXTRUDE command on wall polylines to generate vertical 3D wall geometry.

How long does it take to learn AutoCAD 3D modeling?

Basic workflows can be learned in a few weeks, but mastering professional modeling practices usually takes several months of real project work.

Do architects still use AutoCAD for 3D modeling?

Yes. While BIM tools like Revit are common, AutoCAD remains widely used for quick spatial modeling and technical documentation.

Can AutoCAD 3D models be rendered?

Yes, but most designers export AutoCAD 3D models to rendering tools such as Lumion, Twinmotion, or 3ds Max.

What file format is best for exporting AutoCAD 3D models?

Common formats include FBX, DWG, and OBJ depending on the rendering software being used.

Is AutoCAD 3D modeling used in interior design?

Absolutely. Interior designers frequently build AutoCAD 3D models to test layouts, ceiling heights, and spatial proportions before visualization.
