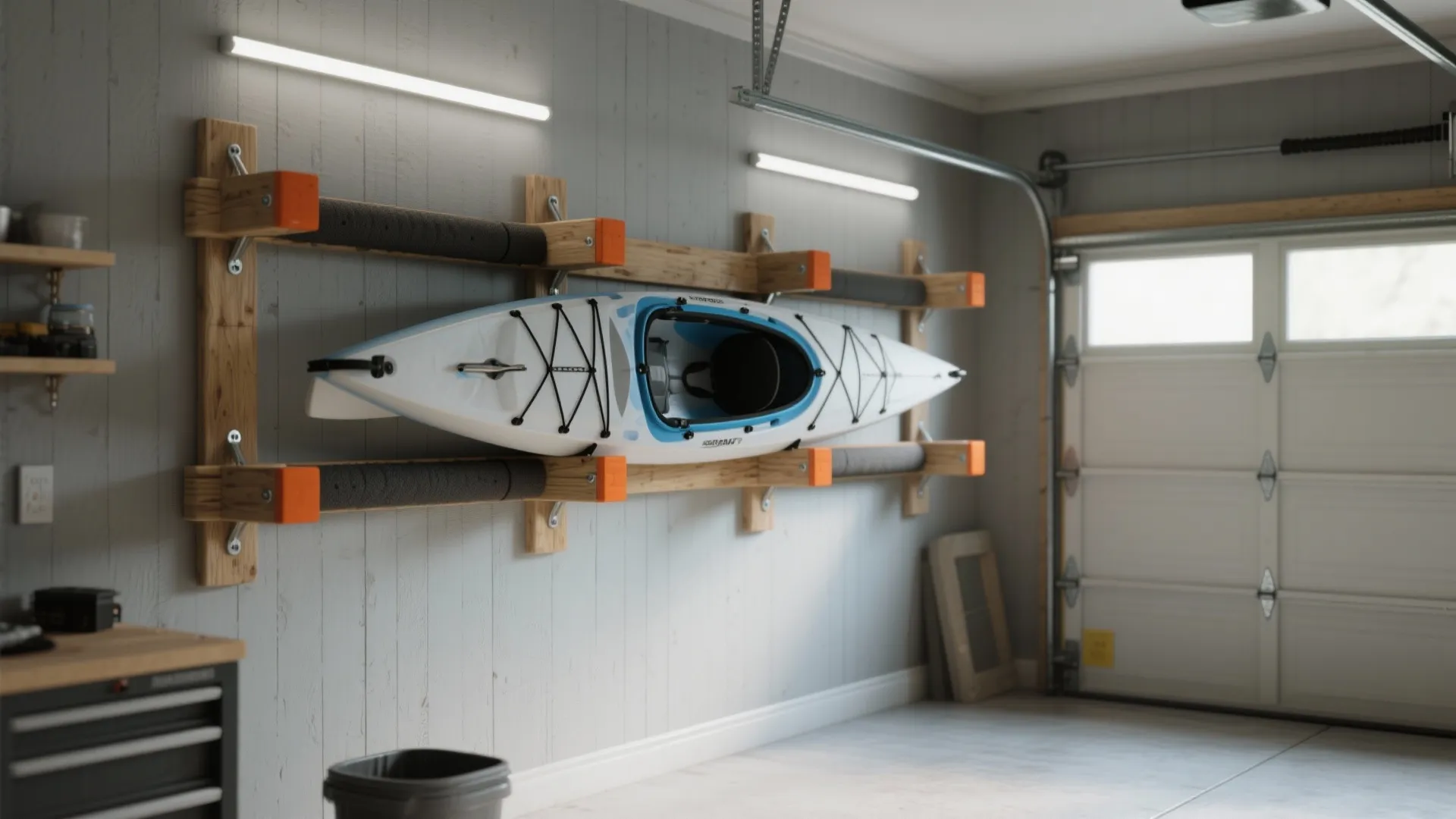

Kayak Wall Rack DIY: The Ultimate Space-Saving Guide: Fast-Track Guide to Building a Kayak Wall Rack in Minutes

I’ve built and tuned more wall racks than I can count, from tight city garages to salt-air boat sheds. A solid DIY kayak rack comes down to three things: structural clarity, gentle support for the hull, and clean workflow around the storage zone. When those align, you get gear that lasts, a kayak that stays true to its shape, and a space that feels effortless to use.

Two data points I keep front-of-mind: the Gensler U.S. Workplace Survey notes that clutter and poor environmental quality correlate with reduced performance in task areas; streamlining storage can free up to 10–15% of active use space in small garages. On ergonomics, Herman Miller’s research shows that reach envelopes and clear access paths reduce micro-strain and time-waste, improving task efficiency—important when you’re lifting a 35–70 lb kayak at shoulder height. For lighting and visibility when mounting boards and anchors, I follow IES recommendations to keep task lighting around 300–500 lux to avoid mis-drilling and to see studs and fasteners cleanly. For broader design guidance, I’ve leaned on IIDA’s resources for durable, user-centered spatial planning over the years. For deeper reading: Herman Miller Research and IIDA.

Plan Your Mounting Strategy

I start by mapping the wall. Find studs at 16 in or 24 in centers with a stud finder, then verify with a small pilot hole. Note obstructions, breaker panels, and water lines. For a single kayak, two robust arms set 50–70 in apart usually suffice; for long sea kayaks (14–18 ft), I stretch spacing to 70–80 in to support the midsection and reduce hull sag. Keep the rack 10–14 in off the wall to accommodate deck fittings and paddles. If you want to visualize clearances, a quick pass with a room layout tool helps simulate reach and path-of-travel around vehicles or doors.

Select the Right Materials

For a timber rack, I prefer kiln-dried 2×4 or 2×6 SPF or Douglas fir for the arms and backer, plus 3/4 in exterior-grade plywood gussets for stiffness. Exterior screws (No. 10 or No. 12), two 3–4 in lag bolts per arm into studs, and structural construction adhesive at gusset joints keep creep to a minimum. If you’re in a humid shed, galvanized or stainless hardware prevents corrosion. For padding, closed-cell foam (yoga block foam, EVA, or pipe insulation) wrapped with UV-resistant webbing or neoprene protects the hull; avoid soft open-cell foams that compress over time.

Ergonomics and Height Placement

The centerline of the kayak should sit roughly between elbow and mid-chest height for most adults, typically 40–52 in from floor, so you’re lifting with legs and stabilizing with forearms rather than pivoting from a high shoulder position. Allow 6–8 in clearance above the top of the boat for safe tilt-in. Leave a 30–36 in walkway in front of the rack so you can rotate and set without clipping the bow. Herman Miller’s reach data for general task zones supports keeping repetitive lifts inside the primary reach envelope—less than 20–24 in from the body—to reduce strain.

Arm Geometry and Load Paths

Each arm should create a clean triangular load path: vertical backer, horizontal support, and a diagonal gusset. Size arms at 18–24 in long with a 5–10 degree upward pitch to prevent roll-off. Padding should be 1/2–3/4 in thick. If your kayak has a pronounced V or rounded hull, consider two-point straps under the hull to distribute pressure; keep contact points under bulkhead areas when possible to minimize oil-canning. For heavier tandem kayaks (70–90 lb), upgrade to 2×6 arms and add a second gusset or steel L-bracket concealed beneath the padding.

Anchoring and Fasteners

Stud anchoring is non-negotiable. Use two 5/16 in × 3–4 in lag screws per arm into the stud; pre-drill undersized pilot holes (e.g., 7/32 in), add a washer, and torque until snug without crushing fibers. If you must span irregular studs or cinderblock, install a continuous 2×8 backer across two or more studs, then mount the arms to the backer. For masonry, use sleeve anchors or wedge anchors sized per manufacturer, and add neoprene isolation between arm plate and wall to reduce vibration.

Finish, Protection, and Maintenance

Seal timber with exterior poly or marine spar varnish if the rack sits in a damp garage. In coastal or high-UV zones, I swap to powder-coated steel arms and UV-stable padding. Check fasteners annually, re-tighten lag screws, and inspect foam for compression. If your foam flattens more than 50% or loses rebound, replace it to avoid hull dents.

Lighting and Visibility for Safe Mounting

Good task lighting pays for itself. Aim for 300–500 lux at the rack face (IES task lighting guidance). Use 4000–5000 K neutral-white LEDs to maintain color accuracy of hull and hardware. Control glare with diffusers if your sightline to fixtures is direct. A motion sensor switch near the entry helps when your hands are full of gear.

Color and Wayfinding

Bright, high-contrast arm tips or padding (e.g., safety orange or lime) make aiming the hull easier. Verywell Mind’s color psychology overview notes that saturated warm hues can increase alertness; I use warm accents on contact points and cooler neutral tones on walls to lower visual noise.

Acoustics and Vibration

If the rack shares a wall with living space, decouple with a continuous backer and neoprene pads between backer and wall. This reduces structure-borne noise when loading and avoids rattles. Keep hardware tight and avoid metal-on-metal friction.

Step-by-Step Build Outline

1) Locate and mark studs; tape out kayak envelope on wall.

2) Cut two arms at 20–24 in; rip two plywood gussets at 8–10 in legs, 45° miter.

3) Dry-fit arm triangle; glue and screw gussets (two rows of No. 10 screws).

4) Wrap arms with padding and webbing; staple or rivet in place.

5) Pre-drill wall pilots; mount a 2×8 backer (optional) level across studs.

6) Lag each arm to studs or backer; check pitch with a digital level.

7) Test-load with sandbags equal to kayak weight; verify deflection under 1/4 in.

8) Mark hull contact, add straps if needed; clean up edges and seal wood.

Layout Optimizations

If you’re storing multiple boats, stagger heights by 12–16 in and offset arms left-right to avoid paddle clashes. Keep paddles and PFDs on a secondary rail outside the primary lift zone. When planning whole-wall gear storage, an interior layout planner helps set safe clearances around vehicles and doors and preserves a 36 in egress path.

Common Mistakes to Avoid

- Mounting to drywall only (failure risk).

- Using soft foam that compresses into hard points.

- Setting the rack too high, forcing shoulder lifts.

- Under-spacing arms on long kayaks, leading to mid-hull sag.

- Ignoring corrosion in damp garages.

FAQ

How far apart should I space the arms?

For 10–12 ft recreational kayaks, 50–70 in between arms works well. For 14–18 ft sea kayaks, stretch to 70–80 in to support the midsection and reduce sag.

Can I mount into masonry walls?

Yes, with sleeve or wedge anchors rated for shear loads. Add a timber backer to spread loads and neoprene isolation to limit vibration.

What padding is best for the hull?

Closed-cell foam (EVA, neoprene, or dense pipe insulation) at 1/2–3/4 in thickness. Wrap with UV-resistant fabric or webbing to prevent abrasion.

What height should I mount the rack?

Set the kayak centerline around 40–52 in from floor, depending on your height, so you can lift with legs and keep the load in the primary reach envelope.

How do I protect against oil-canning?

Place contact points under bulkheads when possible, widen arm spacing, and use broad padding or supportive straps to distribute pressure.

Is steel better than wood for arms?

Steel is slimmer and corrosion-resistant when powder-coated; wood is easier to DIY and dampens vibration. Pick based on environment and tools on hand.

What lighting should I use near the rack?

Neutral-white LEDs at 4000–5000 K, 300–500 lux at the rack face to reduce glare and ensure accurate mounting and drilling.

Do I need a continuous backer board?

If studs don’t land where you need arms, a 2×8 backer across multiple studs provides flexibility and load distribution before you mount the arms.

Can I store multiple kayaks vertically?

Vertical storage is possible for short boats with nose cups and floor pads, but ensure ceiling height and secure bow restraint. Horizontal wall racks are gentler for long hulls.

How often should I inspect the rack?

Annually check lag tightness, foam compression, and corrosion. Replace padding when rebound is poor or surfaces abrade.

What about paddle and PFD storage?

Mount a secondary rail or small hooks outside the lift path; keep a 36 in clear walkway and avoid overloading the arm zone.

Can I add straps for extra security?

Yes, add 1 in cam straps over the hull or under-sling straps. Avoid ratchet straps that can crush thin kayak skins.
