Kitchen Plan CAD Blocks: Unlock Small-Space Solutions: 1 Minute to Transform Your Kitchen with Pro CAD Block Shortcuts

I’ve spent over a decade designing tight, urban kitchens where every inch counts. CAD blocks are my go-to for compressing function into compact footprints without sacrificing safety, comfort, or style. Accurate symbols—appliances, fixtures, storage modules—let me test clearances, workflow, and lighting before any demolition or millwork order. In small spaces, that precision directly impacts daily usability and resale value.

Real-world data backs a performance-first approach. The National Kitchen & Bath Association (NKBA) recommends minimum 36-inch clear walkways and 42 inches for a one-cook work aisle—numbers that regularly determine which base cabinet widths I select. On lighting, the Illuminating Engineering Society (IES) cites 300–500 lux for task surfaces; hitting those targets reduces strain when chopping or reading labels. For ergonomics, WELL v2 encourages accessible reach ranges and glare control, which I model with CAD sightlines and task-plane calculations. For additional guidance on human-centered environments, I often reference the WELL Building Standard at wellcertified.com.

Design Rationale: Why CAD Blocks Matter in Compact Kitchens

Generic dimensions are unreliable. CAD blocks with verified sizes and service clearances ensure ovens can vent, dishwashers can open without collision, and refrigerators have swing room. In micro kitchens, a 24-inch appliance suite and reduced-depth cabinetry can turn an impossible plan into a functioning cook space. I use parametric blocks to evaluate hinge side, pull-out radii, and toe-kick space, and I layer in lighting blocks to simulate task illumination across prep, cook, and clean zones.

Workflow-Driven Layouts

Small kitchens thrive on coherent workflow: store, prep, cook, clean. I map these zones with CAD blocks, then align them along a galley or L-shaped scheme to minimize cross-traffic. NKBA’s triangle rule still helps—but in tight plans, straight-line “work corridors” are often more efficient. When the plan is tricky—slanted walls, overlapping doors—I run quick adjacency tests using an interior layout planner to visualize circulation before committing to millwork. Try a room layout tool if you need fast layout simulation: room layout tool.

Clearances and Safety You Can’t Ignore

Clearances are non-negotiable. I keep 15 inches minimum above cooktops for some hoods, but most products require more—always check manufacturer specs. Dishwashers need 21–24 inches for door swing and landing space. Where aisles fall below NKBA’s preferred width, I avoid protruding hardware, choose integrated pulls, and round stone corners to mitigate impact risk. For sit-stand breakfast bars, I coordinate knee space and stool depths so traffic routes stay open and safe.

Lighting and Visual Comfort in Small Kitchens

Compact kitchens feel bigger with balanced light. I target 300–500 lux on counters per IES guidance, delivered by continuous under-cabinet LEDs at 3000–3500K for warm clarity without color distortion. I add dimmable ceiling layers at 2700–3000K for mood, and control glare with diffusers and proper beam spreads. Matte finishes on counters and backsplashes help avoid specular reflections. With WELL’s emphasis on glare control and visual comfort, I tune beam angles to keep luminance ratios gentle across the field of view.

Color Psychology and Material Strategy

Palettes can trick the eye. Soft neutrals and low-contrast transitions visually widen narrow rooms. I use satin or matte cabinetry to suppress hot spots, and add a single, controlled accent color to define the cook zone without chopping up the volume. Warm woods balance stainless steel, while high-performance laminates or compact sintered surfaces keep maintenance easy. Sustainability matters: durable, low-VOC finishes and LED drivers with good efficacy support both health and longevity.

Storage Tactics: Vertical, Shallow, and Smart

Storage is where CAD blocks shine. I stack 30–36-inch wall cabinets where ceilings allow, add shallow pantries (12–15 inches deep) to keep aisles clear, and specify pull-outs for spices, trays, and trash to maximize narrow bays. Corner solutions—LeMans trays or blind corner pull-outs—prevent dead zones. I also block out appliance garages to hide small devices while protecting counter landing space.

Appliance Sizing for Tight Footprints

Going 24-inch across the board (range, fridge, dishwasher) can reclaim critical inches. I verify cutout and ventilation requirements within CAD to prevent conflicts. Induction cooktops reduce thermal load and add usable counter space when not in use. In studios, combo washer/dryer units in adjacent closets simplify lines while maintaining kitchen function. Always confirm door swing, hinge clearance, and service access panels in plan and elevation.

Ergonomics and Human Factors

Handle reaches, shelf heights, and prep counter elevations shape comfort. I set most counters around 36 inches, with occasional 34-inch zones for shorter users or pastry work. Upper shelves beyond 60 inches become display rather than daily-use storage unless step stools are planned. I model reach envelopes for differently abled users and locate frequently used items between 20–50 inches off the floor to reduce strain.

Acoustics in Hard-Surface Kitchens

Small kitchens often sit in open living areas, amplifying clatter. I favor soft-close hardware, acoustic underlays under engineered floors, and wall panels or fabric-wrapped art near dining edges to absorb mid-high frequencies. Range hoods get specified for low sones and effective capture efficiency; the trade-off between airflow and sound is handled by proper duct sizing and baffle design rather than just turning up the fan.

Micro Layout Playbook

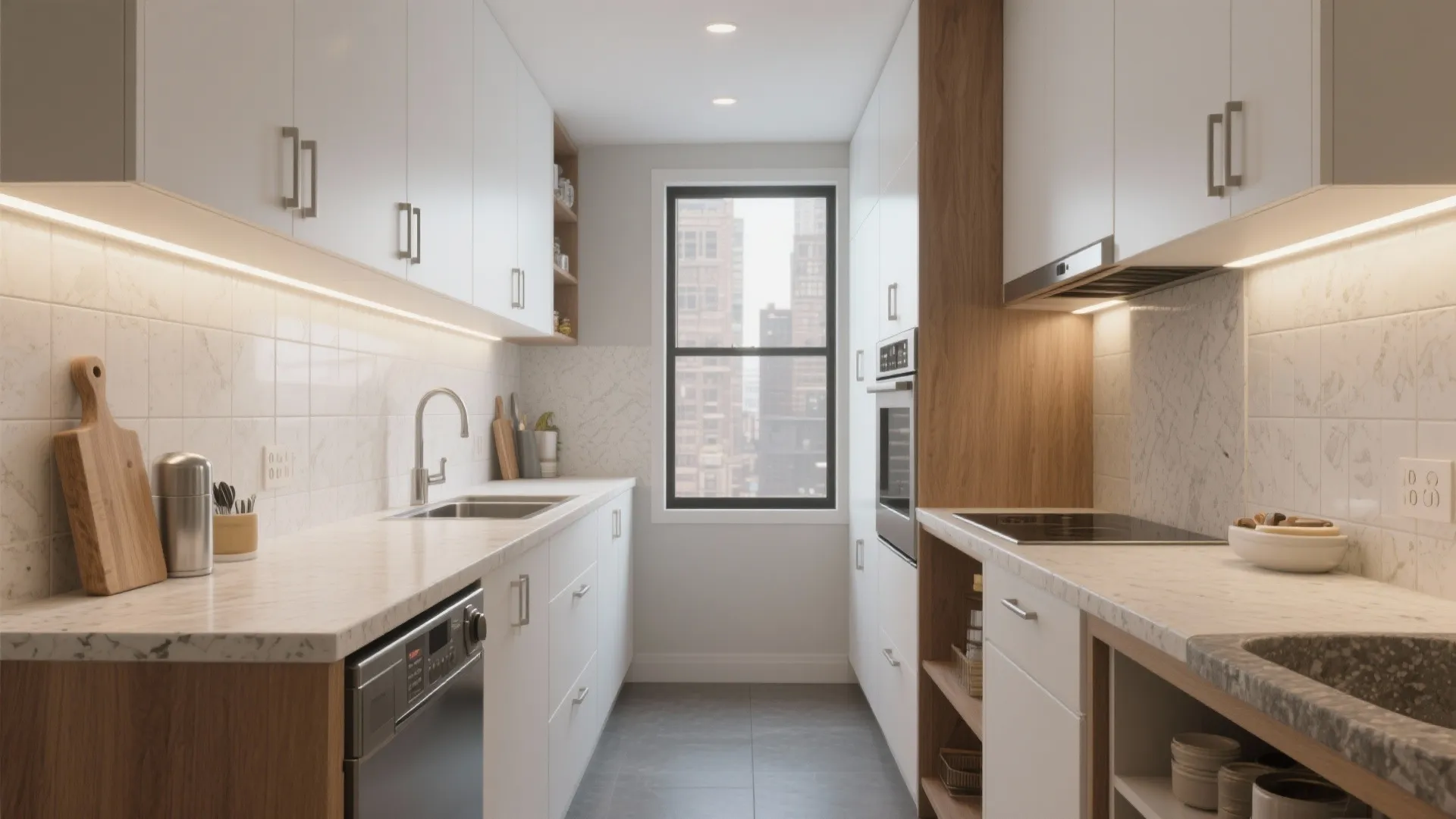

- Galley: keep parallel runs 42 inches apart for one cook; use shallow cabinetry if circulation pinches.

- L-Shape: anchor the corner with a sink or cooktop and use pull-outs to tame blind storage.

- Single-Wall: prioritize a strict sequence—fridge, prep, cook, clean—and integrate a fold-down table.

- U-Shape: avoid corner crowding; consider 24-inch appliances and rounded corners to ease flow.

CAD Block Essentials for Small Kitchens

- Appliances: multiple width options (24/30-inch), hinge variants, ventilation clearances.

- Fixtures: sink sizes, faucet reach arcs, dishwasher swing.

- Storage: pull-out modules, corner systems, trash/recycling.

- Lighting: under-cabinet strips, ceiling cans, pendants with beam spreads.

- Furniture: stools, fold-down tables, compact dining nooks.

- Safety: heat zones, landing spaces, GFCI outlets noted.

Implementation Path

Start by blocking the envelope and circulation. Drop appliances to test swing arcs, then add counters and storage modules. Tune lighting early for task-plane coverage. Align finishes and hardware to minimize protrusion. Finally, run a reality check: simulate daily routes and batch tasks—prep, cook, plate, clean—to see if the space supports the routine without bottlenecks.

FAQ

Q1: What aisle width should I aim for in a small kitchen?

A1: NKBA recommends 36 inches minimum for general walkways and 42 inches for a one-cook work aisle. If you can’t reach that, reduce protrusions with integrated pulls and rounded corners.

Q2: How bright should my task lighting be?

A2: I target 300–500 lux on counters per IES guidance, delivered via continuous under-cabinet LEDs and supplemented with dimmable ambient lighting.

Q3: Are 24-inch appliances a good idea?

A3: Yes, in compact kitchens they free inches for storage and circulation. Verify cutout, ventilation, and door swing in CAD to avoid collisions.

Q4: How do I prevent glare in a glossy small kitchen?

A4: Choose satin or matte finishes, use diffusers on under-cabinet lights, and select beam angles that keep luminance ratios comfortable—aligning with WELL’s focus on visual comfort.

Q5: What layout works best for a studio?

A5: Single-wall with a strict sequence—fridge, prep, cook, clean—often works best. Add a fold-down table and shallow storage to maintain flow.

Q6: How can I add storage without shrinking the aisle?

A6: Use shallow pantries (12–15 inches), vertical stacking of wall cabinets, and pull-outs to maximize narrow bays while protecting circulation.

Q7: What color strategy makes a small kitchen feel larger?

A7: Low-contrast, light-toned palettes with one restrained accent color expand perceived space. Keep cabinetry finishes matte to control reflections.

Q8: How noisy should my range hood be?

A8: Aim for low sone ratings with adequate capture efficiency. Proper duct sizing and baffle design control noise better than simply increasing fan speed.

Q9: What counter height is most ergonomic?

A9: 36 inches suits most users; consider 34 inches for pastry or shorter users. Keep daily-use items between 20–50 inches in height to reduce strain.

Q10: Can CAD blocks help with code compliance?

A10: They help you visualize clearances, GFCI outlet placement, and safety landing spaces, but always verify with local codes and manufacturer specs.
