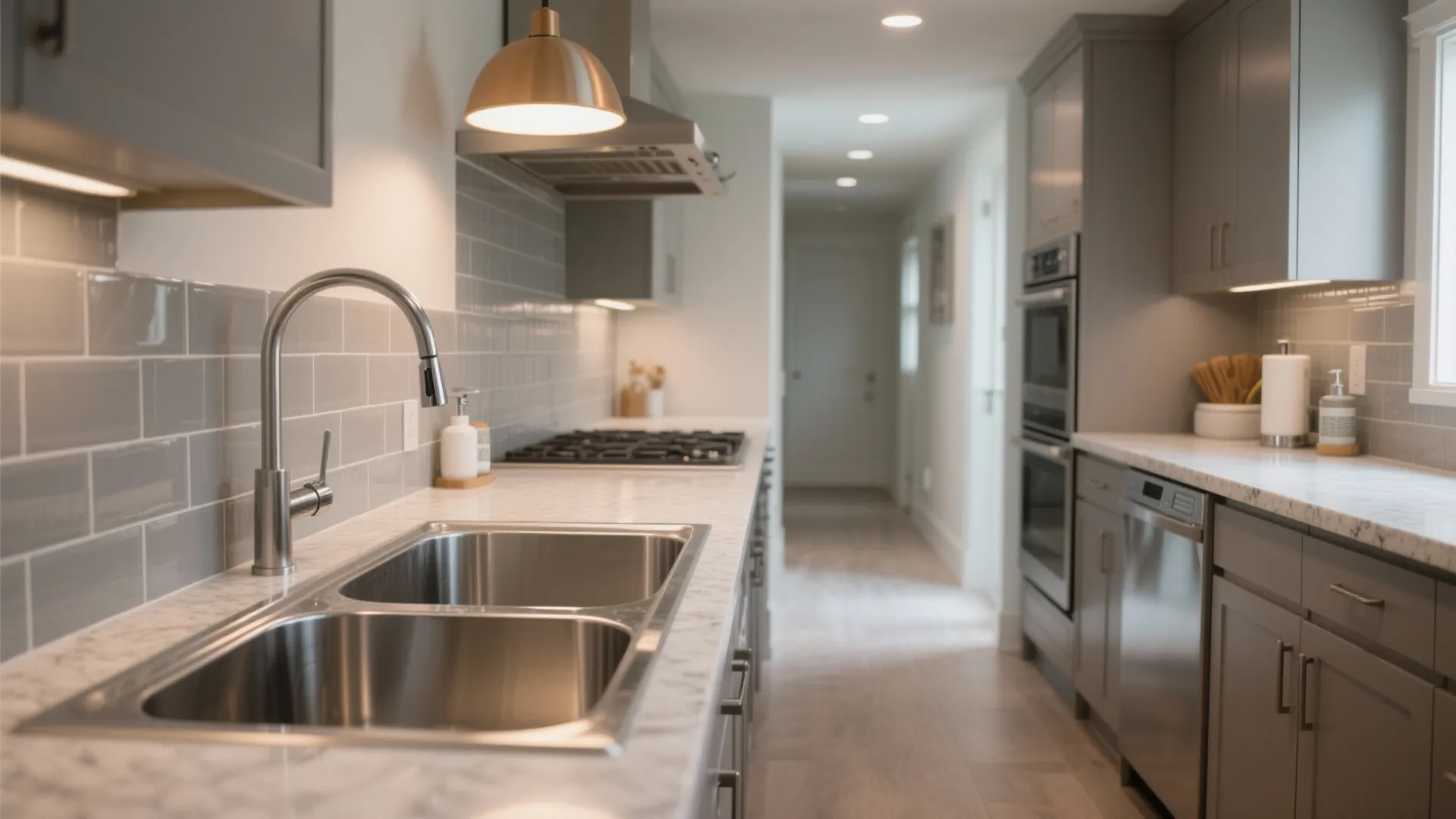

Kitchen Sink CAD Block: Pro Design Tips You Need: 1 Minute to Find the Best Kitchen Sink CAD Block for Any Space

Getting a kitchen sink right in CAD is more than dropping a rectangle into plan. I treat sink blocks as performance components—anchors for workflow, plumbing, ergonomics, and light—because they drive daily behavior and serviceability. In recent remodels, sink placement has had the highest impact on prep efficiency and cleanup flow.

Real figures keep the design honest. The National Kitchen & Bath Association (NKBA) guides a minimum 24 in (610 mm) landing space on one side of the sink and 18 in (457 mm) on the other for safe staging. For lighting, task zones like sinks should reach 300–500 lux with controlled glare per IES recommendations, with color temperature around 3000–4000K to keep food colors accurate and comfortable. WELL v2 reminds us to protect users with closed-lid waste zones away from food prep and to manage moisture at source.

On layout efficiency, Steelcase’s research into micro-movements and reach zones reinforces what I model around sinks: reduce unnecessary steps, keep heavy-use items within the primary reach envelope, and maintain clear sightlines. In residential projects, the sink often becomes the visual focal point and acoustic hotspot; the CAD block needs to coordinate lighting, splash control, and storage without compromise.

Plan Geometry That Mirrors Reality

I start with accurate outer dimensions (overall width and front-to-back depth), bowl interior size, corner radii, and flange thickness. For undermounts, add a counter cutout layer with the exact radius file from the manufacturer and distinguish it from the finished counter edge. Top mounts get the lip drawn at 2–3 mm thickness to avoid collision with faucet escutcheons in plan and elevation. When models provide DWG, import their plan, front, and side views and set them as block attributes for reliable documentation.

Ergonomic Clearances and Reach Zones

Key comfort ranges: counter height typically 36 in (914 mm), but I modulate +/- 25 mm for users over 6 ft or under 5 ft 2 to reduce shoulder loading. Sink centerline sits near 500–550 mm from finished floor for typical apron depths. Maintain 762 mm minimum aisle width; 1067–1220 mm feels better with dishwashers and pull-out waste. Dishwashers work best on the dominant-hand side of the sink with 610 mm landing between sink and nearest obstruction. Faucet reach should allow single-hand pot filling without wrist deviation; place the spout tip roughly at bowl centerline for splash control.

Detailing Bowls, Racks, and Accessories

Double-bowl blocks should show usable bowl interior sizes, not just overall sink width. I model racks and cutting board accessories as optional layers to test workflow—rinsing left, chopping center, staging right. Add a garbage disposal symbol and service access clearance zone of at least 300 mm behind/below for maintenance. For wall-mounted pre-rinse faucets, include hose sweep arcs in plan to verify pan reach and prevent wall collisions.

Lighting Over the Sink

Sinks need consistent task illumination. In CAD lighting layers, place a 3000–3500K pendant or track spot aiming at a 30–45° angle to minimize specular splash glare on stainless. Use shielding angles to keep luminance under control and target 300–500 lux on the wet zone per IES task ranges. I also bias lighting slightly warm to maintain natural food tones while avoiding the flat look of 5000K in residential kitchens.

For health and performance alignment across the kitchen, WELL v2 guidance on light quality, moisture, and hygiene provides a strong framework for balancing daylight, task lighting, and ventilation at the sink.

Acoustics and Material Selection

Thin stainless sings; heavy-gauge (16–18 gauge) with undercoating calms the washdown. In the CAD block notes, specify material thickness and undercoating to inform procurement. Composite granite sinks offer better acoustic damping but need accurate corner radii and wall thickness in the block to model cutouts correctly. Use splash walls (tile or solid surface) drawn to 400–600 mm height behind the sink to manage sound reflections and moisture.

Faucet, Sprayer, and Hole Mapping

I map hole centers precisely—36 mm diameter typical—for faucet, air gap, soap dispenser, and filtered water. Provide a flexible hole schedule in the block parameters (1–4 holes) with spacing that avoids structural ribs in the counter. In elevation, a spout clearance arc ensures tall pots sit under the faucet without tilting. For pre-rinse units, clear a 610 mm vertical zone and verify hose return paths.

Drain, Disposal, and Plumbing Paths

Plan a P-trap and cleanout reachable without removing the disposal. Centerline of drain typically 114–127 mm off back wall in base cabinet. Capture hot/cold supply lines and shutoff valves with service envelopes; angle stop placement should remain accessible after the disposal is installed. In multi-bowl setups, choose a low-profile cross-tee to preserve storage volume; represent it in the block for clash checking.

Cabinet Integration and Structural Notes

For farmhouse sinks, draw the front apron projection and cabinet rail cut details. Undermounts require a subrail or clip path; I annotate fastener spacings at 150–200 mm. If using stone counters, show reinforcement plates near large cutouts, especially with top-heavy faucets. Draft toe-kick vents if a dishwasher requires airflow adjacent to the sink.

Workflow and the Kitchen Triangle

Even in compact kitchens, the sink should anchor prep between fridge and cooktop with clear handoffs. I simulate movement lines in CAD: 1) unload from fridge to left landing, 2) rinse at sink, 3) move to prep surface, 4) cook, 5) return for cleanup. When testing a galley or L-shaped plan, I use a room layout tool to quickly iterate sink alignments against appliance doors and traffic patterns.

room layout tool

Sustainability and Water Management

Specify aerated faucets with 1.5–1.8 gpm flow rates; include footnote parameters so the MEP team can coordinate. Detail compost and waste separation pull-outs within 600 mm of the sink to minimize drips. Indicate low-VOC sealants around the sink rim and an overflow path where code requires.

CAD Layering and BIM-Ready Blocks

I keep the sink block layered: counter cutout, sink body, fixtures, accessories, plumbing, and service envelopes. Attributes carry model number, material, bowl volumes, gauge, hole count, and mounting type. In Revit or Archicad families, flex the block with type parameters for widths (24–36 in), bowl configurations, and apron depth; lock the origin at drain center for predictable alignment.

Common Pitfalls to Avoid

- Ignoring dishwasher door swing and landing spaces, causing collisions.

- Missing faucet clearance for tall pots or wall shelves.

- Over-bright cool lighting creating harsh glare on wet stainless.

- Underestimating disposal and P-trap space, killing base storage.

- Misaligned hole spacing relative to counter ribs or reinforcing plates.

Field Verification

Before issuing drawings, I verify cabinet interior widths, back wall plumbness, and countertop support near cutouts. Tolerances matter: I allow 3–5 mm wiggle on stone cutouts and note the exact corner radius to match templates. Service access—valves, cleanouts, disposal release—is checked with a mockup once cabinets set.

FAQ

Q1: What are the minimum landing spaces around a kitchen sink?

A1: NKBA recommends at least 24 in (610 mm) on one side and 18 in (457 mm) on the other to safely stage dishes and prep items.

Q2: How much light should I plan over the sink?

A2: Target 300–500 lux task lighting with 3000–4000K color temperature. Use angled beams to reduce glare on wet surfaces per IES guidance.

Q3: Where should the dishwasher go relative to the sink?

A3: On the user’s dominant-hand side with 610 mm of uninterrupted landing space between sink and the nearest obstruction, ensuring door swing and tray loading are clear.

Q4: What counter height is most comfortable for sink tasks?

A4: 36 in (914 mm) works for most users, but adjust ±25 mm based on user height to reduce shoulder strain. Keep the bowl edge and spout aligned for neutral wrist posture.

Q5: How do I reduce noise from the sink?

A5: Specify 16–18 gauge stainless with undercoating or use composite granite. Add a splash wall and soft-close hardware; avoid large hollow cavities under the sink that amplify vibration.

Q6: What hole mapping should a sink CAD block include?

A6: Parameterize 1–4 holes (≈36 mm diameter) for faucet, air gap, soap, and filtered water. Verify spacing against counter reinforcements and the faucet base plate.

Q7: How do I protect storage volume under the sink?

A7: Use low-profile traps and cross-tees, map disposal service envelopes, and reposition angle stops for reach. Keep pull-out waste on full-extension slides to maximize usable depth.

Q8: What’s the best way to integrate lighting and ventilation at the sink?

A8: Combine a warm task light with matte splash surfaces to cut glare and add nearby exhaust or operable windows to manage moisture per WELL v2 hygiene principles.

Q9: Are apron-front sinks harder to detail in CAD?

A9: They need apron projection, cabinet rail cuts, and front support lines. Draw the apron thickness and note the cabinet reinforcement so the installer can template accurately.

Q10: How can I make my sink block BIM-ready?

A10: Use layered geometry, parameterized sizes, mounting type, hole count, and material attributes. Lock the origin to the drain center and include service clearance zones for clash detection.

Q11: What sustainability specs belong in the block?

A11: Faucet flow rates (1.5–1.8 gpm), low-VOC sealants, waste/compost separation, and notes on water-saving aerators, plus daylight targets and moisture control references.

Q12: How do color and finish affect sink usability?

A12: Slightly warm light and matte finishes reduce glare; neutral, low-chroma counters help food color perception and reduce visual fatigue.
