L Shaped House Plans for Small Spaces: Smart Layout Ideas: Fast-Track Guide to Stylish Small Space Planning with L-Shaped Designs

I’ve gravitated to L-shaped house plans for small footprints because they solve the classic compact-home puzzle: how to separate noisy and quiet zones, pull in daylight, and carve out outdoor living—all within a tight envelope. The L lets me manage privacy and circulation with fewer walls, while setting up a sheltered courtyard or terrace that lives larger than the square footage suggests.

Measured outcomes make the case. In Gensler’s Workplace Research, perimeter daylight and views correlate with higher satisfaction and performance; WELL v2 further underscores that exposure to daylight supports circadian health, with guidance on light levels and glare control. IES lighting standards recommend about 300–500 lux for general living areas, with task planes like kitchen counters at 500–1000 lux—benchmarks I use to tune window placement and light layering in the L’s long arms. Color choices matter too: Verywell Mind’s overview of color psychology notes warm hues can feel energizing, while cool tones calm—useful when the L splits active and restorative zones.

Data on space efficiency also influences my layouts. Steelcase research shows that adaptable settings increase perceived usability; the L naturally accommodates flexible nodes: pocket offices in the short arm, open living in the long arm, and a hinge point for circulation that doubles as storage or a micro-mudroom. I’ll frequently prototype these adjacencies with a room layout tool to visualize flow, clearances, and sightlines before finalizing walls and glazing.

Organizing the L: Quiet vs. Active Arms

I start by assigning one arm to active functions (living, kitchen, dining) and the other to quiet functions (bedrooms, study). This reduces sound bleed and nighttime disturbances. In small homes, 1:1.5 arm length ratios work well: the longer side handles open-plan living, while the shorter side becomes a calm wing. Keep the hinge—the corner where arms meet—generous, ideally 1.2–1.5 m clear circulation, so movement never bottlenecks.

Natural Light and Views: Make the Courtyard Work

The L creates a pocket for a deck or planted courtyard. I’ll aim for a south or west orientation for the courtyard in temperate climates, balancing solar gain with shading to avoid glare. Glazing along both arms should connect visually across the courtyard to bounce light deep into rooms. IES guidance on glare control nudges me to mix lower-transmittance glass with exterior shading (eaves, trellises) and interior solar shades to keep luminance ratios comfortable.

Compact Kitchens in the Long Arm

An L-shaped plan thrives with an efficient kitchen toward the center of the long arm. The classic work triangle still works, but I keep runs tight: 120–180 cm between sink and cooktop, and 90 cm minimum aisle width for one-cook scenarios. Task lighting at counters targets 500–800 lux, with 2700–3000 K warm white for dining transitions. Materials matter—durable, matte finishes dampen glare; acoustically soft backsplashes or ceiling treatments keep clatter down.

Bedroom Wing: Restorative by Design

The short arm makes a quieter bedroom wing when buffered with storage or a small study. I use cooler palettes (soft greens or blues) to reinforce calm, referencing color psychology insights that associate cool hues with relaxation. Blackout shades and layered lighting—ambient 200–300 lux with adjustable bedside task lamps—let circadian-friendly routines take hold. Keep doors offset from the living line of sight for privacy.

Hinge Space: Storage, Entry, and Acoustic Control

The corner becomes a hardworking threshold. I’ll install a 60–90 cm deep built-in for shoes, coats, and cleaning gear, plus a bench and pinboard to streamline daily routines. If noise from the active arm worries you, consider a partial-height screen or a slatted acoustic partition. Soft flooring at the hinge—cork or wool carpet—absorbs footfall and visually warms the circulation node.

Micro-Flex Rooms: Work, Guests, and Hobbies

Small L-shaped homes benefit from a 6–8 m² flex room tucked into the short arm. Sliding panels or pocket doors convert the space from a compact office to a guest nook. I plan power and data on two walls to accommodate desk reorientation and keep lighting glare-free for screens.

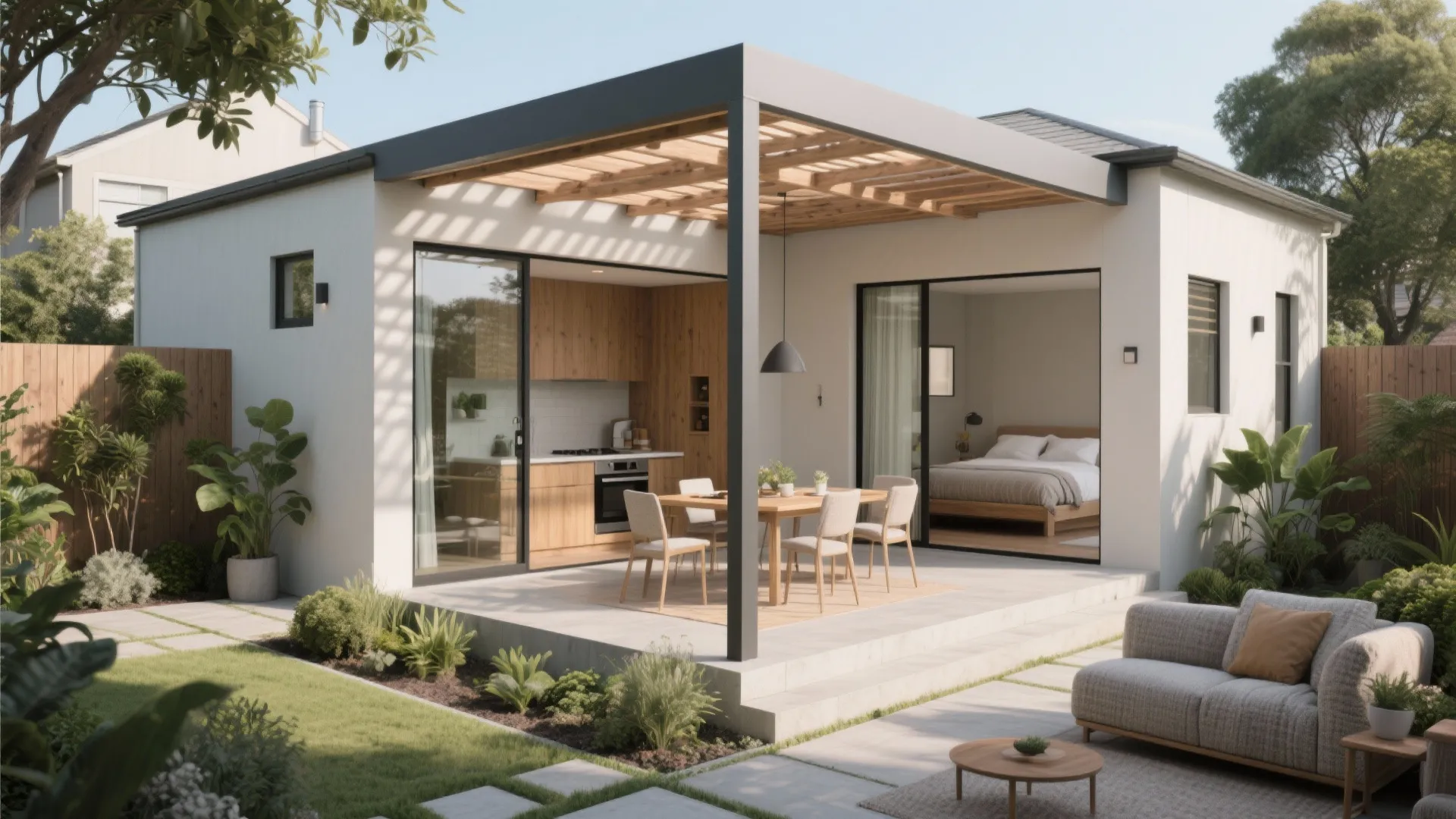

Courtyard Living: Extend Usable Area

Even a 10–14 m² terrace can feel generous when the L wraps it. Add a pergola with adjustable slats to tune sunlight, and a bench planters edge for privacy. Use exterior-grade rugs and low tables to blend indoor-outdoor living. In rain-prone regions, a 60–90 cm roof overhang along both arms protects thresholds and reduces splash-back.

Color and Material Strategy

To help small spaces breathe, I keep walls light and neutral in the active arm, with stronger accent colors confined to joinery or art. In the quiet arm, cooler tones settle the mood. Matte paints and textured fabrics reduce specular highlights that make rooms feel visually noisy. Choose multi-function pieces: storage banquettes, nesting tables, and wall-mounted desks that fold away.

Acoustic Comfort

Split-arm zoning does most of the work, but I still treat acoustics. Soft ceilings (acoustic plaster or wood wool panels), rugs, and upholstered seating keep reverberation down in open-plan areas. In the bedroom wing, solid-core doors and a small vestibule reduce cross-talk.

Circulation and Clearances

Plan for 90 cm minimum clear in corridors, and 120 cm around dining tables for comfortable movement. In living zones, create a main axis aligned with courtyard views so movement feels intuitive. Use a interior layout planner to test furniture footprints and turning circles before construction—this prevents overstuffing and supports clean lines.

Zoning with Light

I layer ambient, task, and accent lighting to cue behavior: brighter ambient in the kitchen and dining; dimmable, lower-kelvin lamps in the lounge; cooler, focused task light for work corners. Reference WELL v2 for strategies on circadian-supportive lighting schedules.

Energy and Sustainability

The L-shaped envelope supports passive strategies. Orient the longer arm to favor winter sun, and add operable windows on opposite walls for cross-ventilation. Insulate well, and choose low-VOC finishes. Timber from certified sources and recycled-content surfaces align durability with a light footprint.

Planning Toolkit

Before committing, I mock up adjacencies with a layout simulation tool to visualize door swings, daylight paths, and furniture clearances. For compact lots, nudge the courtyard toward the best sun or prevailing breeze. A small skylight at the hinge often lifts the core.

Authority References

I integrate guidance from WELL v2 (light, comfort, and mind concepts) and IES lighting standards to set lux targets and control glare. For behavior and color, Verywell Mind’s color psychology overview is a useful reference.

FAQ

Q1. How do I prevent the L-shaped plan from feeling chopped up?

A1. Keep floor and ceiling finishes consistent across the active arm, use wide openings at the hinge, and align views toward the courtyard. Continuous baseboards and consistent door heights visually stitch areas together.

Q2. What’s the ideal size for an L-shaped courtyard in a small home?

A2. Aim for 10–14 m². That allows a small table, bench seating, and planting without crowding. Ensure at least 90 cm clear circulation along doors and windows.

Q3. Can an L-shaped plan work on narrow lots?

A3. Yes—rotate the short arm forward or back to capture side-yard light. Use clerestories on the inner corner to pull daylight deeper when setbacks are tight.

Q4. How should I place the kitchen in the long arm?

A4. Center it near the hinge for easy access from entry and dining. Keep primary counter runs compact and provide 90–100 cm aisles; add task lighting to meet IES-recommended 500–1000 lux on work surfaces.

Q5. How do I handle acoustics between living and bedrooms?

A5. Use the L to offset bedroom doors from the living sightline, add a small vestibule in the short arm, and specify solid-core doors with perimeter seals.

Q6. What colors help small rooms feel larger?

A6. Light neutrals on walls and ceilings expand perceived volume. Reserve saturated hues for furniture or art. Cool tones in bedrooms support calm, consistent with color psychology insights.

Q7. Is there a rule for arm length ratios?

A7. A 1:1.5 ratio often balances program: longer arm for open living, shorter for quiet rooms. Test variations with a room design visualization tool to see how furniture and doors land.

Q8. How do I improve energy performance?

A8. Orient glazing for winter sun, shade west exposures, add cross-ventilation windows, and choose low-VOC materials. Overhangs at 60–90 cm protect openings and reduce summer heat gain.

Q9. Where should a home office go in an L-shaped plan?

A9. Tuck it into the short arm near the hinge for quick access yet separation. Provide dual-wall outlets and glare-controlled task light to maintain visual comfort.

Q10. How can I future-proof a compact L-shaped house?

A10. Use demountable partitions in the short arm, plan structural spans that allow reconfiguration, and keep services accessible at the hinge for upgrades.
