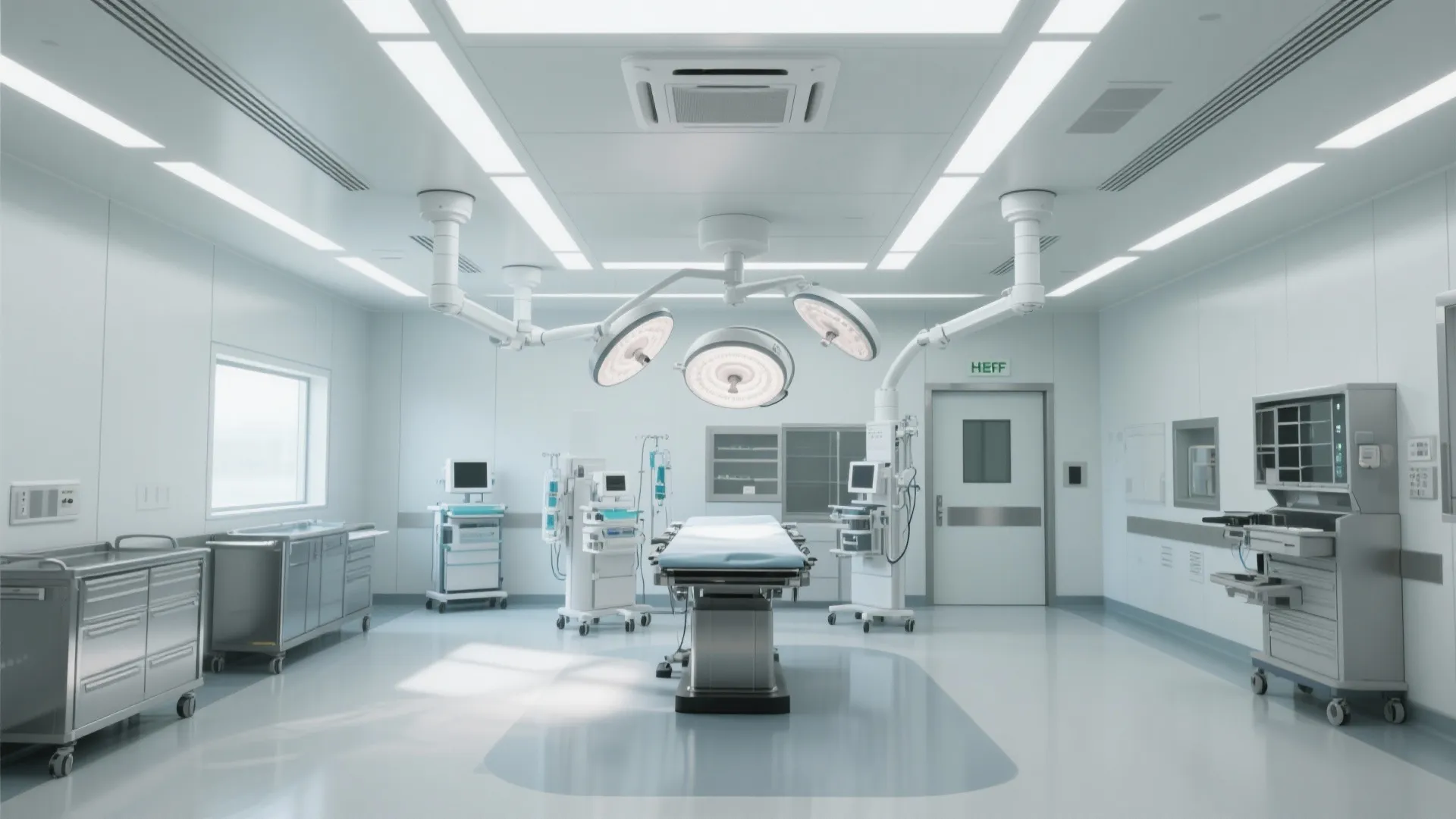

Laminar Air Flow Operating Room Design Essentials: Fast-Track Guide to Creating a Sterile Surgical Space

Creating a laminar airflow (LAF) operating room is a precise exercise in engineering, human factors, and infection control. I design ORs with a clear focus on directional air movement, surface hygiene, and behavior-driven zoning so that surgical teams can perform with confidence and consistency. A well-executed LAF ceiling and balanced return strategy help protect the sterile field, while lighting, acoustics, and ergonomics complete the picture for safer procedures and faster turnover.

Several data points guide my decisions. Steelcase research has linked environmental quality—including sound and light—to measurable differences in user performance and wellbeing, insights I translate to OR task lighting and acoustic control (steelcase.com/research). WELL v2 notes that sufficient, well-controlled illumination improves visual acuity and reduces fatigue in high-stakes environments; in surgical suites I target task lighting at 1,000–2,000 lux with careful glare control (v2.wellcertified.com). IES standards further refine illuminance and uniformity expectations for healthcare spaces, ensuring lighting supports visual accuracy without adding heat load or shadowing (ies.org/standards).

Infection risk in the OR is strongly influenced by air distribution and human movement. Laminar flow—uniform, low-turbulence air descending from a HEPA-filtered canopy—reduces particle load across the sterile field. Herman Miller research on human-centered workplaces underscores the importance of clear circulation paths and ergonomic reach, helping OR teams minimize unnecessary crossings and surface contact (hermanmiller.com/research). I combine these findings with strict zoning to keep sterile and clean pathways intact.

Core Principles of Laminar Air Flow in ORs

True laminar flow is achieved through a large, low-velocity, HEPA-filtered ceiling array delivering air uniformly across the surgical zone. Supply air typically enters at 0.25–0.5 m/s (50–100 fpm) to maintain a stable column, pushing contaminants downward toward low-level returns at the room perimeter. The canopy should be sized to fully cover the table, surgical team, instrument stands, and anesthesia zone to avoid entrainment from surrounding mixed air. I specify H14 (EU) or HEPAs tested to ≥99.97% capture at 0.3 μm, with tight frames and gel seals to prevent bypass.

Zoning and Behavioral Layout

An OR is fundamentally a behavioral environment: clear task zones reduce errors and particle generation. I define four primary zones: Sterile Field, Instrument Prep, Anesthesia Support, and Circulation. The sterile field sits directly under the LAF canopy; non-sterile traffic is steered around the perimeter to avoid crossing the vertical clean air column. Instrument prep tables align within the laminar zone for lowest contamination risk. Anesthesia machines and gas columns sit near head-of-table, with cable and hose management planned to prevent trip risks and turbulence. For design visualization and early planning, a room layout tool can help simulate the geometry of canopy coverage against surgical table placements:

room layout tool

Air Supply, Return, and Pressurization

Positive pressure must be maintained relative to adjacent corridors and prep rooms to keep contaminants out. I place low-level returns on at least two opposing walls to capture the descending air stream without creating lateral drafts across the sterile field. The supply plenum is balanced to minimize pressure gradients across the canopy, and diffusers use perforated plates or laminar screens to dampen velocity variations. Monitoring includes differential pressure sensors at entries, airflow alarms tied to supply fan operation, and periodic particle counting during mock procedures.

Lighting Without Turbulence or Glare

Surgical luminaires must deliver high illuminance and color fidelity without adding thermal plumes or visual strain. I target 1,000–2,000 lux at the surgical site with CRI ≥90 and CCT between 4,000–4,500K for color discrimination of tissue and fluids. To preserve laminar flow, luminaires should be low-profile, sealed, and located so they do not break the uniform air column. The IES guidance helps verify uniformity ratios and mitigates shadowing. I incorporate task lighting for circulating staff at 300–500 lux to reduce fatigue, following WELL v2 insights on glare control by adding baffled luminaires, dimmable drivers, and matte finishes on ceilings to prevent specular reflections.

Human Factors and Ergonomics

The surgical team’s micro-movements can disrupt airflow more than most fixtures. I specify adjustable-height tables and instrument stands to keep wrist-neutral reach within 350–450 mm and prevent broad arm sweeps. Cable trays, ceiling booms, and articulated arms are positioned to keep cords off the floor and out of the vertical air column. Walkways are minimum 1,200 mm clear, with turning radii that avoid backing or pivoting over sterile zones. These human-centered details are consistent with research on posture and task efficiency from workplace studies (steelcase.com/research, hermanmiller.com/research), repurposed to the OR context.

Acoustic Comfort for Focus and Communication

High ACH systems and hard, cleanable surfaces can raise noise levels, compromising team communication. I aim for NC 30–35 in the OR, balancing mechanical system isolation (vibration mounts, duct lining outside sterile zone), quiet luminaire drivers, and selective absorptive panels on upper walls or ceiling perimeters where infection control allows. Lower noise improves speech intelligibility and reduces cognitive load during complex procedures.

Materials, Surfaces, and Sterility

Surfaces should be seamless, non-porous, and resistant to repeated disinfectant cycles. I prioritize welded sheet vinyl or poured resin floors with coved bases, epoxy-coated or stainless wall panels, and fully sealed ceiling systems. Joints are minimized; penetrations for booms and lights are gasketed. Equipment carts use closed storage to limit dust accumulation. Finishes are matte to control glare but tough enough to withstand quaternary ammonium and peroxide-based cleaners. Floor patterns remain subdued to avoid visual noise that can mask spills or dropped instruments.

Thermal Comfort and Energy Balance

Laminar flow relies on low thermal stratification. I keep supply temperatures slightly cool to counter surgical lights and staff PPE, typically 18–21°C setpoints with humidity controlled between 40–60% to reduce static and biological viability. Heat loads from imaging equipment are calculated into the plenum design to prevent buoyancy-driven turbulence. Zonal reheat at perimeter returns can stabilize staff comfort without disrupting the central column.

Technology Integration and Monitoring

Real-time monitoring validates performance: pressure differentials at doors, temperature/humidity sensors, and particle counters near the sterile field. LAF systems tie into building controls with alarms for deviations. Surgical lights and booms share cable management paths to prevent airflow interference. I favor modular canopy panels that can be serviced without compromising seals, and smart scheduling to run purge cycles before procedures.

Workflow and Circulation Strategy

Workflow planning is the hidden backbone of sterility. Separate clean and dirty paths reduce cross-contamination; case carts enter through a clean core and exit via a dirty corridor. Staff donning/doffing rooms sit outside the positive pressure boundary to avoid shedding particles inward. Doors are limited in size and swing to minimize pressure disruption; where possible, I use sliding seals with slow close mechanisms. For pre-design visualization, an interior layout planner assists in exploring alternative adjacencies before engineering commitments:

interior layout planner

Commissioning and Validation

Before occupancy, I commission the OR with airflow visualization (smoke tests), velocity mapping under the canopy, and particle count baselines under typical staffing conditions. Lighting levels are verified against target lux and uniformity ratios. Acoustic measurements confirm NC and speech clarity. These checks become part of the ongoing infection control program, ensuring the system responds to changes in equipment and procedure types.

Frequently Overlooked Details

Gasket integrity around canopy frames, booms, and lighting mounts is critical. Even minor bypasses can create eddies. The relative positions of anesthesia equipment and instrument tables should be revisited for every primary procedure type. Storage within the OR should be minimized; when essential, use sealed cabinetry. Controls must be simple and readable with gloved hands, with color-coded status for airflow and pressure alarms to support quick interpretation.

FAQ

What airflow velocity supports laminar conditions in an OR?

I target 0.25–0.5 m/s (50–100 fpm) across the canopy. This range supports uniform downward movement without inducing turbulence at the surgical site.

How large should the LAF canopy be relative to the surgical table?

It should cover the table, primary staff positions, instrument stands, and anesthesia head zone. Undersized canopies allow entrainment from surrounding mixed air.

What lighting levels are appropriate for surgical tasks?

Task illuminance at the surgical field usually ranges from 1,000–2,000 lux with CRI ≥90 and a neutral white CCT (4,000–4,500K), aligned with IES guidance for visual accuracy.

Does laminar flow reduce infection risk on its own?

It reduces particle load over the sterile field, but effectiveness depends on behavior: disciplined zoning, minimal crossings, and controlled entry/exit patterns.

How do I balance acoustic comfort with cleanability?

Use mechanical isolation, quiet drivers, and selective absorptive materials at high positions or sealed microperforated panels where permitted to keep NC around 30–35.

What materials perform best under aggressive cleaning regimens?

Seamless floors with coved bases, epoxy or stainless wall surfaces, and sealed ceilings. Finishes should tolerate quats and peroxides without delamination.

How are pressure relationships maintained at doors?

Differential sensors, automatic closers, and minimized door cycles. Sliding doors with effective seals reduce pressure disturbances compared to swinging doors.

Where should returns be located to support laminar flow?

Low-level returns on opposing walls capture the descending column without lateral drafts across the sterile field. Avoid returns directly under the canopy center.

Can surgical lights disrupt the laminar air column?

Yes. Choose low-profile, sealed luminaires and place them to avoid breaking the uniform flow. Manage heat to prevent buoyancy plumes.

How do I validate system performance after installation?

Commission with smoke visualization, velocity mapping, particle counting, and light and acoustic measurements. Establish baselines for periodic re-testing.

What role do ergonomics play in airflow stability?

Short, neutral-reach movements and clear pathways reduce turbulence from human motion. Cable management and boom placement keep the vertical column unobstructed.

Is humidity control important for LAF ORs?

Yes. Maintain 40–60% RH to limit static, support thermal comfort, and reduce pathogen viability while preserving material performance.
