LCD Panel Design for Room: Stylish Space Transformation: 1 Minute to Stylish LCD Panel Design for Any Room

LCD panels have evolved from utility screens into architectural elements that shape how we live, work, and relax. When thoughtfully integrated, they can anchor a space, streamline workflows, and elevate the mood, all while respecting ergonomics and visual balance. I approach LCD design as part of the envelope—calibrating sightlines, luminance, acoustic control, and furnishing geometry so the technology supports both style and human comfort.

Evidence shows the impact of light quality and ergonomics on daily performance. WELL v2 recommends ambient light levels near 200 lux for circulation and 300–500 lux for typical task areas, with careful glare control to protect circadian health; pairing LCDs with ambient lighting in this range helps reduce visual fatigue. Steelcase research indicates that visual distraction and glare can degrade focus and productivity, reinforcing the need to position panels away from direct reflections and set appropriate brightness for content viewing. These standards inform my baseline: luminance management, viewing angles, and surface selection are not aesthetic extras—they’re performance essentials. See WELL v2 Light guidelines for a deeper standards perspective at WELL v2.

Color influences perception around screens. Verywell Mind’s coverage of color psychology notes that blues often support calm and focus, while warm hues stimulate energy and sociability. In LCD-centric rooms, I modulate wall tones and accent materials to counterbalance screen luminance—muted cool neutrals or desaturated greens around the display help reduce perceived glare, while warmer textures (wood veneers, terracotta fabrics) can soften the tech presence without introducing chromatic flicker. This mix ensures the panel reads as part of the composition rather than a luminous intruder.

Design Strategy: Positioning, Sightlines, and Viewing Comfort

Successful LCD placement begins with human factors. I set primary viewing angles within 0–30° from eye level and avoid neck rotation over 45° for seated use. For living rooms, the panel center typically sits 42–48 inches from the floor when seated is the dominant posture; in multipurpose rooms with counter seating, I raise the center to 54–60 inches. For bedrooms, keep the angle shallow—mount slightly lower to align with reclined viewing.

Avoid windows directly opposite the screen, which cause mirrored glare and washout. If the room’s architecture demands that alignment, add soft, dense window treatments and position fixtures to avoid specular highlights. In open-plan settings, I create a technology wall or partial partition to buffer sunlight and noise. When planning furniture, I align seat depth and throw cushions to maintain a neutral cervical posture, and I separate primary viewing zones from traffic paths so the panel isn’t a visual obstacle.

Lighting Integration: Luminance, Color Temperature, and Glare Control

LCD panels add luminance to the field of view, so ambient light must support contrast without creating veiling reflections. I favor 2700–3000K for living areas to preserve warmth, 3000–3500K for multi-use spaces, and 3500–4000K in work-focused rooms where visual acuity matters. Layered lighting—indirect coves behind the display wall, wall washers flanking the panel, and low-glare recessed downlights set behind the viewing plane—controls sparkle and compresses contrast ratios.

Glare control hinges on fixture optics and surface reflectance. Matte or eggshell paints (LRV 40–60) keep visuals stable; avoid high-gloss near the panel. Specify luminaires with a unified glare rating suitable to the room type and shield the LED source from direct line-of-sight at seating height. Task lamps should pivot away from the screen to prevent specular highlights.

Acoustic Comfort: Media Without Harshness

LCD installations often carry audio systems. A simple acoustic model helps: soft seating, area rugs, and textured wall panels absorb mids and highs; bookshelves and slatted wood provide diffusion to keep dialogue intelligible. Aim for a reverberation time of roughly 0.4–0.6 seconds in small living rooms to avoid muddiness. If subwoofers are present, decouple them from the floor with isolation pads to prevent structural resonance. The result is a more balanced sound field that complements the visual clarity of the panel.

Material Selection: Finish Rhythms and Sustainability

To keep the LCD a design asset, I harmonize finishes around it. Use low-reflectance woods, matte metal trims, and woven textiles that carry a modest visual rhythm without competing with on-screen motion. Integrate cable management with sustainably sourced cabinetry—FSC-certified veneers, recycled aluminum channels, and low-VOC finishes. Durable, cleanable textiles around a screen are essential, especially in family rooms where oils and touch are frequent. Materials with medium chroma keep attention on content while softening edges.

Ergonomics and Human Factors: Seating Geometry

Eye-to-screen distance depends on panel size and resolution. For 4K content, seated view distances can shorten without pixelation; I aim for 1.2–1.6 times the diagonal for cinematic viewing and 1.6–2.0 for multi-use rooms. Maintain knee clearance and neutral wrist angles for rooms with consoles or gaming. If the space doubles as a home office, align the desk monitor as a secondary axis, keeping its brightness lower than the feature panel to prevent competing focal points.

Behavioral Patterns and Spatial Intention

Rooms often oscillate between sociable and immersive modes. I design flexible lighting scenes—one that supports conversation (brighter ambient, dimmer screen), and one for viewing (lower ambient, accent backlighting). Seating clusters should allow both face-to-face engagement and easy rotation toward the panel. Side tables and charging stations anchor behaviors without tethering occupants to a single seat, and storage for remotes or controllers should sit within natural reach envelopes to reduce clutter.

Layout Planning and Visualization

When remodeling, I use a layout simulation tool to test sightlines, traffic flow, and glare risk before committing to electrical points or wall mounts. It’s faster to iterate with a room design visualization tool than to move heavy furnishings after installation. If you need a practical planner to map screen heights, lighting layers, and seating geometry, a reliable interior layout planner is helpful: room layout tool.

2024–2025 Trends: Slim Profiles, Integrated Storage, and Soft Tech

Ultra-thin panels and near-invisible mounts keep the architecture clean. Designers are framing screens with shallow niches, acoustic textiles, or fluted wood to break up the rectangle while hiding cable runs. Ambient bias lighting is getting warmer, and multi-use rooms favor discreet motorized shades to tame glare on demand. In compact floor plans, sliding panels or art screens conceal the display, shifting the room’s identity from media-first to social-first when desired.

Installation Details: Power, Ventilation, and Safety

Plan dedicated circuits for larger media walls; verify stud locations and load ratings for mounts. Leave ventilation gaps for set-top boxes and gaming consoles, and avoid stacking heat sources. Cable raceways with removable covers simplify maintenance. If households include children, prefer rounded edges and mount heights that keep cables out of reach. A small service bay behind the panel accommodates firmware updates and future device swaps without opening the entire wall.

Case-Based Insights: Balancing Style and Function

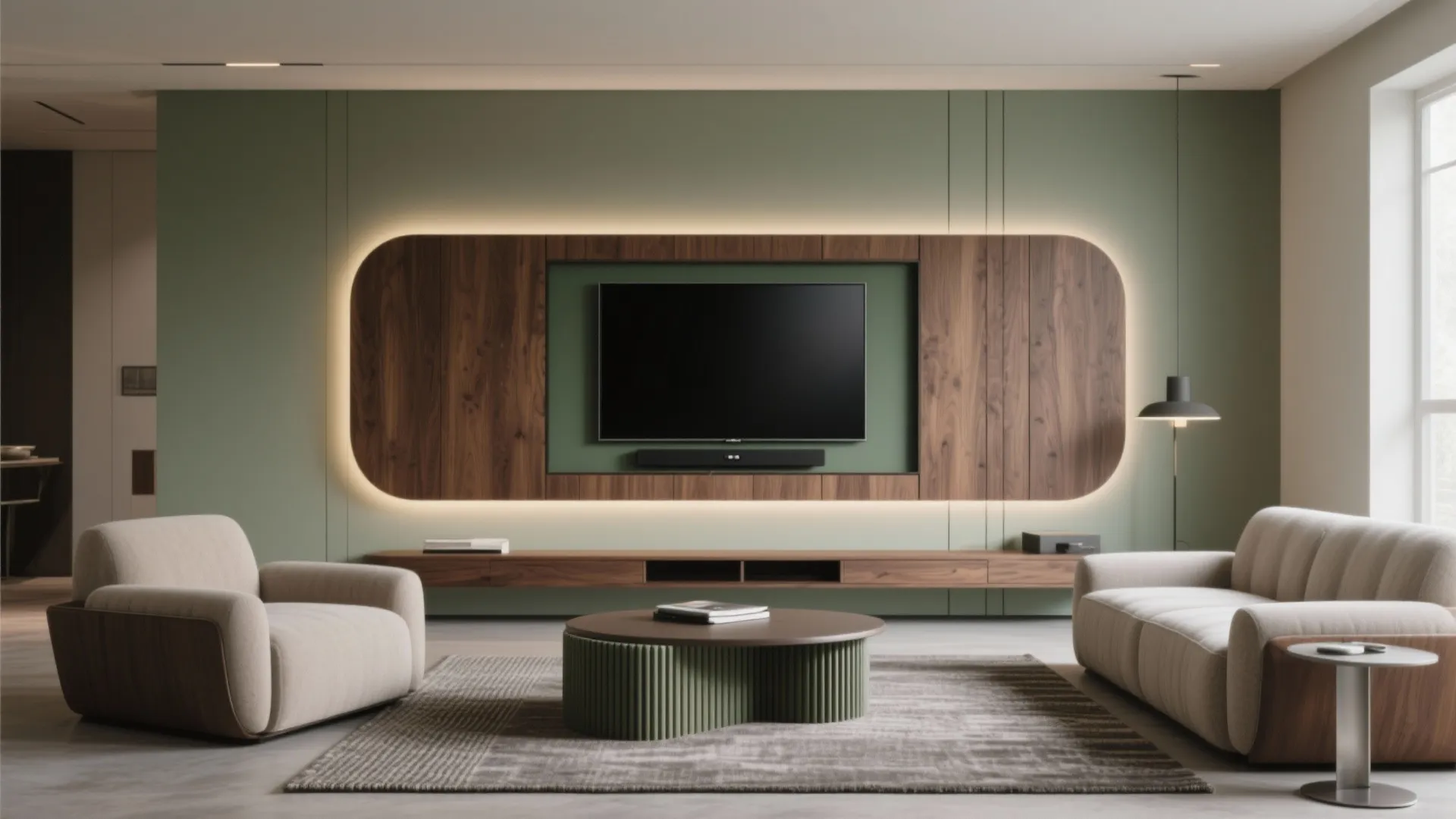

In a recent compact living room, a 55-inch LCD felt dominant until we added a matte walnut frame, off-axis wall washers, and a muted green backdrop. Reorienting seating by 15° reduced neck rotation, and a soft rug improved speech clarity. The panel became a quiet focal point rather than the entire story—proof that subtle luminance and acoustic tweaks carry outsized impact.

FAQ

What’s the ideal height to mount an LCD in a living room?

For seated viewing, center the screen around 42–48 inches from the floor, keeping the primary viewing angle within 0–30° from eye level. Adjust based on seat height and recline.

How do I prevent glare on the screen?

Keep the panel perpendicular to major windows, use matte wall finishes, and layer lighting with indirect sources. Control color temperature (2700–3500K) and avoid specular fixtures facing the screen.

What ambient light levels work best?

Aim for roughly 300–500 lux in task-capable living areas and lower levels for cinematic scenes. WELL v2 guidance supports balanced illumination with glare control to protect comfort.

How far should seating be from the screen?

For 4K panels, 1.2–1.6 times the diagonal for immersive viewing; 1.6–2.0 for versatile rooms. Increase distance for lower resolutions to avoid visible pixel structure.

How can I improve room acoustics for dialogue clarity?

Add soft furnishings, rugs, and textured wall panels to absorb mids, and use bookshelves or slatted wood for diffusion. Keep reverberation roughly 0.4–0.6 seconds in small living rooms.

Which wall colors work around an LCD?

Use muted cool neutrals or desaturated greens to reduce perceived glare. Warm accents—wood, terracotta textiles—soften tech presence without creating color cast conflicts.

What cable management solutions look premium?

Concealed raceways, recessed boxes, and cabinetry with recycled aluminum channels and FSC-certified veneers provide clean lines and sustainable performance.

Should I add bias lighting behind the screen?

Yes—low-luminance, warm bias lighting reduces eye strain, stabilizes contrast, and frames the panel. Keep it dimmer than ambient to avoid halo glare.

How do I plan the layout before drilling?

Use a layout simulation tool to test sightlines, seating angles, and glare risks. A practical interior layout planner like this room layout tool streamlines decisions.

What safety checks are essential for wall mounts?

Verify stud placement, mount load ratings, and cable strain relief. Maintain ventilation gaps for devices and keep cables out of reach if children use the space.
