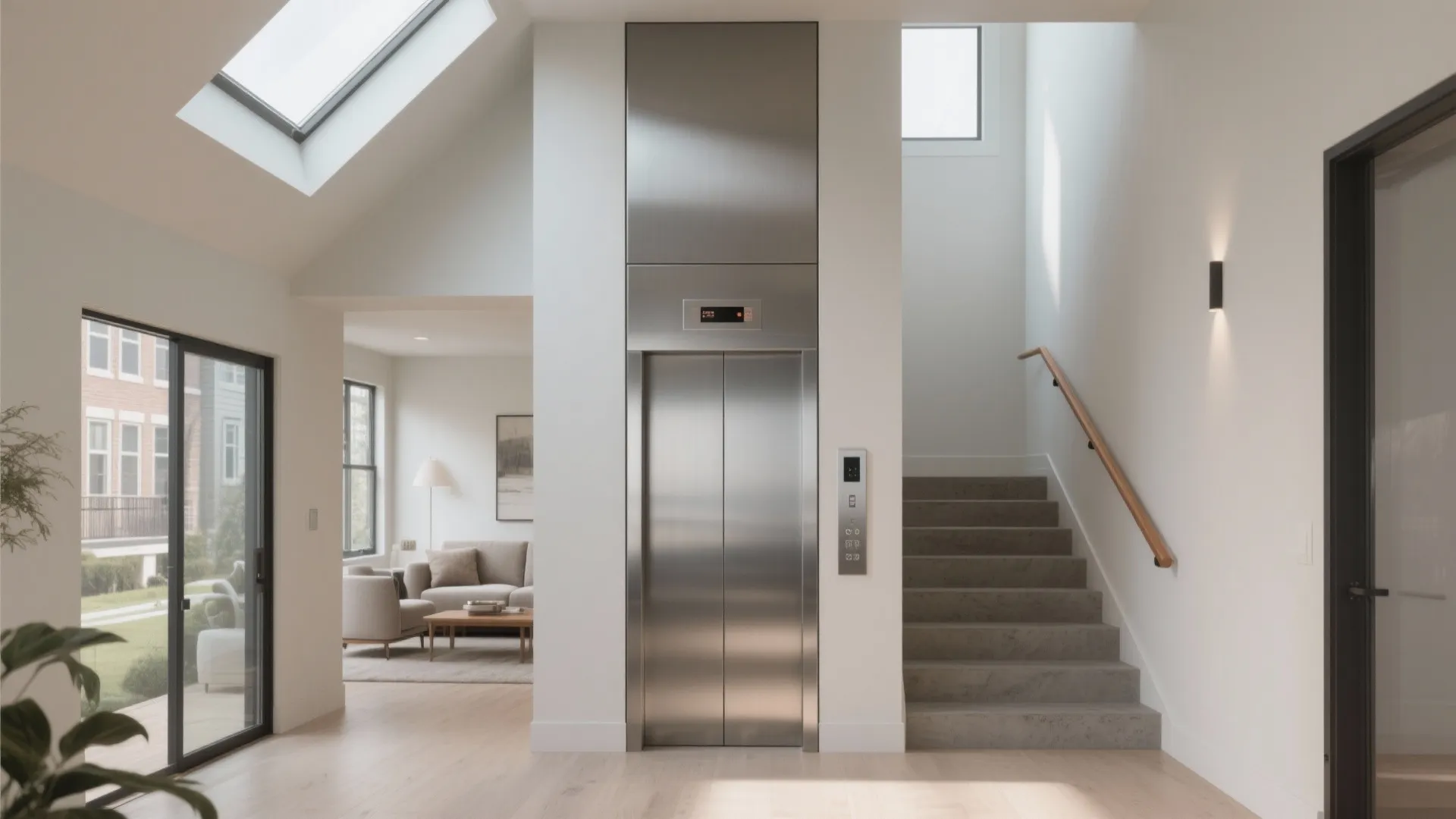

Lift Without Machine Room: Space-Saving Elevator Solutions for Modern Homes: Fast-Track Guide to Installing a Lift Without a Machine Room in Small Spaces

Space is precious in modern homes, and traditional machine-room lifts often consume valuable square footage and complicate rooflines. I design residential elevators without a separate machine room to preserve clean architecture, reduce structural impact, and deliver smooth, quiet mobility—especially in tight urban footprints and infill projects.

Well-designed machine-room-less (MRL) lifts can also support well-being in multi-level living. The WELL Building Standard notes that accessible circulation improves occupant mobility and participation, while acoustic comfort is a recognized contributor to mental well-being under WELL v2’s Comfort concepts. Steelcase research further shows that perceived acoustic control correlates with productivity and lower stress in occupied spaces. These insights guide my choices on drive systems, isolation, and enclosure materials in residential contexts.

Space and geometry matter. In my projects, compact traction systems or advanced hydraulic packages fit within the hoistway, freeing roof and attic zones for storage or solar equipment. A careful shaft design maintains fire separation and structural continuity while keeping overall thickness tight. Where layout is constrained, I simulate alternative shaft placements against kitchens, living rooms, or stairwells using an interior layout planner to test circulation, daylight, and noise adjacency before committing.

Core Benefits of MRL Elevators

MRL designs integrate the drive and controller into the hoistway, eliminating a dedicated machine room. The result: smaller footprints, cleaner profiles, and fewer penetrations through roof assemblies. For multigenerational homes, this can future-proof accessibility without a conspicuous mechanical mass. I’ve found three recurring benefits: space efficiency (often 15–25% less area than traditional layouts), reduced architectural complexity at the top of the shaft, and shorter installation timelines due to fewer separate mechanical zones.

Drive Types: Traction vs Hydraulic

Traction MRL (gearless or geared) typically offers higher energy efficiency and smoother starts, with compact permanent magnet motors mounted in the head of the shaft. Hydraulic MRL systems place the power unit within the hoistway or adjacent cabinet, favoring simpler mechanics and often lower initial cost. For homes with limited electrical capacity, hydraulic options can be pragmatic, though modern gearless traction tends to deliver quieter operation and better ride quality at low speeds.

Noise, Vibration, and Acoustic Comfort

Acoustic control is essential in living spaces. Per WELL v2, managing sound transmission in occupied environments supports cognitive comfort. I design the lift enclosure with decoupled framing, resilient mounts for the motor/power unit, and gaskets around door assemblies. In living rooms sharing a wall with the shaft, a double-stud or staggered-stud assembly plus mineral wool insulation significantly cuts structure-borne noise; adding mass-loaded vinyl adjacent to the motor bay further reduces hum. Steelcase’s research on noise as a top workplace complaint mirrors residential experience: preemptive acoustic detailing keeps bedrooms and home offices quiet.

Lighting, Controls, and Human Factors

Cab lighting shapes perception of safety and quality. I specify a warm-neutral 3000–3500K LED with 80+ CRI to maintain pleasant skin tones, and follow IES recommendations on glare control: recessed or diffused linear fixtures rather than exposed point sources. The COP (car operating panel) needs reachable heights and tactile feedback; ergonomic principles suggest mounting primary controls between 34–48 inches, with clear visual contrast for low-light situations. If the home includes older adults, larger typefaces and illuminated call buttons reduce mispresses.

Shaft Geometry and Structural Integration

Compact shafts rely on precise tolerances. I coordinate with structural engineers to reinforce jambs and header zones where guide rails and door frames anchor. For timber framing, laminated veneer lumber around opening edges distributes loads without bulky posts. Minimal pit depths can work with both hydraulic and traction designs where slab conditions are challenging; when retrofitting, shallow pits with ramped sill transitions keep construction light and respectful of existing finishes.

Energy and Sustainability

Traction MRL lifts with regenerative drives can return energy to the home’s electrical system during descent, useful in multi-level houses with frequent short trips. Cab materials matter: powder-coated steel, low-VOC laminates, and FSC wood veneers keep indoor air quality steady. I use LED lighting with occupancy sensors, and specify sealed cab fans with variable speeds to avoid constant noise and energy waste.

Layout Strategy in Compact Homes

Placement defines daily ease. I prefer adjacencies that align the lift with the stair core for intuitive wayfinding, and avoid corners that steal daylight from living zones. In narrow townhouses, a mid-plan shaft can anchor the vertical stack of kitchens and bathrooms to shorten runs for plumbing and ventilation. When testing circulation, a room layout tool helps evaluate swing clearances, landing sizes, and the relationship between the shaft and primary furniture clusters, ensuring the lift enhances—not disrupts—living patterns.

Safety, Code, and Accessibility

Residential lifts must respect local codes for doors, clearances, and entrapment prevention. I prioritize interlocks, light curtains, and appropriately sized landing gaps, and coordinate fire-resistance ratings where shafts intersect floors. For households with mobility needs, car dimensions and landing widths should accommodate walkers or compact wheelchairs; handrails at ergonomic heights and slip-resistant flooring support secure transfers.

Material Palette and Visual Integration

Visually, the elevator should feel like part of the home. Framed glass doors can bring light to landings; where privacy matters, acid-etched glazing offers diffusion without glare. Handrails in warm wood or brushed stainless match stair details. I often specify matte finishes to minimize fingerprint visibility and maintain a calm visual rhythm across floors.

Installation and Maintenance Considerations

MRL systems streamline installation but still benefit from early coordination: electrical feeds, ventilation paths within the hoistway, and service access points need clear routes. Maintenance contracts should include periodic inspection of ropes or hydraulic lines, door operators, and emergency communication devices. Good access planning reduces technician time and protects finishes around landings.

Cost Planning

While MRL traction can carry a higher initial price than basic hydraulics, lifecycle value—quieter operation, lower energy use, and fewer structural alterations—often balances budgets in design-led homes. I recommend setting aside contingency for acoustic upgrades and finish-level detailing, which directly influence perceived quality.

FAQ

Is a machine-room-less elevator suitable for most homes?

Yes. MRL designs fit many two- to four-story homes, especially where roof space is limited or a clean exterior profile is desired.

Which is quieter: traction or hydraulic MRL?

Modern gearless traction typically runs quieter and smoother. Hydraulic power units can be well-isolated, but traction has an edge in continuous tone and start/stop behavior.

How much space does an MRL elevator save?

Removing a dedicated machine room often recovers a small room’s worth of area, and simplifies roof/attic planning. Exact savings depend on cab size and shaft design.

Can I retrofit an MRL elevator into an existing townhouse?

Usually, yes. Shallow pit solutions and compact motors allow retrofits, provided structural and fire separation requirements are met.

What lighting standards should I consider inside the cab?

Use low-glare LED lighting around 3000–3500K and follow IES glare control practices with diffusers or recessed linear fixtures.

Does an MRL elevator improve accessibility?

It supports multigenerational living by providing reliable vertical mobility. Ensure car dimensions, handrails, and landings meet accessibility best practices.

How do I minimize noise in adjacent rooms?

Decouple framing, use resilient mounts, add mineral wool and mass-loaded vinyl where the motor is closest to living areas, and seal door assemblies.

What about energy use?

Traction MRL lifts often consume less energy; regenerative drives can return energy during descents, and cab LEDs with occupancy sensors reduce overhead.

Where should the lift be placed in a compact plan?

Align with the stair core for intuitive movement and daylight continuity. Test layouts with an interior layout planner to confirm clearances and furniture relationships.

Is maintenance more complex without a machine room?

No. Access is within the hoistway or discrete panels. Plan service points early to keep inspections efficient and unobtrusive.

Can glazing be used on elevator doors?

Yes, with framed or laminated glass. Acid-etched glazing maintains privacy while sharing light across landings.

How do codes affect residential MRL designs?

Local codes set rules for interlocks, landing gaps, fire ratings, and emergency communication. Coordinate early with inspectors to avoid redesigns.
