LT Room Full Form Explained: What Does LT Room Mean in Buildings?: 1 Minute to Understand LT Room and Its Role in Modern Construction

In building plans and operation manuals, “LT Room” most commonly stands for “Low Tension Room,” the dedicated space housing low-voltage electrical distribution equipment—typically under 1 kV. You’ll also see “LT Panel Room” or “LT Switch Room,” referring to the same functional zone: where incoming power is stepped down (usually after the transformer) and safely distributed to floors, zones, and critical systems. In some campuses, especially in academia, “LT Room” can also be shorthand for “Lecture Theatre Room,” but within commercial, industrial, and mixed-use building contexts, the electrical meaning dominates.

Designing or auditing an LT room is not just a technical checkbox; it has measurable impact on resilience and safety. The WELL v2 Building Standard cites the importance of safety controls, maintenance access, and environmental comfort in support spaces for occupant health and building reliability (WELL v2). On workplace performance, Steelcase research shows 62% of workers report disruptions from environmental factors affecting productivity; poorly planned building infrastructure—electrical rooms included—can contribute to downtime and acoustical disturbance without proper separation and detailing (Steelcase Research). For deeper facility standards and planning guidance across building support spaces, IFMA provides research-driven best practices for operations and maintenance (ifma.org).

What Is an LT Room in Buildings?

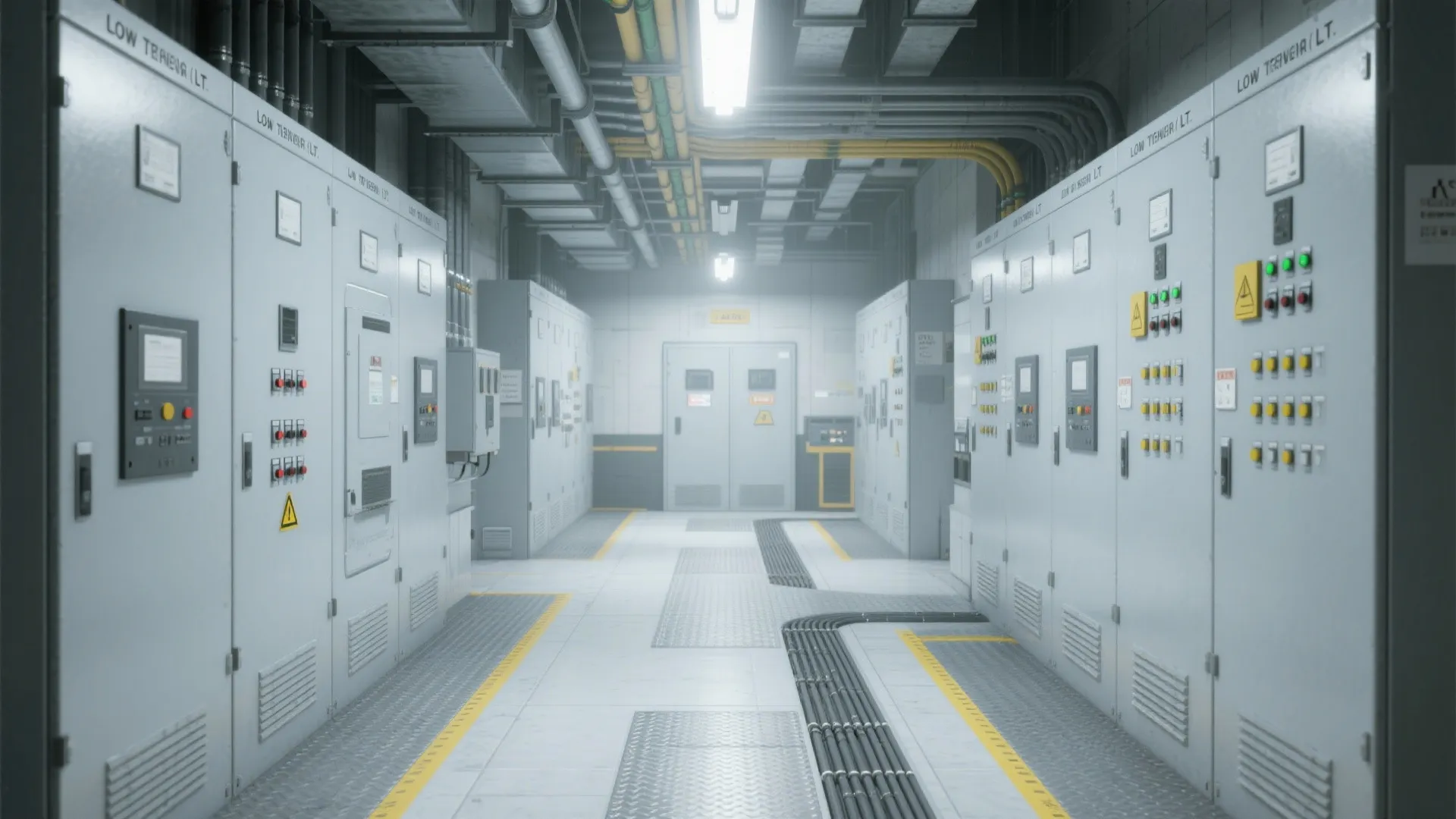

An LT (Low Tension) Room is a secured technical space that contains low-voltage distribution equipment—LT panels, MCCs (motor control centers), switchboards, metering, UPS distribution, automatic transfer switches (ATS), and protective devices. It interfaces with the HT (High Tension) side via a transformer or main LV switchboard and feeds subpanels across floors for lighting, HVAC, elevators, data rooms, and life-safety systems.

Typical Functions and Scope

- Distribute low-voltage power safely and efficiently to building loads

- Provide isolation, fault protection, and metering for circuits

- Enable redundancy (N+1 where required) for critical services

- Serve as a controlled environment for inspection and maintenance

- Host essential monitoring and BMS/SCADA interfaces

Key Components You’ll Find Inside

- LT switchboards and panelboards (main and sub-feeders)

- Bus ducts or cable trays for outgoing feeders

- Protection devices: ACBs, MCCBs, MCBs, relays, and fuses

- ATS and changeover switches for generator integration

- UPS distribution for IT and life-safety circuits

- Earthing/grounding bars and bonding networks

- Fire-rated cable systems and penetrations

- Environmental controls (ventilation, cooling, dust control)

Space Planning and Accessibility

Clearances are critical. Maintain manufacturer-recommended and code-mandated working distances at the front and rear of switchgear for safe operation and arc-flash boundaries. Provide a straight, unobstructed equipment pathway from delivery to installation (no tight turns that exceed equipment dimensions). Doors should swing outwards and be sized for equipment replacement. Where the LT room sits within a complex floorplate, use a room layout tool to validate clearances, travel paths, and spatial adjacencies with upstream transformer rooms, emergency generators, and fire stairs: room layout tool.

Environmental Conditions and Lighting

Electrical equipment longevity depends on thermal and air quality control. Target a stable ambient temperature per equipment specifications; avoid humidity that can cause condensation and tracking. Provide dedicated exhaust or ventilation to mitigate heat loads from switchgear and UPS. For visual safety, follow Illuminating Engineering Society guidance on task lighting in technical work zones to reduce error and improve inspection visibility (ies.org/standards). Consider 4000–5000K neutral-white lighting for color rendering on labels and wiring, with low-glare luminaires to minimize specular reflections off metal panels.

Safety, Compliance, and Human Factors

- Fire strategy: Fire-rated enclosures, compliant penetrations, and appropriate detection/suppression per local codes.

- Arc-flash and lockout/tagout (LOTO): Clear labelling, PPE signage, and access control for authorized personnel only.

- Egress: Two-way exit paths for larger rooms; illuminated exit markers; no storage in working aisles.

- Ergonomics: Mount metering and HMI screens within comfortable viewing height ranges; avoid crouch-only maintenance zones.

- Acoustics: If generators or transformers are adjacent, add resilient mounts and acoustic partitions to reduce low-frequency transmission into occupied spaces.

Cable Management and Future-Proofing

Plan generous cable tray capacity with segregated routes (power vs. control/communication). Allow 20–30% spare capacity on panels and tray fill to accommodate tenant growth and system upgrades. Use labeled, color-coded conductors and standardized ferrules to speed diagnostics. Provide wall space for single-line diagrams and QR-coded O&M records for quick reference during outages.

Adjacencies and Coordination

Place LT rooms near the electrical riser core and service yard to shorten feeder runs, reduce voltage drop, and simplify generator tie-ins. Separate from sensitive spaces like recording studios, clinics, or quiet work zones to avoid electromagnetic and acoustic interference. Coordinate with fire command centers, BMS rooms, and IT rooms for supervised alarms and integrated monitoring.

Distinguishing LT Rooms from Similar Spaces

- HT Room (High Tension): Houses medium/high-voltage gear (e.g., 11 kV switchgear) and transformers; LT room handles post-transformer low-voltage distribution.

- DG/Generator Room: Hosts engines and alternators; may feed an ATS within the LT room.

- UPS/Battery Room: Separately ventilated, often with spill containment; distribution may appear in LT room but battery banks are isolated.

- Lecture Theatre (LT) Room: On educational campuses, “LT room” might label a Lecture Theatre. Context and the floor plan legend clarify the meaning.

Color Coding, Labels, and Behavioral Cues

Clear, consistent labeling and color coding support safer human behavior under stress. Use hazard-color conventions on doors and panels; maintain high-contrast labels at breaker handles; and deploy floor markings for safe working zones. From a cognitive ergonomics perspective, consistent visual hierarchy reduces operator error, especially during outages or commissioning.

Materials and Durability

Specify non-shedding, non-absorbent finishes; anti-dust coatings; and slip-resistant, grounded flooring. Select corrosion-resistant metalwork and gasketing to minimize particulate infiltration. Doors and hardware should be robust and keyed per facility standards to maintain controlled access.

Commissioning, Testing, and Ongoing Maintenance

Complete pre-functional checks, insulation resistance testing, protective relay settings verification, and integrated systems testing with generator and UPS. Establish a maintenance cadence aligned with manufacturer recommendations and operations policies. Keep clearance zones free of storage and maintain accurate breaker schedules and load logs.

When “LT Room” Means Lecture Theatre

If your drawing legend indicates “LT = Lecture Theatre,” think acoustics, sightlines, and lighting control rather than switchgear. Prioritize speech intelligibility (reverberation time targets), comfortable seat pitch, controlled glare on screens, and ADA access. For space planning, a flexible interior layout planner can help test seat counts, aisle widths, and projection distances: interior layout planner.

Quick Checklist for an LT (Low Tension) Room

- Confirm code-required clearances and door swing/size

- Verify arc-flash labels and LOTO procedures

- Provide neutral-white, glare-controlled lighting with emergency backup

- Ensure adequate ventilation/cooling and dust control

- Segregate cable routes; leave spare capacity

- Keep O&M docs, single-line diagram, and contact info accessible

- Coordinate with generator/UPS interfaces and BMS points

- Maintain strict no-storage policy in working aisles

FAQ

Q1. What voltage range defines “Low Tension” in buildings?

A1. In most building contexts, LT refers to low-voltage systems under 1 kV (often 230/400V three-phase in many regions). Exact definitions vary by jurisdiction and utility standards.

Q2. How large should an LT room be?

A2. Size is driven by equipment footprint and required working clearances. Start with manufacturer data sheets and local electrical code. Allow straight equipment pathways and future expansion space (often 20–30% spare).

Q3. What lighting levels are appropriate in an LT room?

A3. Provide uniform, low-glare task lighting with sufficient vertical illuminance for reading labels and wiring. Refer to IES task-area guidance; neutral-white (4000–5000K) with good color rendering helps reduce errors.

Q4. Should an LT room include air conditioning?

A4. Where heat loads from switchgear, UPS, or transformers (if co-located) raise ambient temperature beyond spec, dedicated ventilation or cooling is recommended to protect equipment life and reliability.

Q5. Can storage be placed in an LT room?

A5. Avoid it. Storage encroaches on safety clearances, complicates egress, and increases fire load. Many codes and facility policies prohibit any unrelated storage in electrical rooms.

Q6. How does an LT room differ from an HT room?

A6. HT rooms contain medium/high-voltage gear and transformers; LT rooms distribute low-voltage power downstream. They have different equipment, clearances, and safety protocols.

Q7. What about acoustic concerns near offices or classrooms?

A7. Locate LT rooms away from noise-sensitive spaces or add acoustic isolation (dense partitions, resilient mounts, sealed penetrations) to limit transformer hum or equipment noise transmission.

Q8. How is generator power integrated with an LT room?

A8. Generators typically connect through an ATS to the LT main switchboard, enabling safe transfer between utility and emergency power. Critical circuits are selectively fed per life-safety strategy.

Q9. Do I need UPS systems in the LT room?

A9. Many facilities route UPS distribution through or adjacent to the LT room for IT and life-safety loads. Batteries often sit in a separate, ventilated room with safety provisions.

Q10. What documentation should be posted inside?

A10. Current single-line diagrams, panel schedules, arc-flash labels, emergency contacts, and maintenance logs should be visible and up to date for fast troubleshooting.

Q11. When does “LT Room” mean Lecture Theatre instead of Low Tension?

A11. In universities and some campus drawings, “LT” can label Lecture Theatre rooms. The floor plan legend and context (seating, stage, AV notation) will make this clear.

Q12. How do I plan an LT room in renovation projects with tight cores?

A12. In constrained sites, use a layout simulation tool to test delivery routes, door widths, and working clearances, then sequence installation to avoid rework and meet arc-flash boundary requirements.
