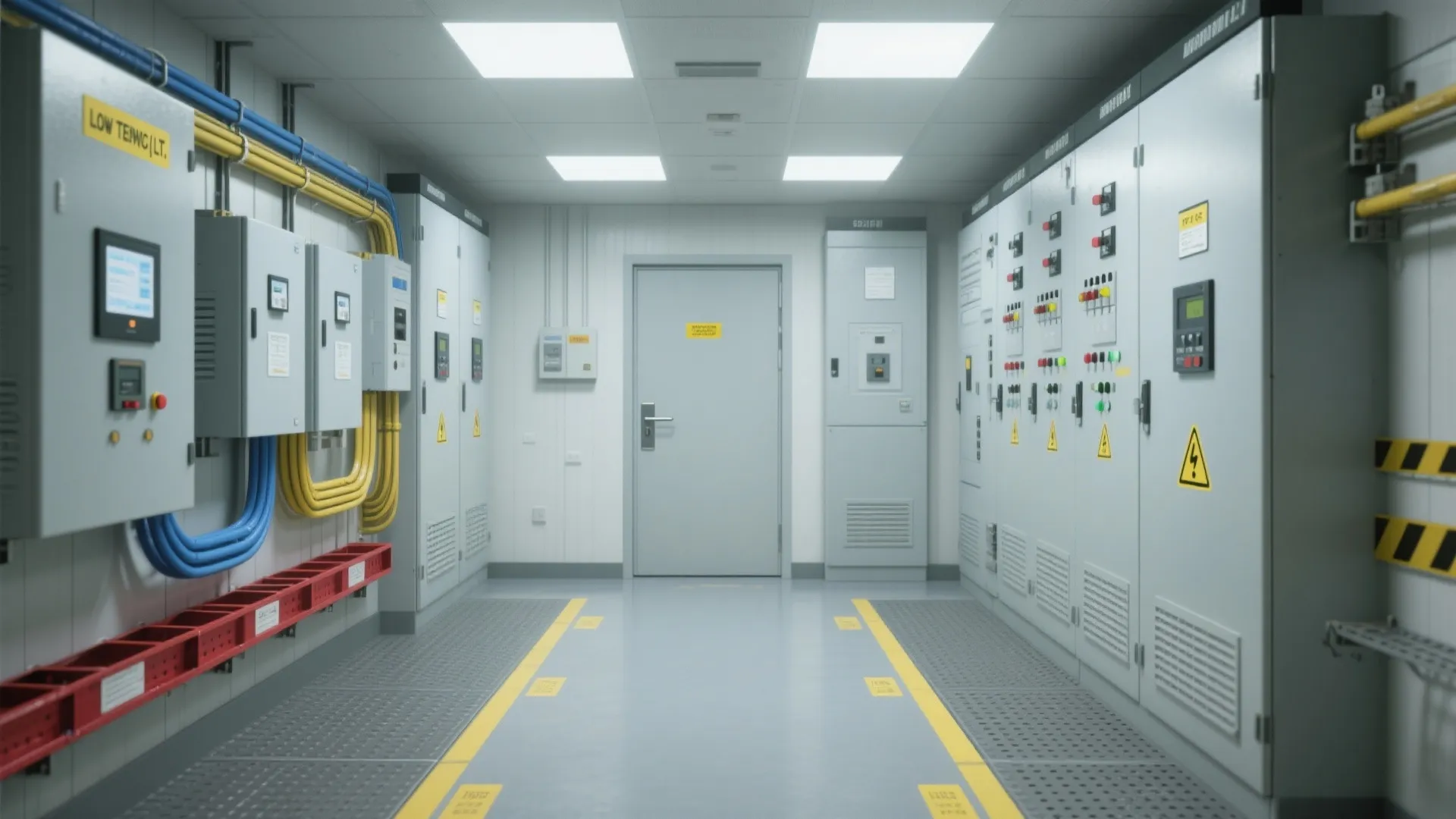

LT Room Full Form: Meaning, Definition, and Uses in Building Design: 1 Minute to Understand LT Room’s Role in Modern Interiors

LT Room typically stands for “Low Tension Room” in building design, referring to the dedicated space that houses low-voltage electrical distribution equipment—think panelboards, meters, protective devices, and control gear that operate below high-tension (HT) levels. In mixed-use and commercial buildings, LT rooms serve as the bridge between incoming utility supply and safe, organized distribution to floors, tenants, and critical systems.

Safety and performance expectations for electrical spaces are shaped by industry standards. The WELL Building Standard (WELL v2) highlights occupant safety, maintenance, and noise control as part of holistic building health, while lighting standards from IES emphasize appropriate illuminance for technical tasks; for example, IES recommends 300–500 lux for detailed mechanical and electrical work areas to reduce error rates and eye strain. In offices, Gensler’s workplace research notes that building systems’ reliability is foundational to productivity, underscoring the importance of well-planned electrical infrastructure that supports uninterrupted operations. See WELL v2 and IES Standards for guidance:

WELL v2 · IES Standards

Definition: What an LT Room Is

An LT Room is a controlled environment for low-voltage electrical distribution and control—typically below high-voltage thresholds—housing switchboards, distribution panels, automatic transfer switches, power factor correction banks, metering, and monitoring. It is designed for safe access by trained personnel, with clearances, cable management, and fire-rated enclosures that align with local codes. In large developments, multiple LT rooms may be zoned per block or per floor to minimize cable runs and losses.

Key Functions and Building Use Cases

From a planning standpoint, LT rooms perform four essential functions: stepping down and distributing electrical power; isolating circuits for safety and maintenance; centralizing metering and controls; and providing resilience through redundancy. Typical use cases include commercial offices, retail complexes, hospitals, data-enabled spaces, and residential towers—anywhere consistent, low-voltage distribution is required for lighting, small power, fire systems, IT/AV, and mechanical controls.

Location Strategy and Layout Considerations

Locating the LT room close to the main risers and core reduces cable lengths, heat buildup, and voltage drop. I tend to anchor LT rooms near service shafts with direct, unobstructed routes to vertical distribution, avoiding public corridors to reduce unauthorized access. A clean, orthogonal layout supports safe movement and easy maintenance: front-clearance of 1.0–1.2 m in front of panels; separate cable trays for power vs. data; and clear demarcation for live equipment.

If you are working through zoning, equipment footprints, and maintenance paths, a practical way to visualize options is to use a room layout tool to model panel access, riser alignments, and emergency egress flows: room layout tool.

Lighting, Sightlines, and Human Factors

Good lighting in technical rooms directly affects safety and speed of work. Following IES guidance, target 300–500 lux at working height with uniformity ratios that avoid hot spots. A neutral color temperature around 4000–4500K keeps visual clarity without harshness. Glare control is essential—use diffused fixtures, shielded optics, and matte finishes on walls and floors to prevent specular reflections. I deliberately design sightlines to panel labels and meters: high-contrast print, consistent label heights, and clear diagram boards near entry.

Acoustic Comfort and Behavioral Patterns

LT rooms can accumulate mechanical hum from transformers, fans, and switchgear. While they aren’t occupant areas, noise can bleed into adjacent offices or meeting rooms. I specify dense partitions, resilient channels, and gasketed doors, keeping the LT room off shared walls with quiet spaces. Behaviorally, technicians require predictable pathways, stable floor levels (no thresholds), and wayfinding that reduces cognitive load—clear signage, color-coded cable trays, and tool storage zones prevent clutter and rushed errors.

Safety, Code, and Access Control

Safety begins with access management. Provide keyed or controlled entry, clear hazard signage, and lockout/tagout provisions. Fire strategy includes non-combustible finishes, cable with low smoke/zero halogen properties, and fire-rated partitions around critical equipment. Maintain code-required clearances, emergency lighting, and marked egress. I include anti-slip flooring, flush thresholds, and raised plinths for equipment to mitigate water ingress risks.

Material Selection and Sustainability

Choose finishes that are durable, cleanable, and non-conductive near touch zones: epoxy floors with matte topcoats, fiber-cement or mineral boards, and powder-coated metal cabinets. Sustainable choices include recycled-content cable trays, low-VOC paints, and high-efficiency LED luminaires with appropriate CRI. Panelboards with modular components extend service life and simplify future upgrades. Cable management that allows easy pull-out and reuse reduces waste during renovation.

Ergonomics and Maintenance Workflow

Ergonomics matter, even for short-duration tasks. Keep meter displays at 1.4–1.6 m eye level, breakers within a comfortable reach envelope, and provide anti-fatigue mats at testing stations. Organize tool storage and PPE close to entry. I plan a minimum 900 mm lateral aisle around major cabinets, with hinged panels opening away from primary pathways. Bright, consistent labelling and laminated one-line diagrams accelerate troubleshooting and minimize downtime.

Spatial Ratios, Thermal Management, and Visual Balance

Allow breathing room for future capacity: 20–30% spare wall length and tray volume helps avoid ad-hoc fixes. Heat is a hidden risk; provide dedicated ventilation, temperature monitoring, and separation from server rooms to avoid compounding loads. Visually, a restrained palette—soft greys, safety yellow accents, and clear zoning tape—reduces clutter and improves focus in maintenance operations.

Integration with Building Systems

LT rooms interface with generators, UPS, BMS, and fire systems. Keep control panels on a single wall for coherent routing, and run segregated conduits for emergency circuits. If backup generation exists, place automatic transfer switches where service access is least disruptive. For smart buildings, integrate digital meters to BMS dashboards, enabling remote monitoring and alerts for overloads, temperature anomalies, or breaker trips.

Common Misconceptions

LT rooms aren’t general storage areas; avoid combustible materials and ad-hoc shelving. They shouldn’t be tucked behind occupied quiet rooms—noise and vibration matter. Nor are they one-size-fits-all: equipment lists and clearances vary by building type, load profile, and local code, so every layout needs a clear engineering basis.

Design Checklist

- Confirm load schedule and future capacity allowance

- Verify clearances and egress per local code

- Plan cable segregation: power vs. data vs. emergency

- Coordinate HVAC for heat loads and odor-free airflow

- Provide task lighting to IES-recommended levels

- Integrate access control and hazard signage

- Document single-line diagrams and labelling standards

- Prevent water ingress; raise critical equipment off the floor

FAQ

1) What is the full form of LT Room?

LT Room stands for Low Tension Room, the space dedicated to low-voltage electrical distribution equipment.

2) How bright should an LT Room be?

For detailed electrical tasks, I target 300–500 lux, aligning with IES recommendations for technical work areas to reduce errors and eyestrain.

3) Where should an LT Room be located?

Near vertical risers and services cores, with short, direct cable routes and restricted public access. Avoid adjacency to quiet rooms to manage noise.

4) What equipment is typically inside?

Switchboards, distribution panels, metering, protective devices, UPS interfaces, automatic transfer switches, power factor correction, and control gear.

5) How do you design for technician safety?

Access control, clear signage, lockout/tagout points, fire-rated enclosures, non-slip flooring, adequate clearances, and emergency lighting.

6) Are there acoustic requirements?

Not usually prescriptive, but practical measures—dense partitions, gasketed doors, and isolation from quiet areas—limit mechanical hum migration.

7) What about color and finishes?

Neutral, matte finishes prevent glare; high-visibility accents guide wayfinding. Durable, cleanable surfaces like epoxy floors and powder-coated cabinets are preferred.

8) How do LT Rooms integrate with smart building systems?

Digital meters feed the BMS for monitoring load, temperature, and events. Segregated conduits ensure emergency circuits remain independent.

9) How much spare capacity should I allow?

Plan 20–30% spare wall length and tray volume for future equipment and cable runs; coordinate with the electrical engineer’s load schedule.

10) Can LT Rooms be combined with IT/Server Rooms?

I avoid combining due to thermal and noise conflicts; keep them adjacent only if ventilation and acoustic separation are robust.

11) What are common code-related clearances?

Clear working space in front of panels (often around 1.0–1.2 m) and unobstructed egress; verify local code specifics with the electrical engineer.

12) How should cable trays be organized?

Separate power, data, and emergency trays; label consistently; maintain bend radii; and keep trays accessible without blocking panel fronts.

13) Which standards are relevant?

IES lighting standards for task illuminance and WELL v2 principles for safety, noise control, and maintenance access; local electrical codes govern the rest.

14) Is air-conditioning necessary?

Provide ventilation or cooling sized to equipment heat loads; monitor temperature to prevent nuisance trips and reduce component wear.
