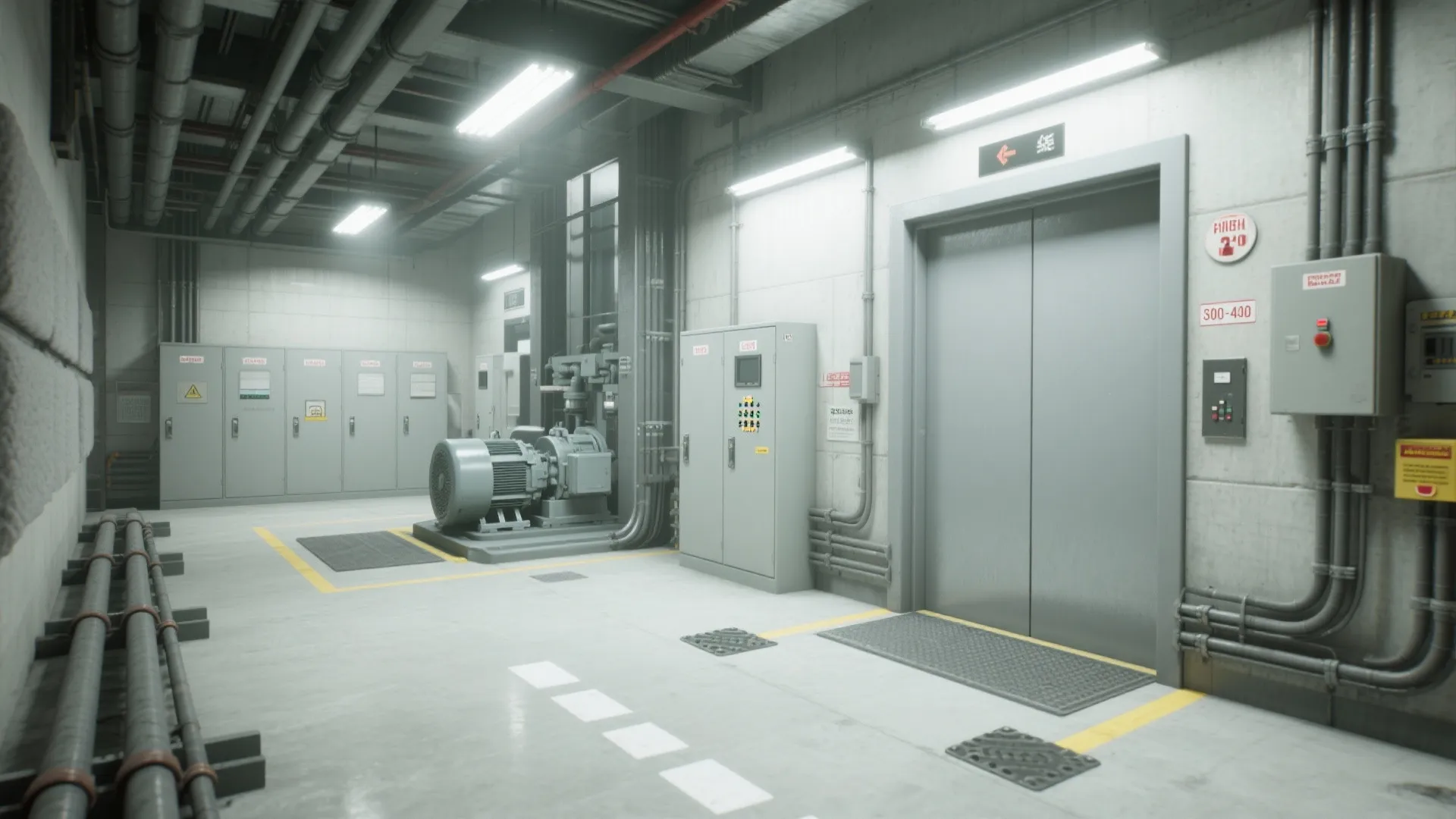

Machine Room Elevator Plan: Essential Design Guide: Fast-Track Guide to Smart, Space-Saving Elevator Layouts

I’ve planned and coordinated dozens of vertical transportation cores in mixed‑use buildings, healthcare, hospitality, and high‑rise residential. A solid machine room elevator plan is less about drawing a box for equipment and more about choreography—clearances, thermal loads, access, life safety, and maintainability all working in sync. In recent workplace studies, vertical circulation quality correlates with overall user satisfaction; Gensler’s U.S. Workplace Survey reports that movement and accessibility strongly influence experience and performance. Meanwhile, WELL v2 emphasizes accessible circulation and thermal comfort as components of occupant well‑being, reinforcing the need for well‑located machine rooms with controlled environmental conditions.

Performance and downtime matter. Steelcase research highlights that friction in the user journey reduces perceived productivity—even brief bottlenecks at elevators compound over a day. From the engineering side, glare and lighting quality impact maintenance safety; the Illuminating Engineering Society (IES) recommends task illuminance levels around 300–500 lux for detailed equipment work, a practical benchmark for elevator machine rooms to reduce error and eye strain. These data points shape not just the shaft and cab—but also the machine room’s lighting, thermal, and access strategies.

At the building level, I start by mapping the elevator group’s purpose (freight, service, passenger, fire‑fighter, stretcher) and its adjacency to electrical rooms, risers, and emergency egress. Machine rooms must accommodate equipment layout, code clearances, structural loads, acoustics, and maintenance paths. On renovation projects, tight cores push creative solutions—like rotating controller cabinets or relocating rope buffers—to preserve required access width. When layouts get constrained, I’ll quickly validate circulation widths and door swings with a room layout tool to avoid costly coordination misses.

Core Planning Priorities

• Fire‑rated enclosure and separation: Coordinate machine room fire rating to match elevator shaft requirements and AHJ interpretation. Keep penetrations minimal, sealed, and properly detailed.

• Maintain code clearances: Provide manufacturer‑specified front and side access clearances around the machine, controller, and disconnects. Never encroach with piping, storage, or architectural protrusions.

• Dedicated space: No unrelated equipment, storage, or piping in the machine room. Route domestic water, sanitary, and gas away to mitigate leak risks and maintain compliance.

• Environmental control: Stabilize temperature and humidity to the elevator manufacturer’s limits. Many traction drives and controllers operate best between roughly 10–32°C with RH under 95% non‑condensing; confirm the product cut‑sheet.

• Vibration and structure: Coordinate slab thickness and embeds for machine anchorage, isolation pads, and housekeeping curbs. Avoid locating sensitive spaces below when possible.

Traction vs. Hydraulic: Machine Room Implications

• Geared/Gearless Traction: Requires overhead machine space or dedicated machine room adjacent to the hoistway (unless machine‑room‑less, which this guide excludes). Consider rope drop zones, sheave access, and beam rigging paths. Overhead clearance and roof access for equipment replacement are critical.

• Hydraulic: Typically located at the lowest landing with the power unit and controller in a dedicated room nearby. Noise and oil containment drive detailing—use isolated housekeeping pads, spill containment trays, and acoustic lining where needed.

Access, Egress, and Serviceability

• Door width and swing: Align with equipment move‑in paths; provide out‑swinging, self‑closing, and self‑latching fire‑rated doors as required. Maintain clear maneuvering space inside.

• Rigging paths: Pre‑plan removable roof hatches or structural beams for hoisting motors, sheaves, or cylinders. Coordinate crane reach and protection plans early.

• Working clearances: Electrical working clearances at the controller and disconnect must meet electrical code and manufacturer requirements. Provide marked floor zones to discourage encroachment.

• Housekeeping and storage discipline: Painted floor safety zones, labeled panels, and no‑storage signage reduce operational risk.

Lighting and Power: Human‑Centered Maintenance

• Target 300–500 lux uniform task lighting on work surfaces, following IES task recommendations for detailed work. Use shielded fixtures to limit glare and improve contrast. Emergency lighting must meet code and be routinely tested.

• Color temperature: 4000K tends to balance visual acuity and color rendering for equipment identification. Avoid harsh high‑CCT sources that increase perceived glare and fatigue.

• Dedicated electrical: Provide lockable disconnects within sight of equipment, separate circuits for lighting and receptacles, and GFCI maintenance outlets near work areas.

• Controls and signage: Simple, manual‑override controls with status indication; clearly label panels, circuits, and shunt trip locations for emergency responders.

Thermal Loads, Ventilation, and Noise

• Heat rejection: Drives and controllers generate sensible heat; calculate worst‑case loads using manufacturer data. Provide mechanical ventilation or split cooling as needed to hold temperature bands. Avoid relying on unconditioned air.

• Airflow and filtration: Positive air movement without direct drafts on components; use MERV‑rated filters when dust is an issue. Maintain service clearances around louvers or fan units.

• Acoustic comfort: Isolate equipment from adjacent occupancies with resilient mounts and STC‑rated assemblies. Hydraulic power units can require additional damping and enclosure lining. Plan penetrations to avoid flanking paths.

Fire Protection and Life Safety Integration

• Detection and recall: Coordinate elevator recall interfaces, heat/smoke detection (as required by local code), and shunt trip logic. Keep devices accessible for testing.

• Suppression: Where sprinklers are required, provide listed head types with guard cages and ensure the presence of a heat detector‑triggered shunt trip per code and AHJ direction.

• Path of travel: Machine room location must not compromise egress routes; ensure that service access doesn’t conflict with stair discharge or areas of refuge.

Equipment Layout and Clearances

• Controller adjacency: Place the controller within manufacturer’s maximum distance from the machine and door operator equipment. Maintain straight, protected conduit runs.

• Panel sequencing: Sequence power disconnect, controller, and auxiliary cabinets for safe workflow; align at consistent working heights.

• Spare capacity: Reserve wall space and spare conduits for future modernization—especially where a VVVF drive upgrade or destination control integration is likely.

• Documentation: Mount as‑built one‑lines, riser diagrams, and maintenance manuals on a protected board inside the room.

Controls, Safety Systems, and Modernization Readiness

• Destination control and traffic handling: If future conversion is likely, allocate rack space and conduit for data, network switches, and UPS.

• Monitoring: Provide a secure data pathway for remote monitoring and fault logs. Label terminations for quick troubleshooting.

• Emergency power: Coordinate ATS location and capacity. Confirm elevator priority sequencing on generator with the electrical engineer and OEM.

• Cybersecurity: For connected controllers, require isolated networks and locked cabinets with restricted access.

Human Factors: Color, Signage, and Behavior

• Color psychology: Use mid‑neutral, low‑gloss finishes to reduce glare and visual noise. Research summarized by Verywell Mind on color perception suggests that cooler neutrals can support focus and perceived order—useful in technical rooms.

• Wayfinding: Consistent sign standards for machine rooms across the building reduce response time during emergencies.

• Ergonomics: Mount panels between roughly 900–1800 mm AFF for comfortable reach ranges; provide anti‑fatigue mats at primary service points.

Coordination Checkpoints Across Disciplines

• Architecture: Firestopping, door hardware, clear heights, roof hatches, and finishes.

• Structure: Equipment loads, framing for hoist beams, vibration isolation, and slab recesses.

• Electrical: Feeder sizing, selective coordination, shunt trip details, emergency power, and grounding.

• Mechanical: Cooling loads, ventilation, and condensate routing away from electrical equipment.

• Fire protection: Detector locations, sprinkler heads, and isolation valves.

• Elevator OEM: Submittal review, shop drawings, and maintenance path sign‑off.

Layout Simulation and Documentation

Tight cores benefit from quick visualization and clash checks. I often run a fast block‑out of cabinets, disconnects, rigging path, and door swings using an interior layout planner to confirm working zones and future equipment swaps. When stakeholders need to see alternatives, a layout simulation tool helps compare controller wall vs. corner placements and evaluate service clearances before committing to construction. Try a room design visualization tool to test access widths and equipment spacing in plan and section.

Commissioning, Turnover, and Operations

• Pre‑functional checks: Verify clearances, lighting levels, labeling, cooling performance, and emergency lighting tests.

• Commissioning: Coordinate OEM start‑up with BMS integration, fault reporting, and shunt trip testing witnessed by AHJ.

• Turnover: Provide close‑out documents, spare parts, and a maintenance matrix with inspection intervals and seasonal HVAC set‑points.

• Post‑occupancy: Monitor temperature, vibration, and noise for the first 60–90 days and fine‑tune controls.

References and Further Reading

For occupant experience and circulation insights, see Gensler’s research library. For lighting criteria relevant to maintenance tasks, consult IES standards for task illuminance guidance.

FAQ

What are the minimum lighting levels for an elevator machine room?

Provide uniformly 300–500 lux on work planes, aligning with IES task lighting guidance for detailed equipment work. Include emergency lighting and avoid glare with shielded fixtures.

Where should the machine room be located relative to the hoistway?

For traction systems, ideally directly adjacent or overhead to minimize cable runs and comply with OEM distance limits. For hydraulic units, place at the lowest landing near the cylinder, optimizing pipe length and service access.

How do I manage heat in the machine room?

Calculate equipment sensible loads from OEM data, then provide dedicated ventilation or split cooling to maintain the specified temperature band (often about 10–32°C). Avoid using unconditioned make‑up air that causes condensation.

Can other building systems be routed through the machine room?

No. Keep unrelated piping, ducts, and storage out of the room. Penetrations should only serve elevator equipment and must be firestopped and sealed.

What acoustic strategies reduce noise transmission?

Use resilient mounts under machines and pumps, STC‑rated wall assemblies, and seal penetrations to prevent flanking. For hydraulics, add damping and isolation pads under the power unit.

How do I plan for equipment replacement and rigging?

Provide a hoist beam or roof hatch sized for the largest component, confirm crane access, and keep a clear pathway from the door to the machine. Document this path in the O&M manual.

What clearances are typically required around controllers and disconnects?

Follow the electrical code for working clearances (depth, width, and height) and the OEM manual for side and front access. Mark these zones on the floor to maintain them during operations.

How does color choice affect the machine room environment?

Mid‑neutral, low‑gloss paints minimize glare and visual clutter, supporting focused maintenance. Cooler neutrals can improve perceived order and wayfinding consistency.

What should be included for modernization readiness?

Reserve wall space, spare conduits, data drops, and UPS provisions for destination control and monitoring. Keep cable trays and labeling systems expandable.

How does elevator planning intersect with wellness standards?

WELL v2 underscores thermal comfort, acoustics, and accessibility. Stabilizing machine room environments and controlling noise align with those aims and support better user experience.
