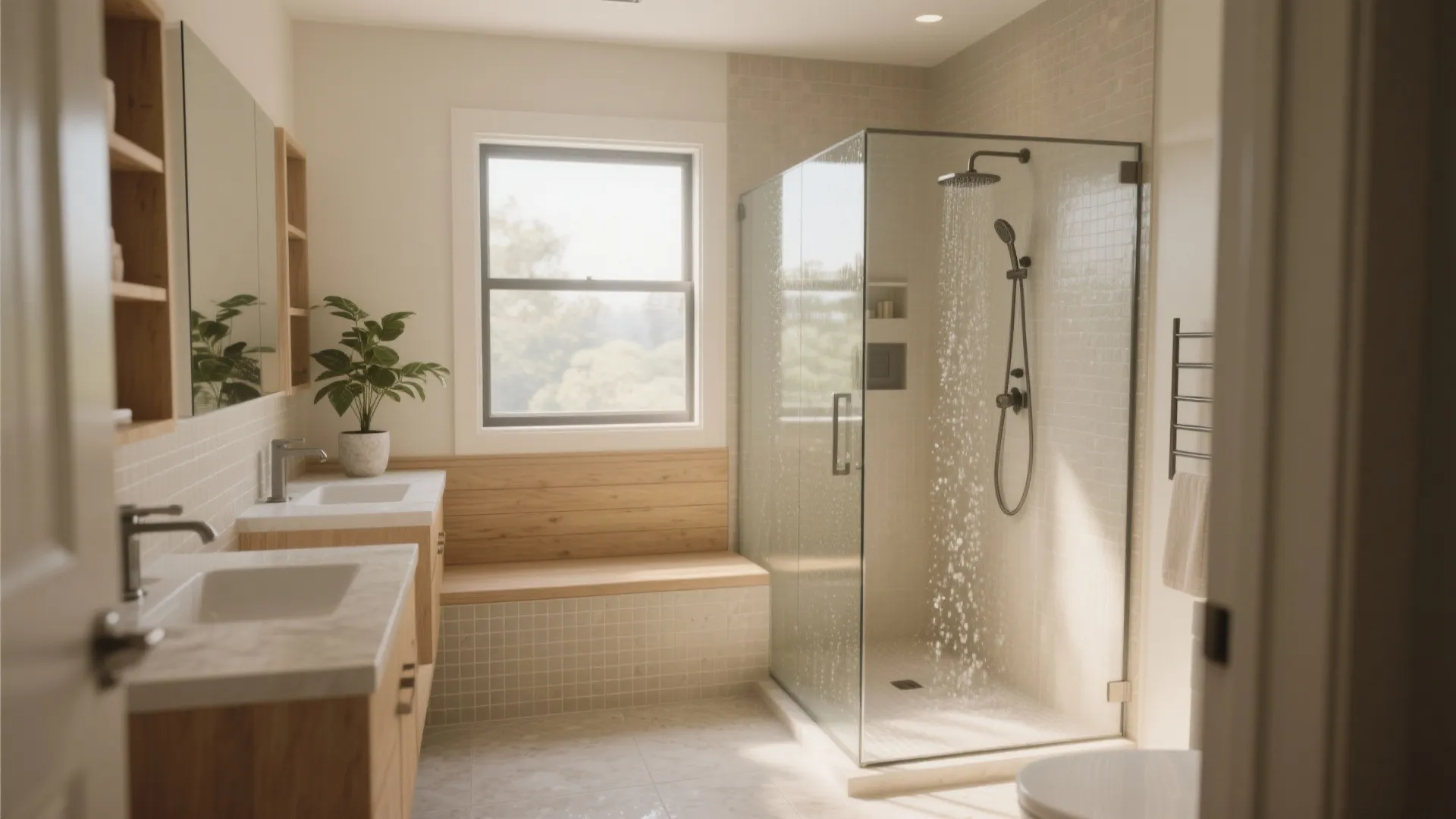

Master Bathroom Ideas: 5 Shower-Only Layouts for 10x7: Practical, light-first designs for a 10x7 master bathroom with shower only — five ideas I use on real jobs

One client once insisted their shower window had to be perfectly centered because “the soap deserves a view.” I laughed, sketched wildly, and learned a lot about sight lines, waterproofing, and how natural light can make a 10 x 7 shower-only master feel twice as big. If you want to visualize your bathroom in 3D, that first sketch-to-screen step saves so many awkward surprises.

Small bathrooms force creativity — and I love that. Below are five practical inspirations I’ve used in real 10x7 master remodels with a single shower and a window, with pros, small pitfalls, and budget notes.

1. Linear wet wall with window over bench

Run the shower along the long wall and place the window above a built-in bench or niche. This gives you a clear visual path and keeps splashing away from the vanity. It’s elegant, floods the space with daylight, and makes that narrow dimension feel intentional rather than cramped.

Downside: you’ll need good waterproof detailing around the window and a sill design that doesn’t trap water. Budget tip: a tiled bench and single-pane tempered glass window can be very affordable compared to complicated frameless glazing.

save pin

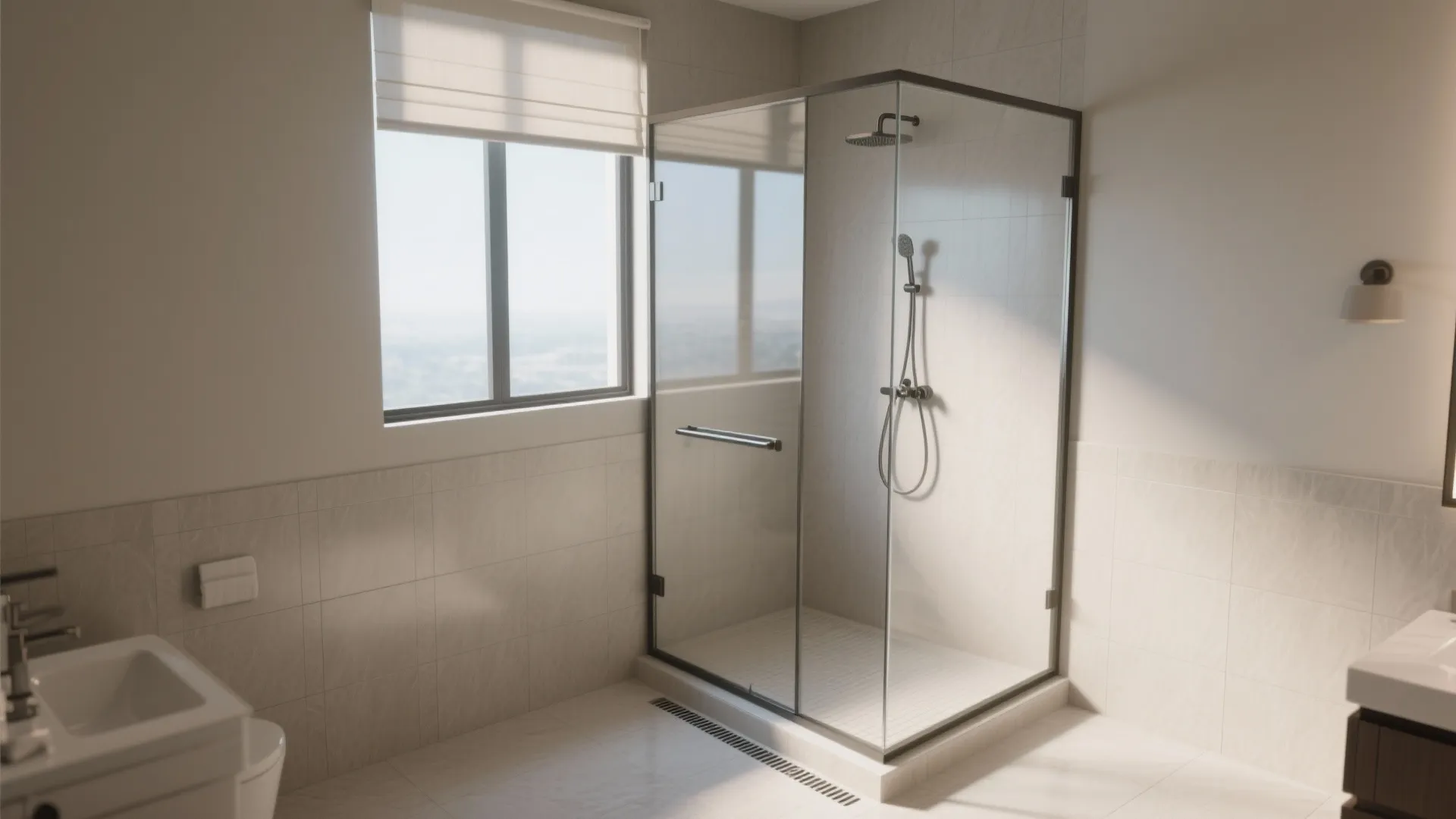

2. Corner walk-in with full-height glass

Put the shower in the corner under the window and use a full-height glass partition that stops short of the ceiling. Light travels into the room, and the uninterrupted glass keeps sight lines open. I’ve done this twice for clients who wanted hotel-like openness in a 10x7 footprint.

Challenges: privacy if the window faces neighbors — frosted lower panes or a top-opening awning window solve that without losing daylight. Also plan a linear drain along the partition so the slope is subtle and tile choices remain flexible.

save pin

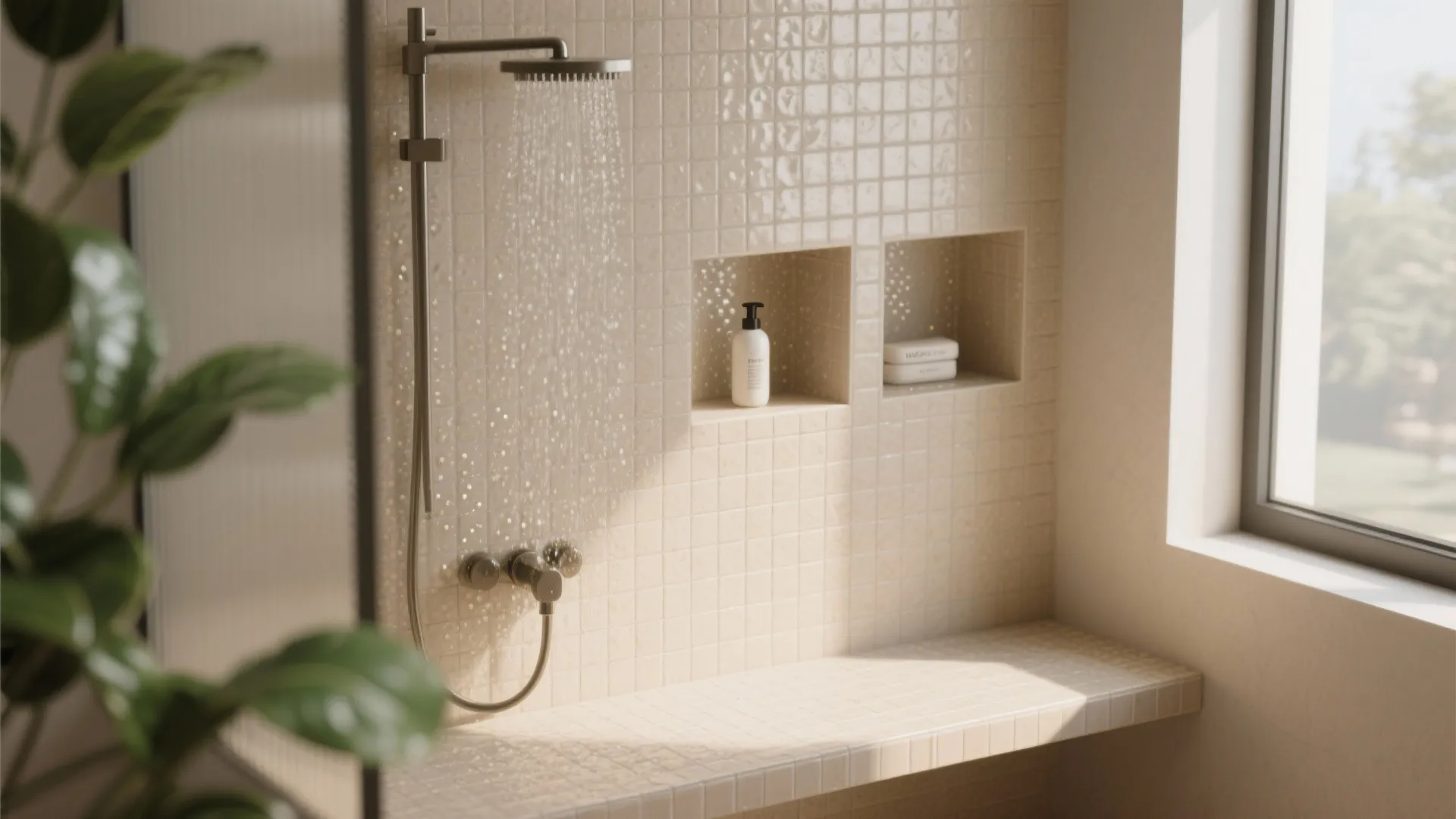

3. Recessed shower alcove with shallow bench

Create a recessed shower alcove opposite the vanity and use the window to highlight a tiled feature wall. This defines zones and leaves the main path clear. I often recommend testing window sightlines during planning so the shower’s focal tile aligns with the view — an easy exercise when you test window placement options early.

Pro: very efficient for storage and you can tuck niches into the recess. Con: if your window is low, you’ll need to manage splash; a small glass screen or partial partition usually fixes that without blocking light.

save pin

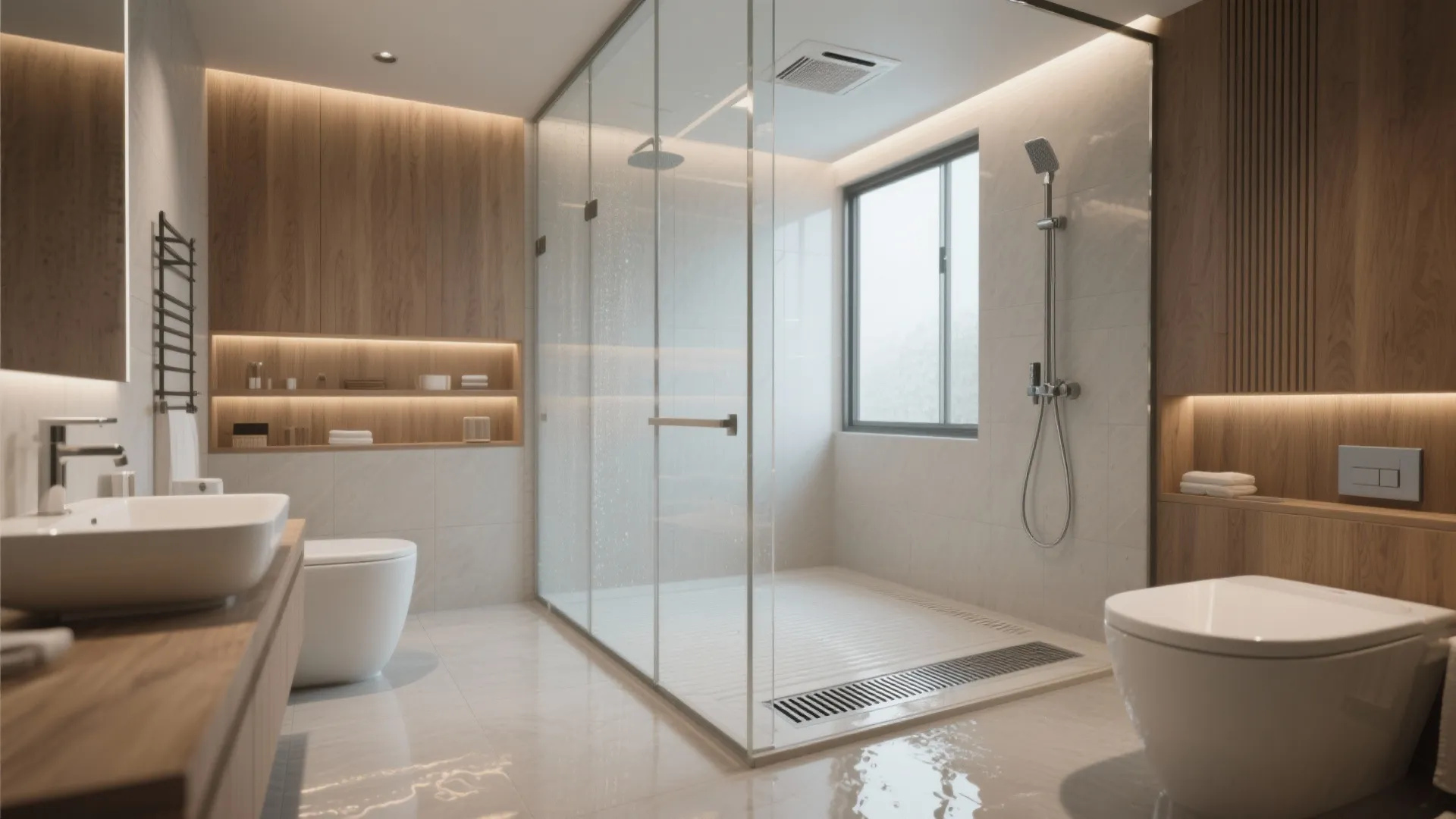

4. Wet-room style with linear drain and ceiling-height glazing

Turn the whole 10x7 into a wet room with a gently sloped floor and a linear drain. Keep the window clear or top-frosted, and use ceiling-height glass on the open side to contain water while preserving airiness. This approach feels luxurious and is surprisingly budget-friendly if you reuse existing plumbing locations.

Watch for ventilation and humidity control; a good extractor fan and an operable window are essential. Heating the floor makes it feel custom without a huge price jump.

save pin

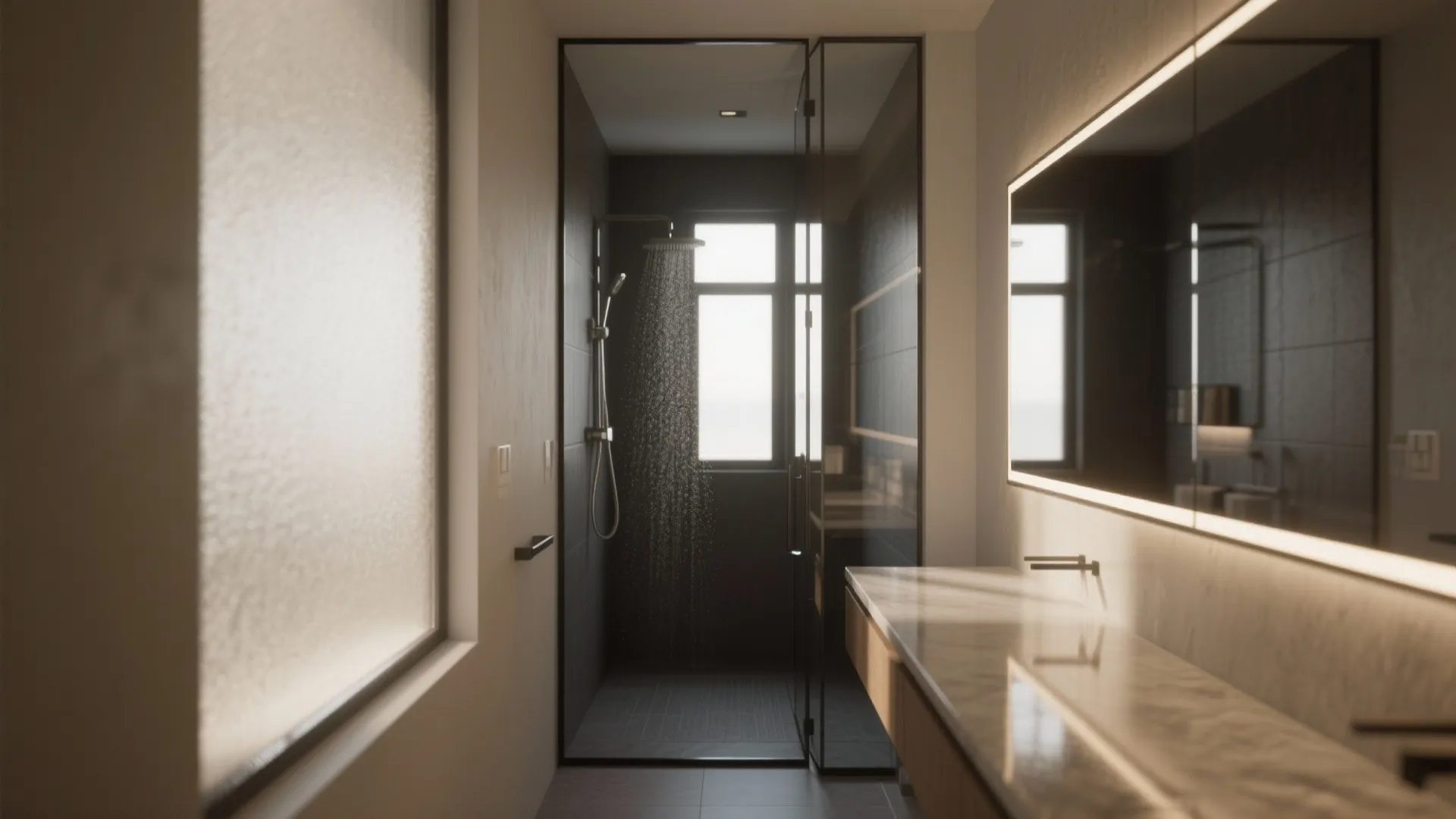

5. Narrow passage shower with frosted window and bench

If your window sits on the short wall, orient the shower lengthwise so the window lights the approach rather than pointing directly into the spray. Add a built-in bench and a low-profile glass divider; you’ll get both privacy and a sense of expansiveness. When space planning, I always tell clients to create a precise floor layout before ordering tile or vanities — it avoids costly reworks.

Minor downside: the passage layout can feel tunnel-like if you choose heavy, dark finishes. Solution: keep finishes light and add a reflective surface or slim mirror opposite the window to bounce light back.

save pin

FAQ

1. Can a 10x7 master bathroom comfortably fit a shower only plus storage?

I often fit a shower, a floating vanity, and vertical storage in 10x7 by using recessed niches, tall cabinets, or open shelving. Prioritize wall-mounted fixtures and shallow depths to keep circulation clear.

2. How do I handle privacy for a shower window?

Frosted glass, top-only awning windows, or glazing with an obscuring film keeps light while preventing sight into the shower. Exterior screening (like a privacy hood or planting) also helps if you want clear glass inside.

3. Is a wet room suitable for retrofit in a 10x7 layout?

Yes, if you can re-slope the floor and install a linear drain. It’s a great way to feel spacious, but ensure waterproof membranes and proper fall to the drain are professionally installed.

4. What window type works best over or near a shower?

Tempered glass is a minimum for safety; vinyl or fiberglass frames resist moisture better than untreated wood. Choose operable types for ventilation — the NKBA recommends providing adequate ventilation and natural light in bath spaces (National Kitchen & Bath Association guidance).

5. How can I keep costs down while improving light in a small bathroom?

Reuse existing window openings if possible, pick large-format light tiles to reduce grout lines, and choose a single long mirror to amplify daylight. A clear plan and simple finishes often deliver the biggest visual bang for your budget.

6. Do I need a shower door or is a glass panel enough?

In a 10x7 master, a fixed glass panel or partial screen often suffices and keeps the space airy. Use doors if you need to isolate steam or if the layout risks more splash onto flooring outside the wet zone.

7. How much clearance should I leave between vanity and shower?

Aim for at least 30–36 inches of clear path for comfortable movement. If space is tight, choose a floating vanity or a 20–24 inch depth style to preserve circulation.

8. Can I install a window seat or bench in a shower and still meet building codes?

Yes, built-in benches are common; just make sure waterproofing and slope to the drain are maintained. For precise local code requirements consult your municipal building department or a licensed contractor.
