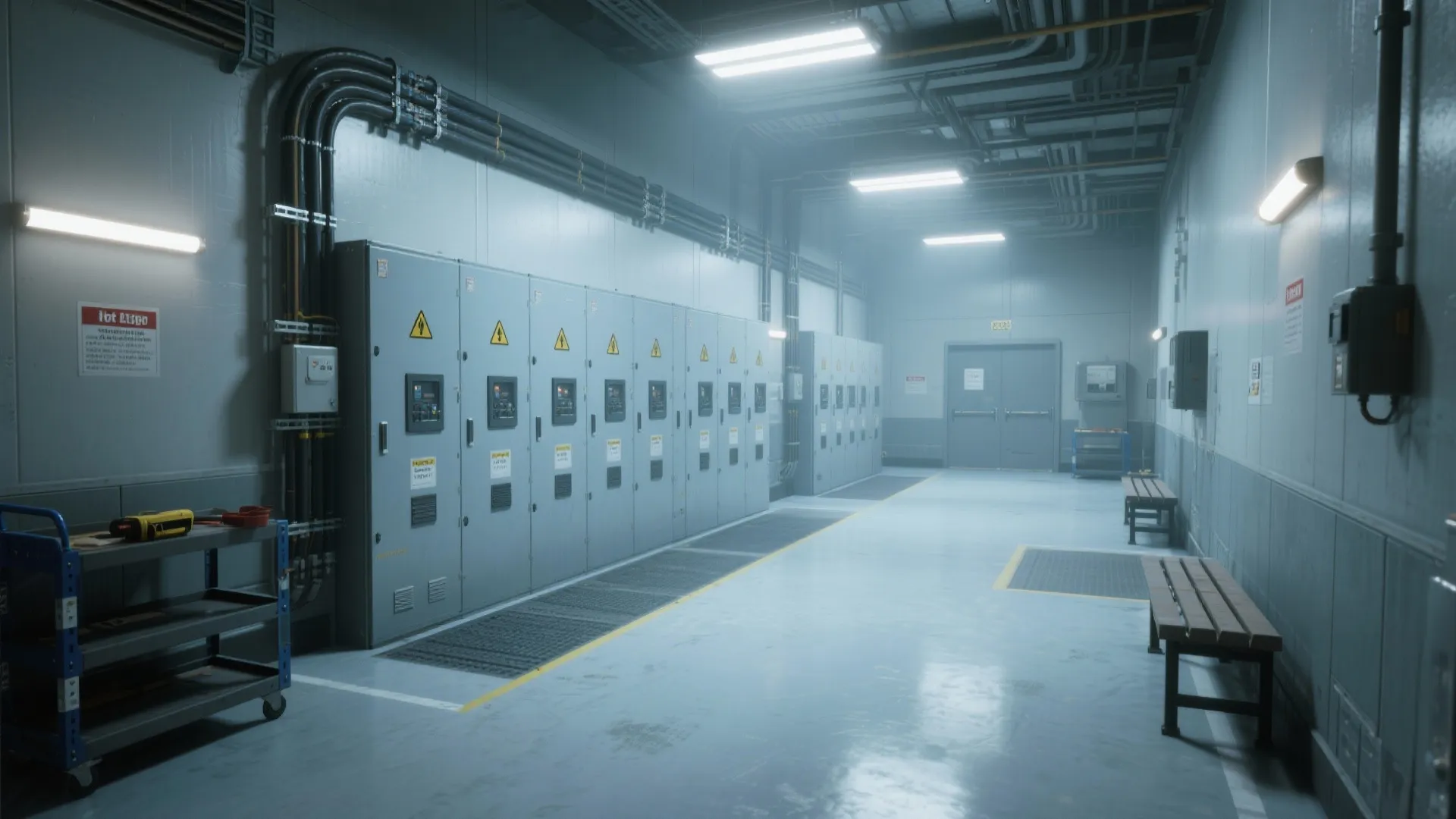

MCC Room Design: Optimize Your Motor Control Center Space: 1 Minute to Create a Smart, Safe, and Compact MCC Room Layout

Motor Control Center (MCC) rooms demand a design mindset that treats safety, uptime, and maintainability as non-negotiables. I prioritize clear access, thermal control, and human factors so technicians can diagnose and service equipment quickly without compromising NFPA 70E arc-flash boundaries or the equipment’s life cycle. Thoughtful proportions between aisles, panels, ventilation, and cable management define how reliably the room performs day to day.

Space planning decisions in an MCC are best grounded in evidence. WELL v2 notes that thermal comfort and air quality impact cognitive performance and error rates, and its thermal comfort feature references temperature setpoints around 20–25°C to support human performance; in practice, I hold MCC rooms near the lower band to offset equipment heat (v2.wellcertified.com). Steelcase research also shows that environmental quality—thermal, acoustic, and visual—correlates with fewer work errors and faster task recovery, which maps directly to field diagnostics in high-load rooms (steelcase.com/research). These findings reinforce why MCC rooms benefit from precise HVAC sizing, glare-free lighting, and calm acoustics.

Lighting is technical and consequential near energized gear. I use IES-referenced horizontal illuminance of about 300–500 lux for routine tasks, and up to 750 lux for detailed inspection, layered as low-glare, diffused light with CRI ≥80. Glares near breaker status windows cause misreads; shielded fixtures and matte finishes cut specular reflections. Color temperature around 4000–5000K maintains alertness without harshness; I avoid high-CCT spikes that elevate perceived glare.

Core Spatial Ratios and Clearances

I start with generous front working clearances—often 1200–1500 mm in front of MCC lineups—to respect access requirements and ergonomic reach. Side and rear service corridors should remain unobstructed for cable pulls, IR scanning, and bus inspections. If multiple lineups face, I plan 1800–2400 mm aisles to allow tool carts, two-person maintenance, and arc-flash approach limits without crowding. Where cable trays drop, maintain overhead clearance for ladder access and keep bend radii aligned to manufacturer specs to avoid conductor stress.

When testing adjacency options—say, swapping lineups or consolidating VFDs near ventilation—pre-visualization helps. A room layout tool can simulate aisle widths, door swings, and equipment footprints before procurement: room layout tool.

Thermal Load, Ventilation, and Pressurization

MCC rooms gather heat from transformers, VFDs, and switchgear. I size HVAC using equipment nameplate losses plus diversity factors, then add reserve for seasonal peaks. Maintain slightly positive room pressurization to reduce dust ingress; I target filtered make-up air with MERV 13 where practical. Distribute supply to avoid hotspots behind lineups and let returns skim heat plumes. VFDs prefer stable temps; heat spikes accelerate failure of electrolytic capacitors, so temperature uniformity matters.

Cable Management and Service Pathways

Clear cable trays, tidy vertical drops, and labeled conduits are more than neat—they cut outage duration. I orient trays to keep high-voltage segregated from control wiring, reduce electromagnetic interference around PLC cabinets, and maintain accessible pull boxes. Service loops should be deliberate, not excess; every additional loop is thermal and clutter mass. I plan floor penetrations with grommets and firestopping from day one to avoid later compromises.

Ergonomics and Human Factors

Human-scale decisions inside an MCC room reduce errors: consistent handle heights, readable labels at eye level, and adequate turning radii for carts. I keep the most frequently serviced components between 800–1500 mm height and ensure panel schedules are printed large enough to read at arm’s length. Acoustic comfort matters—hard parallel surfaces amplify relay clicks and fan whine—so I add absorptive panels on upper wall zones to calm reverberation without risking fiber shedding near intakes.

Lighting Strategy and Visual Balance

I layer ambient and task lighting with glare control. Linear LED with wide batwing distribution limits scalloping on panels; task lights near test benches run dimmable to 1000 lux for precision. Emergency egress lighting should maintain at least 10 lux along pathways, with signage at exits and at each arc-flash boundary change. Matte, low-chroma wall finishes (N5–N7 greys) help status indicators pop and reduce reflected glare on glossy panel doors.

Safety Zoning and Workflow Behavior

Workflow mapping helps segregate energized work from routine tasks. I delineate a hot zone facing the MCC lineups, a neutral corridor for transit, and a cold zone for benches and spares. Tool storage sits outside approach boundaries to minimize cross-traffic. Decals and floor striping clarify PPE transitions; lockout/tagout stations must be visible and reachable without crossing energized fronts. Place eyewash and fire-rated cabinets clear of door arcs and keep exit routes direct and unobstructed.

Material Selection and Durability

Flooring needs antistatic properties and high abrasion resistance; dense rubber or ESD-rated epoxy holds up to carts and resists chemical drips. Walls benefit from impact-resistant panels where carts turn. Choose non-gloss finishes; metal glare accelerates visual fatigue. Cable tray coatings should resist corrosion, especially in coastal or humid sites. All fixtures—down to hinges and latches—should tolerate high-cycle maintenance.

Reliability, Redundancy, and Future-Proofing

I plan spare capacity in bus sections and room circulation. Leave space for additional starters and VFD cabinets; provide empty tray width for future runs. Separate critical control wiring routes from power feeders to maintain signal integrity. Where applicable, consider dual-path ventilation or monitoring-backed alarming for temperature and humidity. Every MCC evolves; a bit of spatial reserve avoids expensive rework.

Commissioning and Maintenance Rhythm

A good MCC room design supports smooth commissioning. Clear labeling at eye level, IR windows accessible at comfortable height, and logical panel groupings cut startup time. Build a maintenance rhythm—weekly visual scans, quarterly torque checks, scheduled filter changes—and place whiteboards near the entry to record issues without phones inside energized areas. Lighting maintenance should be tool-free where possible, with fixtures reachable from a low platform ladder.

Integration with Adjacent Spaces

Place MCC rooms away from high-moisture or vibration sources. If adjacency to mechanical rooms is unavoidable, decouple with acoustic breaks and avoid shared return air paths. Keep delivery routes straight from loading dock to MCC to ease equipment swaps. Security access should be tiered to restrict entry to authorized personnel, with clear signage at thresholds.

Design Checklist

- Verify clearances in front and between lineups against manufacturer requirements and local codes.

- Confirm HVAC sizing against equipment losses with temperature uniformity targets.

- Set lighting to 300–500 lux ambient, 750+ lux task; control glare with matte finishes.

- Map hot/neutral/cold zones; position LOTO, eyewash, and exits without crossing energized fronts.

- Plan labeled, segregated cable trays with accessible drops and firestopping.

- Choose durable, antistatic floors and non-gloss finishes.

- Reserve space for future gear and tray capacity.

- Commission with readable labels, IR window access, and documented maintenance routines.

FAQ

How much aisle clearance should I reserve in front of MCC lineups?

I target 1200–1500 mm in front of panels for comfortable access, tool carts, and arc-flash approach boundaries, adjusting per manufacturer and local code.

What illuminance levels work best for MCC rooms?

Ambient 300–500 lux, with 750 lux or higher at task zones. Use diffused, low-glare fixtures and ~4000–5000K color temperature to maintain alertness without harsh glare, aligning with IES guidance.

How do I manage heat from VFDs and transformers?

Calculate HVAC loads from nameplate losses plus diversity, keep the room near 20–24°C, maintain positive pressurization with filtered make-up air, and distribute supply to prevent hotspots.

What materials are ideal for floors and walls?

ESD-rated epoxy or dense rubber flooring with high abrasion resistance; walls with impact-resistant panels and matte finishes to control glare.

How should cable trays be organized?

Segregate power from control wiring, maintain bend radii per manufacturer, plan labeled drops, and install firestopping at penetrations. Keep overhead clearance for maintenance access.

Where should lockout/tagout stations and eyewash be placed?

Outside energized approach boundaries, visible from entries, and accessible without crossing hot fronts. Ensure clear lines to exits.

Do I need acoustic treatment in an MCC room?

Yes, targeted absorption on upper wall zones reduces reverberation and makes alarms and conversation more intelligible without shedding particulates near intakes.

How do I plan for future expansion?

Leave spatial reserve beside lineups, specify bus capacity for additional starters, keep tray width margin, and separate control wiring pathways for integrity as loads grow.

What color palette improves readability of panel indicators?

Neutral, matte greys (N5–N7) reduce glare and let colored status LEDs and labels stand out. Avoid high-gloss and highly saturated walls near panels.

Can layout simulation help before equipment procurement?

Yes. Use an interior layout planner to simulate aisle widths, door swings, and equipment footprints to validate service paths and clearances, for example a room layout tool.
