MCC Room Full Form: A Complete Guide for Modern Interiors: 1 Minute to Understand MCC Rooms and Why They Matter

In building services and industrial interiors, MCC stands for Motor Control Center—a dedicated electrical room housing modular assemblies that control and protect motors, pumps, fans, and mechanical systems. An MCC room is the heartbeat of HVAC and process equipment, and its planning touches architecture, electrical engineering, safety, acoustics, and human factors. In my projects, well-designed MCC rooms reduce downtime, improve maintenance efficiency, and stabilize building performance.

Performance data underscores the value of precise environmental planning around equipment and people. The WELL Building Standard v2 highlights that appropriate thermal and acoustic conditions support operational safety and worker performance; WELL’s feature set links ambient temperature, air quality, and noise to health outcomes in technical settings. Steelcase research further shows that environmental stressors—glare, noise, and thermal discomfort—impair task accuracy and response time, which matters when technicians troubleshoot under pressure. I align MCC room specifications with these findings to protect both equipment and the teams who maintain it. Reference frameworks and best-practice standards from WELL v2 and workplace research by Steelcase inform thresholds for light, noise, and ergonomics that we can apply to MCC rooms.

From a facilities standpoint, MCC rooms must also respect industry lighting guidance. The Illuminating Engineering Society (IES) recommends task illuminance ranges for technical spaces that typically fall between 300–500 lux for panel reading and inspection, with controlled glare to prevent misreads. I select LED fixtures with neutral 4000–5000K CCT, high CRI (≥80), and uniformity ratios close to 0.6–0.8 to keep labels, cable colors, and breaker positions legible without eye strain.

What Is an MCC Room?

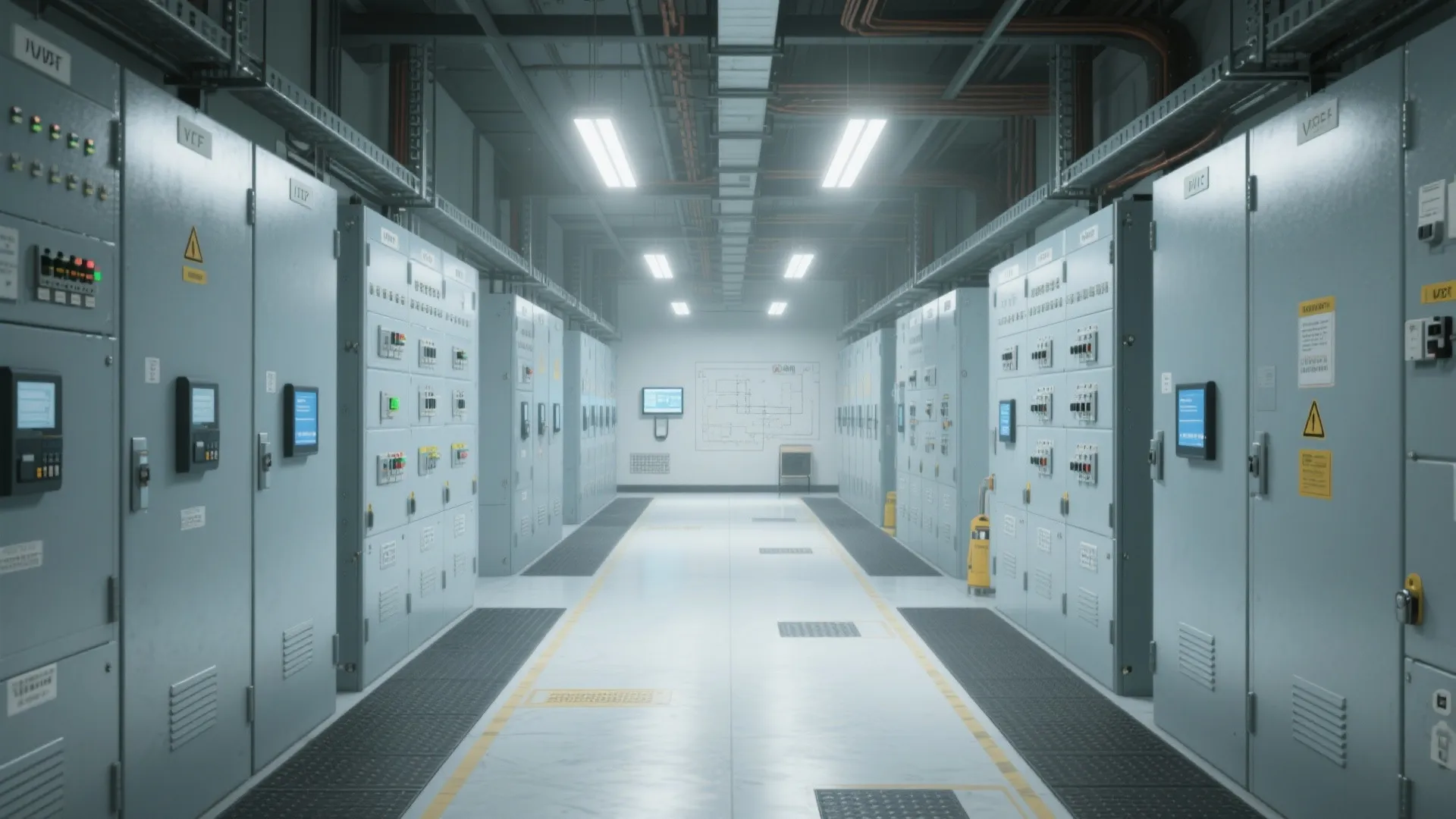

The Motor Control Center room is a dedicated area where motor starters, variable frequency drives (VFDs), protective relays, metering, and networked controllers are organized within modular cabinets. It centralizes power distribution and control for mechanical systems such as chilled water pumps, AHU supply fans, cooling tower fans, fire pumps, and process lines. A good MCC room prioritizes safety clearances, thermal management, maintenance access, and clean cable routing—while integrating monitoring to prevent failures.

Core Functions and Components

An MCC lineup typically includes: incoming feeder sections; main and tie breakers; starters and contactors; VFDs; protective relays; PLC or BMS interfaces; and metering. I specify segregated bus compartments, arc-resistant construction where applicable, labeled terminal blocks, and lockable isolation points. Cable management (tray vs. ladder racks), grounding bars, and insulated barriers reduce risk and simplify work orders. Clear panel directory schedules and single-line diagrams on the wall enhance situational awareness for technicians.

Space Planning, Clearances, and Workflow

Spatial ratios are critical. Maintain working clearances in front of live parts per code and manufacturer guidelines, plus side and rear access where panels require service. I aim for straight-line egress with no obstructions, minimum 1.2–1.5 m working depth in front of cabinets depending on voltage and jurisdiction, and 900–1200 mm between rows for dual-aisle layouts. When planning layouts or testing alternate footprints, an interior layout planner like this room layout tool can help visualize aisle widths, panel sequences, and technician circulation: room layout tool.

Lighting Strategy and Glare Control

Task accuracy depends on uniform, low-glare lighting. I use linear LED fixtures with prismatic or microprism diffusers, placing rows parallel to cabinets to avoid shadowing. Emergency lighting with auto-test is essential. Color temperature at 4000–5000K improves label readability, while keeping glare index within comfortable limits. I integrate localized task lights for inspection bays and use matte finishes on cabinet doors to minimize specular reflection.

Acoustic Comfort and Noise Mitigation

VFDs, cooling fans, and transformers can produce tonal noise and hum. Even short exposures can degrade concentration. I line walls with mineral wool or perforated metal acoustic panels, isolate equipment bases, and decouple cable trays from resonant surfaces. Locating MCC rooms away from quiet program areas helps. Where noise is unavoidable, hearing protection protocols and signage are part of the safety kit.

Thermal Management and Ventilation

Heat load from VFDs and starters requires calculated ventilation or dedicated cooling. I model sensible heat gains, set temperature targets around 20–25°C, and ensure clean airflow pathways that avoid dust accumulation in sensitive components. Filtration and positive pressure can keep contaminants out. Temperature sensors tied to BMS alarms prompt intervention before overheating triggers protective trips.

Human Factors and Ergonomics

Ergonomics influence error rates and safety. I set critical controls between 900–1500 mm from floor level, keep heavy components at lift-friendly heights, and avoid overhead access for frequent tasks. Clear labeling with consistent typography, color-coded circuits, and laminated one-point lessons at eye level reduce cognitive load. A small workbench and tool storage near the entry keep workflows tight and minimize time spent inside.

Safety, Compliance, and Risk Reduction

Arc flash boundaries, lockout/tagout points, and emergency stop stations must be visible and reachable. I place insulated floor mats in front of panels, non-slip surfaces, and keep a clean cable discipline. Regular thermography, torque checks, and dust management extend equipment life. When paired with strong training and signage, incident probability drops significantly.

Digital Integration and Monitoring

Modern MCC rooms integrate PLCs and BMS with networked power meters and VFD diagnostics. I favor modular systems with remote status indicators, fault histories, and condition monitoring. Labeling network ports, maintaining documentation binders, and version-controlled schematics make troubleshooting a faster, safer process.

Material Selection and Durability

Cabinets with powder-coated steel, tamper-resistant hardware, and corrosion-resistant finishes perform best in humid or industrial contexts. Non-combustible ceiling and wall finishes, antimicrobial paints where needed, and impact-resistant corner guards maintain integrity. Sustainability targets can be met by specifying low-VOC coatings, high-efficacy lighting, and repairable modular components.

Color Psychology for Visual Hierarchy

Color supports recognition. I use high-contrast label backgrounds, standardized breaker handle colors for status, and neutral wall tones to reduce visual noise. Research in color psychology indicates that consistent, high-contrast palettes aid wayfinding and reduce decision fatigue, which is valuable when technicians navigate complex arrays.

Commissioning and Maintenance Protocols

Before handover, I run functional tests, verify torque values, simulate alarms, and confirm sequence-of-operations with facilities teams. Maintenance schedules include filter changes, fan checks, cleaning, and VFD parameter backups. A monthly walkthrough with checklists catches small issues before they cascade.

Future-Proofing and Expandability

Plan spare bays, flexible bus ratings, and scalable network capacity. Reserve floor space for additional drives or starters, and keep power and data routes expandable. Document spare capacity in both electrical and cooling systems to avoid disruptive retrofits.

References for Design Benchmarks

For environmental and human performance benchmarks relevant to technical rooms, I lean on WELL v2 guidance and workplace evidence from Steelcase research. These sources help set tangible targets for lighting, acoustics, and ergonomics in MCC environments.

FAQ

Q1: What does MCC stand for in building interiors?

A1: MCC stands for Motor Control Center, a room or assembly of panels that house controllers, starters, VFDs, and protection devices for motors and mechanical systems.

Q2: How much lighting is appropriate for an MCC room?

A2: For reading labels and inspecting panels, plan around 300–500 lux with neutral 4000–5000K color temperature and low glare, following IES task lighting guidance.

Q3: What clearances should I allow in front of MCC panels?

A3: Provide unobstructed working depth typically 1.2–1.5 m in front of energized equipment depending on jurisdiction and voltage, plus side/rear access as required by manufacturers.

Q4: How do I manage heat from VFDs and starters?

A4: Calculate sensible heat loads and provide ventilation or dedicated cooling to maintain about 20–25°C, with clean airflow, filtration, and temperature alarms tied to BMS.

Q5: Which color temperature improves label readability?

A5: A neutral white around 4000–5000K with high CRI (≥80) supports accurate color discrimination and crisp text visibility on panel labels.

Q6: What acoustic strategies help in MCC rooms?

A6: Use absorptive wall panels, equipment isolation, decoupled trays, and zoning away from quiet spaces. Provide hearing protection policies where tonal noise persists.

Q7: How can I plan an MCC room layout efficiently?

A7: Map panel sequences, aisles, and egress early; simulate circulation and clearances using an interior layout planner like this layout simulation tool: layout simulation tool.

Q8: What documentation should be visible inside an MCC room?

A8: Single-line diagrams, panel schedules, LOTO procedures, arc flash boundaries, emergency contacts, and version-controlled schematics should be accessible at eye level.

Q9: How does color psychology apply to MCC rooms?

A9: High-contrast labels and consistent color coding reduce cognitive load and errors during troubleshooting, aiding fast recognition of circuits and statuses.

Q10: What safety features are essential?

A10: Clear LOTO points, emergency stop stations, insulated floor mats, non-slip flooring, arc-flash signage, and adequate emergency lighting are fundamental.

Q11: How do I future-proof an MCC room?

A11: Reserve spare bays, plan scalable bus ratings, maintain additional cooling capacity, and document pathways for power and data expansion.

Q12: What maintenance routines keep MCC rooms reliable?

A12: Periodic thermography, torque checks, dust management, filter changes, fan inspections, and VFD parameter backups prevent failures and extend lifespan.
