MCC Room Full Form Explained: Purpose and Design Essentials: 1 Minute to Understand MCC Room—What It Is, Why It Matters

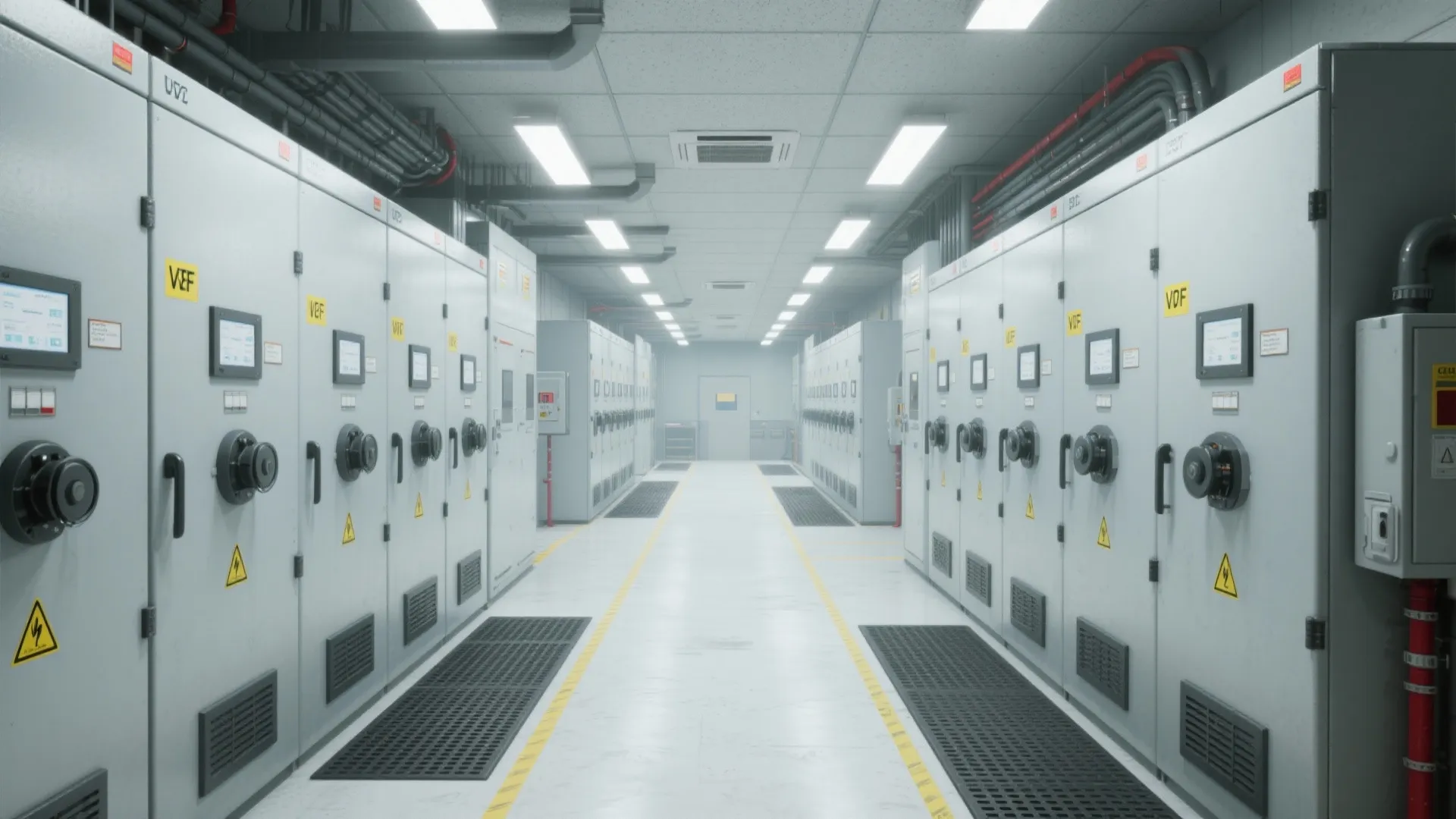

The full form of MCC Room is Motor Control Center Room. In practice, it is the dedicated space that houses low-voltage or medium-voltage MCC lineups—modular assemblies of switchgear, feeders, and variable frequency drives (VFDs) that control motors for HVAC, process, and utility systems. My focus when planning an MCC room is simple: predict operational behavior, engineer for safety and uptime, and allow technicians to work comfortably and efficiently.

Evidence shows why these rooms deserve rigorous attention. The WELL Building Standard (WELL v2) highlights electrical safety and thermal comfort implications tied to mechanical spaces, with thermal performance contributing to occupant safety and operational risk (v2.wellcertified.com). In workstation contexts, Steelcase research reports that well-planned environments reduce error and improve task completion speed—principles that translate directly to technical spaces where clear layout and ergonomics cut downtime and service errors (steelcase.com/research). These data points reinforce a design stance: MCC rooms must be engineered for clarity, safety, and rapid serviceability.

Purpose of an MCC Room

An MCC room centralizes motor starters, VFDs, protection relays, and metering to streamline distribution and control. It provides environmental isolation from dust, moisture, and heat, and creates a secure boundary for arc-flash protection, lockout/tagout procedures, and maintenance workflows. I design these rooms to minimize risk during switching operations, provide clear line-of-sight to status indicators, and standardize cable management so tracing circuits never becomes guesswork.

Core Components and Functional Layout

Typical assemblies include incoming feeders, bus bars, molded-case breakers, contactors, overload relays, soft starters or VFDs, and auxiliary control panels. Separation of power and control cabling reduces noise and improves diagnostics. I prefer aisle layouts with front-only access where space is limited, or front-and-rear access for heavy maintenance cycles and higher-density cabling. When visualizing options, a layout simulation tool like Coohom’s room layout tool helps test clearances and workflow paths before construction.

Safety Standards and Clearances

Arc-flash boundaries, working clearances, and glare control are non-negotiable. The Illuminating Engineering Society (IES) recommends task illuminance in technical areas between roughly 300–500 lux, with careful glare management to ensure labels and instruments remain readable (ies.org/standards). I specify neutral, low-gloss finishes and shielded luminaires to avoid specular reflection on panel doors and screens. Floor markings, insulated mats, and clear lockout stations should be planned with visual hierarchy in mind, so critical safety cues stand out without visual clutter.

Thermal Management and Ventilation

Heat is the silent adversary of MCC reliability. VFDs and power electronics introduce continuous heat loads; I size HVAC and ventilation for worst-case duty cycles and verify that intake and exhaust do not recirculate hot air across panel fronts. Keep ambient temperatures stable—typically in the 20–25°C range unless equipment ratings require otherwise—and maintain a predictable airflow path that avoids dust ingress. Filters, positive pressure, and access vestibules help limit particulate contamination.

Lighting: Color Temperature, Glare, and Visual Comfort

I specify 4000–5000K for neutral white task lighting to improve label legibility and color rendering on wiring and indicator lamps. Horizontal illuminance in the 300–500 lux range with vertical illuminance on panel faces keeps instrumentation readable without shadowing. Glare indices must be controlled; diffuse lenses, indirect components, and matte finishes on walls reduce veiling reflections that can obscure engraved markers and thermal cameras.

Ergonomics and Human Factors

Serviceability dictates the room’s rhythm: clear 1.0–1.2 m aisles, 900 mm minimum in tight retrofit conditions, and consistent mounting heights for pilot devices and displays. I align critical inspection points within an eye-height band of 1.2–1.6 m, pull-test cable trays for safe load, and keep handheld test equipment within arm’s reach at designated stations. Labeling standards should be uniform, high-contrast, and readable at 600–800 mm distance.

Acoustic Comfort and Noise Control

VFD fans and transformers can create a constant noise floor. While MCC rooms are not occupied like offices, acoustic control still improves concentration and reduces error during diagnostics. I use mineral fiber ceilings, sealed doors with gaskets, and strategic absorption panels away from intakes to cut reverberation. Vibrations should be isolated through plinths or anti-vibration mounts, protecting both equipment and adjacent spaces.

Cable Management and Future Capacity

Horizontal and vertical wireways should leave 30–40% spare capacity for future circuits. I keep power and control segregation disciplined and add labeled test points for clamp meters. For long feeders, plan for mechanical supports and safe pulling radii. Dedicated fiber and Ethernet routing—physically separated from power—supports modern monitoring without interference.

Spatial Ratios and Visual Balance

Even in a technical room, visual order speeds cognition. I distribute panel groups to keep a consistent visual rhythm, align handles and displays along shared datum lines, and use color psychology sparingly: safety yellows and reds only where they carry meaning; cool neutrals elsewhere to reduce visual noise. Controlled contrast helps technicians find critical elements quickly under stress.

Reliability and Redundancy Strategy

Design for maintainability: spare buckets, bypass pathways for key motors, and documented LOTO stations. I include diagnostic lighting, thermal imaging clearance, and staged shutdown protocols. Where permissible, dual feeds and sectionalized bus improve resilience during maintenance and faults.

Access, Security, and Workflow

Badge-controlled access, clear signage, and a pre-brief area outside the arc boundary make workflows predictable. Keep tool storage and PPE within reach but outside primary hazard zones. Floor layouts must guide technicians intuitively—another scenario where an interior layout planner like Coohom’s layout simulation tool helps test movement patterns and emergency egress without surprises.

Materials and Sustainability

Durable, low-VOC finishes, slip-resistant flooring, and corrosion-resistant hardware extend life and reduce maintenance. Consider modular MCC sections for easier upgrades and recycling of components. Opt for LED lighting with high efficacy and smart controls to curb energy use while maintaining constant illuminance.

Commissioning and Documentation

Before handover, I push for thorough commissioning: thermal scans under load, harmonics checks, protective relay settings verification, and arc-flash study alignment. Documentation must be accessible—QR-linked panel schedules, updated single-line diagrams, and maintenance logs stored both locally and in the CMMS—so technicians never hunt for critical information.

FAQ

What does MCC Room stand for?

MCC Room stands for Motor Control Center Room, the dedicated space housing MCC assemblies that control and protect motors and related electrical loads.

What is the primary purpose of an MCC room?

To centralize motor control, streamline maintenance, and provide a controlled, safe environment for power distribution and motor protection equipment.

How much lighting should an MCC room have?

Plan around 300–500 lux with neutral white (4000–5000K) lighting, and prioritize glare control for readable labels and instruments, in line with IES guidance.

What clearances are essential around MCC panels?

Maintain code-required working clearances based on voltage and arc-flash assessments, with aisles typically around 1.0–1.2 m for comfortable service access.

How do I manage heat from VFDs and power electronics?

Provide dedicated HVAC/ventilation, stable ambient temperatures, and a clear airflow path that prevents recirculation and dust ingress.

Why separate power and control cabling?

Segregation reduces electromagnetic interference, eases troubleshooting, and improves safety during maintenance.

What role does ergonomics play in MCC room design?

Ergonomic mounting heights, intuitive labeling, and reachable tool/PPE stations reduce errors and speed maintenance tasks.

How can future capacity be planned?

Leave 30–40% spare capacity in wireways, reserve space for additional buckets or panels, and document pathways for new feeders.

Is acoustic treatment necessary?

While not always mandatory, absorption and sealing reduce noise and reverberation, improving concentration during diagnostics.

Should MCC rooms include redundancy?

Where feasible, yes—spare modules, bypass paths, sectionalized bus, and dual feeds improve uptime and maintenance flexibility.

What documentation should be available onsite?

Up-to-date single-line diagrams, panel schedules, arc-flash labels, relay settings, and QR-linked manuals for rapid access.

Can digital tools help plan MCC room layouts?

Yes, using a room design visualization tool like Coohom’s planner helps validate clearances, egress, and workflow before build.
