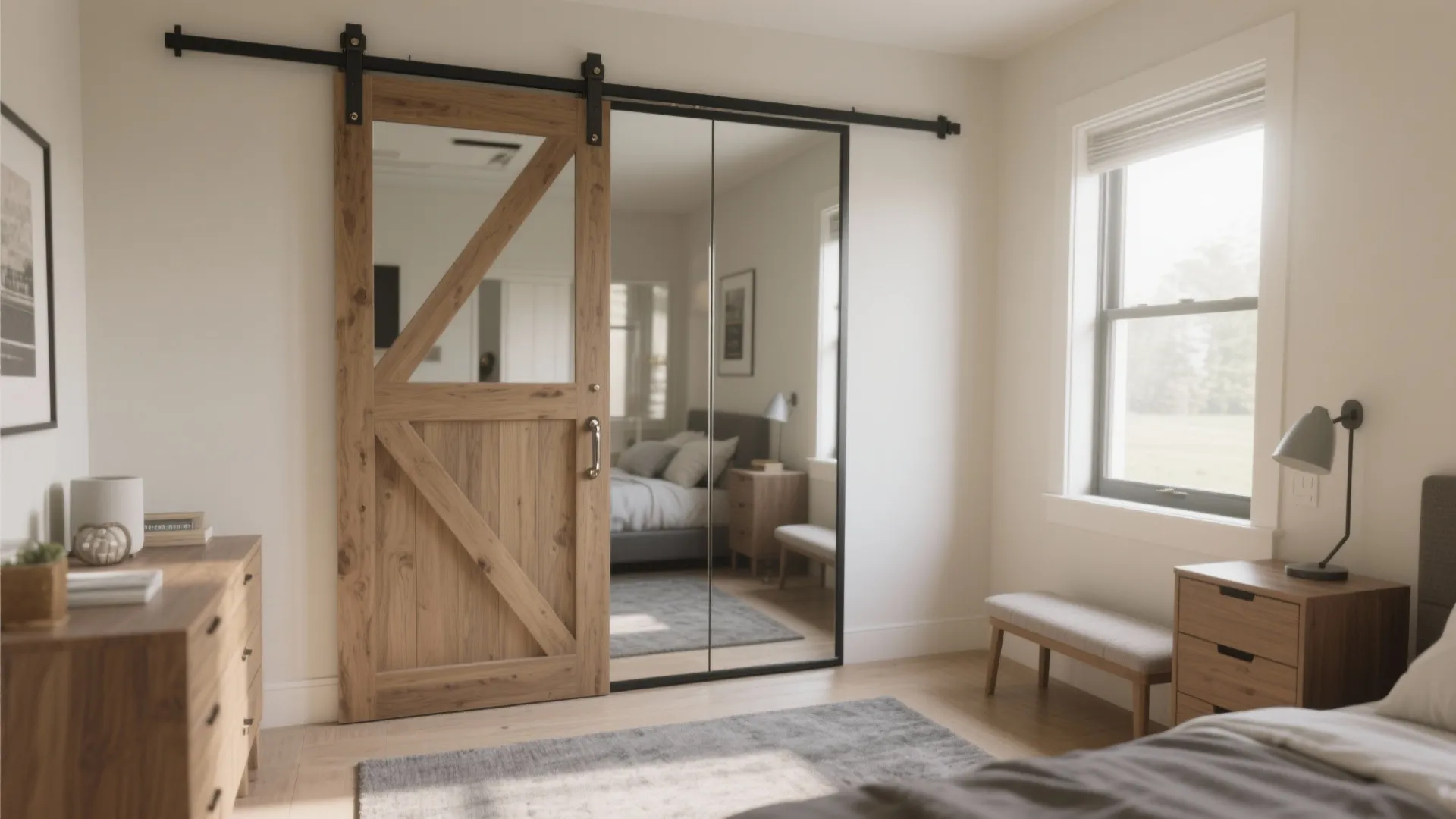

Mirror Barn Door DIY: Transform Your Space: 1 Minute to a Chic, Space-Saving Barn Door Makeover

I’ve installed mirrored barn doors in tight city apartments and sprawling family homes, and the payoff is consistently high: better light, a bigger-feeling room, and cleaner circulation. A mirrored panel doubles as a full-length dressing aid while the barn hardware keeps swing clearance off your floor plan—ideal for narrow halls, compact bedrooms, or laundry closets.

Good design begins with evidence. Sliding doors save roughly 6–10 sq ft of swing clearance compared with typical hinged doors, which can be the margin that makes a small room feel workable. On lighting, the Illuminating Engineering Society notes recommended residential ambient light levels often sit between 100–300 lux, and a strategically placed mirror can bounce available daylight deeper into the space, reducing reliance on artificial lighting in daytime hours (source: ies.org/standards). On wellbeing, WELL v2 emphasizes visual comfort and glare control, suggesting balanced luminance ratios to avoid eye strain—critical when placing large mirrors that amplify light (source: wellcertified.com).

Planning: Measure, Clearances, and Wall Conditions

Start by confirming your structural reality. Measure the rough opening and the adjacent wall length needed for the door to slide fully clear—typically 1.5× the door width is safe. Check for outlet locations, trim projections, and any wall-mounted obstacles. Aim for a door that overlaps the opening by at least 1 inch each side to control light bleed and sound. In compact rooms where swing clearance is limited, a sliding door often prevents furniture conflicts; when laying out a tight bedroom or laundry, quickly simulate door travel with a room layout tool from Coohom: room layout tool.

Design: Proportions, Mirror Type, and Style Language

I prioritize a balanced vertical rhythm: a 1:2 ratio of stiles to mirror panel width tends to feel visually calm in most interiors. Decide between a single full-length mirror or divided lites using slim muntins to echo traditional barn character. For safety, choose tempered or laminated mirror; laminated adds a safety interlayer that holds fragments if broken—sensible in kids’ rooms or high-traffic corridors. Consider bronze or gray-tinted mirrors for warmer palettes, or low-iron for a crisp, neutral reflection. Frame materials range from solid oak and ash (durable, repairable) to powder-coated steel for a modern edge. Finish the frame to match nearby hardware—blackened steel, brushed nickel, or aged brass—so the door feels integrated rather than a shiny outlier.

Hardware: Track, Rollers, and Soft-Close

Select a track rated for at least 1.5× your door’s weight. A 36–42 inch wide mirrored panel with a wood frame often lands between 55–85 lbs; laminated mirror and metal frame can push it above 100 lbs. I prefer quiet, ball-bearing rollers with soft-close dampers to protect the mirror and improve daily use. Check mounting points: most tracks require lag bolts into studs at 16-inch centers. Add a floor guide that prevents lateral sway; for flush thresholds, use a low-profile T-guide anchored to the floor or a wall-mounted guide if radiant heating complicates drilling.

Acoustics and Privacy

Mirrors amplify light, not sound. Sliding doors are inherently less airtight than swing doors; if you need acoustic control, add a brush seal along the jambs and a drop seal at the floor to reduce flanking paths. For bedrooms and baths, a 1-inch overlap and soft-close dampers help minimize clatter. Frosted or etched mirror can preserve privacy in baths while keeping reflectivity for light distribution.

Light and Glare Management

A mirror across from a window can push daylight deeper into the room, but watch for glare and contrast. Keep luminance ratios in check by avoiding direct sun angles onto the mirror during peak hours; sheer curtains or top-down shades soften beam intensity. Aim for layered lighting: ambient (100–300 lux), task lighting near dress areas (300–500 lux), and accent lighting to model texture. If the door sits opposite a workstation, angle task lights away from the mirror to avoid specular reflections.

Color Psychology and Material Harmony

Mirrors amplify adjacent hues. Warm oak frames paired with beige walls feel calm and grounded; black steel frames on cool gray walls signal modern clarity. Blues adjacent to the mirror can reinforce serenity—useful in bedrooms—while saturated reds can energize and may feel intense in compact spaces. Keep the finish palette to two dominant tones so the mirror reads as a purposeful feature, not a shiny distraction.

Build Path: Step-by-Step

1. Frame Fabrication

Mill stiles and rails to 1–1.25 inches thickness with a 1/2 inch rabbet for the mirror. Dry-fit corners; use dowels or loose tenons for strength. Seal the rabbet with a neoprene setting tape to cushion the mirror.

2. Mirror Handling

Wear cut-resistant gloves. Set the mirror into the taped rabbet, then add a continuous backer—plywood or MDF cut to fit. I use structural adhesive rated for glazing and a perimeter of mirror clips or concealed fasteners to prevent rattle.

3. Finish and Edge Protection

Sand frames to 180–220 grit; finish with polyurethane or hardwax oil for wood, or powder coating for steel. Protect mirror edges with U-channel trim or a thin silicone bead to block moisture intrusion.

4. Hardware Installation

Locate studs with a deep-scan finder, mark a level line, and install the track with lag bolts and spacers per manufacturer spec. Hang rollers on the door, lift to the track, and engage safety catches. Add a soft-close kit if not integrated.

5. Floor Guide and Stops

Anchor the floor guide aligned to the door centerline. Install track stops to cap travel and protect trim or adjacent art.

6. Final Adjustments

Plumb the door, tweak roller eccentric cams for parallelism, and confirm 1/2–3/4 inch floor clearance. Check soft-close stroke and seal alignment.

Safety, Ergonomics, and Daily Use

For households with kids, opt for laminated mirror and rounded frame edges. Mount handle grips between 36–42 inches off the floor—comfortable for most adults per standard ergonomic reach ranges. Consider a back pull recessed into the rear stile to make closing easy from both sides. Keep the mirror clean with non-ammonia cleaners to protect coatings; microfiber cloth reduces swirl marks.

Layout Integration and Space Gains

Replacing a swing door can open floor area for a dresser or bench; I typically reclaim a 30–36 inch arc, enough for a slim console or hamper. In tight apartments, mirrored barn doors visually extend corridors, especially if aligned with sightlines. If you’re planning a larger reconfiguration, map traffic routes and door overlaps with an interior layout planner: interior layout planner.

Budget and Time

A DIY mirrored barn door with quality hardware and tempered mirror usually falls in the mid-range: materials around $250–$700 depending on size, frame species, and hardware brand. Expect a weekend build for experienced DIYers; first-timers should plan two weekends to allow for finishing cure times and careful mirror handling.

Maintenance and Longevity

Tighten hardware annually, re-wax wood frames every 12–18 months, and replace worn guides before wobble emerges. Inspect seals to maintain privacy and reduce sound leakage. With careful installation, a mirrored door should perform smoothly for years and resist the bowing that sometimes plagues hollow-core swing doors.

FAQ

1) Is a mirrored barn door safe in a child’s room?

Yes, if you use laminated or tempered mirror, rounded edges, and a floor guide. Laminated mirror holds together if cracked, adding a safety margin.

2) Will a sliding mirrored door improve lighting?

It can. Placed opposite or adjacent to a window, it reflects ambient light deeper into the room. Keep glare in check with sheer window treatments and balanced luminance per WELL v2 guidance.

3) How wide should my door be compared to the opening?

Plan for the door to be 1–2 inches wider than the opening to enhance privacy and reduce light bleed. Ensure your wall space lets the door fully clear the opening.

4) What hardware features matter most?

Rollers with ball bearings, soft-close dampers, a robust track with correct weight rating, and a floor guide. These ensure smooth, quiet operation and protect the mirror.

5) Can I retrofit a barn door where a hinged door exists?

Often, yes. Remove hinges and latch hardware, patch and paint. Verify studs for track anchoring and confirm there’s wall run-off space for the door.

6) How do I reduce sound transmission?

Add brush seals along jambs and a drop seal or threshold at the floor. Increase door overlap and consider a denser backer panel behind the mirror.

7) What’s the best frame material?

Solid wood (oak, ash) for warm, repairable edges; steel for slim profiles and modern aesthetics. Both work—choose based on the home’s design language and weight constraints.

8) How high should handles be mounted?

Typically 36–42 inches off the floor aligns with comfortable adult reach ranges and avoids knuckle hits on adjacent trim.

9) Will a mirror make my room look bigger?

Yes, especially when it reflects open sightlines or natural light. Avoid reflecting visual clutter to keep the expanded feel calm.

10) How do I clean without damaging the mirror?

Use non-ammonia glass cleaner and a microfiber cloth. Avoid abrasive pads and heavy-pressure scrubbing near edges.

11) What if I have radiant floor heating and can’t drill for a guide?

Use a wall-mounted guide or a surface-mounted threshold guide anchored at the sill plate, avoiding the heated zones.

12) Does a barn door meet bathroom privacy needs?

With adequate overlap, seals, and frosted or etched mirror, it can. For acoustic privacy, add seals and consider soft-close to avoid nighttime noise.
