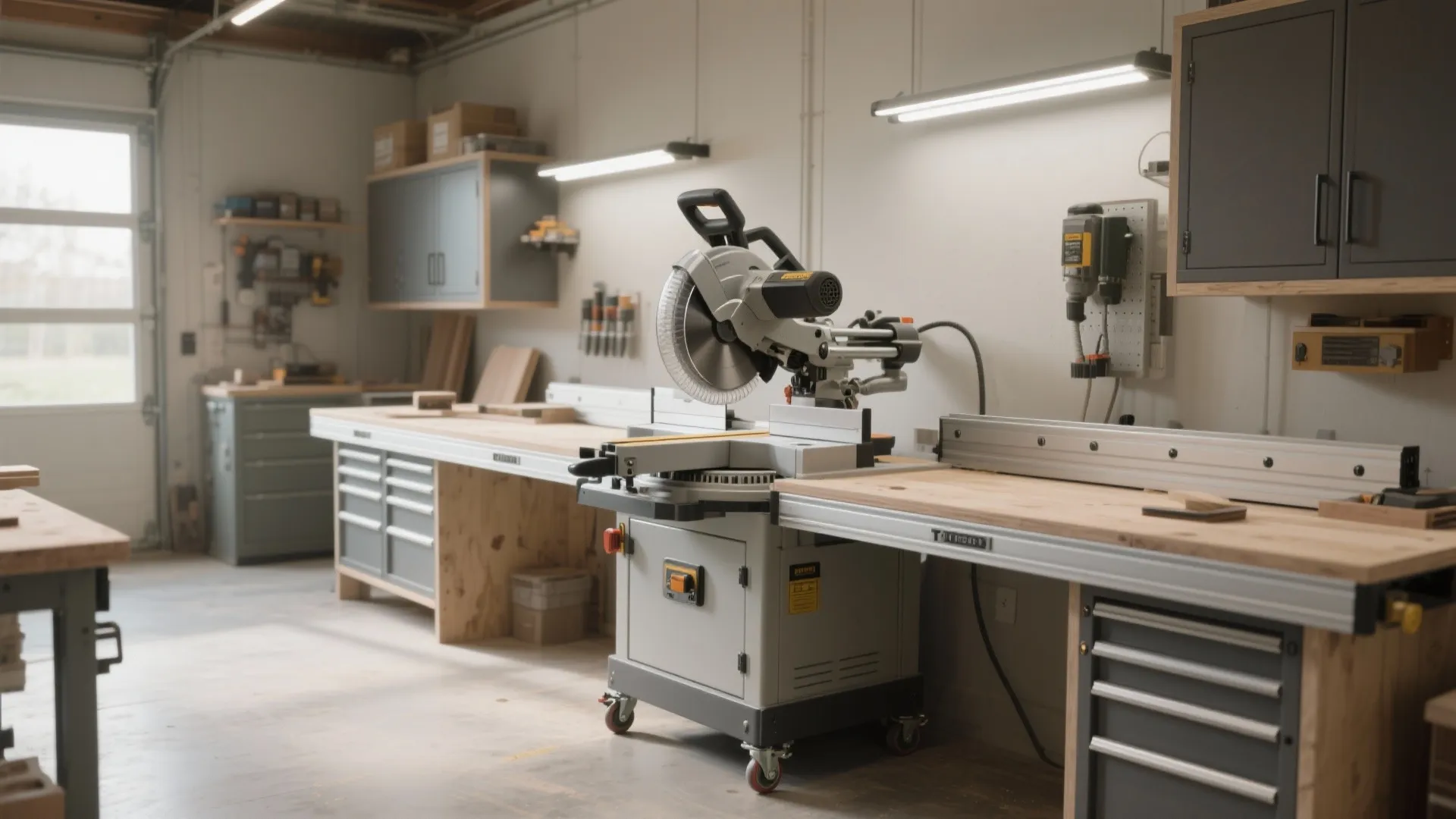

Miter Saw Tables DIY: Build the Ultimate Workspace: 1 Minute to Create a Custom Miter Saw Table Setup

I’ve built more miter saw tables than I can count, and the best ones share three traits: dialed-in ergonomics, stable and straight support surfaces, and smart storage. A well-designed station will boost accuracy, reduce fatigue, and make the most of limited shop space.

Ergonomics should lead your layout. The WELL v2 ergonomics guidance indicates work heights typically fall between 28–44 inches depending on task type; for saw operations, I target 36–38 inches to align the saw deck with elbow height, minimizing wrist extension. Steelcase research has long linked neutral postures to reduced musculoskeletal strain, and translating that to the shop means the fence, tape, and controls must sit within easy reach to avoid awkward twisting. I also build continuous support wings flush within ±0.5 mm of the saw bed to preserve cut accuracy and reduce chatter.

Lighting matters more than many expect. IES recommends illuminance around 500–1000 lux for detailed tasks; I aim for 600–800 lux on the cutting line with 4000–5000K neutral-white LED strips placed forward of the blade to minimize shadows. Good light reduces misreads on tape scales and helps spot tear-out early. For behavioral flow, I keep the measuring, cutting, and staging zones linear: measure left, cut center, stage right. If you prefer more complex layouts or want to simulate tool clearances, a room layout tool like the interior layout planner helps visualize aisle widths and reach envelopes before you commit.

Core Dimensions and Spatial Ratios

Proportion is the backbone of a reliable station. I design the main platform at 24–30 inches deep to support longer stock without stealing floor area. The fence sits 2.5–3 inches above the deck, sized to accept T-track. Wings typically extend 36–60 inches each side; if you cut trim longer than 10 feet, add folding supports or rolling stands beyond the wings. Maintain at least 36 inches of clear aisle in front for safe stance and material pass-through.

Structure: Straight, Stable, and Mobile

Build the carcass from 3/4-inch plywood or MDF on a torsion box base for rigidity. A torsion box made with 2x3-inch internal ribs, 6–8 inch spacing, prevents sag over time. If your floor isn’t level, add adjustable feet with 1-inch range; I use double-lock casters at the four corners for mobility and foot-operated levelers to pin the station during cuts. Keep fasteners hidden on top surfaces to avoid catching stock.

Fence, Stops, and Measurement Accuracy

The fence is your reference datum. A straight aluminum extrusion or laminated plywood fence must be dead-straight; check with a 0.001 inch/foot straightedge. Integrate T-track with a flip-stop system so repeated cuts are consistent. Place a hi-contrast measuring tape along the fence and calibrate it from the saw blade kerf. For angle reliability, verify the miter detents and tune the bevel alignment; once dialed, document with a small angle gauge.

Dust Control and Acoustic Comfort

Miter saws throw fine particulates and create sharp transients around 95–105 dB depending on model. A rear shroud funneling into a 4-inch dust port tied to a 400+ CFM collector greatly improves capture; supplement with a high-static-pressure shop vac for the guard pickup. Acoustic comfort matters in small shops—line the shroud with 1-inch mineral wool or acoustic foam panels to damp blade noise, and wear hearing protection rated NRR 25+. Keep makeup airflow in mind; negative pressure helps keep dust from drifting.

Lighting Integration and Glare Control

Task lights should sit slightly forward and above the blade line to avoid silhouette shadows. I install two LED bars at 30–40 degrees incidence on the cut face. Color temperature at 4000K balances warmth and clarity; CRI 90+ helps read wood grain and pencil marks. Dimmer controls let you ramp to the IES-recommended levels without glare. If your shop has windows, diffuse daylight with translucent panels to flatten contrast.

Materials and Sustainability Choices

Plywood with formaldehyde-free cores and FSC certification ensures stable panels and better indoor air quality. For tops, I prefer high-pressure laminate for abrasion resistance and easy cleanup. Solid hardwood edging protects high-wear corners. If you need weather resilience in a garage, finish with waterborne polyurethane; it cures harder and has lower VOC compared to solvent options. Use reusable cable management and modular brackets so the station adapts as your tool lineup evolves.

Safety and Human Factors

Clear sightlines, consistent hand placement, and repeatable motions reduce error. Keep a 6–8 inch safe zone around the blade with high-contrast marking. Store push sticks and clamps at shoulder height within one step of the cutting position to reduce reach time. The emergency stop for dust collection and saw should be reachable without crossing the blade path. Maintain anti-slip flooring in the primary stance zone.

Workflow and Storage Layout

I divide storage into three strata: quick-grab (top drawers for blades, pencils, squares), mid-depth (side bays for sanders, nailers), and bulk (lower shelves for offcuts and extensions). Vertical peg panels above the fence keep jigs visible. Label everything. If you’re planning a compact shop, a layout simulation tool like the room design visualization tool will help right-size drawers and aisles before framing.

Electrical and Power Management

Mount a dedicated circuit for the saw and a second for dust collection to avoid breaker trips under startup load. Cord reels above the wings prevent trip hazards. Add a master switch block at the front left post—most users are right-handed, and placing controls opposite the cutting hand keeps movements predictable. Consider smart plugs for auto shutoff when idle.

Color Psychology and Visual Balance

Neutral mid-tone surfaces reduce visual fatigue. According to color psychology discussed by Verywell Mind, blues and greens can support focus and calm, while high-chroma reds increase arousal—use them for hazard markings, not broad surfaces. I keep the deck light and matte to boost contrast against pencil lines. Balanced visual rhythm—repeating drawer fronts, consistent reveal gaps—helps the station feel organized, which nudges better habits.

Validation and Calibration Routine

After assembly, run a five-step check: verify deck coplanarity with a long straightedge, calibrate fence square with a 5-cut method, confirm flip-stop parallelism, tune bevel zero with a digital angle gauge, and log your settings. Re-check monthly; wood shops are dynamic environments.

Bill of Materials (Indicative)

- 2 sheets 3/4-inch plywood for carcass and wings

- 1 sheet 3/4-inch MDF for torsion core

- High-pressure laminate for top skins

- Aluminum T-track and two flip stops

- Adjustable feet or double-lock casters

- LED task lights (CRI 90+, 4000–5000K), dimmer

- 4-inch dust port, hose, blast gate, shop vac adapter

- Mineral wool or acoustic foam for shroud lining

- Waterborne polyurethane finish

- Drawer slides, pulls, and cable management

Authority References

For planning ergonomic heights and wellbeing in work settings, see WELL v2 guidance at wellcertified.com. For brightness targets in task lighting, reference IES standards at ies.org/standards.

FAQ

What is the ideal working height for a miter saw table?

I set the deck at 36–38 inches, aligning roughly with elbow height for most adults to minimize wrist extension and shoulder elevation, consistent with general ergonomic ranges referenced in WELL v2.

How much lighting do I need at the cut line?

Aim for 600–800 lux at the blade area with 4000–5000K LEDs. Position fixtures forward of the blade to reduce shadows in line with IES task lighting principles.

Do I need a torsion box, or will simple framing suffice?

For long wings and a flush surface across the saw bed, a torsion box resists sag better than simple framing. If your wings are short (under 36 inches), reinforced framing can work, but check flatness regularly.

How do I control dust effectively on a sliding compound miter saw?

Use a rear shroud that funnels to a 4-inch port and add a high-static-pressure vac at the blade guard pickup. Seal gaps and keep the collector above 400 CFM for fine dust capture.

What fence material is best for accuracy?

Aluminum extrusion offers straightness and easy T-track integration. Laminated plywood works if you verify straightness with a precision straightedge and seal it to resist humidity.

Can I make the station mobile without sacrificing precision?

Yes—use double-lock casters and add screw-down levelers or adjustable feet. Lock casters during use and pin the base with levelers to keep the deck stable.

How should I handle long stock beyond the wings?

Add folding outfeed arms or rolling stands aligned to the deck height. Keep the path clear and maintain at least 36 inches of aisle space for safe movement.

What color scheme helps focus in a shop?

Neutral, matte surfaces for the deck with cool accents (blues/greens) support focus. Use high-chroma colors like red only for hazard markers to avoid visual overstimulation.

Is noise reduction worth the effort?

Yes. Miter saws can exceed 95 dB; adding acoustic lining to the shroud and wearing proper hearing protection reduces fatigue and risk. Keep doors closed and consider soft finishes around the station.

How often should I recalibrate the saw and stops?

Check monthly or after any move. Temperature and humidity shifts can affect wood components, and hardware can creep under use.
