Mix Chat Room Design for Small Spaces: 1 Minute to a Fun, Functional Mix Chat Room Setup

I’ve designed a lot of compact collaboration nooks over the past decade, and the best “mix chat” rooms—spaces that blend casual conversation with video-first communication—always balance intimacy, clarity, and adaptability. In tight footprints, every inch must serve connection: face-to-face, camera-to-screen, and mind-to-idea.

Space standards help ground the design. Gensler’s workplace research notes that focus and small group collaboration remain the most valued work modes, with spaces under 150 sq ft frequently under-supplied in retrofits. Steelcase reports that poor video meeting experiences drive disengagement and reduce perceived productivity when sightlines and audio aren’t controlled. These findings mirror what I see: if participants can’t see or hear well, the room fails—no matter how pretty it is. For lighting targets, I design to IES recommendations of roughly 300–500 lux on horizontal work planes for mixed tasks and preserve 10:1 max contrast to prevent eye strain during screen use.

Ergonomics and cognitive comfort are as critical as dimensions. Herman Miller research links posture choice and movement to improved engagement over long sessions; giving users perch-to-sit options and easy cable management keeps attention on the conversation. On the psychology side, Verywell Mind summarizes that desaturated blues and greens can reduce stress and support calm, while warm accents add sociability—useful cues for rooms that toggle between on-camera and in-person chat.

Space Planning Priorities for Tiny Footprints

In under 80–120 sq ft, prioritize a clean camera triangle: camera at eye level, seated eye-line within the top third of the display, and participants within 1.2–2.0 m from lens for natural proportions. Depth beats width; a 7'–8' room depth allows proper mic-to-mouth distance and camera framing without distortion. When laying out options, I quickly block plans with a room layout tool to test clearances, camera throw, and door swings without guesswork: room layout tool.

Seating Geometry that Works On and Off Camera

For 2–4 people, a shallow arc (110–120°) around a single display keeps faces within a similar focal plane for the camera and avoids hard profile shots. In 6'–7' wide rooms, a compact banquette (17"–18" seat height, 18"–19" depth) paired with a slim table (24"–28" depth) maintains knee clearance and keeps the sightline clean. If using stools, provide one perch at 25"–27" seat height for active posture shifts during longer calls.

Acoustics First: Quiet Rooms Feel Bigger

Small rooms amplify flaws. Target mid-band reverberation time (RT60) around 0.35–0.45 s for clarity. Achieve this with a mix of high NRC wall panels (0.75+), a Class A acoustic ceiling tile, and a soft surface directly opposite the display to reduce flutter echo. Add a dense door with seals (or drop-in perimeter seals) and decouple the display wall if possible. Keep a minimum 20–25% of wall area acoustically absorptive; in a micro room, that may be just one full wall and the ceiling.

Lighting for Faces and Screens

People look best—and stay engaged—when vertical face illumination is even and soft. I balance 300–400 lux on the table with 150–250 lux on faces using indirect or wall-grazed lighting, tuned to 3500–4000K. Avoid downlights directly over foreheads; use two symmetrical wall washers flanking the display and a dimmable linear above the table. Keep VDT luminance contrast in check; matte finishes around the screen curb reflected glare. Add a simple two-scene control: “Video” (lower ambient, boosted vertical light) and “In-person” (warmer, slightly higher ambient).

Camera, Mic, and Display Placement

Mount the camera centerline at 44"–50" AFF for seated eye contact. Use a single 43"–55" display scaled to room depth; ensure captions are legible at the far seat with a minimum 3.5× character height viewing distance rule of thumb. Keep microphones within 24"–36" of mouths—ceiling arrays can work if the ceiling is 8'–9' and RT60 is controlled, but table boundary mics often outperform them in small rooms. Hide cables and mount a slim soundbar under the display to anchor audio to the visual.

Color, Materials, and Visual Rhythm

Desaturated cool bases (blue-gray, mist green) reduce arousal for focused talk, while a single warm accent—terracotta cushion or light oak edge—adds approachability. Use low-gloss laminates (≤10 GU) near screens. Upholster with 100,000+ double rubs durability and bleach-cleanable options if turnover is high. In tiny rooms, strong texture beats strong color: a ribbed felt panel or slatted wood feature provides rhythm without visual clutter.

Human Factors: Comfort in a Compact Envelope

Provide bag drops and a 12"–16" ledge for cups, freeing the main table for laptops. Integrate two universal power points and at least one USB-C PD at the front edge. Sightlines should allow everyone to glance from screen to collaborator with minimal neck rotation—15°–25° is a comfortable target. If the door is glazed, add a 48"–60" band of translucent film for privacy without blocking daylight.

Flexible Furniture for Multi-Mode Use

Choose a table with a center spine for cable pass-through and quick reconfiguration. A flip-up table at 28" height lets the room convert from chat to stand-up review in seconds. Consider a shallow credenza under the display for codec, UPS, and spare headsets; its top doubles as a prop shelf for analog brainstorming. Put casters on at least one seating element for dynamic setups.

Behavioral Cues and Tech Etiquette

Small rooms benefit from clear rules embedded in design. A muted color at the door handle side signals entry; a small wall icon near the camera reminds users to look toward the lens during remote joiners. Provide a simple “Join/End” control at standing height by the door to reduce tech anxiety. A discreet digital clock in the user’s periphery helps time-box chats without feeling rushed.

Sustainability Moves that Don’t Cost Space

Specify LED fixtures with 90+ CRI and low UGR optics for comfortable visuals. Choose rapidly renewable finishes where possible and prioritize low-VOC adhesives. Durable seat fabrics and modular acoustic panels extend life cycles; in small rooms, replacement ease matters more than in larger suites.

Two Proven Layouts

1) Linear Bench + Centered Screen

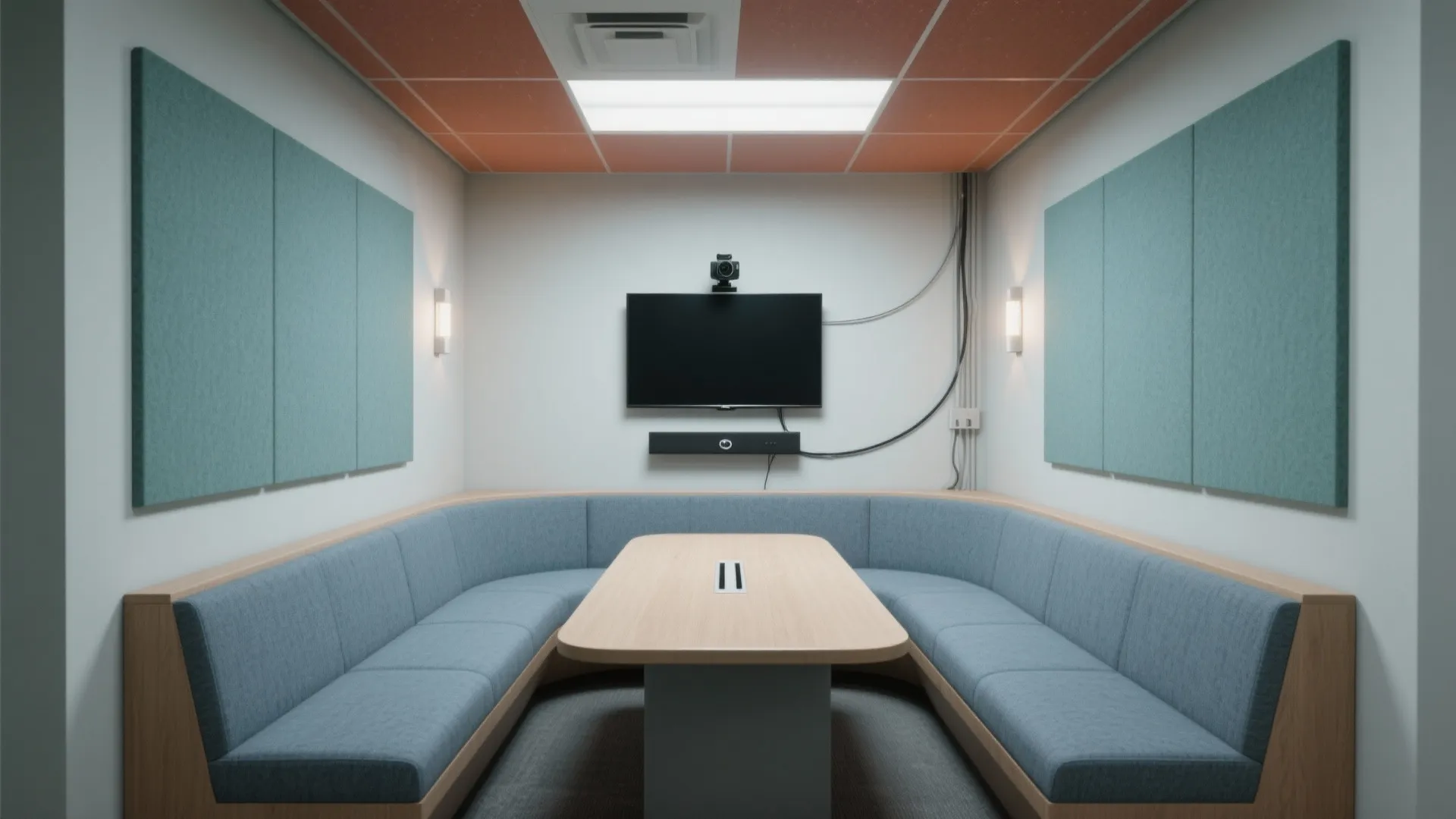

Best for 2–3 people. Banquette along the back wall, centered display opposite, small D-ended table to ease ingress. Camera just above/below the screen. Door on the side wall near the screen to avoid back-of-head views on entry.

2) Corner Nook + Angled Screen

Great for awkward footprints. A corner banquette with a 15°–20° angled display catches both faces on camera without profiles. This also shortens mic distance and buys an extra 8–12 inches of circulation at the door.

Commissioning Checklist

- Measure RT60 with a basic app or meter; add a 2'×4' panel if above 0.5 s

- Calibrate lighting scenes: verify face verticals at 150–250 lux in “Video” mode

- Test camera framing with three heights and tallest expected user

- Run a pilot call with a remote participant to validate audio localization

- Confirm ADA clearances at door and primary seat; verify table edge radiuses to prevent bruise points

References Worth Bookmarking

For lighting and comfort standards, I cross-check with IES recommendations and WELL strategies regularly: see IES standards and the WELL Building Standard for detailed guidance on light quality, acoustics, and ergonomics. For workplace patterns and user expectations, Steelcase and Herman Miller research libraries provide timely insights.

FAQ

Q1: How much space do I need for a 2–3 person mixed chat room?

A: Plan for 45–70 sq ft. A clear 36" path to the seats, a 24" deep table, and 7'–8' room depth usually achieve good camera and mic distances.

Q2: What lighting levels should I target for video calls?

A: Aim for 300–400 lux on the work surface and 150–250 lux vertical on faces at 3500–4000K. Use dimmable, low-glare fixtures and avoid downlights directly over faces.

Q3: How do I control echo in a small room?

A: Treat at least one wall and the ceiling with high NRC materials, target RT60 around 0.35–0.45 s, and seal the door perimeter. A small rug helps, but wall and ceiling absorption carry the load.

Q4: What screen size fits best in small rooms?

A: A 43"–55" display covers most rooms up to 10' deep. Ensure text is legible from the farthest seat using the 3.5× character height rule, and mount the camera at eye level.

Q5: Which seating works better—banquette or chairs?

A: In tight rooms, a slim banquette saves 10"–14" of circulation compared to chairs and keeps participants in a single focal plane for the camera.

Q6: How should I choose colors for on-camera appearance?

A: Use matte, desaturated cools for walls with a warm accent. Avoid high-chroma reds or glossy finishes near the display; they can create color bleed and glare on camera.

Q7: Is a ceiling mic array a good idea in low ceilings?

A: Under 8' ceilings or in lively rooms, table boundary mics tend to outperform arrays. If you specify an array, keep RT60 controlled and verify pickup zones during commissioning.

Q8: Any tips for hybrid etiquette embedded in design?

A: Provide a small camera icon near the display, a simple join/leave interface, and a neutral backdrop behind participants to avoid visual distractions for remote attendees.

Q9: How do I future-proof the room without adding clutter?

A: Use a credenza with rear cable management, specify a display with multiple inputs, and keep a spare conduit to the camera wall. Modular acoustic panels and replaceable upholstery extend life.

Q10: Can I fit standing collaboration into a tiny chat room?

A: Yes—use a flip-top table and one perch stool. Set a lighting “Stand-up” scene that raises ambient light slightly while keeping face lighting soft.
