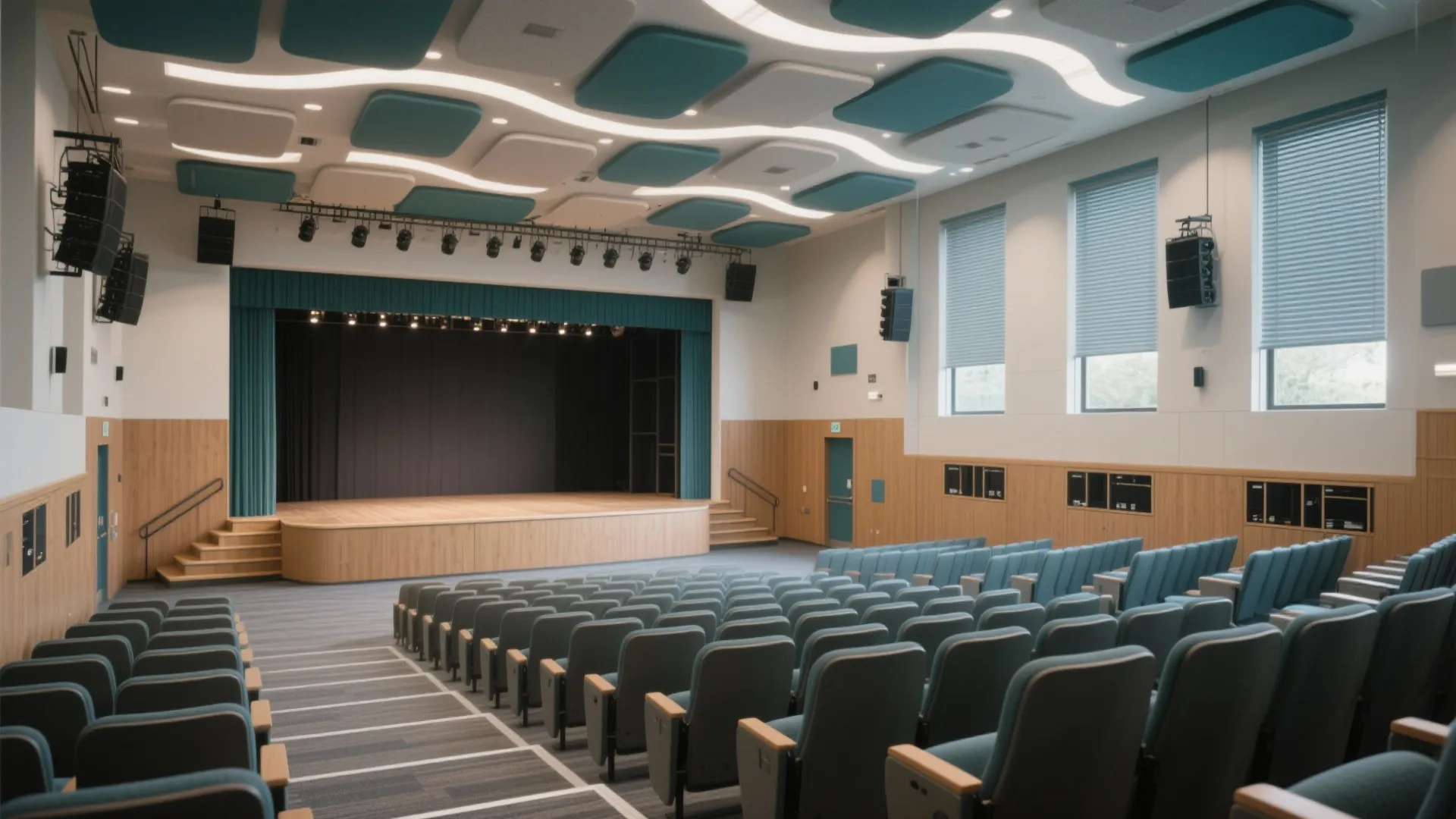

Moreshwar Hall Design Guide: Maximize Every Inch: Fast-Track Guide to Transforming Moreshwar Hall Spaces

Moreshwar Hall has the bones to do more than host events—it can flex from ceremonies and performances to training sessions and community workshops if the planning respects sightlines, circulation, acoustics, and comfort. I approach halls like this with a clear intent: every inch must pull double duty without feeling crowded or chaotic. That starts with verified performance baselines. The WELL Building Standard (WELL v2) recommends ambient illuminance targets of roughly 300–500 lux for multi-purpose areas, rising to 500–750 lux for tasks like reading or training, which aligns with IES recommendations for assembly spaces that require uniformity and glare control. Steelcase research shows that well-designed environments can boost perceived productivity and collaboration; their studies on posture variation and cognitive focus support flexible seating arrangements and micro-zones that adapt to activity types.

Capacity planning and flow determine whether the hall feels generous or strained. Gensler’s workplace studies repeatedly highlight the impact of layout on interaction quality and wayfinding; translating that to a hall means keeping circulation paths at 1.5–2.0 m clear width where possible, widening near entries and service points. For long sessions, ergonomics become pivotal—Herman Miller’s research into seating and posture shows reduced musculoskeletal strain when chairs offer lumbar support and encourage movement. I factor those findings into seating specs and the spacing grid: aim for 850–900 mm chair pitch (front-to-back) in dense setups, and increase to 1,000–1,100 mm in training configurations to allow legroom and bag stowage.

Set the Spatial Intent First

I define three core modes and let them guide every decision: ceremonial (processional aisles, focal stage, dignified lighting), learning (clear sightlines, controlled acoustics, even task light), and social (fluid seating, food service access, acoustic absorption to tame chatter). Start with a base plan that can flip quickly: a central focal wall with a modular stage, two service spines for AV and storage, and perimeter utility for catering or exhibits. When mapping chairs and tables, I use a layout simulation rhythm: 900–1,000 mm lateral spacing for banquet seating, 1,600–1,800 mm between rows for mixed-use tables, and keep cross-aisles every 8–10 seats to avoid long, static rows.

Light: Layered, Glare-Free, and Tunable

Lighting drives comfort and attention. For ambient light, target 300–500 lux uniformly with CRI 90+ for accurate color rendering. Add task layers: 500–750 lux on tabletops during training, 750–1,000 lux vertical onto speaker faces for clarity. Keep UGR (Unified Glare Rating) low by using indirect uplighting, matte baffles, and lateral wall washers. Color temperature should match intent: 3000–3500K for social warmth, 3500–4000K for ceremony, 4000–4500K for focused learning. Dim-to-warm fixtures help events transition gracefully. If integrating wellness cues, connect lighting scenes to the WELL Light concept for circadian alignment and visual comfort; see WELL guidance for practical thresholds and controls at WELL v2.

Acoustic Strategy: Control Reverberation, Protect Speech

Reverberation time (RT60) is the anchor metric. For multi-purpose halls, aim for 0.8–1.2 seconds depending on volume and use; closer to 0.8–1.0 sec for speech-heavy events, edging to 1.2 sec for music. Mix absorption (fabric panels, ceiling clouds, upholstered seating) with diffusion (bookshelf displays, slatted timber) to avoid dead rooms. Keep hard parallel surfaces broken with pilasters or angled walls. Floor finishes matter: use area rugs or carpet tiles in seating zones, while resilient flooring can stay in circulation paths. Provide a simple sound mask during social modes to maintain privacy near service counters without overwhelming the room.

Seating Grids and Sightlines

I design around an unobstructed 27–30° sightline to the stage or screen, keeping the eye-level at ~1,150 mm seated. Platform stages rise 450–600 mm for small rooms, 750–900 mm if depth requires tier-like views. For mixed-height audiences, stagger aisles diagonally to reduce head-on alignment. If projection is primary, screen bottom should be ~900–1,200 mm above floor with a screen height equaling at least 1/6 of the farthest viewing distance. Avoid column placements inside principal view cones; if structure dictates, build AV-fed repeater screens and redistribute focal points so no seat feels second-class.

Flexible Layouts: Flip Fast, Store Smart

Moreshwar Hall needs storage to be fast and silent. I specify nested stacking chairs with dolly capacity and foldable tables with underframe braces to maintain rigidity. Divide storage into hot (AV, cables, lecterns), warm (chairs and tables), and cold (rarely used decor). Aisle-ready carts shorten changeover time. When planning grids or testing procedural flows, a room layout tool lets me simulate capacity, aisle compliance, and sightlines before committing in real life.

room layout tool

Human Factors: Comfort Keeps People Longer

Comfort is not a single checkbox—it’s micro-choices. Chair seats at 430–460 mm height, backs with lumbar curvature, and breathable upholstery keep sessions tolerable beyond the first hour. Provide at least one standing rail per 20 seats for posture variation. Offer water points every 20–25 m to reduce congestion at a single bar. Normalize bag hooks under tables and power access every 1.8–2.4 m along seating rows; this respects cable management and reduces tripping. For inclusivity, keep wheelchair spaces integrated within the seating field (not isolated), offering adjacent companion seats and clear 900 mm routes.

Color Psychology and Atmosphere

Colors can cue behavior. Gentle neutrals with warm undertones invite social ease; desaturated blues and greens promote focus; deep accent tones create stage gravity without stealing attention. Verywell Mind’s color psychology overview notes that blues often correlate with calm and cognitive clarity, while warmer palettes drive sociability—use this split across modes to reinforce intent. Apply strong colors to vertical elements and keep horizontal surfaces quieter to avoid visual noise in eye-level sightlines.

Materials and Maintenance

Multi-use halls punish finishes. I select high-abrasion carpet tiles in seating zones (tight loop pile, solution-dyed fibers), hardwearing LVT or terrazzo in aisles, and wipeable wallcoverings at high-touch heights. If integrating timber, choose responsibly sourced, sealed finishes to resist dents. Material Connexion hosts vetted innovations worth exploring if sustainability is a goal—look for high-recycled-content composites and low-VOC coatings that won’t impact indoor air quality.

Lighting Controls and Scenes

Pre-set scenes save staff from fighting dimmers mid-event. Program: Ceremony (3500K, 400 lux ambient, 750 lux stage), Training (4000K, 600 lux ambient, 500–750 lux table light), Social (3000K, 250–300 lux ambient, accents at 500 lux). Tie scenes to time-of-day to manage glare with motorized shades and automatic tilting of louvered fixtures. Emergency egress lighting needs independent circuits and must remain unchanged by scene shifts.

Service, AV, and Back-of-House

AV racks should sit in a ventilated, lockable room with short runs to stage I/O. Provide ceiling cable trays and floor boxes on a 3–4 m grid for flexible mic, power, and data points. Keep catering on a separate supply route to avoid collisions with audience circulation; 1.8–2.0 m service corridors with swing-door vision panels are minimums I trust for smooth operations. Waste sorting stations should be visually clear and within 15–20 m of food service to prevent litter.

Wayfinding and Identity

Signage should be legible at a glance: high-contrast lettering, consistent iconography, and illuminated directionals near entries. Use a single typography family across banners, digital screens, and wall graphics to strengthen the hall’s identity. If the hall name carries heritage, reserve a focal wall for storytelling elements—photography, donor names, or community artifacts—lit with 3000K accents to feel warm and respectful.

Capacity Math That Respects Comfort

Target ranges rather than single numbers. Banquet mode: 1.2–1.5 m² per person (including circulation). Theater mode: 0.7–0.9 m² per person if sightlines and aisles are well organized. Exhibition mode requires more air around objects: 2.0–2.5 m² per visitor in peak periods. Keep 1.5–2.0 m queuing zones near doors and 2.0–2.4 m turning radii for carts in storage and service corridors.

Daylight, Heat, and Glare

Daylight is an asset until it blinds the third row. Use side-lighting rather than frontal glazing to protect sightlines. Apply dual-layer shading: mesh for mild glare and blackout for projection. Maintain < 2:1 brightness ratios between window walls and adjacent surfaces during presentations. If sunlight introduces heat plumes, a low-noise displacement ventilation strategy near seat bases can stabilize temperature without drafts.

Operational Playbook

Write a changeover script: assign roles, set cart paths, time each station. Label storage bays and keep a laminated plan near entrances for quick reference. Build an events kit—gaffer tape, zip ties, spare adapters, battery caddies—so staff never scramble. Train the team on lighting scenes, AV resets, and seating flips; the best design is only as good as its execution.

Upgrade Path

If the hall is mid-life, convert fluorescent to LED with high-CRI lamps, add acoustic ceiling clouds over central seating, and introduce modular stage risers. Replace mixed chair inventories with a single ergonomic model to stabilize aesthetics and maintenance. Place power rails in floor trenches rather than scattered outlets to simplify cable runs and reduce trip hazards.

FAQ

Q1: What ambient light level should a multi-purpose hall aim for?

A1: Aim for 300–500 lux ambient as a baseline, with task lighting up to 500–750 lux for training or reading. These ranges align with WELL v2 Light guidance and IES practices for assembly spaces.

Q2: How do I reduce echo without making the room feel dead?

A2: Target an RT60 of 0.8–1.0 seconds for speech-centric events using a mix of absorptive ceiling clouds, fabric wall panels, and diffusive elements like slatted timber. Balance absorption and diffusion to retain liveliness.

Q3: What chair spacing prevents cramped aisles?

A3: Use 850–900 mm pitch for dense theater seating and 1,000–1,100 mm for training layouts. Keep clear circulation paths at 1.5–2.0 m and add cross-aisles every 8–10 seats.

Q4: Which color temperatures fit different event modes?

A4: Social mode feels right at 3000–3500K, ceremony at 3500–4000K, and training at 4000–4500K. Pair with dimming and scene presets to change atmospheres rapidly.

Q5: How can I protect sightlines for projection and stage events?

A5: Maintain 27–30° sightlines, raise the stage 450–900 mm depending on depth, and keep the screen bottom 900–1,200 mm above floor. Avoid columns in view cones; add repeater screens if structure is fixed.

Q6: What storage approach speeds changeovers?

A6: Segment storage into hot (AV), warm (chairs/tables), and cold (decor). Use dollies and labeled bays, and design dedicated service routes to keep circulation clear during flips.

Q7: How do ergonomics influence seating selection?

A7: Choose chairs with lumbar support, seat height 430–460 mm, and breathable fabrics. Research by Herman Miller shows posture variation and proper support reduce fatigue and musculoskeletal strain.

Q8: What’s the best way to plan layouts without constant re-drawing?

A8: Use an interior layout planner to simulate seating grids, aisle widths, and sightlines before you commit. This speeds decisions and helps avoid costly on-site adjustments.

Q9: How much floor area per person should I allocate?

A9: Theater mode typically needs 0.7–0.9 m² per person; banquet mode 1.2–1.5 m²; exhibition mode 2.0–2.5 m² to give space for viewing and circulation.

Q10: What controls are essential for event flexibility?

A10: Pre-set lighting scenes, independent emergency circuits, AV patch panels on a regular grid, and motorized shades to manage glare. Keep a simple control interface to reduce errors under pressure.

Q11: How can I make the hall inclusive?

A11: Integrate wheelchair spaces throughout the seating field with companion seats, maintain 900 mm clear routes, provide hearing assistance systems, and design signage with high contrast and clear iconography.

Q12: Which materials survive heavy use?

A12: Solution-dyed carpet tiles in seating areas, LVT or terrazzo in aisles, wipeable wallcoverings, and sealed, dent-resistant timber. Opt for low-VOC finishes to maintain indoor air quality.
