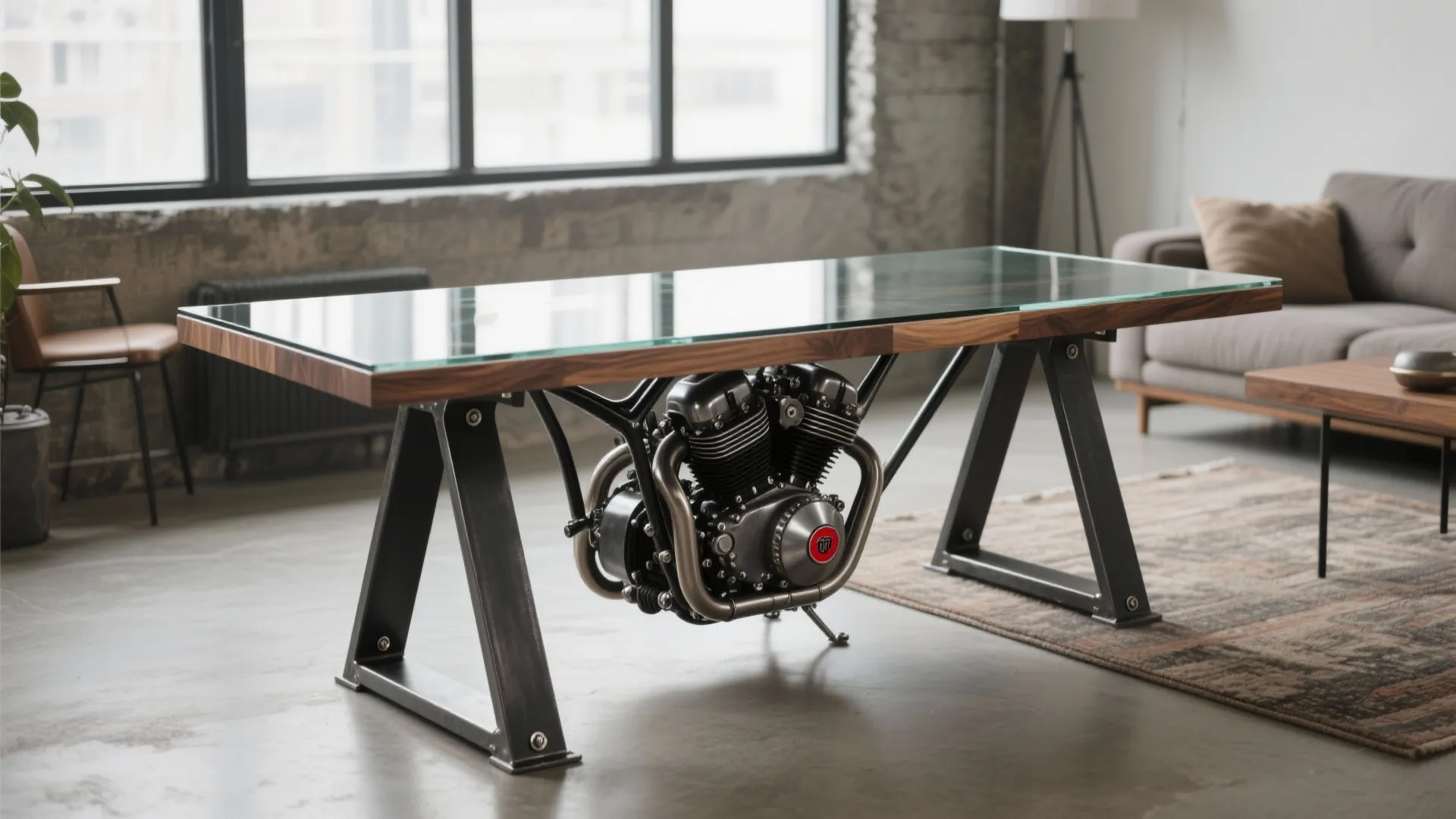

Motorcycle Table DIY: Create Your Own Unique Piece: Fast-Track Guide to Building a Motorcycle Table in 1 Hour

I’ve repurposed industrial parts into furniture for years, and a motorcycle table remains one of my favorite custom builds. It blends mechanical character with clean lines and usable surfaces—perfect for lofts, garages, or living rooms with a modern edge. The goal is stable structure, ergonomic height, and a finish that stands up to daily use without losing the bike’s soul.

Before you start, anchor your decisions with real-world dimensions and human factors. For comfortable dining, target a tabletop height around 28–30 inches; for a coffee table, 16–18 inches works best. These ranges align with common ergonomic guidance used across workplace standards and seating design from Herman Miller’s research on ideal seated postures and reach (their findings consistently emphasize neutral elbow angles and appropriate work surface heights). For lighting above your finished table, I follow IES recommendations to maintain a task illuminance in the 300–500 lux range so surfaces read true without glare; dimmable, 2700–3000K LEDs sustain warm color rendering and ambience (see ies.org/standards).

From a color psychology standpoint, temper the motorcycle’s boldness with materials that calm visual noise. Verywell Mind’s coverage of color psychology notes that reds raise arousal while blues and neutrals help perceived focus and relaxation—use this when choosing paint, powder coat, or tabletop veneers (verywellmind.com/color-psychology). Choose finishes that echo the bike’s heritage but don’t overwhelm a compact room.

Planning the Build

Decide whether you’re building around a full frame or select parts (frame section, fork, rims, engine block). Full-frame builds produce dramatic silhouettes but demand more stabilization. If you’re working in a tight footprint, mock up the layout with a room layout tool to confirm clearance around chairs and circulation; a layout simulation tool helps ensure that leg room, reach to the surface, and walking paths feel natural.

Structural Strategy and Balance

Load paths matter. Motorcycles carry weight low and central; your table should do the same. If using a frame, create a three- or four-point base. Weld or bolt steel plate feet under the frame’s strong nodes (cradle, swingarm pivot, lower engine mounts). Keep the center of gravity within the footprint—especially for bar-height builds. When using wheels or forks, drill through hidden gussets where possible and use grade 8 hardware with thread locker. I avoid placing load directly on thin sheet covers or decorative brackets; instead, transfer force through the backbone and triangulate with cross-bracing.

Tabletop Choices

Pick a surface that complements the mechanical base without fighting it. For coffee tables, 10–12 mm tempered glass lets the engine or spoke pattern read through. For dining or desk use, sealed hardwood (ash, walnut, or oak) or a compact laminate resists heat rings and scratches. Aim for a thickness that visually balances the base—typically 25–35 mm for wood; 12–15 mm for glass with polished edges. If mounting to the frame, isolate with rubber grommets to decouple vibration and prevent stress cracks in the glass. Keep overhangs modest: 150–250 mm per side is usually safe if your mounting points are within the inner third of the top.

Ergonomics and Human Factors

Leg clearance determines usability. For dining, maintain at least 650 mm knee clearance beneath the top and avoid protruding bolts under typical seating zones. If you incorporate a tank or engine block protrusion, offset seating or use asymmetrical placements so knees don’t collide with components. Mind edge comfort: a slight radius or chamfer on wood reduces pressure on forearms and prevents chipping.

Materials, Finishes, and Sustainability

Repurposing parts is inherently circular. Degrease with citrus-based solvents, then media blast if you plan to powder coat. Clear coat bare steel or use a matte graphite powder to preserve tool marks. Consider low-VOC finishes for indoor air quality. For wood, hardwax oils deliver a natural feel and repair well after scuffs. Stainless fasteners resist corrosion and keep the look crisp over time. When possible, keep original patina on selected components—contrasting a refined top with weathered metal creates depth without visual clutter.

Lighting, Glare, and Acoustic Comfort

Lighting elevates the piece. Pendants at 28–34 inches above the tabletop keep light tight without glare. I use 2700–3000K LEDs with high CRI to preserve color nuance in wood and metal. If your room is lively, add a soft rug under the table to dampen engine part reflections and control footfall noise. In open-plan living, acoustic panels or fabric upholstery nearby helps prevent the table from becoming a sound-reflective hotspot.

Mounting Methods

For glass, use discreet standoffs: M10 posts with neoprene pads spaced symmetrically. For wood, route embedded steel inserts and secure with countersunk bolts from below. Where possible, design an independent subframe (square tube steel) bolted to the motorcycle parts; mount the tabletop to the subframe rather than directly to complex shapes. This protects the table if you ever swap components and allows precise leveling.

Proportions and Visual Rhythm

Mechanicals are visually dense. Keep the composition readable by layering: metal base as the dark mass, tabletop as the calm plane, hardware as highlights. Use a 2:1 base-to-top proportion for coffee tables (short and solid) and approach 1:1.5 for dining (taller, lighter read). Repeat small motifs—spoke geometry, fin patterns—in hardware spacing or inlay so the eye finds rhythm.

Safety and Stability

Deburr every cut edge. Cap open tubes to avoid hidden rust. If you retain fluids in engine or forks for authenticity, seal thoroughly to prevent odor and leakage. Add concealed adjustable feet to level the piece on uneven floors. For homes with kids, blunt exposed corners and verify that the top can’t tip under point load; a 10 kg lateral push test is a practical field check.

Step-by-Step Summary

1) Select parts: frame section, wheel set, or engine block with strong mounting points. 2) Define height: 16–18 inches for coffee; 28–30 inches for dining. 3) Build the base: triangulate feet and add cross-bracing. 4) Prepare surfaces: clean, blast, powder coat or clear. 5) Create subframe: square tube rail with threaded inserts. 6) Mount top: glass standoffs or wood inserts with isolation pads. 7) Fine-tune ergonomics and edge treatment. 8) Level, test loads, and dial lighting at 300–500 lux above the surface.

Style Integration

Industrial lofts welcome raw steel and smoked glass; mid-century rooms prefer oiled walnut and satin black powder coat; minimalist setups do well with clear-coated aluminum and ultra-thin tops. Let existing furniture finish guide metal tone and hardware sheen. A single accent—like a tank badge inlaid flush into the tabletop—speaks louder than multiple branded elements.

Budget and Time

Expect 12–20 hours for a clean build excluding curing times. Parts costs vary wildly: salvage frames can be inexpensive, but machining standoffs, glass tempering, and powder coating add up. Prioritize structural integrity and finish quality; those two areas drive longevity.

Care and Maintenance

Use pH-neutral cleaners on powder coat and oiled wood. Avoid ammonia on glass coatings. Reapply hardwax oil annually. Check hardware torque every six months, especially if the table is frequently moved.

FAQ

Q1: What’s the best height for a motorcycle coffee table?

A1: Aim for 16–18 inches. This keeps sightlines clear in seating areas and aligns with comfortable reach when seated on a sofa.

Q2: How do I ensure the tabletop won’t wobble?

A2: Create a three- or four-point base, triangulate with cross-bracing, and mount the top to a dedicated subframe. Use adjustable feet to level on uneven floors.

Q3: Glass or wood—what’s more practical?

A3: Glass showcases components and is easy to clean but needs isolation pads and tempered safety. Wood offers warmth, hides fingerprints, and is quieter acoustically; choose sealed hardwood for durability.

Q4: How much lighting should be above the table?

A4: Target 300–500 lux on the surface with 2700–3000K LEDs to balance visibility and warmth, aligning with IES guidance for task lighting ranges.

Q5: Can I keep the motorcycle’s original patina?

A5: Yes. Clean and seal with clear coat or hardwax oil where appropriate. Contrast patina with refined hardware and a clean tabletop to keep the look intentional.

Q6: What hardware should I use for mounting?

A6: Grade 8 bolts with thread locker for structural connections, stainless for exposed fasteners. Pair with neoprene or rubber isolation to reduce stress on glass or wood.

Q7: How do I manage leg clearance?

A7: Maintain at least 650 mm knee clearance and avoid mounting bolts under seating zones. If components protrude, offset seating positions or adjust the tabletop footprint.

Q8: Is powder coating better than paint?

A8: For metal frames, powder coat is more durable and abrasion resistant. Choose matte or satin to reduce glare and keep fingerprints less visible.

Q9: What’s the safest way to use wheels in the base?

A9: Lock wheels with internal pins or remove bearings and fix axles through beefy brackets. The table should not roll under lateral load.

Q10: How can I make the table fit a small apartment?

A10: Keep the silhouette slim, choose lighter finishes, and use an interior layout planner to check circulation—ensure at least 750–900 mm walkways around the table.

Q11: What color schemes work best?

A11: Neutral tops (oak, ash, light walnut) paired with satin black or graphite frames. Add a single saturated accent—like a red badge—to avoid visual clutter, taking cues from color psychology research on arousal and calm.

Q12: How do I maintain the finish?

A12: Clean with pH-neutral products, avoid harsh solvents, re-oil wood annually, and check torque on major fasteners twice a year.
