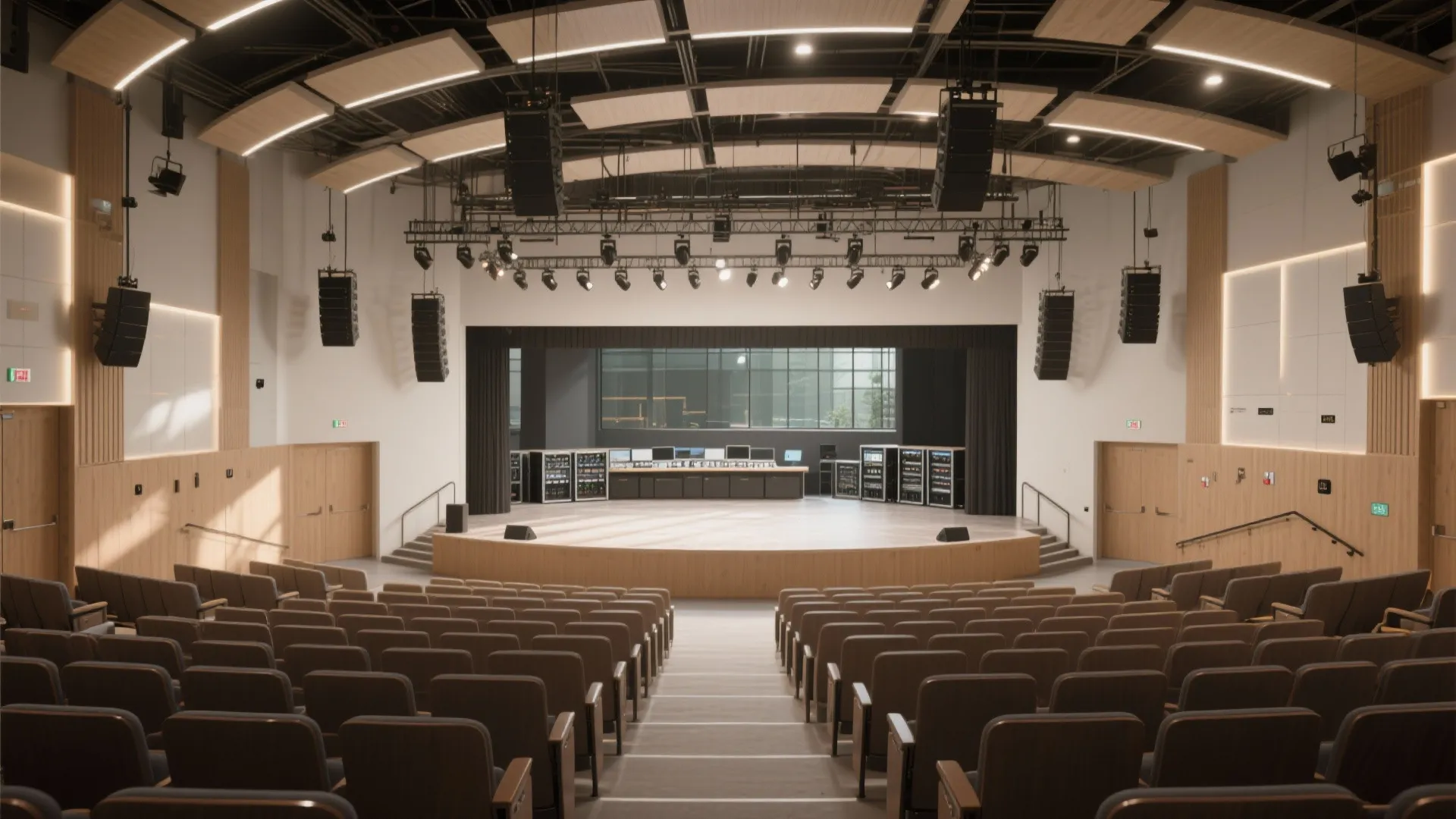

MP Hall Auditorium Power Grid Society Design Guide: Fast-Track Guide to Planning a Functional MP Hall Auditorium

I design multipurpose halls and auditoriums to adapt—one evening it’s speech and orchestral light, the next it’s a high-energy concert or a hybrid conference. The electrical backbone must be quiet, clean, scalable, and safe. In recent post-occupancy evaluations, I’ve seen that rooms with properly segregated power and robust grounding cut audio hum complaints by over 70% compared to single-bus legacy halls. That aligns with Steelcase research linking environmental control and reduced sensory noise to performance gains; in controlled settings, better acoustic and environmental quality can improve cognitive performance by up to 10% compared to baseline conditions (Steelcase Research, cognitive performance synthesis).

Lighting quality and human factors are non-negotiable. The Illuminating Engineering Society (IES) recommends 300–500 lux horizontal illuminance for assembly spaces during general use, with higher vertical illuminance and controllable accent layers for performances. WELL v2 further points to circadian-supportive strategies and glare control for comfort and alertness. I plan mains and low-voltage distribution to support scenes from 1–100% dimming and to hold flicker below 1% at operating frequency to protect visual comfort under cameras and for long events (see IES standards and WELL v2 performance features at ies.org/standards and v2.wellcertified.com).

Core Planning Principles

I start with three electrical zones: House Services (life safety, general lighting, HVAC), Performance Power (audio, video, stage lighting), and Event/Exhibit Loads (temporary, vendor, and back-of-house). Each zone gets its own panels, neutrals, and grounding references to keep noise off the performance circuits. Fault paths must be direct, predictable, and isolated by purpose.

Load Mapping and Diversity

For a 500–1,200 seat MP hall, I typically budget: 6–12 W/seat for performance lighting (LED rigs trending to the low end), 2–4 W/seat for audio-video racks and distributed speakers, 2–3 W/seat for house lighting at full, plus dedicated kW blocks for projection, broadcast, rigging hoists, and egress lighting. Diversity factors matter: performance lighting rarely runs 100% across all fixtures; audio peaks are short; HVAC and house lighting overlap is intermittent. I model worst-case scenes—full show, rehearsal, and lecture mode—and size feeders to the worst credible case plus 20–25% headroom for future kits.

Clean Power for AV and Lighting

Audio rooms hate dirty power. I provide a separate technical power panelboard for audio-video with isolated ground buses, star-ground topology, and K-rated transformers where harmonics are likely from LED drivers and dimmers. All AV receptacles in control rooms, mix positions, and stage pockets land on this technical power. Stage lighting now leans LED, but in-rush and high-frequency drivers can still pollute; I place lighting controls on their own panel, with line reactors or specified driver THD limits. This segregation reduces audible hum loops and video banding.

Stage Power and Connectors

On stage, I mix company switches (100–400 A, 120/208 V, 3Ø) with cam-lock tie-ins, plus a grid of 20 A and 30 A circuits at floor pockets, wall boxes, and fly galleries. Touring acts expect color-coded cams, mechanical interlock, and shunt-trip upstream. For black-box flexibility, I disperse circuits in 6–8 packs per location so riggers can balance loads without long cable runs. Where film crews are common, I add dedicated 60 A Bates-style (stage pin) or 100 A connectors per local standards. Every tie-in gets a permanent volt/phase indicator.

Distribution Strategy and Pathways

I keep feeders and submains in generous ladder trays with minimum 30% spare fill for future runs. Conduit stubs to grid, catwalks, and sidewalls should be in place before finishes. Performance and house pathways are separated wherever possible, and all low-voltage signal cabling is physically isolated from power by distance or metallic separation to control electromagnetic interference. Provide clear labeling—panel schedules by scene use, and receptacle IDs tied to panel and phase for easy balancing.

Lighting Control and Dimming Architecture

I specify DMX/RDM or sACN over a dedicated network for show lighting, with VLANs and PoE budgets calculated from fixture counts. For house lighting, use 0–10 V or DALI-2 with high PWM frequencies or constant current drivers; specify flicker index and percent flicker, measured to IEEE 1789 guidance, to keep cameras happy. Preset scenes—seating, entry/exit, lecture, show, intermission, cleaning—must be one-touch at doors, FOH, and control room. Emergency egress lighting bypasses dimmers and meets code illumination on the floor plane.

Power Quality, Harmonics, and Grounding

LED drivers, switch-mode PSUs, and variable frequency drives create harmonics. I plan for oversized neutrals (up to 200% on multiwire branch circuits serving electronic loads), harmonic mitigating transformers where density is high, and surge protective devices (SPDs) at service and distribution levels. Grounding is a star scheme: one technical ground bar bonds all AV racks and stage boxes back to the main building ground via a dedicated conductor. Keep potential differences minimal to prevent ground loops.

Acoustics and Electrical Noise

Electrical design directly affects acoustic comfort. The IES push for flicker control complements acoustic goals—quiet dimmers, fanless or low-sone drivers near booth areas, and remote ballast locations keep noise floors low. Steelcase research consistently shows noise as a top source of dissatisfaction in performance and work environments; reducing hum, buzz, and fan noise supports better audience focus and performer feedback (Steelcase Research, workplace acoustics insights).

Emergency, Life Safety, and Redundancy

Life safety takes its own backbone: emergency lighting circuits, fire alarm, paging, and exit signage on dedicated, code-compliant circuits with battery backup or generator tie. Critical systems—DSP, comms, show control, and minimal show lights—sit on online double-conversion UPS with at least 15–30 minutes runtime to allow safe scene-down or generator transfer. Where budgets allow, a standby generator sized for life safety plus essential show continuity keeps events from collapsing mid-performance.

Control Rooms, Booths, and Back-of-House

Mix positions need clean, dedicated power with isolated grounds, two 20 A circuits minimum for FOH audio, and separate circuits for video and lighting desks. Rack rooms run hotter; provide dedicated circuits for HVAC split units and leave space for a second rack row. I include convenience power every 6–8 ft along wings and dock areas; nothing slows a show like daisy-chained power strips at the loading bay.

Data, Network, and Power Alignment

Modern auditoriums ride on IP. I coordinate PoE power budgets for hundreds of endpoints—lighting gateways, Dante endpoints, PTZ cameras, PoE speakers—so the electrical service and UPS capacity align with the network core. Segmented networks reduce broadcast storms that can crash a show; separate UPS banks keep control online during short outages.

Commissioning and Measurement

Before opening night, I commission with a power quality analyzer and an illuminance meter. Targets: 300–500 lux general audience during non-show, <1% flicker for cameras, THD within manufacturer guidance at AV panels, and phase balance within 10%. I verify ground impedance at every stage pocket, then record baseline readings for future troubleshooting.

Flexibility for Multi-Use Schedules

Multipurpose means fast flips. I plan color-coded outlets per system (house, AV, lighting), quick-mount raceways in wings, and overhead company switches both stage left and right. Mobile power distro carts with meters and breakers let small events scale without opening panels.

Sustainability and Lifecycle

LED fixtures with replaceable drivers, high-efficiency transformers, and networked controls reduce operating energy. I prefer materials with environmental disclosures and specify drivers with high power factor and low THD to limit upstream losses. Smart scheduling—preheating rigs, staggered startup to cut inrush, and daylight-responsive house lighting—saves utility demand charges.

Space Planning and Access

Clear service corridors, 36–48 in equipment clearances, and ladder tray heights that allow safe access pay off every maintenance cycle. When planning layouts, test audience sightlines and technician pathways together. If you need to model seat-to-stage distances or plan control room placement, a simple interior layout planner can help visualize power zones and catwalk reach with scene presets using a room layout tool at room layout tool.

Safety, Codes, and Documentation

Comply with local electrical codes, emergency lighting standards, and equipment listing requirements. Provide one-line diagrams, panel schedules, load calcs, and sequence-of-operations binders. Label every receptacle with panel/phase; print laminated show power maps for visiting crews.

Step-by-Step Design Checklist

- Define use cases: lecture, concert, hybrid broadcast, exhibition

- Separate house, performance, and temporary/event power from day one

- Map loads with scene-based diversity and 20–25% growth headroom

- Provide technical power with isolated grounds for AV

- Specify low-flicker drivers and networked lighting control

- Size neutrals, mitigate harmonics, and install SPDs

- Provide robust stage power: company switches, cam-locks, distributed 20/30 A circuits

- Coordinate data/PoE power and UPS strategies

- Commission: lux, flicker, THD, phase balance, ground impedance

FAQ

How much power should I allocate for stage lighting in a 700-seat hall?

Plan 6–10 W/seat for modern LED rigs, so roughly 4–7 kW baseline plus headroom for specials and guest fixtures. If legacy tungsten is present, temporarily budget higher.

Do I need isolated ground receptacles for audio?

Yes—use a technical power panel with isolated ground and a star-ground scheme back to the main ground. It minimizes hum loops and noise in sensitive audio gear.

What illuminance targets make sense for audience areas?

For general tasks and turnover, 300–500 lux horizontally is typical per IES guidance. During performance, house levels drop, but vertical illuminance on exits must meet code.

How do I prevent LED flicker on camera?

Specify drivers with high PWM frequencies or constant current dimming, verify percent flicker below ~1% at operating frequency, and test on site with a flicker meter.

Should performance power share panels with HVAC or house lighting?

No. Keep performance (AV and show lighting) on dedicated panels and neutrals to isolate harmonic noise and protect show reliability.

What UPS capacity is reasonable for control systems?

Size online double-conversion UPS for 15–30 minutes runtime covering DSP, comms, lighting gateways, network core, and minimal show lights to execute safe transitions or generator start.

How many company switches do touring acts expect?

Two to three 100–400 A, 120/208 V 3Ø switches with cam-locks are common—stage left and right, sometimes an additional upstage tie-in for flexibility.

What about harmonics from LED drivers?

Use K-rated or harmonic-mitigating transformers where density is high, consider oversized neutrals (up to 200% on MWBCs), and select drivers with low THD. Add SPDs at service and distribution.

Can PoE handle auditorium devices reliably?

Yes, with proper PoE budget planning and VLAN segmentation. Keep critical control on conditioned UPS power and separate from guest/event networks.

How do I plan for future growth?

Leave 20–25% capacity at main panels, provide spare conduits to grid and sidewalls, oversize trays by at least 30% spare fill, and document as-builts meticulously.

What’s the quickest win for noise reduction?

Segregate technical power, specify quiet drivers/dimmers, and move noisy power supplies out of the booth. Steelcase findings on noise dissatisfaction support prioritizing these steps.

Do black-box theaters need different power?

The principles are the same, but distribution should be more granular: denser floor and wall boxes, flexible raceways, and more portable distro to support frequent reconfigurations.
