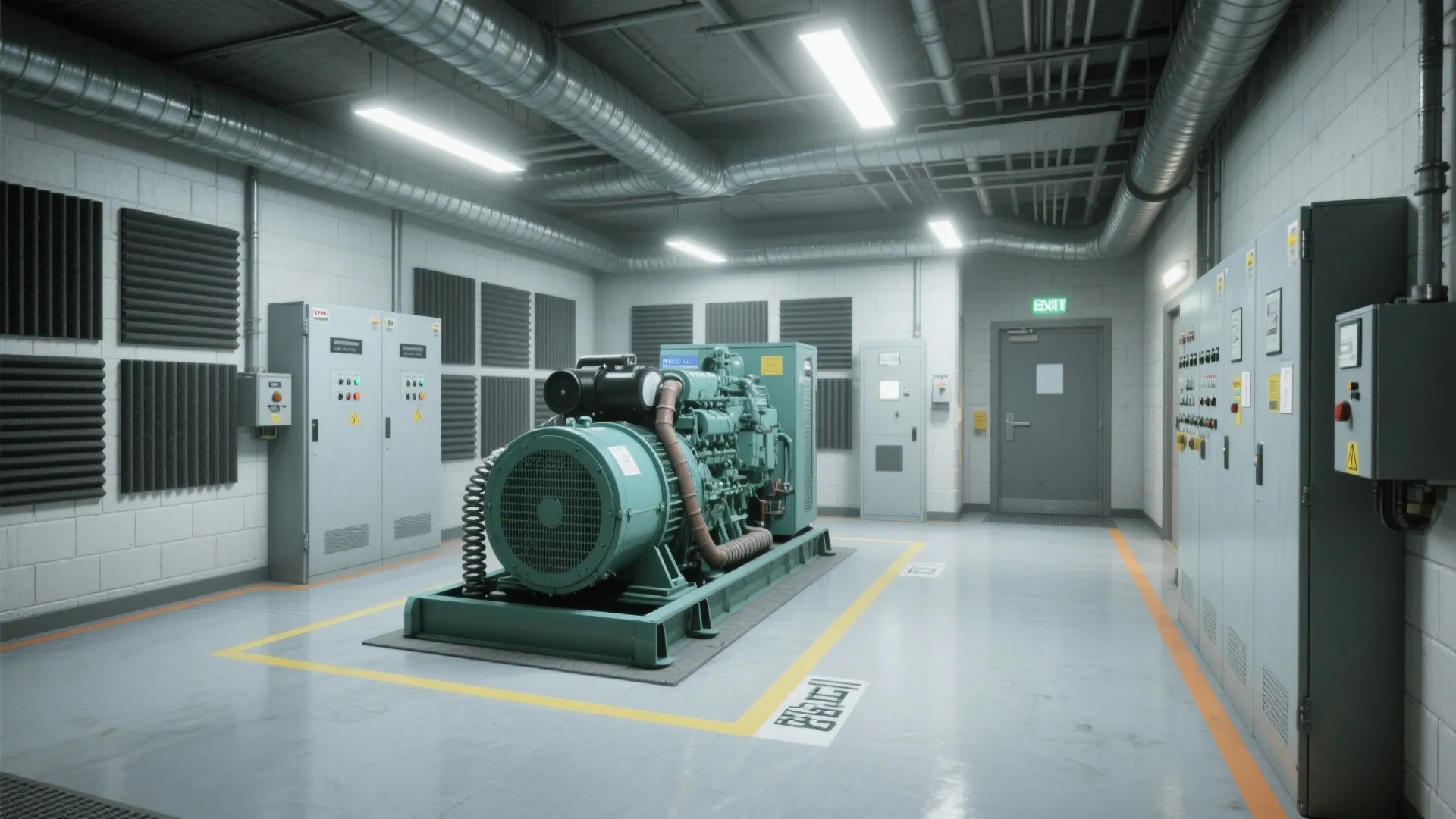

Optimal Generator Room Dimensions: A Designer’s Guide: Fast-Track Guide to Sizing Your Generator Room Right

Designing a generator room is less about squeezing a box into a back-of-house corner and more about orchestrating air, access, heat, noise, and people. From experience, the most successful rooms start with clear dimensional logic tied to maintenance envelopes, airflow pathways, acoustic separation, and code-driven egress. Steelcase’s research links noise and interruptions to performance loss, noting that uncontrolled noise can reduce focus time significantly in workplaces; in utility spaces that flank occupied zones, good acoustic planning prevents that bleed (Steelcase Research). WELL v2 likewise underscores thermal and acoustic criteria that spill over from support spaces into occupied areas; keeping generator heat and sound in check supports broader building performance targets (WELL v2).

Clearances drive the room. Herman Miller research shows that ergonomically sound access and reach zones reduce fatigue and error in repetitive tasks; I apply that principle to service corridors around gensets to keep routine maintenance safe and efficient (Herman Miller Research). The Illuminating Engineering Society (IES) recommends task illuminance ranges for maintenance tasks around 300–500 lux; lighting to these levels inside and directly adjacent to the unit ensures readable gauges, safer valve operation, and cleaner inspections (IES Standards).

Core Dimensional Logic

Every generator room begins with the manufacturer’s overall dimensions, then expands to include service envelopes and code requirements. I treat the engine-generator set as the inner block, then add layers: exhaust and radiator space, cable bend radius zones, fuel and fire protection clearances, and human maintenance corridors. As a baseline, I aim for a minimum continuous 1,000–1,200 mm (40–48 in) service aisle on the longest service side, 900 mm (36 in) at the rear if seldom used, and a clear 1,200–1,500 mm (48–60 in) at the controls end where routine interaction happens. Where flywheel, belts, or hot surfaces are exposed, I increase clearance and incorporate guards.

Planning for Delivery and Removal

Good rooms are built around the largest future move. I verify a straight or modular disassembly path from exterior grade to the generator pad—door leaf width, corridor turns, floor loading, and a removable louver or panel sized to the alternator body. A practical rule: either one full-height removable panel equal to the genset width plus 150–200 mm (6–8 in), or a coordinated knock-out wall bay. Keep structural columns at least 600 mm (24 in) off the service face to accommodate lifting equipment and pallet jacks.

Ventilation, Combustion Air, and Heat Rejection

Air is volume. Diesel and gas generators demand large intake and discharge areas to meet combustion and cooling needs. With closed-loop radiator packages, I allocate a full-height ducted discharge to exterior, sized by manufacturer pressure drop limits, and keep intake low and cool. I maintain a minimum 1,000 mm (40 in) clear plenum between radiator face and opposing wall to avoid recirculation. Where using room-vented radiators, I increase room volume and louver free area, separating intake and discharge by distance and level. Temperature rise planning is key—WELL v2 thermal metrics remind us that excessive mechanical heat can load adjacent spaces; I add insulation to shared partitions and specify automatic dampers to isolate during operation (v2.wellcertified.com).

Acoustics and Vibration

Generator rooms don’t have to be the building’s noisiest secret. I design the room as a box-in-box where feasible: resiliently mounted genset, isolated inertia base, and floating or damped partitions. Aiming for 45–55 dBA at adjacent occupied spaces is reasonable for many facilities; achieving that requires STC 55–60 assemblies and airtight details. Seal cable penetrations and louver perimeters, specify lined intake/discharge ducts with turning vanes, and choose absorptive ceiling treatments to reduce reverberation. Low-frequency rumble is best addressed with mass and isolation: double-stud walls or CMU with resilient channels, plus spring mounts tuned to the engine’s dominant frequency.

Fuel, Fire, and Code Clearances

I coordinate fuel tank separation distances per local code and NF-class references, but as a design habit, I maintain at least 900 mm (36 in) between day tanks and hot engine surfaces, keep fill/vent piping accessible, and specify spill containment curbs with pump-out points. Fire-rated enclosures for indoor tanks and 1-hour to 2-hour partitions around the generator room are common in mixed-use buildings. Doors swing in the direction of egress, with panic hardware where required. I maintain a dedicated egress aisle of 900 mm (36 in) minimum, uninterrupted by conduits and piping, from the most remote point to the exit door.

Electrical Distribution and Cable Management

Switchboards, ATS, and paralleling gear demand their own clearances: typically 1,000–1,200 mm (40–48 in) in front of energized equipment and clear side access per manufacturer. Lay out cable trays with generous radius for large conductors and vibration loops at the genset terminals. Keep control wiring segregated from power. Where rooftop or yard transformers are remote, plan a direct, shortest-run route to minimize voltage drop and heat in trays. If the room doubles as an electrical space, consider separate acoustic and thermal zoning inside the room to protect sensitive gear.

Lighting, Task Visibility, and Color

For maintenance and safety, I target 300–500 lux at working planes, 4000–5000 K neutral-white LEDs to maintain color fidelity on gauges, and glare-controlled fixtures aimed away from reflective housings. Emergency lighting and exit signage are non-negotiable. High-chroma safety color bands on floor edges around hot zones and moving parts improve situational awareness—color psychology literature notes faster hazard recognition with high-contrast cues (Verywell Mind, color psychology). Motion sensors are acceptable, but I include a manual override for extended maintenance tasks.

Moisture, Corrosion, and Materials

Engines bring humidity and oil mist. I specify non-slip, chemical-resistant epoxy floors with coved bases, CMU or fiber-cement walls with washable coatings, and stainless hardware. Floor drains with oil-water separation simplify cleanup. Keep cable trenches covered and gasketed. Where coastal or high-humidity sites are involved, increase coating durability and protect louvers with marine-grade finishes. Sustainable choices matter: recycled-content acoustic insulation and low-VOC coatings play well with long-term operations and maintenance goals.

Room Sizing by Generator Type

- Small standby (50–150 kW): A compact room might be 3.5–4.5 m wide by 6–8 m long, allowing a 1,000–1,200 mm service aisle and end-access. Add space if day tanks or ATS are inside.

- Medium (200–750 kW): Expect 5–7 m width and 9–14 m length, with increased radiator discharge zone and separate electrical alcove. Plan for heavier vibration bases and wider egress paths.

- Large or paralleled sets (1–3 MW): Consider separate rooms—engine hall and switchgear room—with acoustic lobbies. Widths can exceed 8–10 m with length set by module count. Ceiling height of 4–6 m helps with gantry crane access and heat stratification control.

Workflow and Human Factors

I map routine tasks—filter changes, coolant checks, breaker racking, belt tensioning—and ensure each has clear reach envelopes and staging space for tools and carts. Borrowing from ergonomics research, reducing awkward reaches and improving line-of-sight lowers error rates and speeds maintenance. Provide a clean bench, lockable storage, and a whiteboard for service logs. Keep noise-protected observation from the door with sightlines to critical gauges.

Adjacencies and Building Impact

Never back a bedroom, classroom, or conference room directly onto a generator wall; stack against parking, service yards, or storage. Separate the intake from vehicle exhaust sources. For tight urban sites, I offset the room from the façade and create an acoustic courtyard for intake/discharge. Coordinate structural vibration paths—avoid continuous beams into sensitive floors.

Layout Simulation and Coordination

Before finalizing dimensions, I run a detailed coordination pass: 3D model the genset, radiators, silencers, ducts, cable trays, and clearances, then simulate door swings and removal paths. A room layout tool helps visualize the service envelopes, test egress flows, and verify that future equipment swap-outs are feasible with existing wall openings. Try this interior layout planner to pressure-test angles and maintenance routes: room layout tool.

Commissioning Considerations

Design for commissioning: temporary load bank connections near exterior, safe exhaust routing for load tests, and monitoring ports accessible without removing guards. Provide permanent labeling, durable wayfinding, and space for future acoustic upgrades if measured noise exceeds targets.

FAQ

What is the minimum clearance I should keep around a generator?

I keep 1,000–1,200 mm (40–48 in) along the primary service side, 900 mm (36 in) at the rear if infrequently accessed, and 1,200–1,500 mm (48–60 in) at the controls end. Always confirm manufacturer service envelopes.

How high should the ceiling be in a generator room?

For small to medium units, 3.5–4 m (11.5–13 ft) clears ducts, lights, and lifts. Large sets with overhead cranes or tall exhaust plenums benefit from 4–6 m (13–20 ft). Height also helps with heat stratification.

How much space do I need for ventilation louvers and ducts?

Size intake and discharge per manufacturer pressure-drop limits. Provide at least 1,000 mm (40 in) clear in front of radiator faces and keep intake and discharge physically separated to prevent recirculation.

What lighting levels are appropriate for maintenance?

Target 300–500 lux on working planes with neutral-white LEDs (4000–5000 K). This aligns with IES recommendations for technical tasks and improves gauge readability.

How do I control noise to adjacent rooms?

Use an isolated inertia base, spring mounts, STC 55–60 wall/door assemblies, sealed penetrations, and lined intake/discharge ducts. Aim for 45–55 dBA in adjacent occupied areas; verify with commissioning tests.

Can I place the ATS and switchgear in the same room as the generator?

Yes, but provide code-required working clearances (typically 1,000–1,200 mm in front) and acoustic/thermal separation inside the room. Sensitive gear prefers cooler, quieter conditions.

What about fuel tank placement and spill control?

Maintain at least 900 mm (36 in) from hot surfaces, provide fire-rated enclosures as required, include spill containment curbs, and ensure clear access to fill, vent, and gauge points.

How do I plan the equipment removal path?

Ensure a removable louver or wall panel at least genset width plus 150–200 mm, verify door and corridor widths, and keep a straight or modular path to grade. Avoid fixed obstructions near the service face.

Do I need vibration isolation for the floor?

For most diesel sets, yes. A concrete inertia base on springs or neoprene isolators tuned to the engine speed reduces structure-borne noise and protects adjacent spaces.

What color finishes work best in generator rooms?

Neutral, high-reflectance walls with contrasting safety bands improve visibility. Color psychology supports high-contrast hazard marking for faster recognition without overwhelming the space.

Should I include a load bank connection panel?

If periodic testing is required, a dedicated exterior-accessible connection simplifies commissioning and avoids running temporary cables through doors.

How can I simulate different room layouts before construction?

Model the genset and service envelopes in a digital interior layout planner to test clearances, egress, and removal paths. Use a layout simulation tool early to avoid rework and costly clashes.
