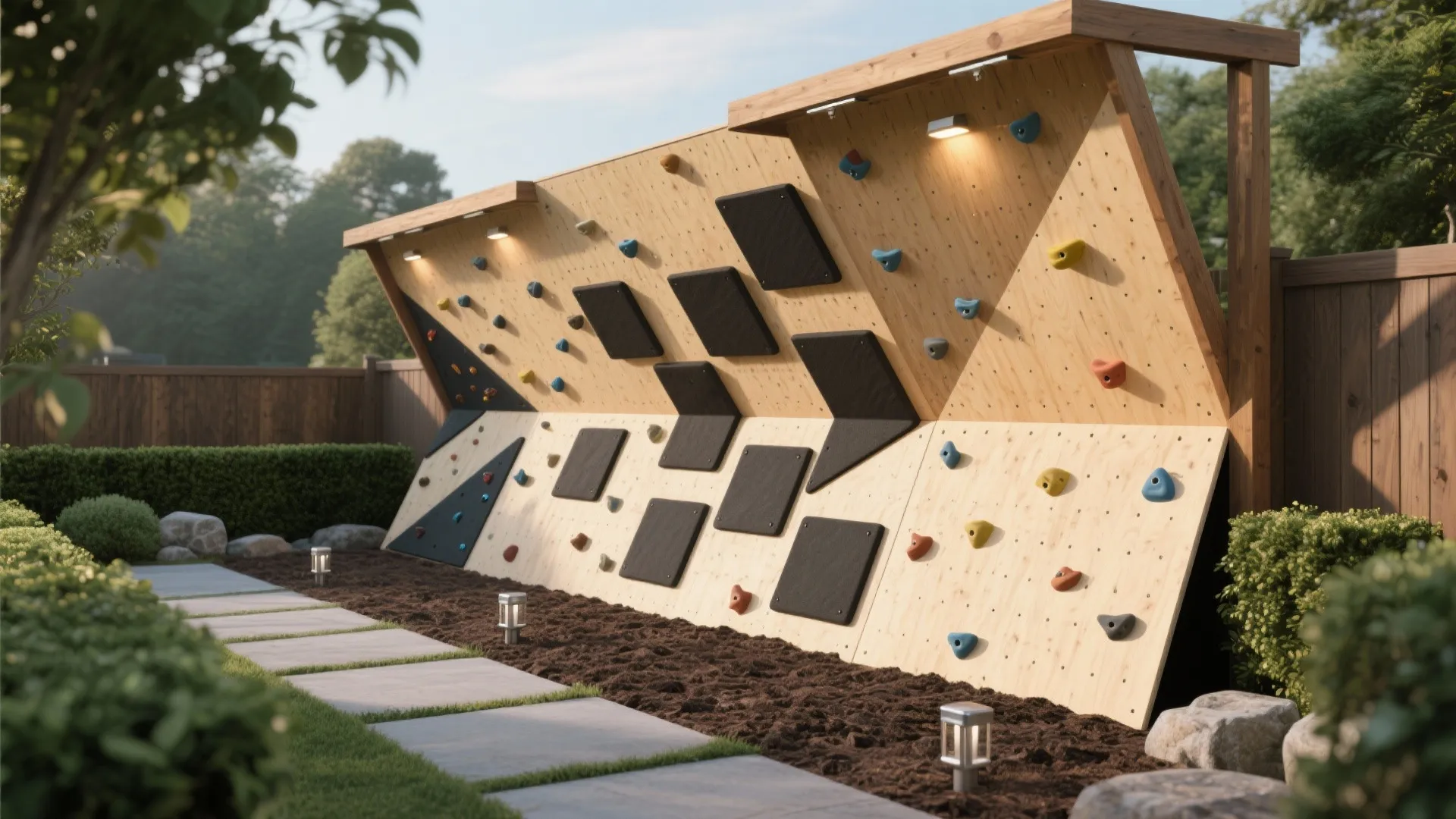

Outdoor Climbing Wall DIY: Step-by-Step Guide for Beginners: 1 Minute to Your Own Backyard Adventure Hub

I’ve designed and built training walls for boulderers and top‑rope climbers who needed reliable practice close to home. A successful outdoor wall balances structure, safety, and weather resilience, then layers in route variety to keep motivation high. Before you pick up a saw, plan for loads, fall zones, and long‑term maintenance.

Safety isn’t subjective in climbing. WELL v2 references underline the importance of injury prevention through environmental controls, while Steelcase workplace research shows that well‑planned physical environments reduce accident risk and increase engagement. Translating that mindset to a backyard wall means controlling impact forces, setting clear fall zones, and using surfaces that mitigate slips.

Light also affects performance. The Illuminating Engineering Society (IES) suggests outdoor task illuminance of roughly 100–300 lux for basic visual tasks; for evening training, aim for the upper range with shielded, glare‑controlled fixtures so you can read holds without washing out texture. For color on hold recognition, keep color temperatures between 3000–4000K to maintain contrast without eye fatigue.

Step 1: Define Purpose, Users, and Space

Decide whether you’re building a bouldering wall (short, no ropes) or a top‑rope/traverse wall (higher, requires belay). For beginners, a 10–12 ft bouldering wall with a 10–12 ft clear fall zone is more manageable. Measure sun exposure, prevailing wind, and drainage. If the wall’s near a fence or tree, maintain a minimum 6–8 ft clearance on every side of the fall zone. For layout exploration—angles, landings, and approach paths—a room layout tool helps visualize the footprint before you dig.

Step 2: Check Codes, Permits, and Anchoring Requirements

Local building codes may treat the wall like a freestanding structure, especially if it exceeds 8 ft or is anchored to a dwelling. Ask about setback rules and footing size requirements. If you plan to attach to an existing building, you’ll likely need engineer approval to confirm load paths and shear values. Keep utilities in mind—call for a locate before sinking footings.

Step 3: Choose a Structural System

For DIY, post‑and‑frame walls are reliable: pressure‑treated 6x6 posts in concrete footings with a laminated beam, then a stud frame carrying the climbing panels. Alternatively, an A‑frame braced back to ground anchors keeps loads efficient and reduces racking. Avoid attaching solely to fences; they’re not engineered for dynamic loads.

Step 4: Set Footings and Posts

Mark post centers, typically 4–8 ft apart depending on panel thickness and wall height. Dig below frost depth (often 30–48 inches, check local code). Bell the footing base for uplift resistance. Use 4000‑psi concrete, set posts plumb with temporary braces, and include post bases or hot‑dip galvanized hardware to isolate wood from standing water. Let concrete cure fully before loading.

Step 5: Frame the Wall and Angles

Decide your primary angle: vertical (90°) is friend‑friendly; 10–20° overhang builds strength without punishing beginners. I often start with one vertical section and one 15° overhang, plus a small 30° segment for progression. Use 2x6 studs at 16" o.c., add horizontal stringers for panel edges, and install diagonal bracing to reduce racking. Block every panel joint so bolt loads transfer cleanly.

Step 6: Select Cladding Panels

Exterior‑grade plywood (¾") or structural composite panels rated for outdoor use are standard. Seal all faces, edges, and holes with marine‑grade epoxy primer and a UV‑stable topcoat. Pre‑drill T‑nut holes on a 6–8 inch grid; use zinc‑plated or stainless T‑nuts to resist corrosion. Countersink screws and keep fasteners consistent for maintenance.

Step 7: Weatherproofing and Durability

Use flashing where panels meet vertical posts. Back‑prime plywood and seal cut edges immediately. Choose stainless or hot‑dip galvanized hardware throughout. A breathable, textured exterior coating improves grip and sheds water. Consider a simple shed roof or drip edge above overhangs to protect seams. Vent the back of the wall to prevent trapped moisture.

Step 8: Holds, Volumes, and Route Setting

Start with a mixed set: jugs for warmups, footholds, edges, and a few slopers to train body tension. Spread hold colors to avoid visual confusion and reserve a single color per route. For beginners, set routes in the V0–V2 range. Maintain three lines: skills (footwork), strength (overhang), and play (fun movement). Tighten bolts to manufacturer torque; check weekly. Volumes add geometry—secure them to blocked areas with through‑bolts, never just screws.

Step 9: Landing Zones and Fall Protection

For bouldering, use layered crash pads across the entire fall zone, with no gaps. Keep edges interlocked and add a secondary soft layer under pads if the base is concrete or packed soil. Maintain at least 10 ft clear in front; remove rocks, tools, or garden furniture. Spotters should protect the head and hips, not catch the climber mid‑air.

Step 10: Lighting and Acoustics

Outdoor sessions benefit from warm‑neutral lighting that preserves texture. Shield fixtures to reduce glare and aim for about 200–300 lux on holds at night, aligning with IES outdoor task ranges. If neighbors are close, add soft landscaping—hedges, mulch—to dampen impact noise from landings. Rubber edging also reduces transfer to hard surfaces.

Step 11: Ergonomics, Human Factors, and Color Psychology

Route height and reach should match the primary users. For kids, bring starting holds down and include bigger footholds. Color impacts perceived difficulty—according to research summarized by Verywell Mind, red can feel urgent and intense, while greens and blues are calmer; use calmer colors for beginner routes, brighter accents for challenges. Balance spacing so users aren’t forced into extreme spans; most beginner moves should be within comfortable reach ranges.

Step 12: Routine Safety Checks

Monthly: inspect posts for rot, hardware for corrosion, panels for delamination, and holds for spin. After storms, recheck fasteners and water ingress. Keep a log—date, items checked, and actions taken. Replace any deformed carabiners or worn webbing immediately if you occasionally top‑rope on an anchor bar.

Step 13: Sustainability and Material Choices

Use responsibly sourced, FSC‑certified timber where possible. Opt for low‑VOC exterior coatings and long‑life stainless fasteners to reduce replacements. Design for disassembly—through‑bolts and accessible panel edges make future upgrades cleaner.

Step 14: Finishing Touches and Training Flow

Add a simple gear shelf, chalk station, and a mark for start/finish holds. Tape route labels with grades and dates. Rotate problems every 4–6 weeks to keep progression steady. Consider a compact hangboard on a side panel for warmups.

Beginner Layout Tips

Plan a clear approach path, a dedicated warmup section, and an overhang area that doesn’t intersect fall zones. If you’re testing angles or access paths before building, a quick pass with an interior layout planner helps you spot traffic conflicts and pad coverage gaps.

One Real‑World Build Insight

On a recent backyard wall, we used a 12 ft span with three angles—0°, 15°, 30°—and dedicated 12 ft of landing with interlocked pads. The switch from basic galvanized to stainless hardware cut rust checks by half, and a low eave above the 15° panel prevented 80% of seam water ingress over a storm season.

References for Safer Design

For broader safety and environmental performance guidance, WELL v2 offers evidence‑based criteria around injury prevention and lighting quality. Steelcase’s research discusses how risk‑aware layouts improve user engagement and reduce incidents—use those principles to shape your fall zones and access paths.

FAQ

How high should a beginner outdoor bouldering wall be?

Keep it around 10–12 ft. That height supports progression without making falls unmanageable. Ensure a clear, padded fall zone of at least the wall height in front.

Do I need a permit to build an outdoor climbing wall?

In many municipalities, freestanding structures above certain heights require permits. If attached to a dwelling, structural review may be mandatory. Always check local code before digging footings.

What panel material is best for outdoor use?

¾" exterior‑grade plywood or structural composite panels, fully sealed on all faces and edges. Use stainless or hot‑dip galvanized fasteners, and marine‑grade primers for longevity.

How many T‑nuts per panel should I install?

A 6–8 inch grid works well for variety. More density on overhang sections allows flexible route setting without overcrowding.

What lighting do I need for evening climbing?

Aim for about 200–300 lux on the wall face with shielded fixtures to reduce glare. Neutral color temperature (3000–4000K) preserves hold texture and color contrast.

How do I protect the landing area?

Use interlocked crash pads covering the entire fall zone. Remove obstacles and ensure a firm, level base beneath pads. Train spotters to guide falls, not catch climbers.

Which hold types are best for beginners?

Start with jugs and positive footholds, then add edges and a few slopers for progression. Set routes in V0–V2 and use single colors per route to separate lines visually.

How often should I inspect the structure?

Do a quick weekly hold and bolt check, and a monthly structural inspection for rot, corrosion, and panel delamination—plus a post‑storm check after heavy rain or wind.

Can I attach the wall to an existing fence?

Avoid fencing as a primary support. Fences aren’t engineered for dynamic climbing loads. Use dedicated posts and footings or consult an engineer for attachments to a building.

What’s the simplest angle layout for a first build?

Combine one vertical section and one 15° overhang. This pairing covers technique and strength without overwhelming new climbers.

How do color choices affect perceived difficulty?

Calmer hues like greens and blues feel less intimidating, while reds and high‑contrast accents can make routes feel more intense. Use color to communicate route intent clearly.

Should I add a roof over the wall?

A small drip edge or eave above the overhang helps protect seams and hardware, reducing water ingress and maintenance frequency.
