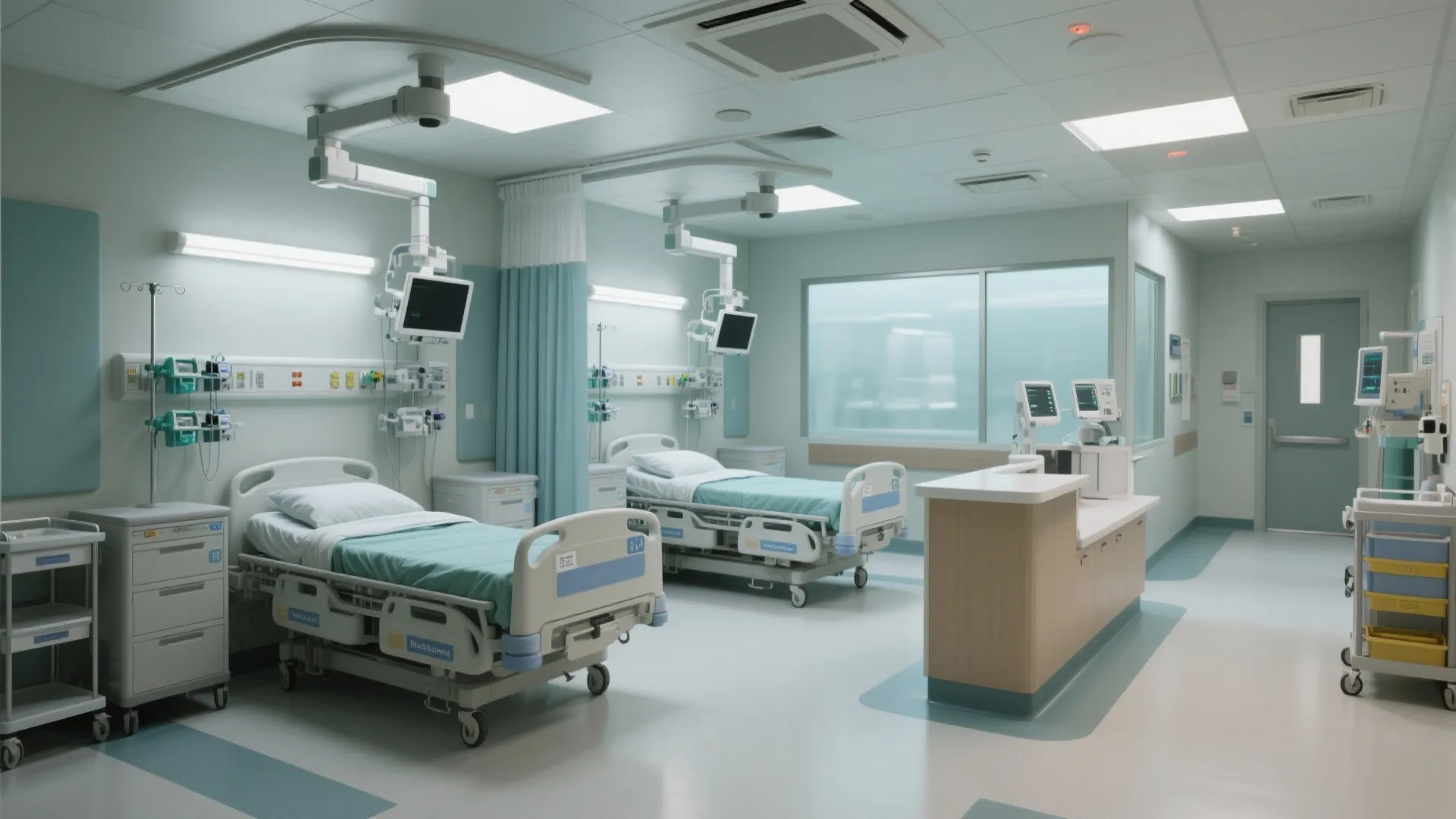

PAC Room Design: How to Optimize a Small Patient Care Area: 1 Minute to Smarter, Safer Post-Anesthesia Care Room Setup

I’ve planned and renovated multiple compact Post-Anesthesia Care (PAC) rooms, and the most successful ones balance minute-by-minute clinical workflows with patient comfort. In small footprints, every inch must serve a clear function—visibility, circulation, and quick access trump aesthetics unless they actively support safety and recovery.

Throughput and visibility are measurable priorities. Steelcase research links environmental control and spatial clarity to reduced cognitive load for staff, boosting task performance in high-demand zones. WELL v2 guidelines target ambient noise below 40 dBA at night and recommend strategies to limit alarms at the bed zone to avoid stress spikes for patients. These benchmarks shape lighting, acoustics, and zoning decisions in PAC rooms where rapid assessment is essential.

Lighting quality is non-negotiable. Following IES recommendations for healthcare task lighting, I set exam/task areas between 500–1000 lux with neutral 3500–4000K color temperature to maintain accurate skin-tone rendering and reduce fatigue. Ambient lighting stays around 200–300 lux, with patient-ready dimming and glare controls. It’s a tight range that supports staff accuracy while keeping recovery calmer.

Key Spatial Ratios and Circulation

In small PAC bays (roughly 90–120 sq ft per bed), I prioritize a 42–48 inch clear path around the bed to prevent IV, monitor, and crash cart conflicts. Nurse stations should maintain direct line-of-sight or assisted visibility via glass or smart monitoring. When footprint is constrained, I cluster equipment to the headwall and use ceiling-mounted boom arms to free floor space—this alone can reclaim 12–20 sq ft per bay and dramatically reduce trip hazards.

When reworking bed orientations or bay partitioning, a layout simulation tool helps validate sightlines, clearances, and equipment reach. Try the interior layout planner to quickly visualize alternatives: room layout tool.

Light Environment and Glare Control

Task accuracy depends on balanced light and shadow. I use indirect ambient fixtures with high CRI (≥90), add exam lights on articulating arms, and specify matte finishes at the headwall to curb specular reflections. To minimize photic stress, monitors should be positioned away from direct fixture axes, and dimmable controls allow swift transitions between induction, immediate post-op checks, and extended recovery.

Acoustic Comfort and Alarm Strategy

Noise undermines recovery and communication. I aim for NRC 0.8+ ceiling tiles, wall panels with composite absorbers around 0.6–0.75 NRC, and floor assemblies that attenuate footfall. WELL v2’s acoustic concepts encourage separating continuous ambient noise from clinically critical alerts; reduce non-essential alerts near the patient and route escalations to nurse stations or wearables. Curtain tracks should be decoupled with acoustic seals, and patient bays benefit from soft-closing hardware. The goal is intelligible voice levels without raising volume—roughly 60–65 dB speech peaks—so instructions remain clear.

Ergonomics, Reach, and Human Factors

In tight rooms, human factors dictate the layout. Place high-frequency items (gloves, cannulation kits, syringes) within a 20–24 inch primary reach from the nurse’s standing position. Infusion pumps and monitor arms should be height-adjustable with one-hand control. Avoid over-shoulder twisting: set headwall ports between 30–50 inches AFF, with clear labeling and color coding consistent with facility standards. Keep sharps containers at 52–56 inches AFF to avoid bending while preventing pediatric reach.

Color Psychology and Patient Experience

Color can modulate anxiety in post-op settings. Evidence in color psychology suggests desaturated cool hues (soft blue-green) reduce arousal and heart rate perception, while warm accent tones promote reassurance without raising stimulation. I avoid high-saturation reds near patient eye lines to prevent sympathetic activation. Use calm neutrals for large surfaces and limited saturation in wayfinding and staff zones to aid quick location without overstimulation.

Infection Control Meets Materials

Material choices must withstand aggressive cleaning protocols. I specify non-porous, seam-welded surfaces; antimicrobial properties are secondary to cleanability and durability. PVC-free wall protection, medical-grade silicones, and high-pressure laminates with sealed edges perform well. Flooring should be resilient with heat-welded seams and coved bases; slips are minimized with R9–R10 ratings, and transitions are flush for stretcher movement. Push for low-VOC and third-party verified emissions to align with patient safety and sustainability goals.

Micro-Zoning: Fast Checks vs. Calm Recovery

Divide each bay into micro-zones: critical intervention at the headwall; monitoring and pumps to the lateral side; patient comfort zone toward the foot with dimmable light and privacy control. Keep crash access routes clear along the bed’s pull-out path, and ensure oxygen and suction points can be reached without crossing wires. This zoning reduces step count and error probability during high-pressure windows.

Storage, Carts, and Visual Order

Visual noise raises cognitive load. Centralize bulk supplies outside the immediate bay and maintain a lean cart standard—only essentials per bay, restock cadence matched to average case duration. Use closed cabinetry for infrequently used items to reduce dust and visual clutter. Uniform labeling, typography, and color-coded bands help quick cross-coverage between shifts.

Nurse Station and Team Communication

Small PAC rooms often benefit from a decentralized nurse touchdown within 20–25 feet of the farthest bay, supported by an elevated central monitoring wall. Maintain sight lines through partial-height partitions or glazed screens with privacy films at patient head level. Sound masking near the station can reduce overheard speech while preserving alarm audibility.

Technology Integration

Cable management keeps the room agile. Use ceiling drops or wall raceways with removable covers, and set monitor mounts on articulated arms capable of precise positioning. Standardize connectors and create a quick-swap protocol for pumps and telemetry to cut delay. When upgrading, ensure lighting control and alarms integrate with building systems so night-mode settings lower both brightness and nuisance alerts.

Safety Drills and Scenario Planning

Run mock codes with full staff and equipment in the planned layout before finalizing. Time the team’s movement to the bed, headwall ports, and crash cart location. If any step requires cross-body reach or cable repositioning, redesign that zone. In compact PAC rooms, small frictions compound into delays; the layout must absorb stress without reconfiguration.

Future-Proofing a Small Footprint

Plan for interchangeable bays and scalable power. Provide spare conduits and modular rails for new devices. Use flexible privacy solutions—ceiling tracks with antimicrobial curtains or sliding screens—to adapt to procedure types quickly. The most resilient small PAC rooms treat every wall as a service platform and every bay as a micro-clinic.

Design Checklist for a Compact PAC Room

- 42–48 inch clear path around bed; crash cart access unobstructed

- Headwall services at 30–50 inches AFF; labeled and color coded

- Task light 500–1000 lux at 3500–4000K; ambient 200–300 lux

- NRC 0.8+ ceiling tiles; controlled alarm routing

- Lean carts; standardized labeling and restock cadence

- Dimmable lighting, anti-glare finishes, cable management

- Scenario-tested workflows and modular rails

FAQ

Q1: What lighting levels work best for PAC bays?

A1: For clinical checks, aim for 500–1000 lux at 3500–4000K near the headwall with high CRI, and 200–300 lux ambient with dimming for recovery. These ranges align with IES healthcare task lighting practices.

Q2: How much clearance should I keep around the bed?

A2: Maintain 42–48 inches of clear circulation to allow stretcher maneuvers, crash cart access, and safe staff movement without cable entanglement.

Q3: What acoustic targets reduce patient stress?

A3: Use high-absorption ceiling tiles (around NRC 0.8) and wall panels (0.6–0.75 NRC). Route non-essential alerts away from the patient area to keep ambient levels calmer, consistent with WELL v2 acoustic guidance.

Q4: Which materials are safest under aggressive cleaning?

A4: Favor non-porous, seam-welded surfaces, medical-grade silicones, sealed HPL, and resilient flooring with heat-welded seams and coved bases. Prioritize cleanability and durability over antimicrobial marketing.

Q5: How should equipment be organized in a small bay?

A5: Cluster services to the headwall, mount monitors and pumps on articulated arms or ceiling booms, and place high-frequency consumables within a 20–24 inch primary reach zone.

Q6: What color palette supports calmer recovery?

A6: Use desaturated cool hues and soft neutrals at large surfaces. Limit saturated accents to staff wayfinding; avoid strong reds near patient eye level to prevent heightened arousal.

Q7: How can I validate sightlines and clearances before building?

A7: Use a room design visualization tool to simulate layouts, check circulation, and ensure equipment reach—especially useful for small, high-density PAC bays. Try this interior layout planner: room layout tool.

Q8: What’s the best way to manage cables and connectors?

A8: Employ ceiling drops, wall raceways with removable covers, and standardized connectors. Establish a quick-swap protocol for pumps and telemetry to reduce turnover time.

Q9: Where should the nurse station sit in a compact PAC?

A9: Position a decentralized touchdown within 20–25 feet of the farthest bay with an elevated central monitoring wall, preserving sight lines via partial-height partitions or glazed screens.

Q10: How do I future-proof the PAC room?

A10: Add spare conduits, modular rails, flexible privacy solutions, and scalable power. Design each wall as a service platform to accommodate new devices without major rework.
