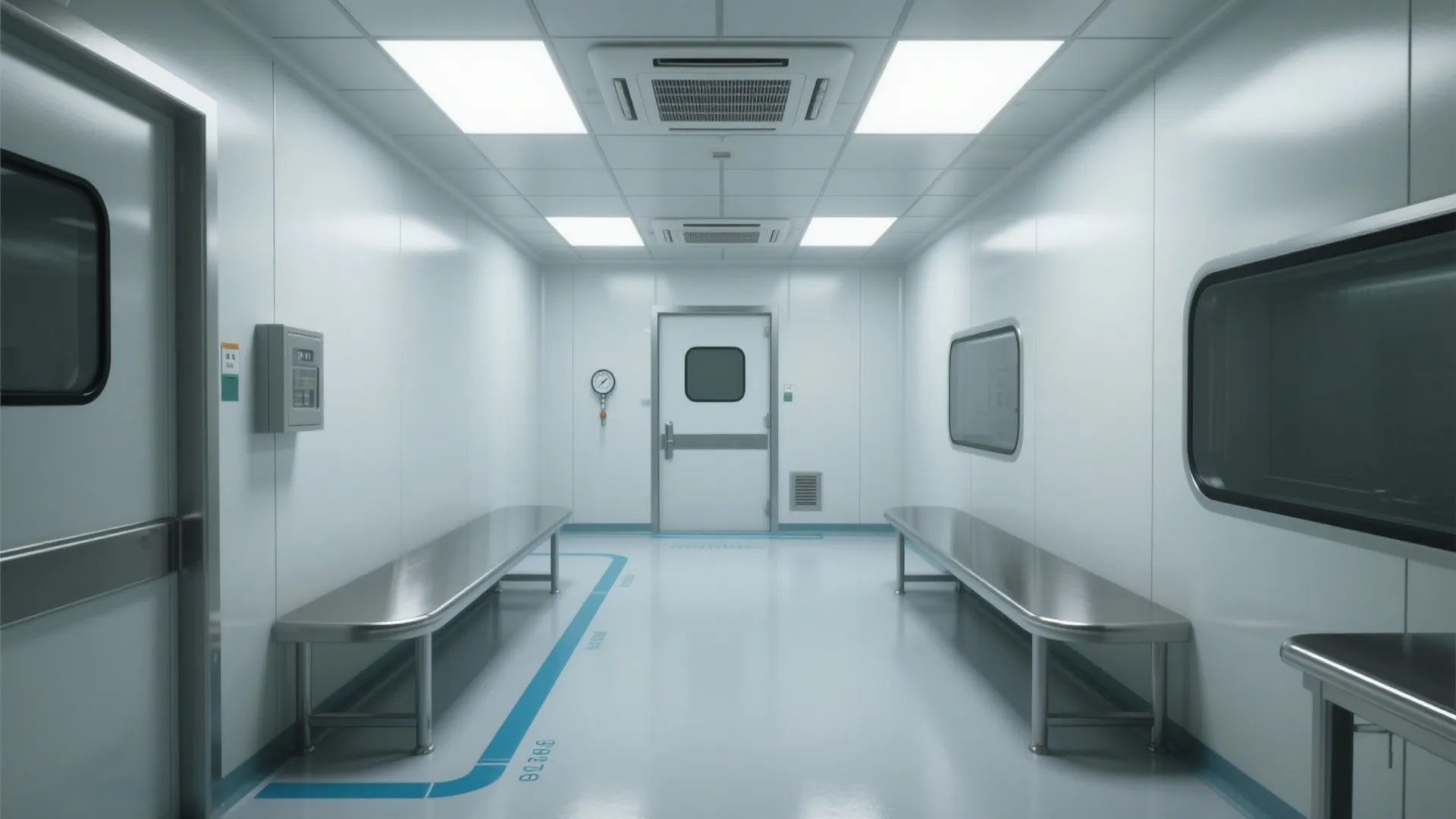

Pharma Clean Room Design: Essential Tips for Small Spaces: Fast-Track Guide to a Spotless, Compliant Pharma Clean Room

Designing a pharmaceutical clean room in a tight footprint demands ruthless clarity: prioritize contamination control, staff flow, and maintainability before aesthetics. In small spaces, every millimeter must reinforce cleanliness, process reliability, and staff efficiency. I structure compact clean rooms around three anchors—air quality, behavior design, and compliant detailing—so the room works like a controlled instrument rather than a generic box.

Air performance is the non-negotiable core. Clean rooms typically target 20–40 air changes per hour (ACH) for ISO 7 and 40–60 ACH for ISO 6 depending on process and risk profile, aligned with common industry practice and IES guidance. Lighting quality influences accuracy and fatigue: task zones should meet appropriate illuminance ranges (often 500–1000 lux at critical work surfaces for inspection tasks), with glare strictly managed and color temperature consistent to support visual discrimination. The WELL Building Standard highlights the role of lighting in cognitive performance and visual comfort, underscoring the need for spectral consistency and glare control in task-intensive environments (see WELL v2 Lighting concepts at wellcertified.com).

Human performance in controlled environments rises or falls on ergonomics and workflow. Steelcase research on cognitive load and noise reports that uncontrolled noise can reduce task performance by double digits, reminding us that acoustic control is not optional in high-focus operations. In small clean rooms, low-noise fan filter units (FFUs), sealed penetrations, and resilient floor systems help tame sound while meeting cleanliness objectives. Clear zoning—gowning, buffer, and critical work area—limits cross-contamination and shortens staff travel paths. When I plan micro-footprints, I apply a 60/30/10 rule of thumb: roughly 60% for critical operations, 30% for support and circulation, 10% for storage and utilities—then iterate against the process map until the layout eliminates unnecessary reaches and turns.

Core Principles for Small-Space Pharma Clean Rooms

Small does not mean compromised. It means precise. I focus on five levers: airflow strategy, pressure cascades, compliant finishes, cleanable detailing, and behavior-driven layout. Start with the process map, then wrap the environment around it—never the other way round.

1) Airflow and Filtration Strategy

• Target the appropriate ISO class and ACH rate for the process. ISO 7 often requires 20–40 ACH; ISO 6 typically 40–60 ACH when using FFUs with HEPA H14 filtration (99.995% at MPPS). The final figure must reflect heat loads, occupancy, and risk assessment.

• Use ceiling-mounted FFUs to free wall space. A modular grid allows rapid service access while preserving uniform velocity across the work plane (0.2–0.45 m/s in unidirectional zones, as project-specific standards dictate).

• Seal every penetration; leakage undermines pressure cascades and wipes out performance gains.

2) Pressure Cascade and Zoning

• Establish a clear progression: support areas (lowest), gowning, buffer, and critical zone (highest). Maintain 5–15 Pa pressure differentials between adjacent zones to prevent backflow.

• Use airlocks for both personnel and materials. Door interlocks prevent simultaneous opening and pressure collapse.

• Visual cues—contrasting floor borders or ceiling plenum markers—reinforce zone boundaries without adding bulk.

3) Lighting Without Glare

• Illuminate critical benches at 500–1000 lux with low-UGR recessed cleanroom luminaires; keep color temperature consistent (4000–5000K) to maintain visual acuity.

• Integrate task lights with diffusers where inspection precision is high. Avoid hotspots that stir air or create glare on stainless surfaces.

• Couple lighting with emergency egress indicators so wayfinding remains intuitive during outages.

4) Ergonomics and Human Factors

• Bench heights: 860–940 mm for standing tasks; seated stations at 710–760 mm with adjustable chairs rated for clean rooms and antistatic requirements.

• Reach envelopes: keep frequently used items within 350–450 mm reach to reduce particulate-shedding movements.

• Gowning choreography: space for donning in sequence—hair cover → mask → inner gloves → coverall → boots → outer gloves—supported by hands-free dispensers and built-in waste slots.

5) Surfaces, Materials, and Detailing

• Wall systems: non-shedding, chemically resistant panels with coved corners (100 mm radius typical) to eliminate dirt traps.

• Flooring: seamless resin or heat-welded vinyl with integral coves; anti-slip ratings balanced with ease of decontamination.

• Hardware: flush glazing, sealed receptacles, sloped tops on cabinets, and minimal exposed fasteners. Every joint should survive aggressive cleaning protocols.

Layout Strategies for Tight Footprints

In compact rooms, centimeters matter. I build around a single, efficient spine: a straight shot from entry to primary bench with orthogonal offshoots for pass-throughs and storage. When planning or testing variants, a digital interior layout planner helps visualize circulation and clearance. Try a layout simulation tool to iterate personnel and material flows efficiently: room layout tool.

Micro-Zone Planning

• Personnel flow: dirty corridor → pre-gown → gowning → buffer → critical work area. No backtracking allowed.

• Material flow: external staging → material airlock (MAL) with interlocks → pre-clean → critical bench. Separate dirty-out path with waste hatch to avoid crossing streams.

• Clearances: 900 mm minimum working aisles for two-person operations; reduce to 750 mm only in single-operator alcoves with risk mitigation.

Vertical Real Estate

• Mount storage overhead with sealed, sloped tops and lift-up doors.

• Suspend monitors/arms to keep benches free; route cables in sealed raceways.

• Use ceiling rails for movable shields or task-light booms without adding floor clutter.

Acoustics and Thermal Comfort

Constant airflow can be mentally draining. I specify FFUs with low sone ratings and duct silencers where feasible. Keep operative temperature in the 20–22°C range for gowned staff, with relative humidity tailored to process needs (often 40–60%) to balance comfort with static control. If the process introduces heat, distribute returns low to draw off warm air and sustain uniform velocity in the breathing zone.

Controls, Monitoring, and Maintenance Access

• Place differential pressure gauges at eye level near airlocks; monitor temperature, RH, and particle counts via BMS for trend analysis.

• Reserve a narrow service chase behind modular panels so filters, lights, and utilities are accessible without entering the clean space.

• Color-code utilities (compressed air, nitrogen, vacuum) and label at both ends of each run to accelerate audits and maintenance.

Gowning Rooms That Actually Work

A functional gowning room is the small space superpower. Provide seating for donning boots, mirror checks for compliance, and hands-free sanitizer near the exit. Place glove and wipe dispensers along the sequence wall at shoulder height. A recessed waste slot near each stage prevents litter drift.

Cleanable Furniture and Equipment

Choose stainless benches with minimal weld seams, perforations only where airflow is intentional, and rounded edges. Mobile benches on sealed casters help reconfigure without compromising cleanability. For small environments, multi-depth benches (600–750 mm) support both microbalances and larger apparatus with adjustable monitor arms.

Risk-Based ISO Targeting

Don’t chase a tighter ISO class than the process requires. Instead, protect the true critical zones (e.g., weighing hoods, compounding isolators) with localized unidirectional flow and HEPA capture, while keeping the room at a slightly lower class. This keeps ACH, noise, and energy within reason without reducing safety.

Commissioning, Validation, and Training

Successful small clean rooms are built twice: first in drawings and simulations, then during commissioning. Verify airflow uniformity, HEPA integrity, pressure differentials, and recovery times. Train staff on movement discipline—slow, deliberate motions reduce particle generation—and on door etiquette to maintain pressure cascades.

Future-Proofing a Small Clean Room

Design for swap-ability: modular ceiling grids for FFUs, quick-connect utilities, and reconfigurable benches. Keep 15–20% spare capacity in electrical and mechanical infrastructure. Standardize parts to reduce downtime. Technology evolves—your envelope should adapt without demolition.

Reference Points for Performance

For deeper performance standards and research-based strategies, consult WELL’s lighting and air guidelines for human performance and comfort, and Steelcase’s workplace research on cognitive performance and environmental factors. Both bodies of work help translate measurable environmental targets into daily operational quality. Explore further: wellcertified.com and steelcase.com/research.

FAQ

Q1. What ACH should I target for a small pharma clean room?

A1. For many ISO 7 rooms, 20–40 ACH is typical; ISO 6 often runs 40–60 ACH. Confirm via a process risk assessment, heat loads, and occupancy, then validate during commissioning.

Q2. How do I maintain pressure cascades in a tiny footprint?

A2. Keep 5–15 Pa between adjacent zones, use door interlocks, and minimize door openings. Separate personnel and material airlocks help prevent pressure collapse.

Q3. What lighting levels work best for inspection tasks?

A3. Aim for 500–1000 lux at task surfaces with low-glare luminaires and consistent 4000–5000K color temperature. Pair with task lighting for critical inspection without introducing glare.

Q4. How can I reduce noise from FFUs and equipment?

A4. Specify low-sone FFUs, add duct silencers, seal penetrations, and select vibration-damped equipment feet. Stable airflow plus acoustic control improves staff accuracy and endurance.

Q5. What materials are easiest to sanitize in small clean rooms?

A5. Non-shedding wall panels, seamless resin or heat-welded vinyl flooring with coves, stainless steel benches, and flush glazing. Avoid exposed fasteners and horizontal ledges.

Q6. How should I plan gowning in a very small space?

A6. Lay out a strict donning sequence wall with hands-free dispensers, seating for booting, a mirror for final checks, and a recessed waste slot. Keep exits near the final donning point.

Q7. Can I hit a higher ISO class locally without upgrading the entire room?

A7. Yes. Use localized unidirectional flow (e.g., laminar hoods) with H14 filters over critical points while maintaining a slightly lower room class, provided the risk assessment supports it.

Q8. What’s the best way to plan circulation in tight layouts?

A8. Use a single spine with minimal cross-traffic, define one-way personnel and material paths, and test digitally with an interior layout planner or a layout simulation tool to validate clearances.

Q9. How do I balance thermal comfort with contamination control?

A9. Keep 20–22°C for gowned staff and 40–60% RH where process allows. Use low returns to extract heat loads without disrupting velocity in critical work zones.

Q10. What commissioning tests are essential?

A10. HEPA leak testing, airflow volume and velocity mapping, pressure differential verification, particle counts by zone, recovery time, and lighting/glare checks at task planes.

Q11. How much storage can I fit without hurting performance?

A11. Prioritize sealed overhead cabinets with sloped tops and mobile under-bench units. Keep fast-movers within 350–450 mm reach to reduce movement and particulate generation.

Q12. Do I need a BMS in a small clean room?

A12. A light BMS or integrated monitoring panel is valuable for trend data on pressure, temperature, RH, and particle counts, supporting faster troubleshooting and audits.
