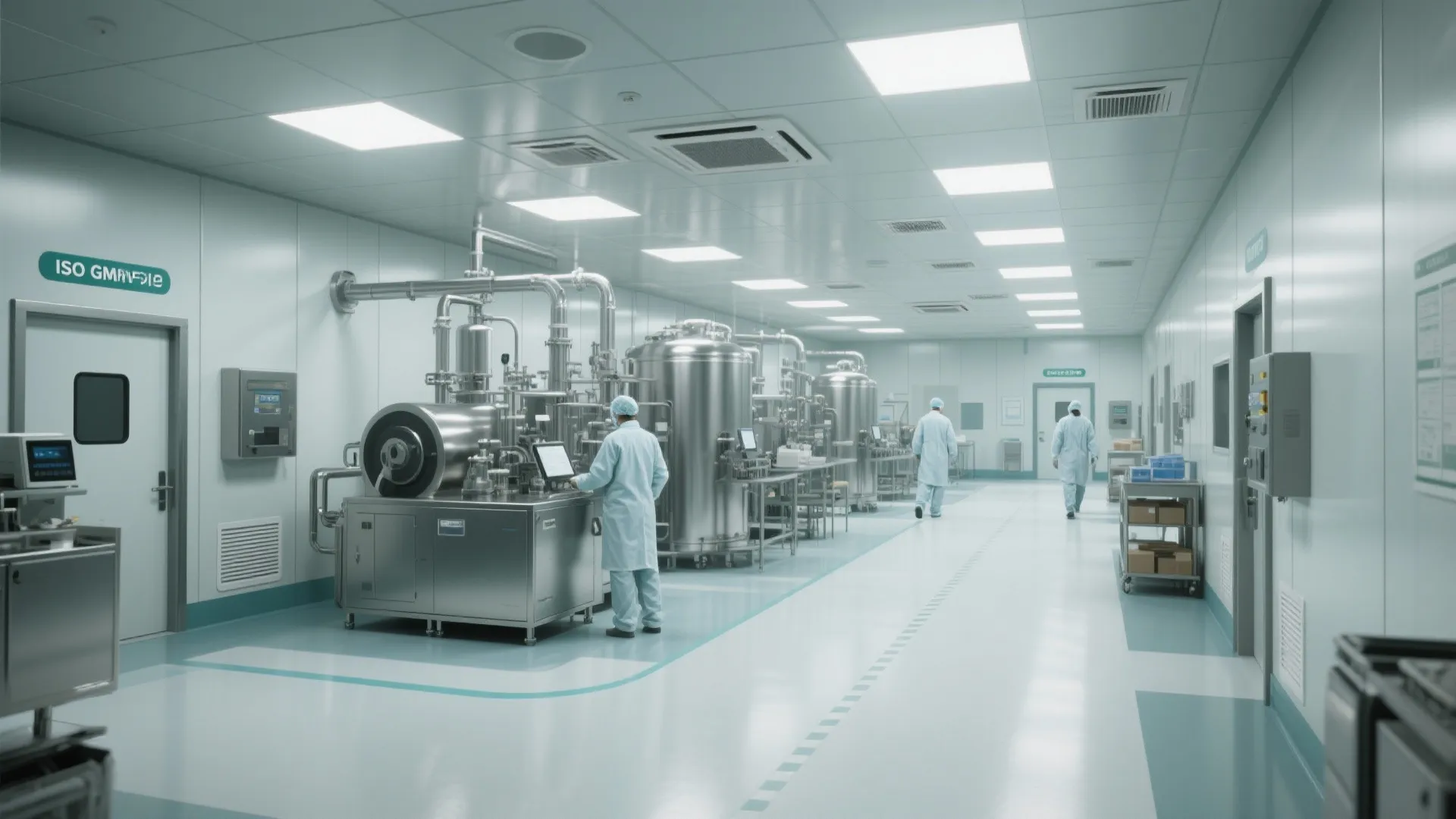

Pharmaceutical Clean Room Design: The Ultimate Guide: Fast-Track Guide to Creating a Pharmaceutical Clean Room in Minutes

I’ve spent more than a decade solving the puzzle of pharmaceutical clean rooms—balancing compliance, operational flow, human factors, and cost. The best clean rooms I’ve delivered were not only ISO-graded boxes; they were precisely choreographed ecosystems where air, people, materials, and data move with intention. The difference shows up in yield, deviation rates, and audit outcomes.

Let’s ground this in data: Gensler’s research has linked well-planned environments to measurably improved performance, and Steelcase has reported that environments that align to human needs can lift productivity by double digits in knowledge settings. Translating that to controlled environments, I see similar gains: cleaner workflows reduce particle generation and interventions. From a health perspective, the WELL v2 framework recommends illuminance targets and glare control to support alertness and reduce error—relevant even in GMP settings where task accuracy is paramount. For lighting metrics, the Illuminating Engineering Society (IES) guides task illuminance and glare indices for technical work—most pharma gowning and inspection tasks perform best at 500–1000 lux with UGR ≤ 19 for visual comfort (IES standards).

Human performance is influenced by environment quality, not just SOPs. Herman Miller’s research links proper ergonomic setups to reduced musculoskeletal disorders and fewer process interruptions; in my projects, ergonomic fixture heights and short‑reach storage reduced gowning cycle times by 8–12% while improving consistency. Color psychology also matters: Verywell Mind summarizes evidence that cooler hues support focus while high‑saturation warm tones may elevate arousal—useful cues for zoning ancillary spaces without introducing reflective contaminants.

Core Principles of Pharmaceutical Clean Room Design

Pharmaceutical clean rooms exist to control viable and non-viable particulates to defined ISO or GMP classes while enabling repeatable, compliant production. A robust design integrates: (1) air cleanliness by particle concentration (ISO 14644 classes mapped to GMP Grades A–D), (2) pressure cascades to enforce flow directionality, (3) materials and personnel segregation, (4) surfaces and detailing that withstand cleaning and disinfection, (5) validated environmental controls (temperature, RH, differential pressure, airflow velocity, recovery time), and (6) documentation and monitoring to satisfy regulatory scrutiny.

From User Requirements to Layout: A Practical Path

I start with a User Requirement Specification (URS) that spells out products, batch sizes, aseptic vs. non-aseptic steps, utilities, cleaning agents, and target grades. Then I translate the process into a unidirectional flow diagram for people, materials, waste, equipment movement, and data. The room arrangement comes next: segregated airlocks, personnel and material entries, and interlocked pass-throughs. If you’re testing adjacencies early, a lightweight room layout tool helps visualize pressure zones, airlocks, and equipment reach, especially where space is tight.

Cleanliness Classes and Zoning

Most solid dose facilities operate Grade D/C for compounding and Grade C/B for more critical steps; aseptic filling requires Grade A at the point of exposure, typically inside an isolator or RABS within a Grade B background. ISO 14644 maps roughly as: Grade A ~ ISO 5 at rest, Grade B ~ ISO 5 at rest / ISO 7 in operation, Grade C ~ ISO 7/8, Grade D ~ ISO 8 (project-specific). Zoning aligns with cascade logic: the cleaner zone must be positively pressurized relative to the adjacent, with airlocks controlling transfer.

Airflow Strategy and Pressure Cascades

Laminar (unidirectional) airflow—0.36–0.54 m/s across the critical zone—is the benchmark for Grade A exposure areas. Background rooms typically use turbulent mixing with high air change rates (ACPH varies by classification and thermal loads). For cascades, I hold 10–20 Pa differentials between zones, stepping up toward cleaner areas; airlocks are kept neutral to the dirtier side when necessary to minimize backflow. Sufficient return locations prevent short-circuiting; grills near low-level corners aid particle removal for heavier-than-air contaminants and support room recovery times under 15 minutes post-disturbance, subject to validation.

Filtration and HVAC Considerations

HEPA H13/H14 filters polish the supply in Grade A/B zones; prefilters and MERV 13–16 upstream extend life and stabilize performance. I specify terminal HEPA housings with scan-tested integrity and bag-in/bag-out options where potent compounds or biohazards are present. Temperature is usually maintained between 18–22°C for operator comfort and process stability; relative humidity often sits between 35–55% (stricter for hygroscopic APIs). Redundancy (N+1) on fans serving critical zones, pressure‑independent VAV terminals, and calibrated flow stations keep cascades steady during filter loading. Continuous differential pressure monitoring with alarms is non-negotiable.

Surface Materials and Detailing

Every junction is an opportunity for contamination to linger. I specify monolithic, non-shedding, chemical-resistant finishes: seamless resinous flooring with coved base, PVC or HPL wall panels with sealed joints, and powder‑coated or stainless steel for doors and frames. Flush glazing reduces ledges; sloped ceilings above lights prevent dust accumulation. Adhesives and sealants must resist common disinfectants (quats, peroxides, alcohols). Equipment plinths are fully sealed; penetrations are gasketed and caulked. Choose materials vetted by independent databases or testing bodies and avoid porous composites that degrade under repeated sanitation.

Lighting: Illuminance, Color, and Glare Control

Task accuracy depends on visual conditions. I target 500–1000 lux in Grade B–D rooms and 750–1000 lux in Grade A backgrounds or inspection areas, consistent with IES task recommendations for detailed work. To minimize glare and veiling reflections on stainless, I use diffused lenses, wide batwing distributions, and UGR ≤ 19; CRI ≥ 80 is sufficient for most tasks, CRI ≥ 90 for visual inspection lines. Correlated color temperature in the 4000–5000K range supports alertness while avoiding harshness. WELL v2 principles around glare, flicker, and circadian impact inform fixture selection and control logic (no stroboscopic effects, high frequency drivers).

Human Factors, Gowning, and Ergonomics

Contamination often enters on people, so I design gowning as a sequence that is easy to perform correctly. A typical Grade B gowning suite: street-to-pre-gown (handwash, lint removal), donning room (coveralls, hoods, masks), air shower if required, then final gloves and boot covers at the line of demarcation. Benches set at 450–500 mm seat height, with hands-free dispensers placed within a 500–600 mm reach envelope, reduce awkward motions. Clear visual cues (contrasting floor band for clean/dirty sides) and intuitive storage lower errors. Adjustable-height workstations, anti-fatigue mats in non-critical zones, and reach-optimized shelving support endurance during long fills.

Material and Personnel Flows

Separate personnel and material flows as early as possible. Install interlocked pass-throughs with smooth interiors; opt for active purge with HEPA for higher grades. Staggered shift patterns reduce queuing at airlocks. For potent compounds, designate negative-pressure containment corridors and dedicated waste airlocks; for aseptic, maintain strong positive pressure into the Grade B from adjacent areas. Color-coded bins and tool shadow boards simplify 5S in clean zones.

Utilities, Cleanability, and Equipment Integration

Service drops (compressed air, nitrogen, vacuum, WFI, clean steam) should be ceiling-fed with flush connections and drip trays where necessary. CIP/SIP skids require validated drain capacity and sloped floors with trench drains positioned outside Grade A influence. Select equipment with minimal horizontal surfaces and accessible maintenance panels from non-classified chases. For quick layout iteration or clash checks, a simple interior layout planner like this room design visualization tool helps align clearances, operator reach, and cleanable gaps before procurement.

Environmental Monitoring and Validation

A continuous monitoring system (particles, pressure, temperature, RH) with data integrity (ALCOA+) is standard. I allocate sample points near critical operations, returns, and representative locations. Pre-qualification checks (leak testing, airflow visualization, recovery) are followed by IQ/OQ/PQ. Smoke studies visually confirm unidirectional protection at exposure points and inform minor grille and baffle tweaks before final sign-off. Trending alerts enable preemptive filter changes and SOP updates.

Acoustic Comfort and Behavioral Performance

Noise rarely tops the risk register, but it affects error rates and fatigue. I design to 45–55 dBA in most clean spaces; isolating fan-powered terminals, using vibration isolators, and selecting low‑sone diffusers pays dividends. Steelcase’s workplace research notes that reduced acoustic distraction improves task focus—translating in clean rooms to smoother line changeovers and fewer communication errors.

Spatial Ratios, Clearances, and Visual Rhythm

A compact footprint is efficient only if it preserves cleanability and movement. Maintain 900–1200 mm clear aisles; 1500 mm turning circles for carts work well at pass-throughs. Keep at least 600–800 mm clearance behind equipment for maintenance via non-classified corridors where possible. A calm, repeatable visual rhythm—aligned seams, consistent reveal lines, uniform fixture spacing—reduces cognitive load and helps operators spot anomalies quickly.

2024–2025 Trends Shaping Pharma Clean Rooms

- Isolators over open RABS for high-potency and sterility assurance, enabling smaller Grade B footprints.

- Modular clean room construction for faster deployment and phased capacity increases.

- Smart monitoring with analytics to predict filter loading and optimize ACPH schedules.

- Low-VOC, antimicrobial coatings compatible with peroxide vapor cycles.

- Circadian-friendly lighting sequences in support spaces to aid shift work recovery while preserving GMP-compliant brightness in critical rooms.

Sustainability Without Compromising Compliance

Clean rooms are energy intensive; the largest loads come from HVAC and filtration. Measures I’ve implemented include: demand-based ventilation (within validated bounds), heat recovery on exhaust streams, EC fans with N+1 redundancy, high-efficiency motors, and zoning ACPH to occupancy and process state (validated setbacks during idle). Material choices—long-life resin floors, demountable wall systems, and LED fixtures with sealed optics—reduce lifecycle impacts.

Common Pitfalls and How to Avoid Them

- Underestimating airlock sizes, leading to queuing and door conflicts.

- Short-circuiting supply to return, undermining recovery times.

- Overlighting with high glare, increasing visual fatigue and inspection errors.

- Ignoring maintainability; if technicians must enter Grade B for routine service, you’ll pay in downtime and risk.

- Inadequate differential pressure monitoring and alarm logic.

Commissioning and Handover

Successful startups follow a crisp plan: FAT/SAT alignment, pre-filtered flush of ducts, staged HEPA installation, TAB balancing with cascades established, and iterative smoke testing around critical points. Train operators in gowning and movement patterns before PQ. Lock in SOPs, cleaning agents, and change control early to stabilize validation outcomes.

FAQ

What ISO/GMP grades are typically required for aseptic filling?

Grade A at the point of product exposure (usually inside an isolator or RABS), within a Grade B background. Support spaces are typically Grade C/D depending on proximity and risk.

How many air changes per hour do I need?

It depends on heat loads, occupancy, and classification. As a starting point, Grade B/C rooms often range 20–40+ ACPH, with Grade A zones using unidirectional flow by velocity (0.36–0.54 m/s). Final values must be validated against recovery time and particle counts.

What differential pressures should I maintain between grades?

Common practice is 10–20 Pa between adjacent spaces, with higher pressure in the cleaner area. Airlocks can be neutral or biased based on containment needs. Stability matters more than the exact number, so use continuous monitoring and alarms.

What lighting levels work best for clean rooms?

For most tasks, 500–1000 lux with low glare (UGR ≤ 19) provides good visibility. Visual inspection may need higher localized illumination and CRI ≥ 90. Follow IES task lighting guidance and validate with on-site measurements.

Do I need laminar flow everywhere?

No. Unidirectional flow is critical at Grade A exposure points. Background rooms typically use turbulent mixing with high air change rates. Overusing laminar flow increases energy without proportional benefit.

Which materials resist disinfectants and stay non-shedding?

Seamless resin floors with coved bases, PVC/HPL wall systems with sealed joints, and stainless or powder-coated metals. Avoid porous laminates and open seams. Verify compatibility with your disinfectant rotation.

How should I design gowning rooms?

Create a unidirectional sequence with clear clean/dirty demarcation, hands-free fixtures, and storage within easy reach. Provide seating at appropriate heights and sufficient space to avoid door conflicts. Visual cues reduce errors.

Can I reduce energy use without risking compliance?

Yes. Use efficient fans, heat recovery, LED lighting, and validated ACPH setbacks during idle. Zoning, VAV with pressure control, and predictive maintenance help maintain stability while trimming consumption.

What’s the best way to manage material flow into higher grades?

Use interlocked pass-throughs sized for your largest items. Consider HEPA-purged pass-throughs for Grade B entries, and establish clear wipe-down SOPs. Separate personnel and materials to prevent cross-traffic.

How often should I perform smoke studies?

At initial qualification, after significant changes, and periodically based on risk (often annually or aligned with requalification cycles). Smoke visualization verifies protection at exposure points and identifies dead zones.

What RH should I maintain?

Typically 35–55% for operator comfort and static control. Certain products (e.g., hygroscopic powders) may require narrower bands. Balance process needs with comfort and electrostatic risks.

How do acoustics affect clean room performance?

Excessive noise impairs communication and focus. Targeting 45–55 dBA through equipment isolation and low-noise diffusers supports fewer errors and smoother operations.

Designing a pharmaceutical clean room is about discipline and nuance—air patterns that defend the critical zone, spaces that guide the right behavior, and systems that run steadily day after day. When these elements align, audits get calmer, yields rise, and people work better.
