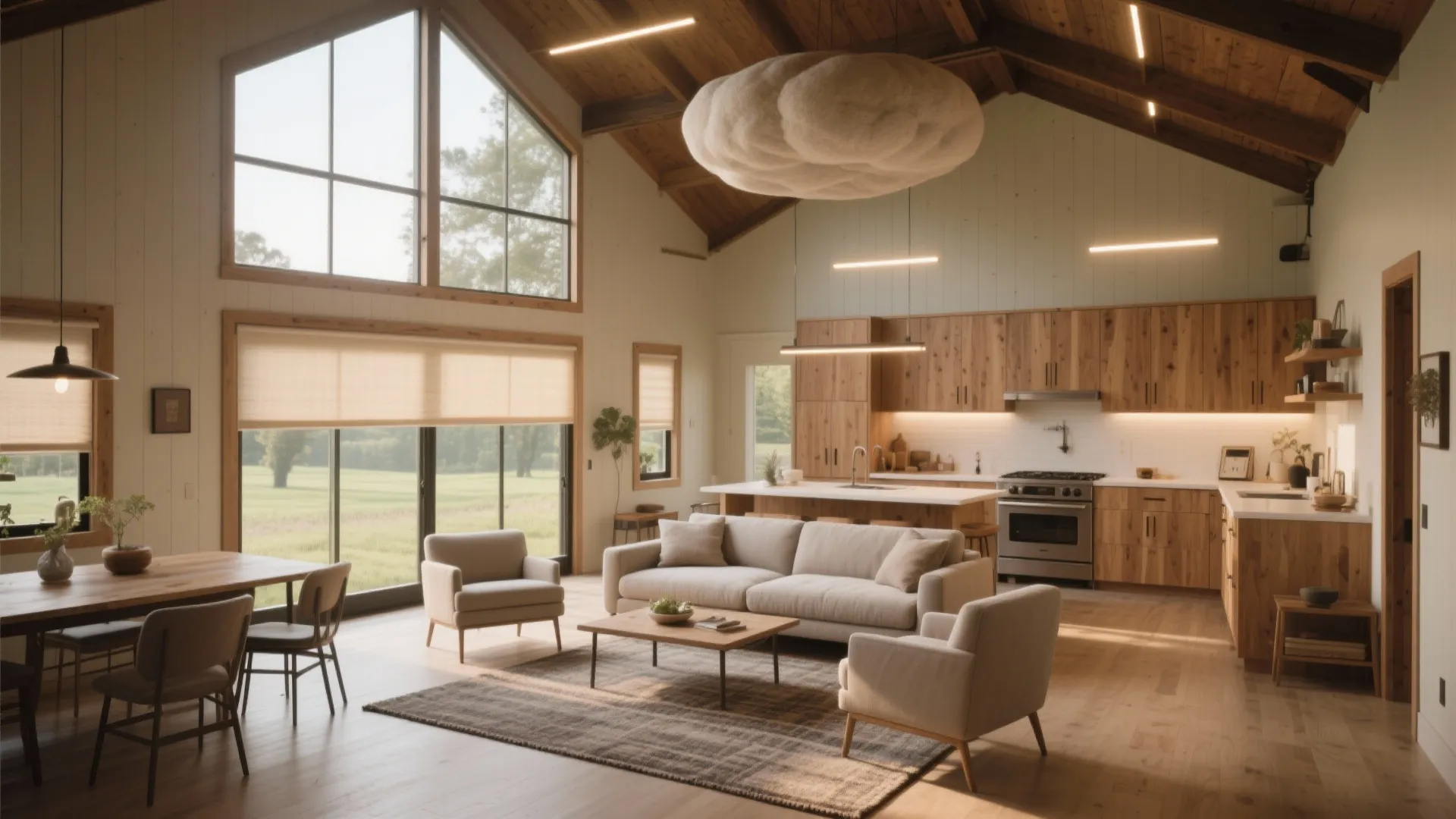

Pole Barn with Small Living Quarters: Smart Space Design Guide: 1 Minute to Plan Your Dream Pole Barn Apartment Layout

I design small living quarters inside pole barns to feel generous, healthy, and durable without bloating square footage. The key is aligning structure, layout, and human factors from day one. WELL v2 recommends target illumination around 300–500 lux in living areas and 500 lux for task zones, which sets a baseline for light planning rather than guessing. Steelcase found that workers with access to natural light report a 15% increase in well-being, a reminder that glazing strategy in a pole barn is not just nice to have—it’s measurable comfort. Gensler’s workplace research repeatedly ties spatial clarity and daylight access to improved performance, and those same principles translate directly to compact residential spaces.

Plan the Envelope First

In pole barn construction, the structural grid dictates everything. I start with bay spacing that supports both garage/storage needs and residential zoning—typically 10–12 ft bays to balance vehicle access with modular interiors. Insulation and air sealing—especially at the roof and slab—make or break comfort. I align window openings within structural bays to avoid expensive rework and to set up cross-ventilation. WELL v2 daylight and glare guidelines help me choose glazing types and shading strategies that keep interior illuminance in a healthy range while preventing veiling glare on screens and glossy surfaces. For orientation, I prefer living areas along the south or southeast facade to harvest morning light and reduce afternoon overheating.

Space Ratios and Flow

Compact living demands disciplined ratios. I target a 60:40 split for public to private functions in small quarters—kitchen-living-dining as one continuous volume, and the bedroom/bath clustered. Circulation should stay under 12–15% of total area. Clear sightlines through the main axis make the space feel larger, while defined micro-zones keep behavior intuitive. For rapid layout iterations, a room layout tool can visualize furniture footprints, traffic paths, and door swings before anything is built: room layout tool.

Light Strategy: Layered and Glare-Safe

Small spaces need light that is layered and gentle. I use three tiers: ambient (indirect pendants or linear LEDs), task (under-cabinet and reading lights), and accent (wall grazers or small downlights). The Illuminating Engineering Society (IES) standards provide target lux ranges and glare metrics that keep eyes comfortable in tight quarters. I specify 2700–3000K for living zones to keep evenings calm, 3500–4000K for kitchens and work surfaces for visual acuity, and dimming on all circuits. Sconces and uplighting on the barn’s tall walls capitalize on volume without creating harsh pools on the floor. Skylights with diffusing shafts bring soft top light, but I pair them with shades to control solar gain.

Acoustic Comfort in a Large Volume

Pole barns can echo. I control reverberation with a mix of absorptive and diffusive treatments: acoustic ceiling clouds over living areas, soft rugs, upholstered seating, and bookcases as scatter. Keeping the kitchen hood at low sone ratings matters because in compact plans noise travels fast. I stagger studs or add resilient channels between living quarters and workshop zones to decouple sound paths, and I keep mechanicals outside sleeping areas.

Kitchen and Bath: Ergonomics and Maintenance

In compact barns, kitchens do heavy lifting. I design a 7–9 ft working triangle with 42 in aisles and task lighting at the counter edge to reduce shadows. Induction cooktops lower ventilation demands and keep indoor air cleaner. For bathrooms, pocket doors save swing space, and wall-hung toilets simplify cleaning. I mount storage between 18–54 in AFF for ergonomic reach and use pull-out pantries instead of deep cabinets that become black holes.

Color Psychology and Material Logic

Color can expand perceived space. Light, warm neutrals stabilize mood; a single saturated accent (deep teal, olive, or rust) anchors the living area without overwhelming it. Verywell Mind’s synthesis on color psychology notes calming effects associated with blues and greens, so I reserve them for bedrooms and reading nooks. Materials in pole barns must be honest and resilient: sealed plywood, oiled wood, limewash, and mineral paints handle humidity swings better than vinyl-heavy finishes. I use matte surfaces to reduce glare and choose flooring with 55+ IIC impact ratings when possible to tame footfall noise on a slab.

Thermal Comfort and Mechanical Zoning

A well-insulated envelope is step one; right-sized systems are step two. Mini-split heat pumps give me zoned control without invasive ductwork. I place thermostats away from exterior walls and registers/heads to avoid false readings. Ceiling fans with downrod lengths tuned to the barn’s height maintain air movement at low energy cost. I add ERV ventilation for balanced fresh air without sucking conditioned air out of the space.

Storage Without Visual Clutter

Storage is a series of edges. I integrate full-height cabinets along circulation paths, shallow wall niches for everyday items, and under-stair drawers if a loft exists. Open shelves are limited to curated pieces; everything else gets doors to keep visual noise down. Hooks and rails near entries prevent gear piles from bleeding into living zones. In workshops, I keep a threshold of at least 6 ft between living door and tool area to control dust and noise.

Furniture Scale and Multi-Use Pieces

Small spaces reward compact, flexible furniture: a 72–78 in sofa, armchairs with open bases, nesting tables, and a drop-leaf dining table. I use benches with storage at the entry and a wall-mounted desk that can fold away. In bedrooms, platform beds with drawers offset the need for a dresser. Avoid oversized sectionals that eat circulation and shrink sightlines.

Daylight, Privacy, and Views

Windows in opposing walls drive cross-ventilation and draw the eye, which expands perceived depth. I stage semi-transparent shades in living areas for privacy while keeping daylight. Translucent interior doors between bedroom and living spaces share light without leaking sound when paired with solid cores.

Budget and Phasing

Money follows the envelope and mechanicals before finishes. I phase work so the shell, insulation, and systems are solid; finishes can be upgraded later. I organize electrical into future-proofed circuits, with junction boxes where pendants or fans might be added. For layout tweaks as needs change, a layout simulation tool helps rapidly test options without tearing into walls: layout simulation tool.

Common Mistakes to Avoid

Oversized furniture, underestimating storage, skipping acoustic treatment, and pushing glazing to only one facade are the top pitfalls. Equally damaging is relying solely on downlights, which creates glare and scalloping in tall volumes.

FAQ

How much natural light should I target in living areas?

Aim for roughly 300–500 lux in living zones and 500 lux on task surfaces, guided by IES standards and WELL v2 recommendations. Pair windows with shades to control glare.

What bay spacing works best for combining workshop and living?

10–12 ft bays balance vehicle clearances, storage racks, and room modules. This spacing simplifies framing for partitions and windows.

How do I reduce echo in a tall pole barn?

Use a mix of acoustic ceiling clouds, area rugs, upholstered seating, and bookcases. Decouple workshop walls with resilient channels to block noise transfer.

What color temperatures should I use?

2700–3000K in living and bedrooms for warmth; 3500–4000K in kitchen and task areas for clarity. Keep all circuits dimmable.

Is a loft worth it in small quarters?

A loft adds volume variety and storage, but verify headroom and egress. Use it for sleeping or storage to keep the main level open.

Which HVAC is best for compact pole barns?

Mini-split heat pumps offer efficient zoned control with minimal ducts. Combine with ERV ventilation for consistent fresh air.

How can I keep the space adaptable over time?

Use modular furniture, track-mounted lighting, and prewired junction boxes for future fixtures. Test room arrangements with an interior layout planner before committing.

What materials handle barn humidity swings?

Sealed plywood, oiled hardwoods, limewash, and mineral paints tolerate shifts better than thin laminates. Choose low-VOC finishes and matte surfaces to cut glare.

How wide should aisles be in the kitchen?

Target 42 in for comfortable movement; keep the working triangle within 7–9 ft to minimize steps.

How do I balance workshop dust with living areas?

Maintain a 6 ft buffer, use sealed doors, and add a dedicated exhaust for the workshop. Keep return air grilles out of dusty zones.
