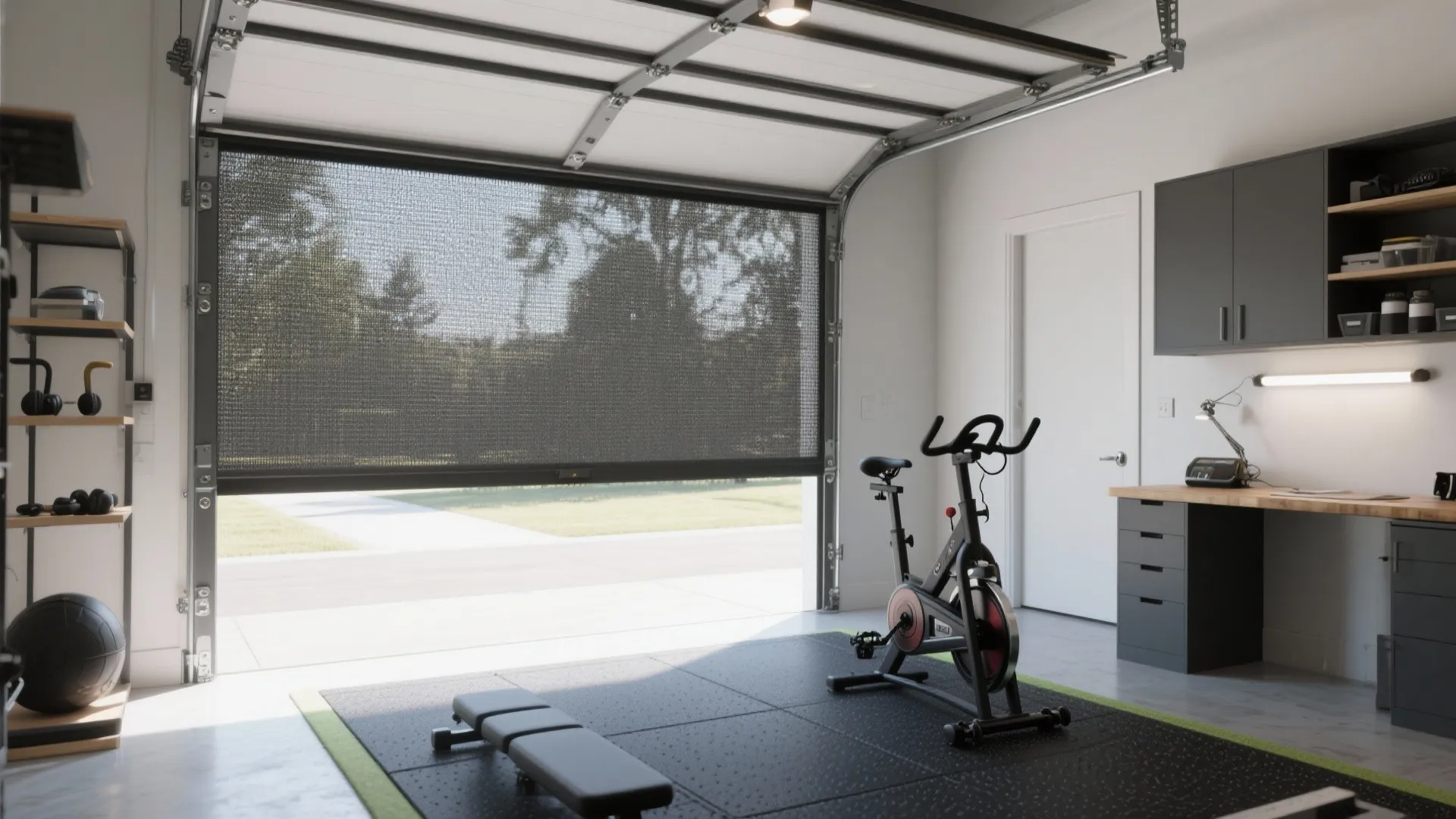

Pull Down DIY Garage Screen Door: Simple Guide for Every Home: Fast-Track Guide to Creating a Retractable Screen in Minutes

I’ve converted dozens of garages into hybrid spaces—gyms, craft rooms, and breezy hangouts—and a pull-down screen door is the most cost-effective upgrade to keep bugs out while maintaining airflow. Beyond comfort, ventilation matters: Gensler research links access to fresh air and connection to outdoors with higher occupant satisfaction in multi-use spaces, while Steelcase notes that adaptable environments help people use rooms longer and more productively. From a practical standpoint, I target 6–8 air changes per hour when the main garage door is open and the screen is deployed, which typically feels comfortable for workouts or workshops without pulling dust back in.

Lighting and ergonomics round out the experience. Based on IES recommendations for task lighting, I aim for 300–500 lux when the garage is used as a workshop, pairing the screen with glare-free fixtures and a 4000 K neutral-white color temperature for accurate color rendering and alertness. WELL v2 guidance emphasizes reducing outdoor pollutants and promoting thermal comfort; a tight perimeter seal and breathable mesh help maintain air movement while filtering insects and larger debris. These small details determine whether the screen becomes a daily habit or a weekend-only novelty.

Benefits of a Pull-Down Garage Screen

• Keeps insects out while improving cross-ventilation—ideal for cardio sessions, woodworking, or painting prep where fumes dissipate faster.

• Converts the garage into a daylight-forward zone; glare is softened by mesh while still delivering high vertical illumination for circadian support.

• Protects privacy without fully closing off the space; darker mesh offers better outward views and less inward visibility.

• Enhances zoning: when paired with task lighting and rubber flooring, the screen visually separates a fitness bay or hobby zone from storage.

Choosing the Right Screen Type

Most homeowners choose one of three formats:

• Spring-loaded pull-down cassette: Affordable, quick to deploy, and easy to retrofit. Choose a low spring tension if kids or older adults will use it.

• Sliding track panels: Best for wide openings and frequent transitions in and out with bikes or strollers; panels park at one side.

• Motorized retractable: Smooth operation and great for large, heavy spans; add soft-start motors and obstruction detection for safety.

Mesh, Frame, and Seal Details

• Mesh: Standard fiberglass balances airflow and durability; polyester or PVC-coated options increase tear resistance. For coastal or bug-heavy regions, fine insect mesh (18×16 or 20×20) helps without overly restricting airflow.

• Visibility & daylight: Charcoal/black mesh typically delivers better outside visibility and reduced interior reflections compared to gray.

• Frame: Powder-coated aluminum resists corrosion; look for stainless fasteners to avoid galvanic reactions.

• Seals: Magnetic or brush seals at jambs and sill reduce gaps; a weighted hem keeps the screen taut in light wind.

Measure and Plan

• Opening size: Measure width and height at three points (top/middle/bottom) and use the smallest dimension for ordering. Subtract manufacturer-recommended clearances for the cassette or tracks.

• Mounting surface: Verify the header can accept anchors; reinforced blocking may be needed for motorized units.

• Threshold strategy: Decide between surface-mount sill tracks or low-profile thresholds to reduce trip hazards. For workshops, a beveled sill minimizes dust dams.

If you’re testing different garage bay layouts—storage wall, gym zone, workbench, and a clean path to the door—a quick layout simulation tool helps validate circulation and screen clearance around racks and equipment. Try a room layout tool to visualize clearances and door sweeps: room layout tool.

Tools and Materials

• Tape measure, level (48 in), pencil, and square

• Drill/driver, appropriate masonry or wood bits, and anchors

• Tin snips or hacksaw (if track trimming is allowed per manufacturer)

• Silicone or hybrid sealant for perimeter sealing

• Screen kit (cassette or track system), fasteners, and weatherstripping

Step-by-Step Installation

1) Prep the Opening

• Clean the jambs and header; scrape paint ridges that could skew the cassette.

• Find and mark studs or solid blocking; pre-drill to avoid splitting.

• Dry-fit the cassette and end caps, confirming level across the header.

2) Mount the Cassette or Tracks

• Align the housing level or with a slight (1–2 mm) rake toward the exterior to shed condensation.

• Fasten through manufacturer-specified points; avoid overtightening to prevent case deformation.

• For side tracks, plumb both sides; shim as needed so the bottom gap is even across the opening.

3) Install the Screen and Bottom Bar

• Seat the screen edge into track channels or magnets, ensuring smooth glide.

• Add the weighted bottom bar; confirm full contact with the sill for bug-proofing.

• Verify spring tension or motor limits so the screen stops softly at top and bottom.

4) Seal and Tune

• Apply a thin bead of sealant at the cassette-to-wall interface and along track edges to close hairline gaps.

• Adjust brush seals for light contact—enough to limit insects without dragging.

• Cycle the door 10–15 times to burnish tracks and check for snags.

Ventilation, Light, and Comfort

• Airflow: When the main garage door is open and the screen deployed, cross-ventilation improves thermal comfort during moderate weather; pair with a quiet ceiling or wall fan to maintain steady air changes without slamming the screen.

• Light levels: Target 300–500 lux on work surfaces; avoid naked high-output bulbs that hotspot the mesh. A 4000 K LED plus a task lamp with a glare shield balances clarity and comfort.

• Acoustics: The mesh won’t insulate sound, so add rubber flooring or acoustic panels on the shared wall to dampen reverberation if you’re doing HIIT or using power tools.

Safety and Code Notes

• Egress: Keep at least one clear, unobstructed exit. Do not lock the screen in a way that delays emergency egress.

• Fire and CO: Never idle vehicles inside. Maintain working carbon monoxide alarms adjacent to the garage-to-house door. Store flammables in sealed metal cabinets away from heat sources.

• Thresholds: Use beveled transitions and non-slip tapes if the sill is raised.

Maintenance and Seasonal Care

• Monthly: Vacuum tracks with a soft brush; wipe with mild soap and water.

• Quarterly: Check fasteners, brush seals, and bottom bar alignment; apply a dry PTFE spray in tracks if recommended.

• Seasonal: In pollen-heavy months, rinse the mesh from the outside to avoid pushing debris inward; for freezing climates, retract in severe winds or ice events to protect the mesh.

Budget and Value

• DIY cassette kits typically range from low to mid hundreds, depending on width and mesh grade; motorized systems are a premium but add convenience for daily use.

• Pairing the screen with smart lighting and modular storage extends usable hours and reduces clutter, making the garage feel like a true extension of the home.

Common Mistakes to Avoid

• Mis-measurement at the floor where slabs can slope; always reference the lowest point.

• Over-tensioning a spring-loaded unit, which causes rebound and premature wear.

• Skipping seals at jambs and sill, which invites insects and rattling in cross-breezes.

• Mounting into drywall or damaged masonry without proper anchors.

FAQ

Q1. Will a pull-down screen reduce airflow too much for workouts?

A well-chosen mesh (18×16 or similar) permits substantial airflow while blocking insects. Add a quiet wall or ceiling fan to maintain steady air movement without flapping the screen.

Q2. What light level should I target for a garage workshop?

Aim for 300–500 lux on task zones per IES guidance for detailed work. Use neutral-white (around 4000 K) LEDs to balance clarity and comfort and avoid glare on the mesh.

Q3. How do I ensure the bottom seals well on a sloped slab?

Choose a weighted bar with flexible sweep or adjustable end caps. Shim track bases or select a threshold kit with a beveled, compressible seal to meet the highest point while closing gaps.

Q4. Can I install a pull-down screen with a low headroom garage door?

Yes—side-mount or compact cassettes can fit beneath limited headers. Verify the opener’s travel and add bump stops so the door hardware never contacts the cassette.

Q5. What mesh color offers the best visibility from inside?

Charcoal or black mesh usually provides better outward visibility by reducing reflections compared to light gray, while still softening glare.

Q6. How do I keep bugs out at the sides?

Use magnetic or brush seals along the jambs, ensure the tracks are plumb, and maintain a consistent bottom contact with a weighted hem. Seal hairline gaps with a neat bead of sealant.

Q7. Are motorized screens worth it?

For daily use, large openings, or accessibility needs, motorized units are convenient and reduce wear from improper hand operation. Look for soft-start motors and obstacle detection.

Q8. How do I integrate the screen with my layout?

Keep a 36 in clear path through the bay and test bike or equipment sweeps using an interior layout planner. You can quickly model clearances with a room design visualization tool like this room layout tool.

Q9. Will the screen help with privacy during workouts?

Darker mesh reduces inward visibility while keeping outward views, especially with brighter exterior daylight. Add layered lighting inside to avoid silhouetting at night.

Q10. How do I clean the mesh without stretching it?

Vacuum gently with a brush attachment and then wipe with a soft cloth and mild soap. Rinse from the exterior side to keep debris out of the garage.

Q11. Can I combine the screen with a mini-split or portable AC?

Yes, but close the screen and main door when running cooling to avoid load penalties. Use the screen primarily for shoulder seasons when outdoor air is pleasant.

Q12. What’s the most common installation error?

Mounting the cassette out of level, which causes binding and uneven bottom contact. Take time to level the housing and square the tracks before final fastening.
