Ranch Style Small House Plans: Maximize Space with Smart Design: 1 Minute to the Best Ranch Small House Layouts & Tricks

Ranch homes excel at clarity: a single-level flow, wide sightlines, and effortless circulation. In small footprints, that clarity needs a disciplined plan—balanced proportions, precise daylighting, and smart storage that feels built in rather than added on. In my recent projects under 1,200 sq ft, the most livable ranches share three traits: a continuous great-room spine, service zones grouped along a short utility wall, and flexible rooms that switch roles without visual clutter.

Design choices should be grounded in human performance, not guesswork. WELL v2 recommends 300–500 lux for ambient residential lighting and up to 1,000 lux task lighting to support visual comfort and circadian health; I target 350–400 lux across living zones and layer task lighting at food prep, reading, and vanity stations (source: WELL v2). On color, people tend to perceive small spaces as larger in cooler, lighter hues; Verywell Mind notes blues and greens often lower stress and can make rooms feel airier, particularly when paired with matte, low-gloss finishes that diffuse light (source: Verywell Mind color psychology). For work-nook ergonomics, seat pan height of ~17–19 inches suits most adults, with kitchen counters at 36 inches and accessible work counters at 34 inches aligning with NKBA guidance.

Plan the Core: A Spine That Organizes the Home

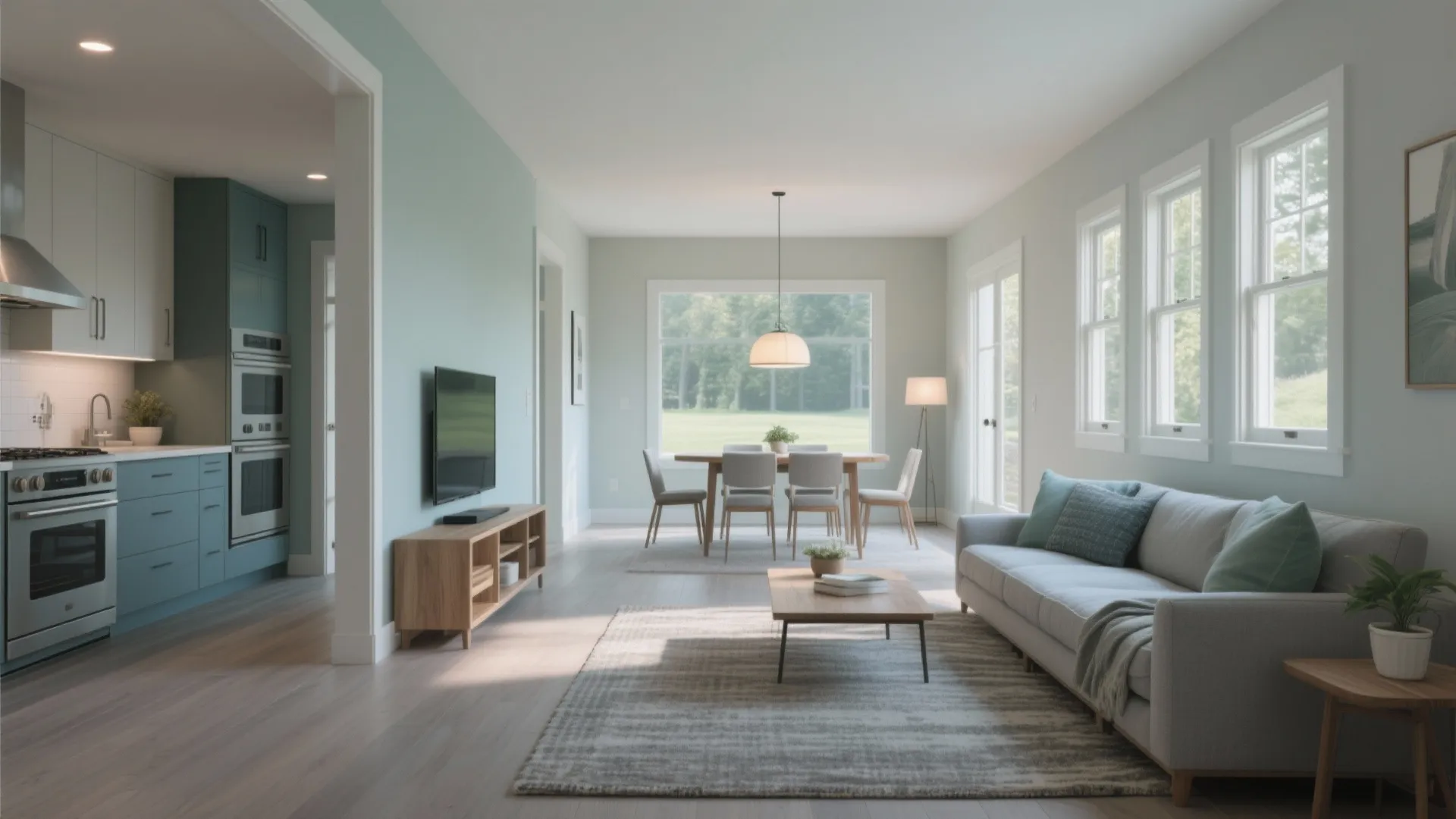

Start with a central spine: an open great room combining living, dining, and kitchen. This cuts corridor waste and provides daylight sharing across uses. Keep the main axis 1:2 to 2:3 in proportion—say 12' x 20'—for visual balance and furniture rhythm. Place the kitchen at one end with a 42" minimum clearance between island and run for circulation; set dining centrally for adaptable leaf tables; and float the lounge at the brightest end. If you’re iterating furniture and wall placements, a room layout tool can quickly test sightlines, walking distances, and door swings: room layout tool.

Zone for Quiet: Bedrooms and Acoustics at the Perimeter

Separate quiet and social zones. Primary and secondary bedrooms should flank the great room or sit on the opposite side of the spine for acoustic separation. Target an STC 50+ wall assembly between living spaces and bedrooms; resilient channels and mineral wool often get you there without major thickness increases. In small ranches, pocket doors with soft closers save swing clearance but add sound leakage; use solid-core sliders and acoustic seals if you go that route.

Circulation That Disappears

Minimize hallways; let furniture define pathways. A 36" clear path satisfies accessibility and feels generous in tight plans. Align doors to open into transition pockets, not view walls. Use transom windows above interior doors near the spine to borrow light into secondary rooms while preserving privacy. I aim for circulation to be under 8–10% of total area in compact ranches; every reclaimed square foot becomes storage or usable living space.

Kitchen: Compact, Social, and Efficient

Galley or L-shaped kitchens excel in small ranches. Keep the work triangle legs between 4' and 9' each, with total between 12' and 26'. Provide 24" landing space beside the fridge and 15" on one side of the cooktop. For multi-tasking, a 24–30" deep island or peninsula with a 12" overhang creates a breakfast edge that doubles as laptop perch. Under-cabinet lighting at 300–500 lux reduces shadows on prep surfaces. Specify matte or low-sheen fronts to reduce glare, and integrate vertical pull-out pantries (9–12" wide) near the fridge to avoid a bulky tall cabinet wall.

Living and Dining: Layered Light, Balanced Proportions

Center the dining table under a dimmable pendant at ~300–400 lumens per square meter (roughly 300–400 lux) and keep 36" around the table for chairs. In the lounge, arrange seating to face a window or a focal wall; a 10'–11' seating distance suits a 55–65" screen without dominating the room. Use a neutral field rug sized to the seating footprint—front legs on—so the area reads as one continuous zone. Conceal media in low credenzas; tall verticals go to corners to keep window walls visually open.

Bedrooms: Storage Without Bulk

Target minimum clearances: 24–30" at bed sides, 36" at main approach. Opt for wall-width closets with full-height sliders rather than swing doors to preserve circulation. If the plan allows, a 20–24" deep niche on the bed wall swallows dressers flush, creating a tidy elevation. Consider headboard walls in muted green or blue-gray for calming effect; cool hues recede and visually deepen compact rooms, consistent with color psychology research.

Bathrooms: Light, Vent, and Planar Simplicity

Small baths perform best with aligned fixtures on one wall to simplify plumbing. Use a 60" tub-shower combo or a 48–60" walk-in shower with a single glass panel; fewer lines reduce visual noise. Place vanities at 34–36" height; a 4,000K task strip at the mirror minimizes shadows. Keep tile large-format (12"x24" or larger) with tight grout for expansive feel, and run the same floor into a curbless shower when possible.

Storage as Architecture

Integrate storage in thicknesses: deepen interior walls to 6" in select runs for recessed shelves; add a 12–16" built-in along the spine as a media/linen hybrid; and use the laundry zone for tall utility storage. Bench seating at entries doubles as shoe storage; a 14–16" bench depth is comfortable without crowding.

Light, Views, and Glare Control

Daylight is the ranch’s superpower. Place largest glazing on the south or east for balanced light; keep west glazing shaded to avoid heat and glare. Follow IES guidance by layering ambient, task, and accent; dimmable LEDs at 2700–3000K create warmth at night, while 3500–4000K supports focus in work nooks. Use solar shades at 3–5% openness on glare-prone exposures to preserve views without harsh contrast.

Sustainable, Quiet Materials

Select low-VOC paints and FSC-certified woods for healthier interiors. Cork or rubber underlayments beneath LVP or engineered wood improve footfall acoustics in single-level plans. In wet rooms, choose porcelain over natural stone for durability and easier maintenance, and specify water-sense fixtures to keep consumption in check.

Flex Rooms and Work Nooks

With more people working at home, carve a 36–48" deep niche off the great room for a pocket office. An adjustable task chair at 17–19" seat height, monitor top at or just below eye level, and a 20" minimum knee clearance meet general ergonomic ranges. For privacy, deploy a full-height curtain or pivot door rather than a heavy wall; it maintains openness and daylight sharing.

Outdoor Links: Porches and Patios

Extend the spine outdoors. A 6–8' deep covered porch off the dining room becomes a seasonal room; align door swing with furniture clearances. Keep floor materials continuous in tone to visually expand the interior. Low, full-height glazing and a flush threshold blur the boundary.

Layout Moves That Pay Off

- Stack plumbing: kitchen, bath, and laundry along a short wet wall to reduce cost and simplify venting.

- Anchor the entry with a sightline to daylight; avoid staring into a blank wall.

- Use 80–96" tall interior doors to stretch proportions.

- Keep baseboards slim (3–4") and window casings minimal for clean lines.

When to Prototype the Plan

If the plan feels tight, test alternate furniture scales and door swings with an interior layout planner to validate clearances before construction: interior layout planner. I often iterate three living-room configurations to stress-test hosting vs. daily routines.

FAQ

How big should a small ranch great room be?

I aim for 250–350 sq ft, typically 12'–14' wide by 18'–24' long, which accommodates a kitchen edge, a 4–6 person dining table, and a lounge zone without corridors.

What lighting levels work best for compact living areas?

Target 300–400 lux ambient with task layers at 500–1,000 lux for reading, prep, and vanities, consistent with WELL v2 recommendations. Use dimmers to shift from focus to relaxation.

How do I reduce noise between living spaces and bedrooms?

Specify STC 50+ partitions using mineral wool and resilient channels, solid-core doors with perimeter seals, and soft surfaces (rugs, drapery) to control reverberation.

What color palette makes small rooms feel larger?

Cool, light hues—soft blues, greens, and gray-greiges—visually recede. Keep ceilings a half-shade lighter than walls and use matte finishes to diffuse light, aligning with color psychology insights.

Is an island possible in a narrow kitchen?

Yes, with 42" minimum clearance around it. In very tight rooms, a 24–27" deep peninsula can deliver seating and prep without choking circulation.

How do I fit storage without making the plan feel heavy?

Favor built-ins in wall thicknesses, full-height shallow cabinets (12–16" deep), and under-bench storage at entries. Avoid chunky freestanding armoires that eat circulation.

What’s the best window strategy for small ranches?

Prioritize south/east glazing for consistent light, shade west exposures, and keep sill heights low (18–24") in living areas to expand views. Use 3–5% openness solar shades for glare control.

How can I integrate a home office without a dedicated room?

Create a 36–48" deep niche off the great room with an adjustable chair (17–19" seat height), a 24–27" deep desk, task lighting at 500 lux, and a flexible partition—curtain or pivot door.

What flooring works best in a small, single-level plan?

Use one continuous material—engineered wood or quality LVP—for visual continuity. Add acoustic underlayment in living and bedroom zones to soften steps.

How do I plan dining for both daily use and guests?

Position dining centrally with 36" clearance on all sides and use an extendable table. Overhead pendants on dimmers let you scale light with table size.

What’s an efficient bathroom layout for tight footprints?

Line fixtures on one wall, choose a curbless shower with a single glass panel, and run large-format tiles continuously. Good ventilation and 4,000K mirror lights keep the room bright and clear.

Any quick wins for curb appeal on a small ranch?

Strengthen horizontals with a low porch, align window heads, add a simple beam or pergola at the entry, and keep materials to two primaries plus one accent for calm composition.
