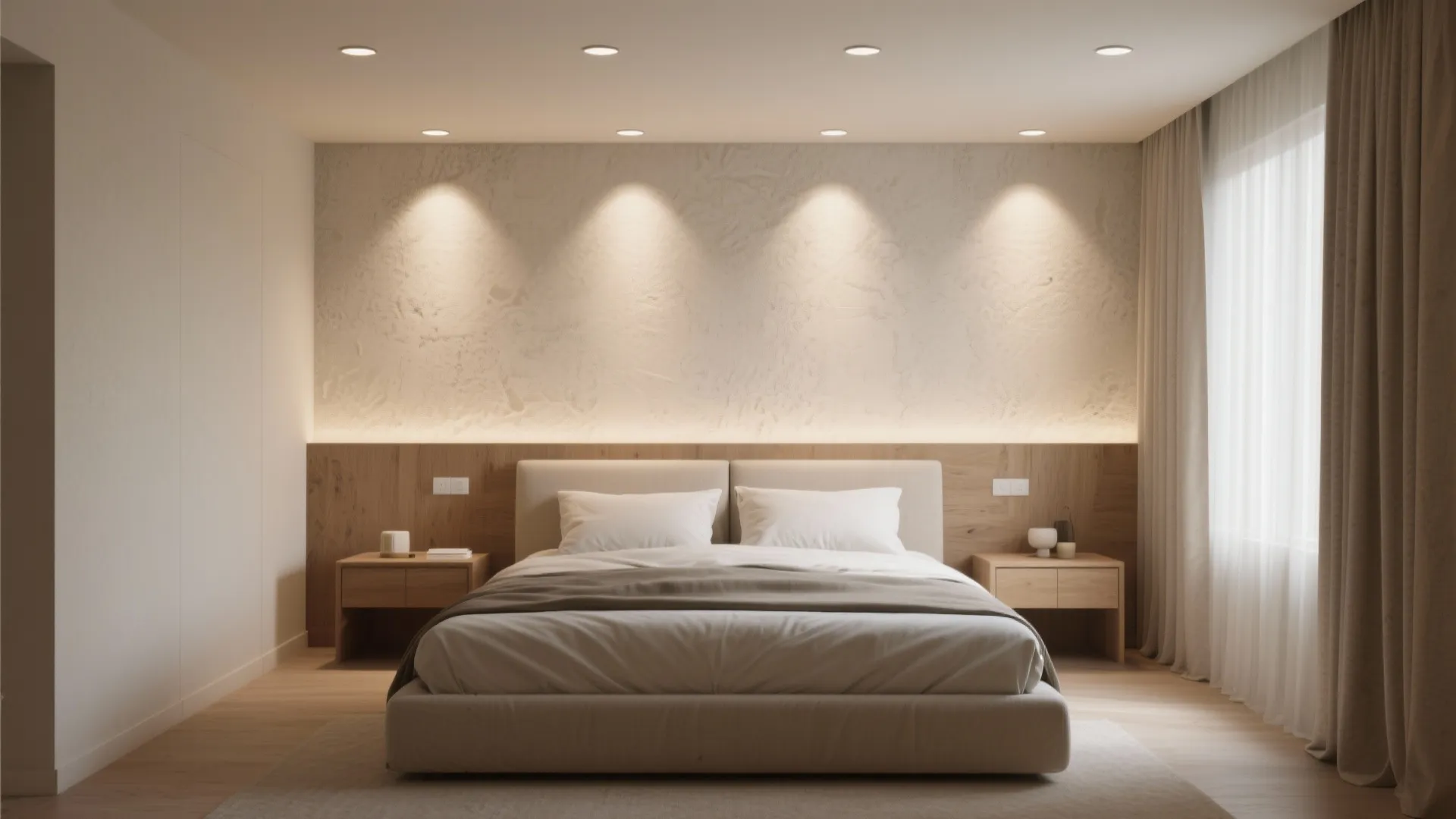

Recessed Light Placement: 5 Smart Distances: Practical guidance from a veteran interior designer on how far recessed lights should be from walls in small and large rooms

I once had a client who insisted that all recessed lights be placed exactly where his headboard would be — symmetry over function. After a sleepless night of mockups and a minor argument about halo effects, I learned that lighting is as much about distance as it is about drama. Small spaces can spark big ideas, and proper recessed-light spacing is one of those tiny details that transforms a room.

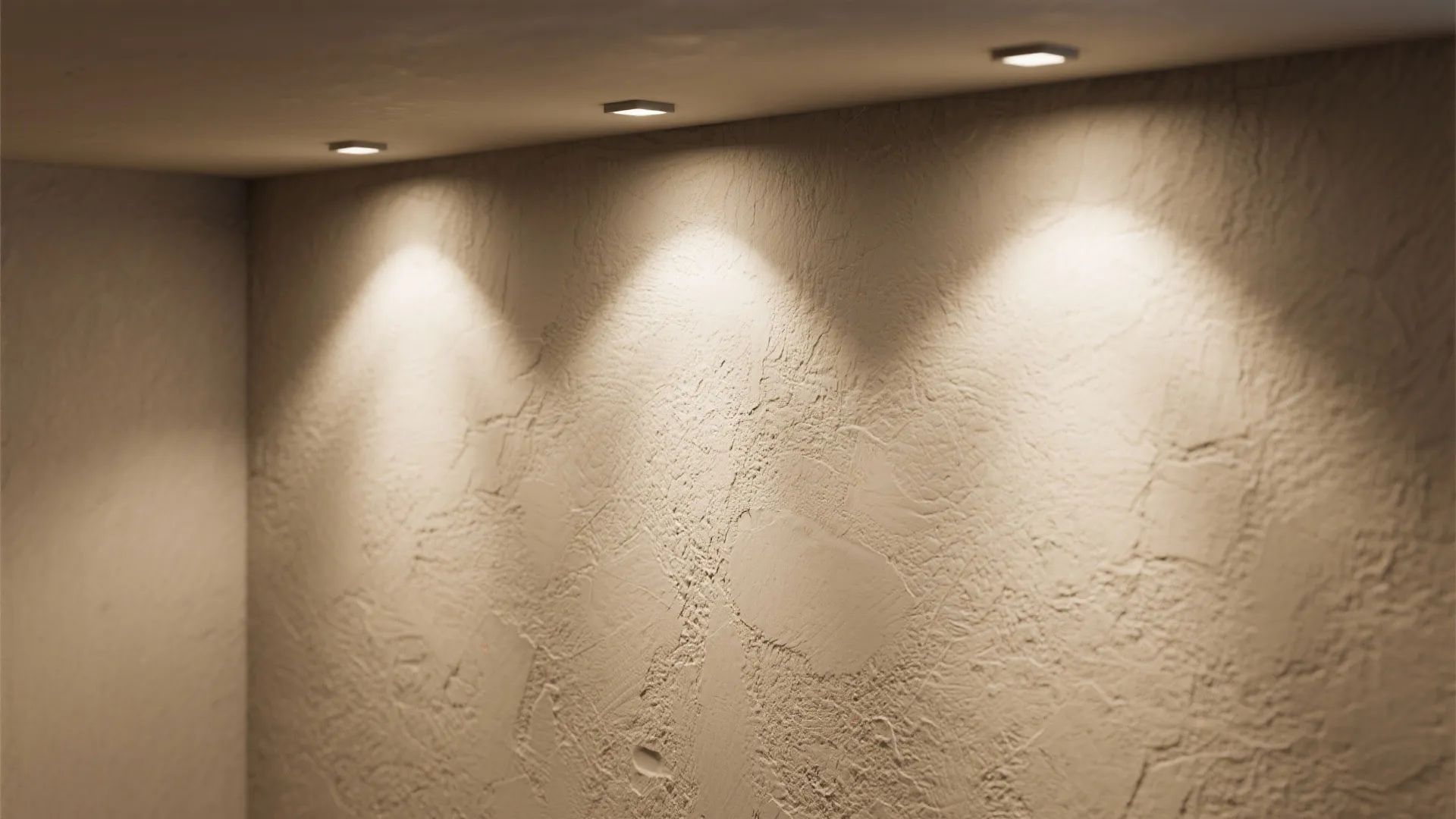

1. Wall washing: 6–18 inches for a soft glow

For a gentle wall wash that highlights texture or art, I typically start recessed cans 6 to 18 inches from the wall. Closer (6–10") gives a smooth, even wash on textured surfaces; farther (12–18") reduces contrast for flatter walls. The advantage is visual interest without extra fixtures; the trade-off is that too close can create harsh bands of light on some finishes.

save pin

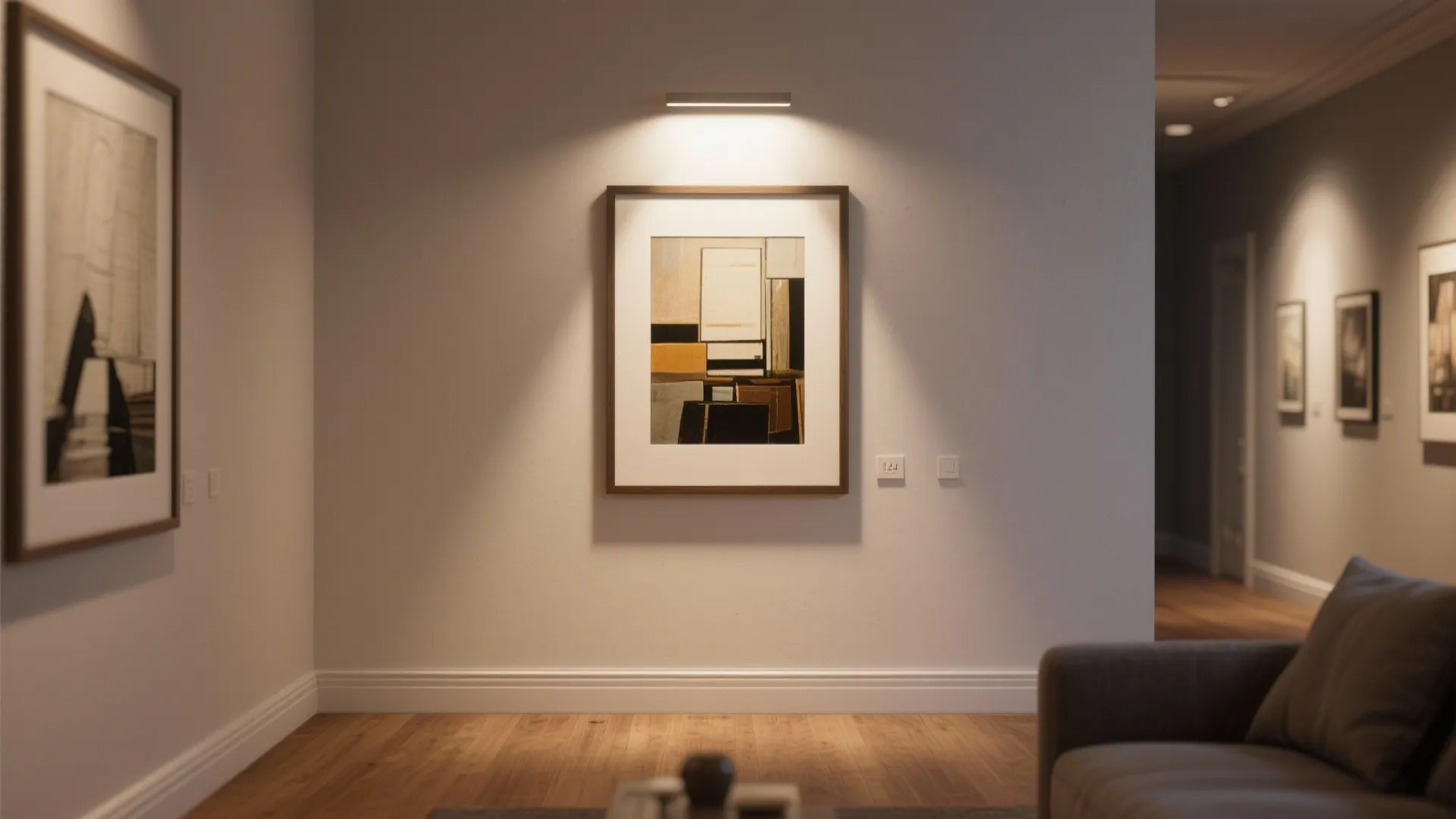

2. Accent lighting for artwork: 12–24 inches

If you want to make a painting or niche pop, place the recessed light about 12 to 24 inches from the wall and aim it so the beam lands on the center of the piece. This distance helps control glare and keeps the highlight focused. It’s a slightly pricier approach because it may require directional trims, but the result feels gallery-level.

save pin

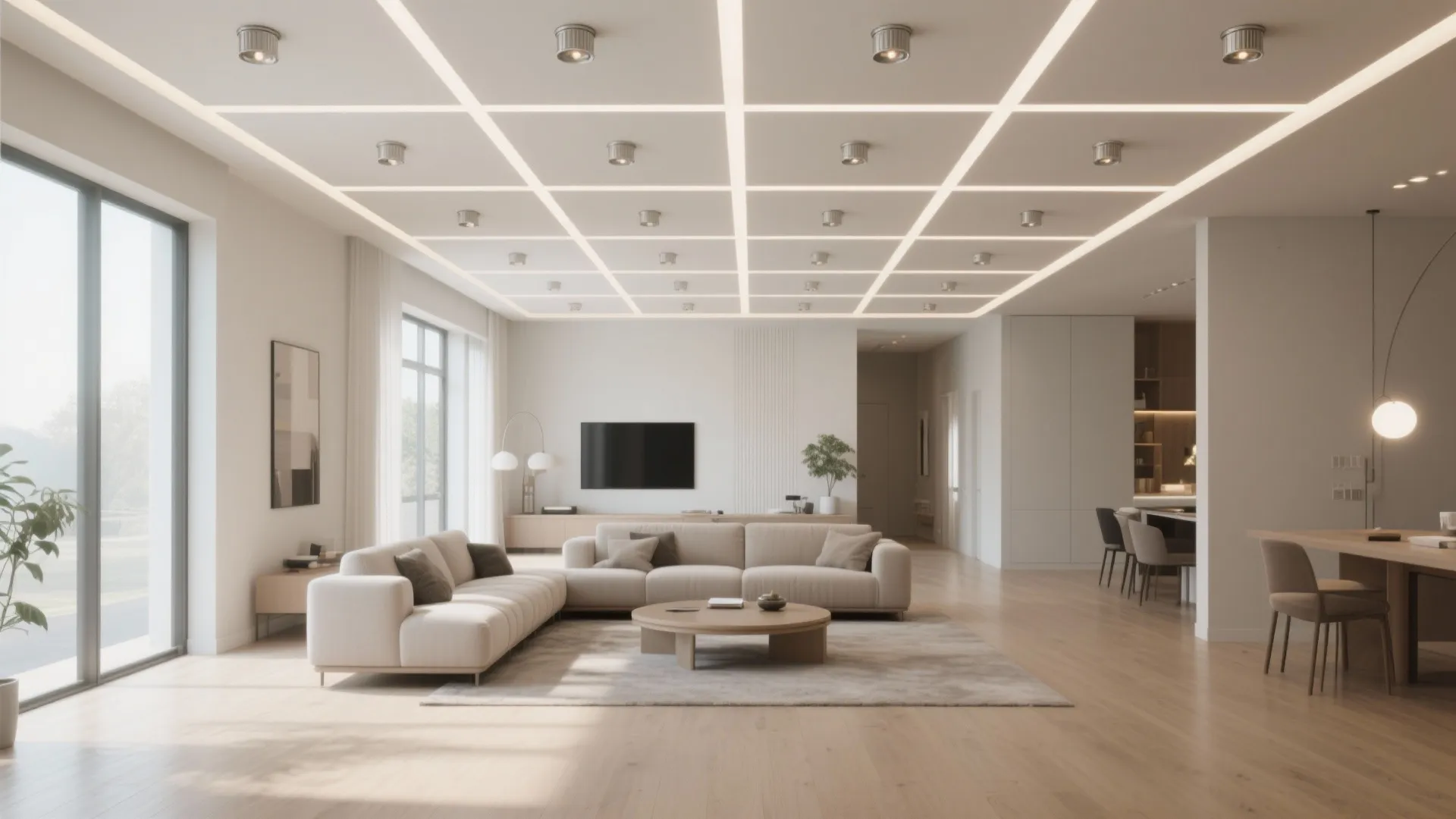

3. General room lighting: follow the 4-foot rule

For even ambient lighting, a practical rule I've used is spacing recessed fixtures roughly 4 feet apart and starting them about 2 to 3 feet from the wall when ceiling height is standard (8–9'). This creates balanced illumination across the floor and walls. It’s simple and reliable, though rooms with high ceilings or dark paint will need adjustments.

save pin

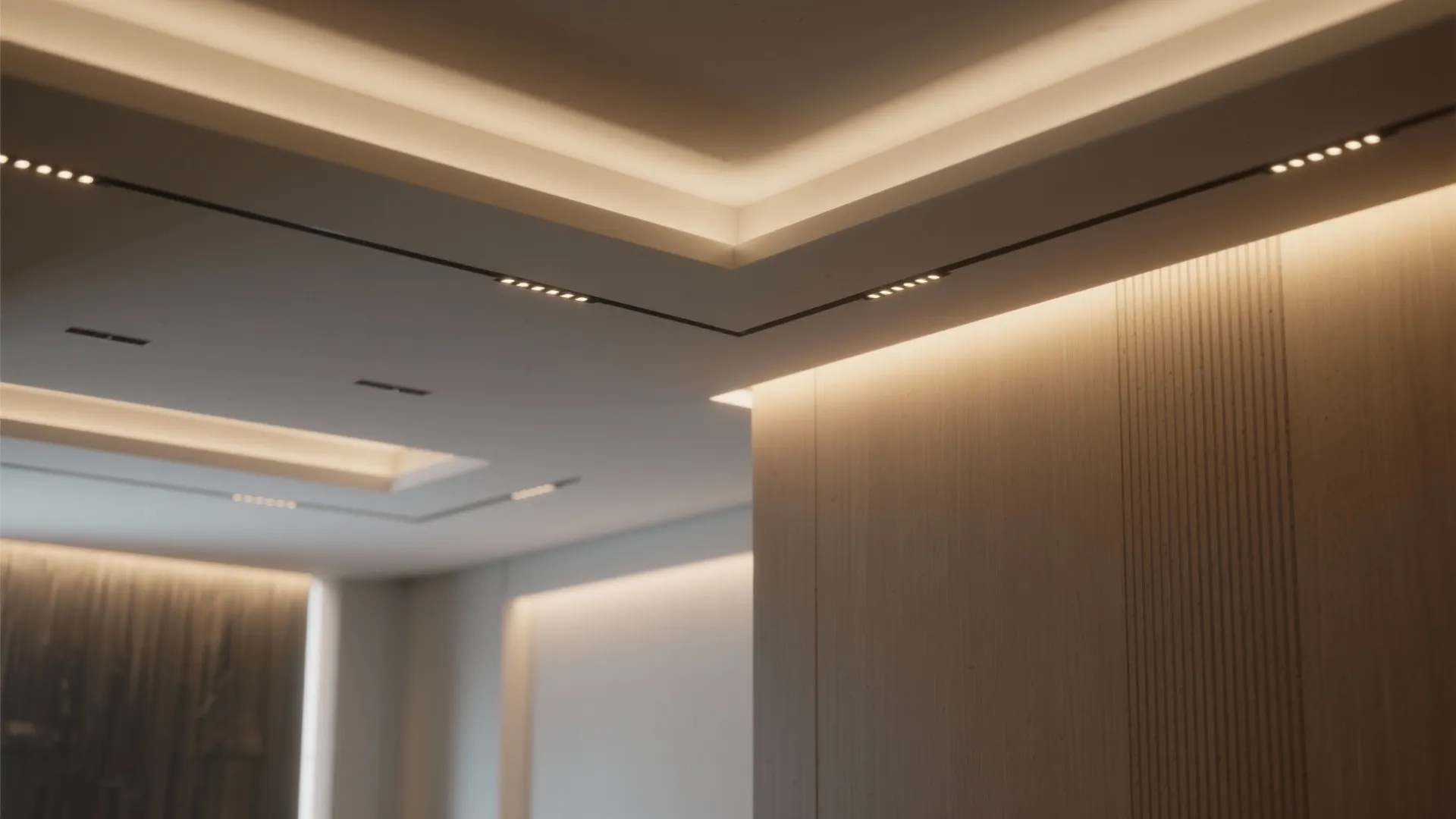

4. Cove and soffit planning: 3–6 inches for subtle uplight

When designing a cove or soffit uplight, place cans 3 to 6 inches from the vertical face so the light grazes the ceiling and creates a soft glow. This technique reduces shadowing and adds perceived height, but you’ll want baffles or trims to avoid bulb glare when sitting below.

save pin

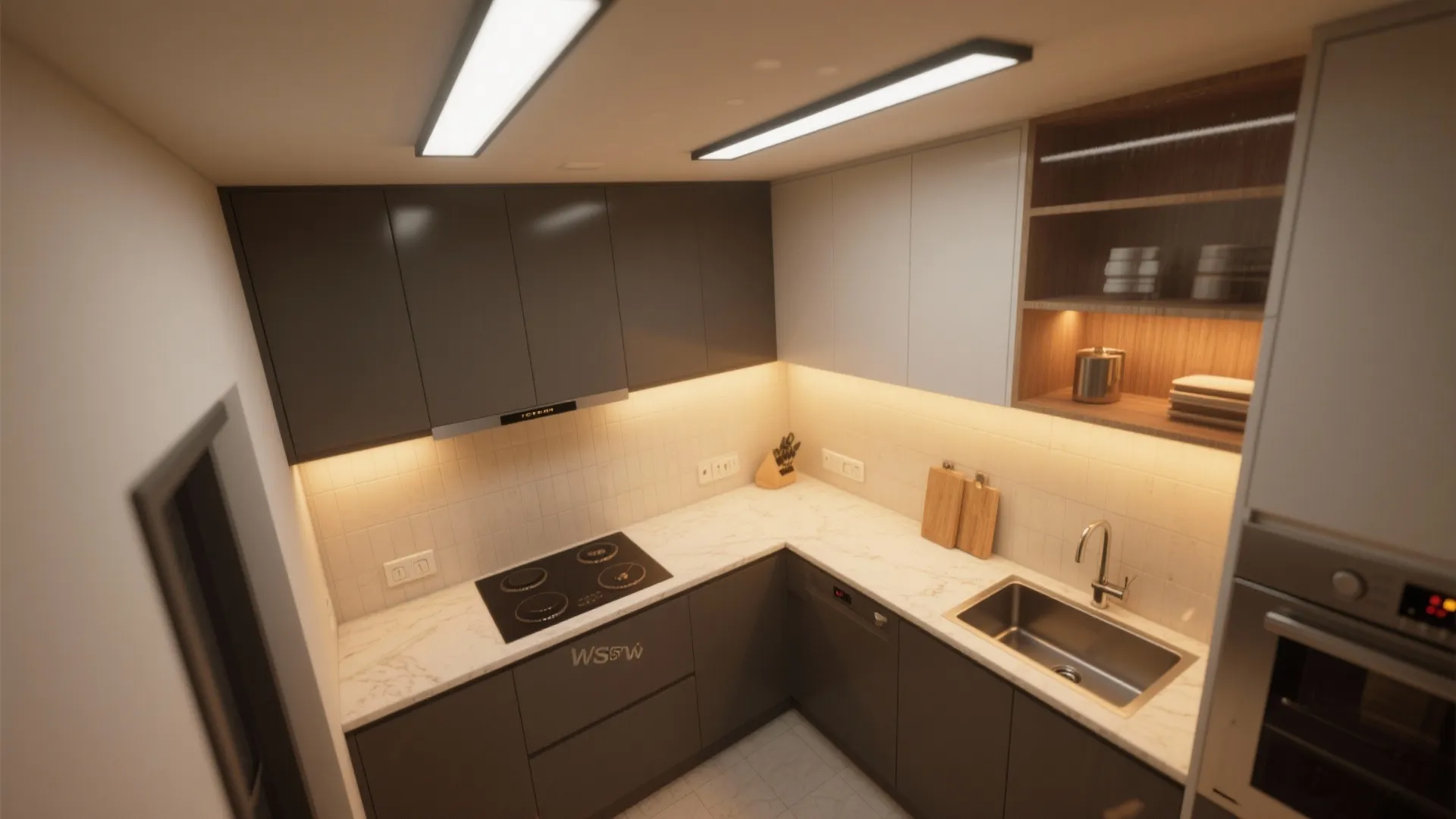

5. Small rooms and kitchens: combine distances for function

In kitchens and compact bathrooms I mix distances — a 2–3 foot spacing over work zones and 6–12 inches from cabinets or backsplash for task clarity. Combining placements solves both function and ambience: the downside is planning complexity and potential extra fixtures, but it pays off in usability.

If you're sketching layouts, try mockups to see real shadows and highlights. I often use a room planner to visualize light placement before cutting ceilings, which saves headaches and callbacks.

save pin

Tips 1:

Measure ceiling height, wall color, and fixture beam angle first. Warmer LEDs and lower beam spreads need different distances than bright, wide floods. If unsure, test with a single recessed can and adjust before committing to the full layout.

save pin

FAQ

Q1: How far from the wall should recessed lights be in living rooms?

A1: For living rooms with standard 8–9' ceilings, start fixtures about 2–3 feet from the wall or 6–18 inches for wall washing, and space lights roughly every 4 feet for even coverage.

Q2: What about high ceilings?

A2: High ceilings require wider spacing and often higher wattage/ lumen output; you may start fixtures farther from the wall (12–18") and increase spacing to 6–8 feet depending on beam angle.

Q3: How do beam angle and trim affect placement?

A3: Narrow beam angles focus light and need precise placement; wider beams cover more area so fixtures can be spaced farther apart. Choose trims to control glare and beam spread.

Q4: Can recessed lights highlight textured walls?

A4: Yes — placing fixtures closer (6–10") creates striking texture highlights, but test first to avoid unwanted striping.

Q5: What's the best distance for lighting artwork?

A5: Place fixtures about 12–24 inches from the wall and aim them to hit the artwork’s center for even illumination without hotspots.

Q6: Are there building codes affecting placement?

A6: Codes mostly address fire-rated housings, insulation contact (IC) ratings, and spacing near HVAC or sprinklers; local codes vary so check with your municipality.

Q7: How do I calculate spacing for recessed lights?

A7: A common method is spacing equal to the ceiling height (in feet) for general lighting — e.g., 8' ceiling → ~8' spacing — then refine based on beam angle and layout. For precision, use photometric data from the fixture manufacturer.

Q8: Where can I visualize layouts before installation?

A8: I recommend using a reliable floor planner to mock up fixture positions and simulate light spread; it’s a practical step that helps avoid mistakes and refine distances. For technical guidance on lumen and beam spread, refer to Illuminating Engineering Society (IES) standards at https://www.ies.org/ which provides authoritative recommendations.
