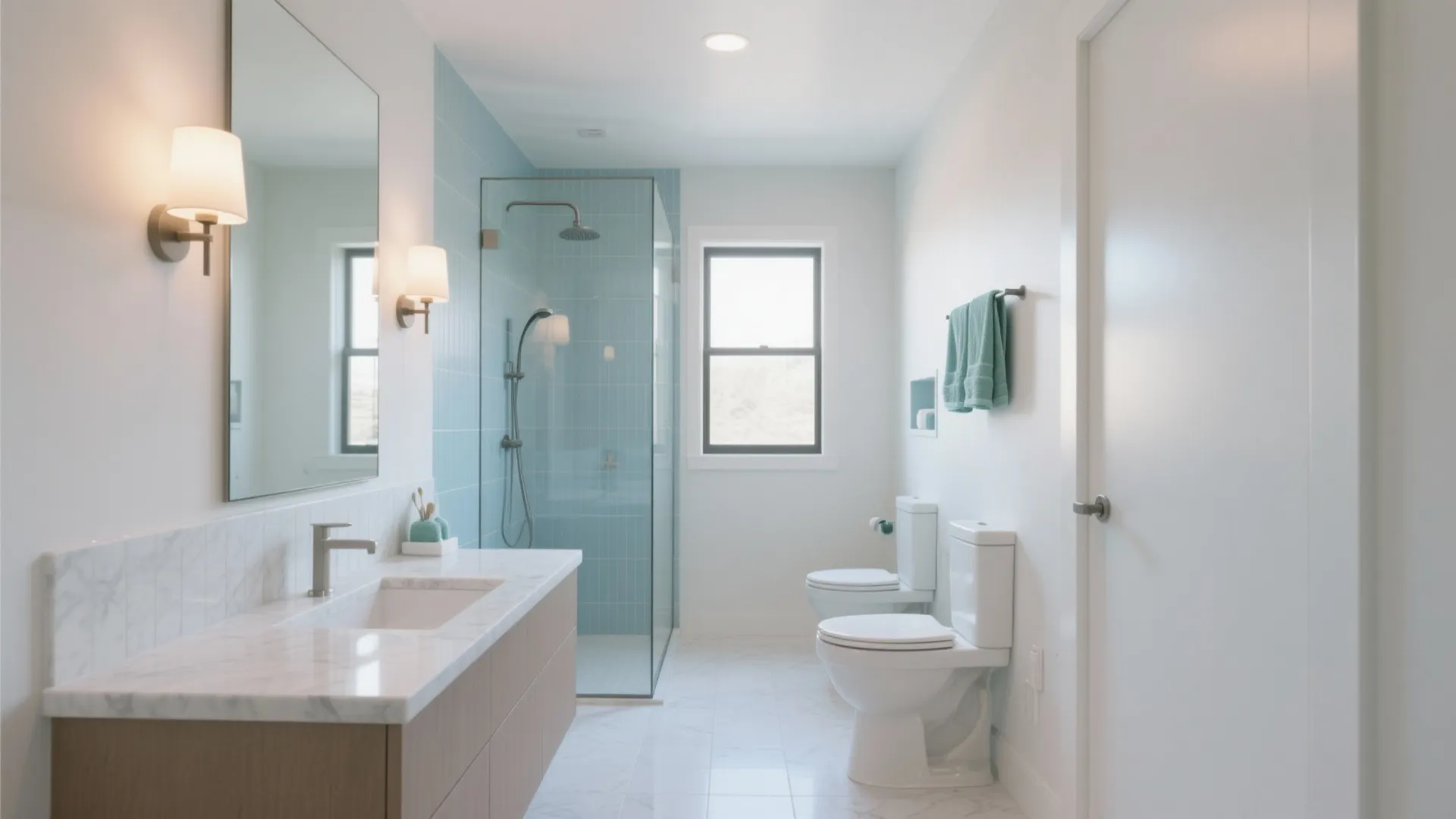

Rectangular 5 x 10 Bathroom Layout Ideas: Explore Functional Designs for Small Bathrooms

A 5 x 10 bathroom is compact yet surprisingly versatile when planned with clear circulation, precise fixture sizing, and light-conscious detailing. I’ve designed dozens of narrow bath spaces, and the most successful plans balance clearances, plumbing efficiency, and visual rhythm—so the room feels longer, brighter, and more usable day to day.

Space comfort hinges on measurable standards. The WELL v2 concept for Restorative Spaces emphasizes glare control and circadian-supportive lighting; aiming for ambient lighting around 20–50 footcandles with 2700–3000K warm-white color temperatures in the evening helps reduce sleep disruption. For task lighting at mirrors, I maintain 50–75 footcandles with vertical sconces to minimize shadows (aligned with typical practice and IES recommendations). Color choices matter too—Verywell Mind notes that blues and soft greens are commonly associated with calm, making them reliable accents in small, high-stress spaces like a narrow bath. For facility strategy and data-driven planning, I track human-factors metrics and lighting comfort through sources like WELL v2 and Verywell Mind.

Dimensional discipline protects usability. Most building codes and NKBA guidance expect at least 30" clear in front of toilets and showers, with 15" minimum from toilet centerline to any side obstacle. A standard 60" tub fits the 10' length; a neo-angle or 32–36" shower keeps width under control. Vanity depths from 18–21" help prevent circulation pinch points. When planning your fixture sequence along one long wall, map door swing first, then align toilet and shower near the wet wall for plumbing efficiency.

Layout Strategy: One-Wall Efficiency

In very tight 5 x 10 plans, a one-wall layout places the vanity, toilet, and shower/tub in a straight line. I often start with a 24–30" vanity, then a 30" toilet zone, and finish with a 60" tub or a 36" shower—keeping 30–32" clear aisle opposite. This approach consolidates supply and waste lines, reduces cost, and simplifies acoustic isolation. Use a light, continuous floor tile to reduce visual segmentation and run wall tile vertically to heighten the perceived ceiling.

Layout Strategy: Split-Zone with Pocket Door

When privacy is a priority, divide the 10' length into two functional zones: the front half for the vanity and storage, the back half for the shower/toilet behind a pocket door. A frameless glass partition maintains openness while controlling splash. I aim for a minimum 36" clear path to the rear zone. Pocket doors remove swing conflicts in tight widths and reduce noise transfer.

Layout Strategy: Wet Room Approach

A fully waterproofed wet room can transform a narrow plan. Position a wall-hung toilet and a floating vanity on one side, with a curbless shower at the far end. A continuous linear drain allows a gentle floor slope, avoiding step-ups. Wall-hung fixtures increase knee space and make the 5' width feel less constricted. Glass screens can be partial-height to preserve airflow and brightness.

Alternate Fixture Sequencing for Better Flow

I use three sequences most often: vanity–toilet–shower (most common), vanity–shower–toilet (for privacy at entry), and shower–vanity–toilet (for best morning traffic when two people share the space). Choose based on door position and natural light. If your window is at the far short wall, placing the shower near the window can brighten tile and reduce mirror glare.

Ergonomics and Human Factors

Mirror sconces at eye level (center at ~60–66" from finished floor) evenly wash the face. Keep towel bars within 20–24" reach of shower exit to minimize dripping across the aisle. For seated use and safety, a 33–34" vanity height works for many households, while 31–32" can be favorable for children. Mark grab bar anchors during framing—even if you don’t install bars now—so future upgrades are simple and safe.

Light Environment: Task, Ambient, and Glare Control

Layer light. Ambient ceiling fixtures (20–50 footcandles) prevent cave effects, while vertical mirror lights at 50–75 footcandles reduce facial shadows. Use warm-white 2700–3000K for evening wind-down; include a dimmer to align with WELL thinking on circadian support. Avoid downlights directly over the mirror that cast harsh shadows; offset or use wall-mounted sources.

Color Psychology in Narrow Rooms

Soft neutrals with cool undertones extend visual depth, while saturated accents should be compact—niches, vanity fronts, or framed art. blues and greens are consistently linked with calm per Verywell Mind’s color psychology overview; pair them with matte finishes to reduce glare. High-reflectance paint (LRV 70+) on the ceiling lifts perceived height.

Material Selection and Sustainability

Choose slip-resistant tiles (≥0.42 DCOF) for wet zones. Large-format porcelain reduces grout lines, simplifying cleaning and visually expanding the footprint. Recycled-content ceramic and low-VOC sealants maintain indoor air quality. A quartz or sintered stone vanity top resists staining in tight rooms where the sink sees daily use.

Acoustic Comfort

In narrow bathrooms, hard surfaces amplify sound. Add a solid-core pocket or swing door, soft window treatments, and rubber underlayment beneath tile to control impact noise. Concentrating the wet wall on one side helps isolate flush noise away from bedrooms.

Storage Tactics That Don’t Steal Width

Recess where possible: medicine cabinets, towel niches, and shallow shelves between studs. A vanity with integrated drawers beats open shelves for clutter control. Tall, narrow cabinets (12–15" deep) near the door maintain clear sightlines yet add vertical capacity.

Smart Detailing: Visual Balance and Ratios

In a 5 x 10 rectangle, lean on vertical lines to stretch the room: stacked tile patterns, tall mirrors, and floor-to-ceiling shower glass. Keep a 60/40 ratio of light-to-medium tones across surfaces; too much dark mass on one side compresses the width. Align grout joints with fixture edges for visual order.

Door, Window, and Venting

A 24–28" door reduces conflict with fixtures. Pocket doors unlock circulation, but ensure a solid-core slab and quality track. If a window sits on the short wall, position the mirror opposite to bounce daylight deeper. Mechanical ventilation is non-negotiable; target 80–110 CFM with a quiet fan in small baths.

Fixture Sizes That Fit

Compact vanities: 24–30" wide, 18–21" deep. Toilets: allow 30" width (15" to each side), 30" front clearance. Showers: 36" square is comfortable; 32" works with frameless glass. Standard tub: 60" x 30". These sizes keep circulation viable in a 5' width.

Planning and Visualization

Before demolition, sketch clearances and sightlines, then iterate on fixture sequence and door type. For quick scenario testing—especially one-wall vs split-zone—a layout simulation tool like a room layout tool can help visualize traffic lines and lighting. It’s faster to fix a plan on screen than to move plumbing later.

References for Better Decisions

To anchor lighting and wellness choices, consult WELL v2 resources for occupant comfort and circadian alignment, and review Verywell Mind’s color psychology insights for stress-reducing palettes.

FAQ

Q1: What is the most space-efficient 5 x 10 bathroom layout?

A one-wall layout with vanity–toilet–shower along the same side maximizes plumbing efficiency and keeps a clear 30–32" aisle. Use a 24–30" vanity, 30" toilet zone, and a 36" shower or 60" tub.

Q2: How much lighting do I need for a narrow bathroom?

Ambient lighting around 20–50 footcandles and task lighting near 50–75 footcandles at the mirror provide comfortable visibility. Warm-white 2700–3000K supports evening wind-down aligned with WELL v2 thinking.

Q3: Are pocket doors worth it in a 5' wide bath?

Yes. Pocket doors remove swing conflicts and often unlock clearer circulation. Use a solid-core slab and a quality track for acoustic performance.

Q4: Can I fit a full tub in a 5 x 10 bathroom?

Typically yes—a standard 60" tub fits the 10' dimension. Place it at the far end and keep at least 30" clear aisle opposite for movement.

Q5: What color palette makes a narrow bath feel larger?

Light neutrals with cool undertones, paired with small accents in blues or greens. Verywell Mind associates these hues with calm, which suits compact, high-use rooms.

Q6: How do I improve acoustics in a tile-heavy space?

Add a solid-core door, soft window treatments, and rubber underlayment beneath tile. Group the wet wall to isolate toilet and shower noise from adjacent rooms.

Q7: What clearances are non-negotiable?

Provide 15" from toilet centerline to side obstacles, about 30" in front of toilets and showers, and keep a clear 30–32" aisle for movement.

Q8: Is a wet room practical in a 5 x 10 layout?

Yes, if you fully waterproof, use a linear drain, and choose wall-hung fixtures. Curbless entries improve accessibility and make the width feel less constrained.

Q9: How should I place vanity lights?

Vertical sconces on both sides of the mirror, centered around 60–66" from floor, create even facial illumination and reduce shadows compared with overhead-only downlights.

Q10: What storage works without tightening the aisle?

Recessed medicine cabinets, in-wall niches, and tall 12–15" deep cabinets near the door add capacity without intruding into circulation.
