Refraction Room Design: Create the Perfect Space: 1 Minute to Understand and Design a Refraction Room Efficiently

I’ve always treated light as the first material in any room, and refraction is its quiet superpower. When handled well, refracted light softens contrast, reveals texture, and creates depth without glare. In residential and workplace settings, this translates into calmer moods, clearer wayfinding, and visually balanced environments that feel larger than their footprint.

Designing with refraction starts with measurable light quality. WELL v2 recommends ambient illuminance in the range of 215–300 lux for common areas to support visual comfort, with task zones often needing 300–500 lux depending on precision work. The Illuminating Engineering Society (IES) lays out luminance ratios to reduce eye strain—ideally keeping the task-to-background luminance ratio near 3:1 to avoid harsh contrast that refraction can exaggerate if uncontrolled. You can review guidance from WELL at wellcertified.com and the IES standards at ies.org/standards for baseline targets.

Color drives perception just as powerfully as light. Research summarized by Verywell Mind on color psychology indicates that cooler hues support alertness and focus, while warm neutrals nurture relaxation—an essential balance in refraction-rich interiors where edges blur and spatial boundaries feel softer. In practice, I frame high-focus areas with desaturated cool palettes, then warm the periphery with earth-tone textures to keep the eye engaged yet comfortable.

Refraction Fundamentals: Materials, Angles, and Spatial Intention

Refraction occurs when light changes speed through a medium—glass, water, resin, certain stones—bending its path and diffusing highlights. In rooms, I use three layers: transparent (low-iron glass, prismatic panels), translucent (sandblasted glass, ribbed polycarbonate), and reflective (satin metals, low-sheen mirrors). Each layer adjusts the direction, intensity, and visual texture of light. The trick is tuning angles: a 10–20° tilt on translucent screens can break specular reflections into soft gradients, while slightly curving a glass partition distributes highlights along a longer arc, reducing luminance hotspots.

Light Environment: Avoid Glare, Amplify Depth

Glare control is non-negotiable. I balance refracted highlights with indirect ambient sources—cove lighting, wall washers, and uplights—to keep vertical illuminance consistent. For daylight, install adjustable louvers or micro-prismatic films on south and west exposures to diffuse peak sunlight. In work settings, I align task lights at 30–45° to the primary working plane to minimize shadowing from refracted edges; in living areas, I layer warm uplight with cool directional accents so objects read crisply against softer backgrounds.

Color Psychology Meets Material Selection

Translucent materials can wash a room with subtle tones. Frosted glass with a slight gray tint steadies alertness in studios, while amber resin panels add warmth to lounges. I keep saturation controlled; refraction multiplies perceived intensity. If a wall requires energy, I’ll introduce a narrow strip of saturated color behind a translucent baffle so the hue appears as a gentle glow rather than a loud patch. For relaxation zones, muted blues and olive greens behind ribbed polycarbonate produce a soothing, blurred gradient.

Human Factors and Ergonomics

Refraction brings beauty, but human factors ensure usability. In circulation paths, maintain clear sightlines with top-lit translucent partitions; this increases perceived openness while preserving privacy. Handrails and edge protection near refractive elements should be high-contrast to comply with safe navigation, and task seating should be placed to avoid direct sight of bright refracted highlights. Adjustable task lights with 3000–4000K color temperature give users control, while vertical illumination near faces supports social interaction without overexposing skin tones.

Spatial Ratios and Rhythm

Rooms that rely on refracted light benefit from disciplined spatial ratios. I typically keep the translucent-to-opaque surface ratio around 30–40% for daylit environments; higher ratios risk washing out contrast. Establish a rhythm: alternate bands of translucent and textured opaque surfaces to guide movement. In small rooms, place refractive elements opposite entries to create perceived depth; in large spaces, use them to break up long sightlines, turning vast areas into legible sequences.

Acoustic Comfort with Refractive Elements

Glass and resin don’t help acoustics on their own. Pair them with absorptive finishes—microperforated wood, mineral wool behind slotted panels, acoustic textiles. Position translucent partitions so they shape traffic while keeping absorbers on the ceiling and select walls. If a refractive feature must be central, embed acoustic lamination or sandwich a thin absorptive core between translucent skins to soften reverberation without sacrificing glow.

Sustainability and Durability

Choose materials with recycled content where possible: post-consumer glass, aluminum with high recycled content, and bio-based resins. Favor low-VOC sealants and avoid high-gloss coatings that spike glare. Detailing matters—specify demountable frames for translucent panels so components can be reconfigured or reused as needs evolve, reducing waste while keeping the refraction strategy intact.

Workplace and Residential Use Cases

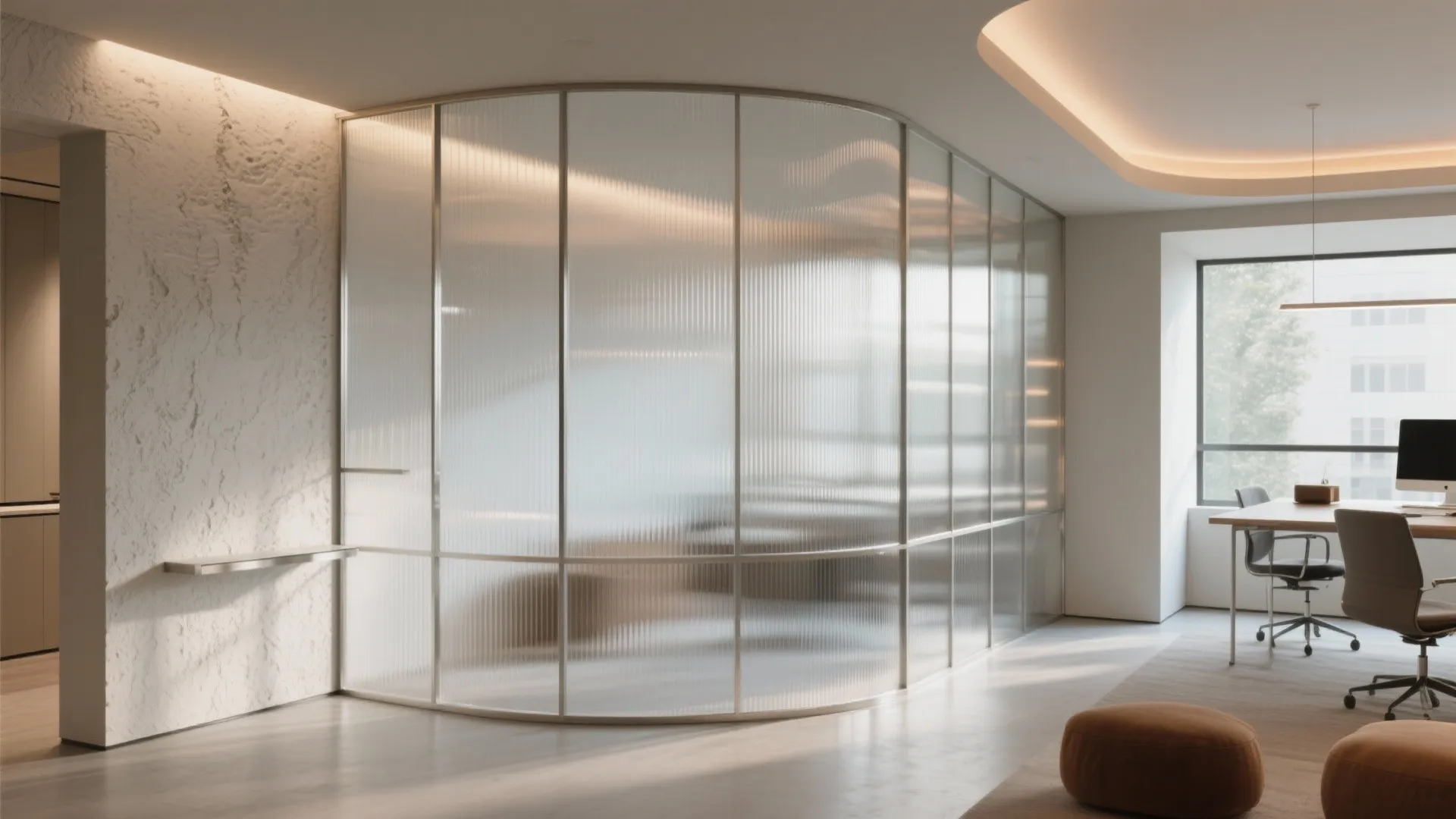

In studios, I’ve had success with translucent pin-up walls that glow under linear uplights, turning brainstorming zones into calm beacons that don’t distract. In living rooms, a curved low-iron glass screen near a window can bend daylight across a textured plaster wall, adding movement through the day. Bedrooms benefit from ribbed diffusers that soften early-morning sun; kitchens shine with prismatic backsplashes that scatter highlights without glare, keeping counters readable.

Layout Strategy and Visualization

Placement determines performance. Start with daylight mapping: trace sun paths, then position refractive elements to catch, bend, and redistribute light away from screens and reading planes. Simulate furniture shadows and traffic lines to ensure highlights don’t collide with tasks. When iterating layouts, a room layout tool helps test angles, partitions, and luminance balance before committing to construction:

room layout tool

Detailing: Edges, Frames, and Maintenance

Edge quality changes perceived refinement. Chamfered or rounded edges scatter light gently; razor edges read sharp and modern but demand careful glare control. Opt for matte or satin frames to avoid secondary reflections. Plan for cleaning: refractive surfaces reveal smudges; specify anti-fingerprint coatings or easy-access mounting systems so maintenance stays painless.

Lighting Temperature and Scene Control

Color temperature steers mood. 2700–3000K works for restorative spaces; 3500–4000K suits productive zones. Pair tunable white fixtures with refractive features to adapt from morning focus to evening unwind. Scene presets should balance vertical and horizontal illuminance so refracted highlights never dominate—think "Ambient + Accent," "Task + Diffuse," and "Evening Glow" as your core trio.

Common Pitfalls and How I Avoid Them

Over-glossing is the fastest way to create flare. I prefer satin finishes and subtle curvature to spread highlights. Another trap is inconsistent vertical illuminance, which makes refracted zones feel cloudy; wall washers solve this. Finally, too much translucency erases hierarchy. Keep a strong opaque backdrop so glow reads as a layer, not the main event.

FAQ

1) How much ambient illuminance should I target for a refraction-focused room?

For general comfort, aim around 215–300 lux for ambient lighting per WELL v2 guidance, increasing to 300–500 lux in task-heavy areas. Keep luminance ratios controlled to reduce eye strain.

2) What color temperatures pair best with translucent materials?

Use 2700–3000K for relaxation and 3500–4000K for focus. Tunable white fixtures let you shift scenes without repainting or re-detailing.

3) How do I control glare from refracted highlights?

Combine indirect ambient lighting (coves, wall washers) with micro-prismatic films on windows and matte frames. Position task lights at 30–45° to working planes.

4) Which materials give the most pleasing refractive effects?

Low-iron glass, sandblasted glass, ribbed polycarbonate, and satin-finished metals. Avoid mirror-polished surfaces unless you have robust glare control.

5) Can refraction improve small rooms?

Yes—place translucent features opposite entries, use vertical washes to extend depth, and keep the opaque-to-translucent ratio balanced around 60:40 or 70:30.

6) How do I keep acoustics in check with glass-heavy designs?

Introduce absorptive ceilings, microperforated wood, and acoustic textiles. Consider laminated glass with acoustic interlayers or hybrid translucent panels.

7) What’s the safest way to integrate refraction near circulation paths?

Maintain clear contrast at edges, provide top lighting for partitions, and avoid bright hotspots at eye level. Handrails and thresholds should be visibly distinct.

8) How can I model the impact before building?

Use a interior layout planner to simulate sun paths, luminance distribution, and furniture shadows. Adjust angles and materials until highlights are balanced.

9) Does color saturation change with refraction?

Perception intensifies; keep saturation modest and deliver bolder hues as backlighting behind translucent screens to create gentle, controlled glow.

10) What maintenance considerations should I plan for?

Specify anti-fingerprint coatings, easy-access frames, and cleaning protocols. Matte finishes reduce visible smudges and secondary reflections.

11) Are there sustainability tactics specific to refractive features?

Choose recycled glass and metals, low-VOC adhesives, and demountable frames. Design for disassembly so parts can be reused as needs change.

12) How does refraction influence workplace productivity?

By improving perceived brightness and visual hierarchy while limiting glare. Balanced vertical illuminance supports comfort, aiding focus and social interaction.
