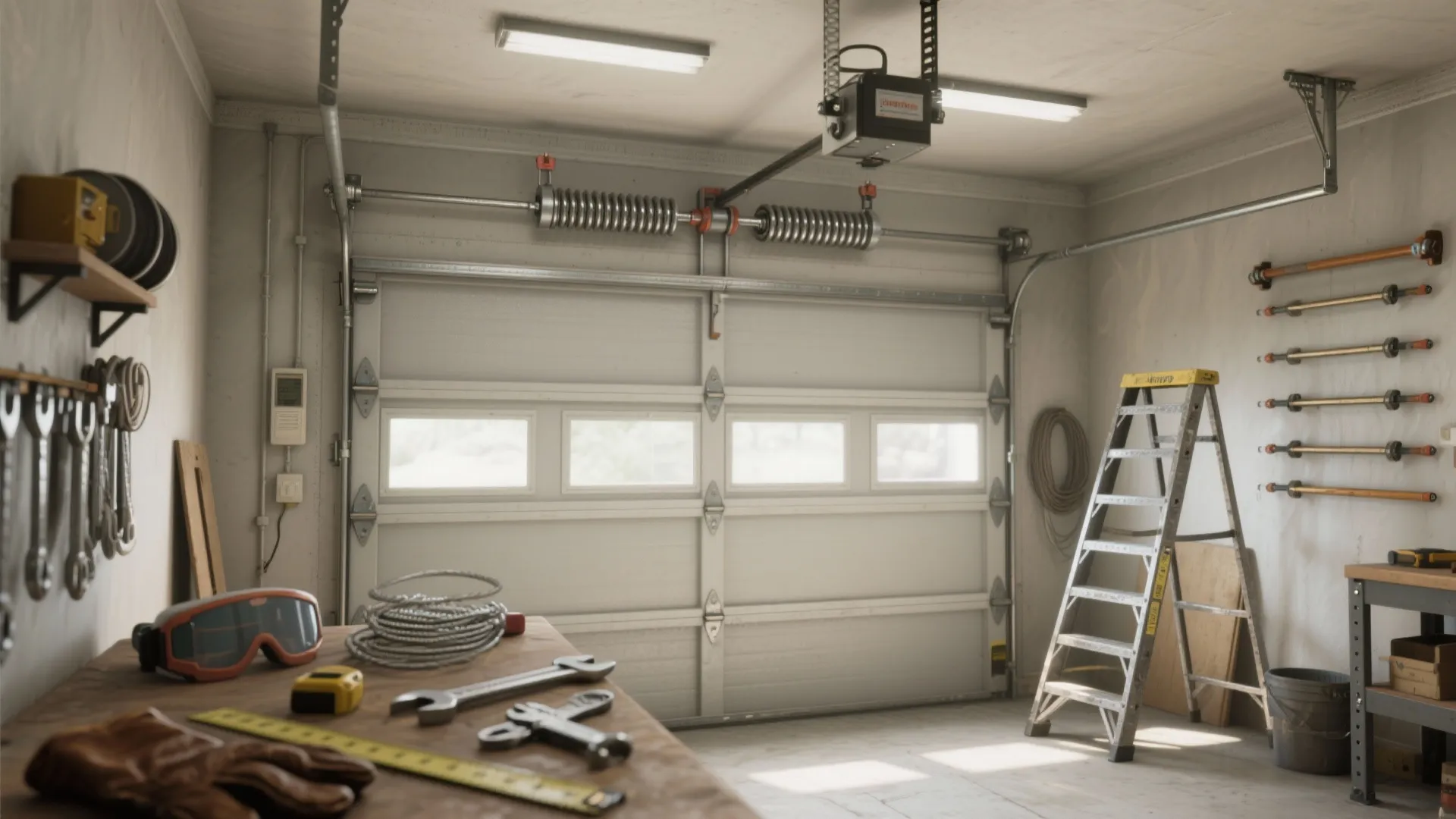

Replace Garage Door Spring DIY: Safe and Easy Guide: 1 Minute to a Safer, DIY Spring Replacement at Home

Garage door springs carry most of the door’s weight, making them critical to smooth, safe operation. A typical double garage door can weigh 150–250 pounds, and torsion springs store enough energy to lift that load repeatedly; mishandling that energy is where injuries happen. According to the International Safety Equipment Association and industry incident tracking, most residential garage-door injuries stem from tension release during improper DIY work, not from normal use. In my own projects, I treat springs with the same respect I give to steel cables under load—planning, locking out power, and measuring accurately before a single fastener moves.

Homeowners often tackle spring replacement to fix uneven lifting, loud snapping sounds, or a door that won’t stay open. It’s doable with careful preparation, the right tools, and strict adherence to load control. WELL v2 highlights the importance of safe, ergonomic movement in residential tasks; applying that mindset reduces strain when handling heavy door panels and winding bars. Steelcase’s research on repetitive task ergonomics notes that neutral wrist angles and controlled force cycles lower injury risk; I maintain stable body positioning and keep hands clear of the cone when winding. For broader facility safety references and maintenance culture, IFMA’s resources offer structured practices useful even at home.

Safety First: What I Check Before Any Spring Work

- Disconnect and lock out the opener: Unplug the motor and pull the emergency release so the door moves freely. Verify there’s no remote activation.

- Clamp the door: With the door fully closed, install two C-clamps or locking pliers on the tracks just above the bottom rollers to prevent movement.

- Eye, hand, and body protection: Safety glasses, leather gloves, and closed-toe shoes are non-negotiable. Maintain a stable stance clear of the spring’s winding cone.

- Use real winding bars: Never substitute screwdrivers or rebar; use two solid steel 1/2-inch winding bars that fit your cone’s holes precisely.

- Photograph before disassembly: Capture cable routing, drum orientation, and number of turns. It’s the fastest way to avoid errors on reassembly.

Identify Your Spring Type and Size

- Torsion springs: Mounted horizontally above the door on a torsion shaft with drums at each end. Standard for most modern sectional doors.

- Extension springs: Mounted along the horizontal tracks, stretching as the door lowers; typically paired with safety cables. Older or lighter doors often use these.

I measure torsion springs off the door with no tension: inside diameter (usually stamped on the cone, e.g., 1.75" or 2"), wire size (using 10-coil or 20-coil measurement converted to decimal), and overall length. For balance, I match the spring to the door’s weight and height. When replacing one broken torsion spring on a two-spring system, I replace both to preserve even cycle life and balance.

Tools and Materials I Lay Out

- Two steel winding bars (1/2" diameter, correct fit for your cone)

- Ratchet set and open-end wrenches

- C-clamps or locking pliers

- Tape measure and calipers for wire size

- New torsion spring(s) matched by wire size, diameter, and length

- Ladder with solid footing

- Permanent marker for indexing turns

- High-quality garage door lubricant (for springs, hinges, and rollers—not tracks)

Step-by-Step: Torsion Spring Replacement

1) Secure the door and release opener. With the door closed and clamped, disconnect the opener and pull the release cord.

2) Loosen the set screws carefully. Insert a winding bar fully into the winding cone. Hold tension firmly, then loosen the set screws—expect force. Never remove a bar until a second bar is seated.

3) Unwind the spring. Rotate the bars incrementally, transferring from one hole to the next to unwind in controlled steps until all tension is relieved.

4) Remove hardware. Loosen the center bearing plate, slide the torsion spring off the shaft, and inspect bearings and shaft for scoring or burrs.

5) Install the new spring. Align orientation: left-wound on the left side of a center support (as viewed from inside), right-wound on the right. Slide onto the shaft with the cone inward.

6) Re-seat cable drums. Ensure lift cables are seated properly in drum grooves and taut with equal length. Even cables prevent racking and uneven lift.

7) Pre-tighten set screws lightly. I align the cone over the shaft’s flat. Then I mark the shaft for reference.

8) Wind the spring. Using winding bars, add turns per manufacturer’s chart (commonly 7.5–8.5 for a 7-foot door, 8.5–9.5 for 8-foot doors)—always verify for your spring spec. Count turns audibly and mark each quarter turn on the cone.

9) Lock set screws and test balance. Tighten set screws firmly (without stripping). Remove clamps. Lift the door by hand to mid-height; a balanced door should hold position. If it drops, add a quarter turn; if it rises, remove a quarter turn.

10) Reconnect opener and run cycles. Perform two full open/close cycles, listening for cable slippage or rubbing. Lubricate springs, hinges, and rollers (not tracks) to reduce friction and noise.

Extension Spring Replacement (If Your Door Uses Them)

- Support and clamp the door closed. Remove tension by opening the door to fully extended position if safest for your setup, or use track clamps and safety cable discipline.

- Replace springs in pairs. Verify safety cables are correctly threaded through the spring body to catch broken coils.

- Check pulleys and cables. Worn pulleys or frayed cables compromise safety and balance; replace them during the same session.

Balance, Cables, and Drums: Small Adjustments That Matter

Uneven cable wrapping creates racking and extra noise. I align drums so cables track straight and evenly. If the door tilts when opening, I re-level by adjusting cable tension at the drum—small quarter turns make large differences. For layout and clearance checks around the door tracks or storage plan revisions after hardware changes, a room layout tool can help visualize clearances and workflow in your garage: room layout tool.

Ergonomics and Lighting Improve Safety

I set task lighting to 500–1,000 lux near the torsion shaft and cones to see set-screw flats clearly, in line with common residential task-lighting ranges derived from IES practice. Neutral wrist posture when winding reduces strain, and I keep elbows close to the body to maintain control. Soft, 3000–3500K lighting helps with visual comfort without glare off metal hardware.

Signs You Need New Springs

- Door feels heavy and won’t stay mid-way open

- Opener strain or jerky motion

- Visible gaps in coils (torsion spring break)

- Elongated extension springs or uneven opening

- Excessive squeal even after lubrication

Common Mistakes I Avoid

- Using makeshift rods instead of winding bars

- Removing set screws without a bar seated

- Ignoring cable seating before winding

- Failing to replace both springs on two-spring systems

- Over-tightening set screws to the point of shaft damage

Maintenance After Replacement

- Lubricate springs quarterly with a light, non-drip garage door lubricant.

- Inspect cables and drums for even wear.

- Check balance every six months by lifting the door manually to mid-position.

- Keep tracks clean; do not oil track surfaces—use a dry wipe.

When I Call a Professional

If the torsion shaft is bent, cones are cracked, the bearing plate is misaligned, or the door panel has structural issues, I stop and bring in a qualified technician. Complex multi-spring or high-lift systems, and doors with jackshaft openers and tight clearance, are best serviced by pros with calibrated tools.

FAQ

Q1: How do I know my torsion spring size?

A1: Measure the inside diameter (stamped on the cone), wire size using 10 or 20 coils (divide total length by coil count), and overall length. Match these to your door weight/height. If uncertain, consult the spring chart from your door manufacturer.

Q2: How many turns should I wind?

A2: Typical 7-foot doors use around 7.5–8.5 turns; 8-foot doors around 8.5–9.5. Always follow your spring’s specification, and adjust in quarter turns for balance.

Q3: Can I replace just one broken spring?

A3: On a two-spring torsion setup, replace both to maintain equal cycle life and balance. Mixing old and new springs leads to uneven lift and premature wear.

Q4: What tools are essential?

A4: Two proper winding bars, wrenches, clamps, tape measure/calipers, ladder, and a matched replacement spring. Do not substitute winding bars—fit and strength are safety-critical.

Q5: Why does my door feel heavy after winding?

A5: The spring may be under-wound, cables may be mis-seated, or the spring specification may be mismatched to the door weight. Add a quarter turn and re-test; verify cable alignment on drums.

Q6: Are extension springs safe for DIY?

A6: Yes, with safety cables installed and proper clamping. Replace in pairs and inspect pulleys. Tension is lower than torsion setups but still demands caution.

Q7: What lubricant should I use?

A7: A garage door-specific spray or light oil designed for coils, hinges, and rollers. Do not lubricate track faces; they should remain clean and dry for stable roller travel.

Q8: How often do springs wear out?

A8: Standard residential springs are often rated around 10,000 cycles. Heavy daily use, harsh climates, or poor lubrication can shorten life; balanced doors and seasonal lubrication extend longevity.

Q9: Can poor lighting increase risk?

A9: Yes. Task lighting around 500–1,000 lux improves visibility at cones and set screws. Glare increases mistakes; I prefer warm-neutral 3000–3500K lighting for comfort.

Q10: Should I adjust drums to fix a crooked opening?

A10: If one side rises faster, check cable seating and drum alignment. Small adjustments at the drum set screws can correct tilt; always re-clamp the door before changes.
