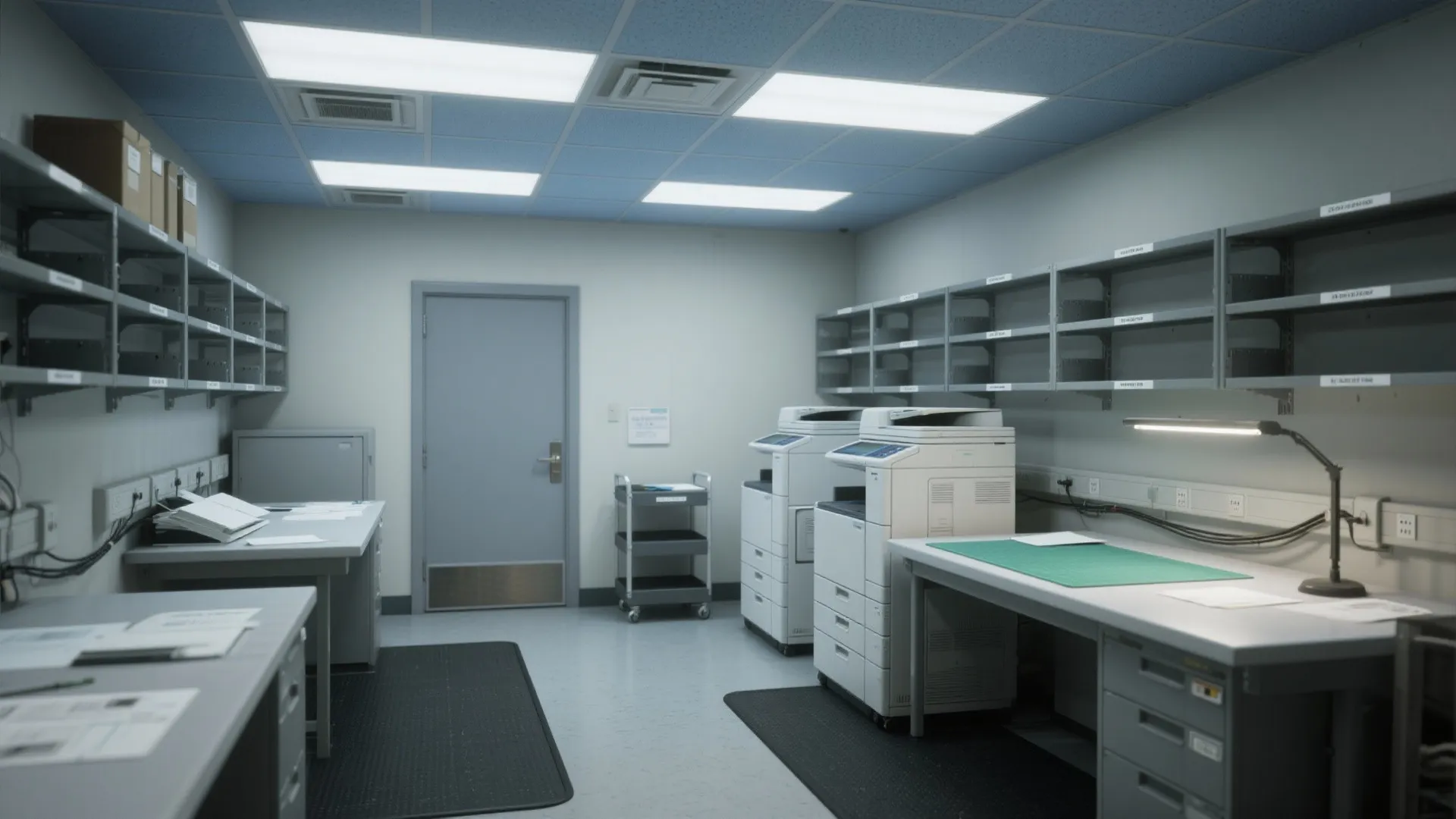

Reprographic Room Design: Smart Solutions for Compact Spaces: 1 Minute to Create an Efficient Reprographic Room Layout

Designing a reprographic room in a compact footprint has to balance throughput, safety, and operator comfort. I approach these rooms like micro-workshops: precise circulation, reliable ventilation, and resilient finishes. In small spaces, poor layout can bottleneck tasks and amplify noise and heat from printers and copiers. Data backs the human side of these decisions—WELL v2 emphasizes thermal and acoustic parameters to reduce strain, and Steelcase research associates adequate environmental control with improved task performance and reduced fatigue. These are not nice-to-haves; they are productivity safeguards in tight quarters.

The acoustic profile of a reprographic room matters more than many expect. According to WELL v2 (Feature S01–S04), managing background noise and reverberation is tied to better cognitive performance and lower stress. For lighting, I use IES recommendations to keep task illuminance around 300–500 lux for general document handling, with higher localized illuminance up to 750 lux at inspection areas to ensure legibility without glare. This pairing—controlled sound and calibrated light—streamlines quality control while keeping operators alert, not overstimulated.

Core Layout Strategy: Flow First, Machines Second

I start with a looped workflow: inbound materials, staging, print/copy core, finishing, quality check, and outbound. That sequence avoids backtracking and minimizes cross-traffic. Shared surfaces sit between equipment to reduce micro-movements, and clearances are non-negotiable: maintain at least 900 mm (36 in) aisle width, with 1,200 mm (48 in) at primary pass-throughs for safe equipment access and cart movement. If you’re iterating space options or simulating circulation, a layout simulation tool helps you stress-test adjacency and movement before committing walls or power points: room layout tool.

Thermal, Ventilation, and Emissions Control

Heat loads spike fast in compact rooms. Printers and copiers shed both heat and particulates (including ozone in some older models). I specify dedicated exhaust near high-heat devices, with make-up air sized to the equipment schedule. WELL v2 IAQ guidance supports filtration and source control, which translates to sealing penetrations, isolating the room from open offices, and using MERV 13 or better where building systems allow. Keep temperature in the 22–24°C range and monitor humidity between 40–60% to stabilize paper and reduce curl.

Lighting Without Glare

Even light, low glare, and task adjustability are key. I use neutral-white sources (3,500–4,000K) to preserve color fidelity for document checks. Avoid direct downlight over glossy equipment hoods; use batwing distributions or indirect components to spread illumination. IES task targets (300–500 lux for general zones; up to 750 lux for inspection) help define a layered strategy: ambient grid, task flex arms at finishing benches, and accent lighting at filing indices. Keep CRI at or above 80 for everyday paperwork; push to 90 if color proofs are frequent.

Ergonomics: Reach, Height, and Repetition

Operators repeat micro-tasks—loading trays, lifting reams, clearing jams—so bench heights matter. I keep finishing counters at 870–900 mm (34–35 in), with anti-fatigue mats at standing stations and optional perched stools. Storage within the primary reach envelope (500–700 mm above floor for heavy reams; 1,200–1,500 mm for light supplies) cuts strain. Cable and tray access should be front-facing where possible to avoid awkward rotational reaches. If the room serves multiple users, I specify adjustable task lighting and mobile carts to adapt quickly.

Acoustic Comfort in Machine-Dense Rooms

Short reverberation times improve intelligibility and reduce stress. I target an RT60 around 0.5–0.7 seconds with a mix of ceiling acoustic tiles (NRC 0.75–0.90), wall panels at first reflection points, and soft storage fronts. Seal door perimeters and use drop seals to limit noise migration. Equipment clustering should balance acoustic buildup—separate the loudest units or interpose absorption surfaces to damp spillover into adjacent work areas.

Material Selection: Durable, Cleanable, and Low-VOC

Floors take rolling loads and paper dust; I specify cushioned vinyl or rubber with high indentation resistance and coved bases for easy cleaning. Walls in splash zones get scrubbable paint (low-VOC) or washable panels. For sustainability, I lean on certified low-emitting finishes, and where feasible, recycled-content rubber flooring. Worktops should resist cutters and heat: compact laminate or sealed birch ply with replaceable cutting mats at finishing stations.

Power, Data, and Safety

Plan for future capacity—dedicated circuits per large machine, cable management trenches or overhead grids, and surge protection. Keep emergency shutoffs visible and unobstructed. Fire strategy matters: classify paper storage, avoid overhead heat traps, and maintain clear egress widths. Label shelves and trays to cut error rates during peak runs.

Storage: Smart, Sized, and Sequenced

Paper behaves like a material, not just a supply. I separate unopened reams (sealed), open paper (in dust-protected bins), and specialty stocks by grain direction and weight. Place the heaviest storage nearest the print core to reduce cart runs. Vertical roll storage for wide-format media keeps floor area open, and mobile shelving units provide surge capacity during large jobs.

Small Room Tactics

In compact rooms, I compress depth before compressing width. Shallow benches (500–600 mm) with under-counter drawers reclaim footprint, and corner radii on counters improve circulation. Mirrors on blind corners increase spatial awareness. If you need to test machine adjacency, an interior layout planner can be invaluable to visualize clearances and maintenance swing paths: interior layout planner.

Human Factors and Workflow Psychology

Color tones influence pace. Verywell Mind’s color psychology guidance associates cool hues with focus and warm accents with energy. I use desaturated blues and greys as base tones, with small warm cues at task zones for micro-alertness. Keep signage frictionless—icon-based labels on trays and bins. When operators feel the room supports them, errors drop and throughput climbs.

Commissioning and Maintenance

Run a heat-load and acoustic test post-install. Validate lux levels at all task stations and recalibrate dimming curves if glare emerges. Train staff on cable discipline, jam clearance protocols, and paper storage turnover to reduce dust. Schedule filter replacements and keep service clearance lines marked on floors; it’s the simplest way to prevent layout creep.

FAQ

What is the ideal illuminance for document inspection?

General work should be at 300–500 lux, with inspection areas up to about 750 lux per IES task guidance. Use adjustable task lighting to fine-tune without adding glare.

How do I control heat in a compact reprographic room?

Provide dedicated exhaust near high-heat devices, ensure balanced make-up air, and maintain 22–24°C with 40–60% RH. Equipment scheduling and IAQ practices aligned with WELL v2 help keep conditions stable.

What aisle widths are safe around printers and copiers?

Maintain at least 900 mm (36 in) for secondary aisles and 1,200 mm (48 in) at primary pass-throughs to accommodate users, carts, and maintenance access.

Which materials hold up best under paper dust and rolling loads?

Rubber or cushioned vinyl floors with coved bases, compact laminate or sealed ply worktops, and scrubbable low-VOC wall finishes provide durability and easy cleaning.

How do I reduce noise without sacrificing space?

Use high-NRC ceiling tiles, targeted wall panels, door seals, and strategic equipment separation. Aim for RT60 around 0.5–0.7 seconds to keep speech intelligible and stress low.

What color temperatures work best for print rooms?

Neutral-white lighting at 3,500–4,000K supports accurate document reading and visual comfort. Pair with CRI ≥80 for general work, and higher CRI if color accuracy is critical.

How should I organize paper storage?

Separate unopened from opened stock, store by weight and grain direction, keep heavy reams low and near the print core, and use dust-protected bins for open paper.

Do I need dedicated circuits for every machine?

Large printers and copiers typically require dedicated circuits. Plan power and data grids with capacity for future equipment and ensure surge protection and cable management.

What ergonomic features reduce operator fatigue?

Bench heights at 34–35 in, anti-fatigue mats, perched stools, and keeping frequently used supplies within an easy reach envelope cut repetitive strain.

Can I simulate different layouts before build-out?

Yes. Using a room design visualization tool to model clearances, maintenance swing paths, and workflow sequences helps prevent bottlenecks and rework.
