Revit Kitchen Family: My Secrets for Smart, Space-Saving Design: 1 Minute to Create Functional Revit Kitchen Families (My Fastest Workflow Hacks)

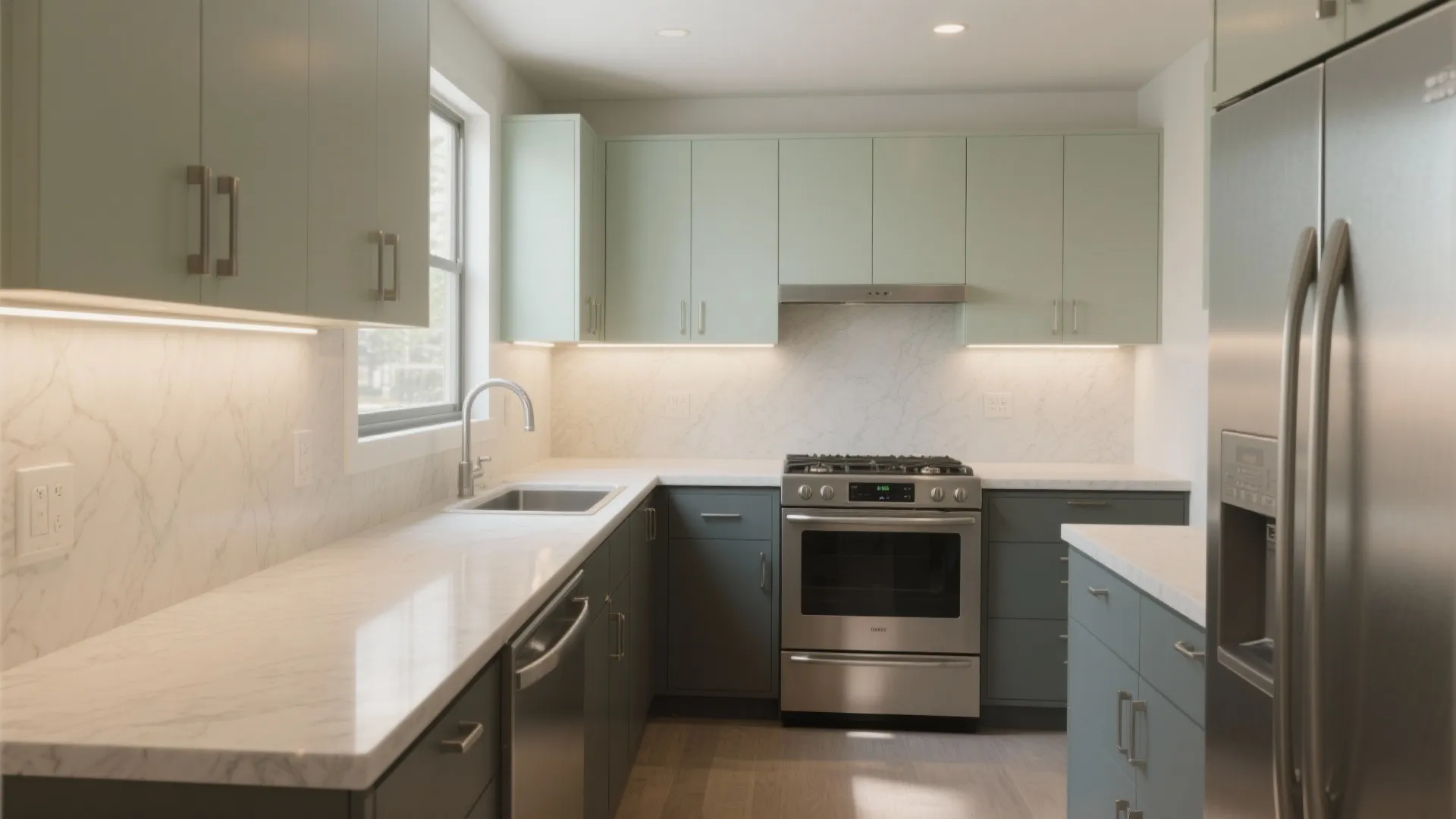

I’ve spent a decade refining kitchen families in Revit to be compact, ergonomic, and genuinely livable. The trick isn’t just squeezing dimensions—it’s orchestrating reach, sightlines, light, and workflow so every gesture in the kitchen feels natural.

Benchmarking matters. WELL v2 recommends task lighting around 300–500 lux for food prep, escalating to 500–1000 lux for high-focus tasks; set your family parameters to aim fixtures accordingly (WELL v2 Light concept). Steelcase research associates well-lit, glare-controlled task zones with improved accuracy and reduced fatigue—use glare cutoffs and shielded under-cabinet lighting to protect sightlines from specular reflection. I keep under-cabinet strips modeled as adjustable intensity assets so users can tune luminance per counter stretch.

Ergonomics is non-negotiable: NKBA suggests the work triangle legs between the sink, cooktop, and refrigerator total 13–26 ft, with each leg ideally 4–9 ft. Maintain that span using flexible connectors in Revit—define instance parameters for appliance offsets so you can dynamically test triangle efficiency without redrawing. For reach, the comfortable vertical zone sits roughly 30–72 in from the floor; set your wall cabinet family heights and shelf parameters so essential items land in the 48–60 in sweet spot, minimizing shoulder strain.

Designing Families That Think: Parametric Essentials

My core recipe: fewer types, richer instance parameters. I structure base cabinets with standardized widths (12, 15, 18, 24, 30, 36 in) and expose toe-kick height, door swing clearance, and internal divider options. For micro kitchens, include a variable depth (21–24 in) with automatic countertop overhang rules so you can reclaim precious inches without compromising appliance fit.

Doors and drawers get real clearances. I model swing arcs as symbolic lines in plan and collision solids in 3D, then tie them to an “operation clearance” parameter. It acts like a built-in checker—move the island and the system immediately shows if you’re blocking a dishwasher door. Add a “quiet-close” parameter that toggles hardware type and affects estimated sound levels in the schedule notes to keep acoustic comfort visible for clients.

Workflow: Prep, Cook, Clean—Mapped in Revit

Efficient kitchens follow the prep–cook–clean rhythm. I tag counters with functional zones so the family knows which stretch needs more light and which needs splash protection. Under-cabinet lighting families link to zone tags via shared parameters; prep zones default to 500 lux, cook zones add a glare shield to mitigate reflections off stainless surfaces (IES guidelines for task lighting and glare control). If you’re shaping a tight galley, simulate movement paths early using a layout simulation tool to test turning radii and door interferences—then lock in cabinet pulls positioned vertically to reduce lateral reach stress.

When layout iterations intensify, a room design visualization tool helps you validate circulation and triangle lengths quickly. I keep the work triangle as a reportable parameter set in the central kitchen group, so every option triggers a new measurement readout and flags if you exceed NKBA guidance.

Lighting That Works Hard Without Glare

Space-saving doesn’t mean dim. Task light is a performance feature: integrate under-cabinet fixtures at 300–500 lux and use a correlated color temperature around 3500–4000K to balance food color rendition with comfort. Add an anti-glare baffle to LED strips where polished quartz is used; bright counters can double perceived luminance, so shielding is key. I place ceiling ambient lighting at 150–300 lux to maintain contrast ratios, then use pendant accents over islands with diffusers to avoid hard shadows.

Storage That Adapts: Vertical, Deep, and Smart

Every inch counts. Pull-outs with variable rail depth turn narrow bays into high-yield storage. For tall cabinets, integrate adjustable shelf increments (1–1.5 in steps) so users can tune to appliance height. Keep heavy items in the 30–48 in zone for safer lifts and define a “heaviest item shelf” flag inside the family to push safety notes into schedules. I also embed a “vented pantry” option with perforation geometry for areas that stock aromatic goods—reduces stale odor buildup.

Materials, Acoustics, and Easy Maintenance

I specify low-VOC finishes and durable laminates for low-touch surfaces, reserving solid wood or composite fronts where tactile warmth makes a difference. For acoustics, soft-close hardware, felt bumpers, and silicone gaskets reduce impact noise—the cumulative effect is noticeable in hard-surface kitchens. Seams and caulk lines are modeled as detail components so maintenance schedules can count linear footage for accurate service estimates.

Islands and Peninsulas: The Multi-Task Workhorse

If square footage is tight, peninsulas beat large islands. Maintain 36–42 in clearances around the perimeter to support turning and pass-by. Build seating modules with knee clearance parameters (at least 12 in for counter-height overhang) and footrest placement so guests sit naturally while staying outside the cook’s path. I keep a “social cook” toggle—when enabled, the layout allocates prep surfaces facing seating and adds a task light layer with lower glare risk for conversational comfort.

Color Psychology and Visual Rhythm

Color can compress or expand perception. Light, low-saturation fronts expand apparent width; darker bases anchor the floor. Warm neutrals around 3000–3500K lighting feel inviting; cooler 4000K energizes morning routines. Use rhythm—repeating cabinet widths—to calm visual noise. Break monotony with one accent appliance or a textured backsplash; too many highlights shrink perceived space.

Real-World Tricks for Micro Apartments

• Combine a 24 in cooktop with a 24 in dishwasher and a 27–30 in sink base; the family set preserves triangle integrity in minimal footprints.

• Pocket doors for tall appliance garages reduce projection into circulation.

• Integrate magnetic knife racks and under-shelf lighting inside wall cabinets to free counters.

• Fold-down secondary prep ledge modeled as a nested family gives 8–12 in temporary surface when cooking for guests.

Documentation That Sells the Design

Schedules should tell a story: list clearances, triangle lengths, lux targets, hardware acoustics, and maintenance notes. Clients respond to quantified comfort. When sharing options, keep a clean type catalog and one-page performance summary for each scheme so decisions happen quickly.

Authority References

For task lighting ranges and glare guidance, see WELL v2 Light concept and IES task lighting standards. Ergonomic layout ranges draw on NKBA kitchen planning recommendations.

FAQ

Q1: What are the ideal work triangle dimensions in a compact kitchen?

A1: Aim for 13–26 ft total across sink, cooktop, and refrigerator, with each leg around 4–9 ft. In Revit, expose appliance offsets as instance parameters so you can keep the triangle within NKBA guidance.

Q2: How much task lighting should I model for prep zones?

A2: Target 300–500 lux for general prep and up to 500–1000 lux for high-focus tasks per WELL v2 and IES guidance. Use under-cabinet fixtures with shielded optics to prevent counter glare.

Q3: What clearances do I need for dishwasher and oven doors?

A3: Provide 36 in circulation clearance minimum in front of appliances and model door arcs plus a 3–6 in buffer. In families, an “operation clearance” parameter can visually flag collisions when layouts shift.

Q4: Which cabinet widths are most space-efficient?

A4: Standardize on 12, 15, 18, 24, 30, and 36 in modules. Smaller pull-outs (9–12 in) excel for spices and trays, while 24–36 in drawers optimize cookware storage without excessive divisions.

Q5: What color temperature supports both cooking and socializing?

A5: 3500–4000K strikes a good balance: accurate color rendering for food with comfortable warmth. Pair ambient 150–300 lux with task 300–500 lux to maintain healthy contrast.

Q6: How do I reduce kitchen noise in open-plan apartments?

A6: Specify soft-close hardware, felt bumpers, silicone gaskets, and resilient underlayment. In Revit, mark these as parameters so schedules communicate acoustic intent to contractors.

Q7: What’s the minimum island clearance I should maintain?

A7: Keep 36–42 in all around. For seating, allow at least 12 in knee clearance under the overhang and align footrests to natural posture to reduce strain.

Q8: How do I document performance for clients?

A8: Include triangle lengths, lux targets, glare notes, hardware types, and maintenance lineal footage in schedules. A one-page summary per scheme speeds approvals.

Q9: Can micro kitchens handle full-size appliances?

A9: Yes, but 24–27 in appliances often yield better circulation. Model appliance families with adjustable clearances and test turning radii using a layout simulation tool before committing.

Q10: What finishes balance durability and sustainability?

A10: Low-VOC laminates for high-touch surfaces, composite or solid wood fronts for warmth, and quartz counters with matte finishes to reduce glare. Track finish types in schedules for maintenance planning.
